Description

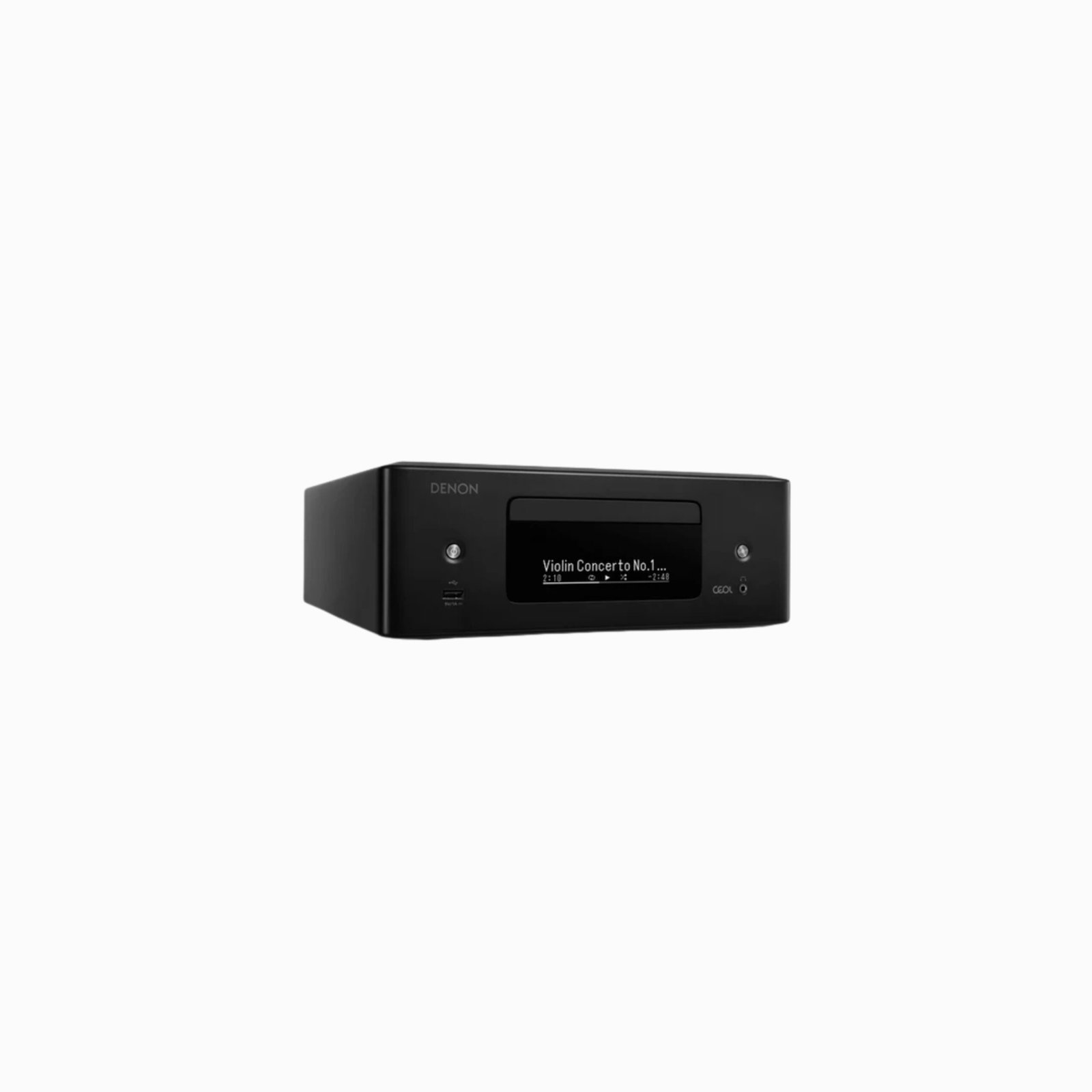

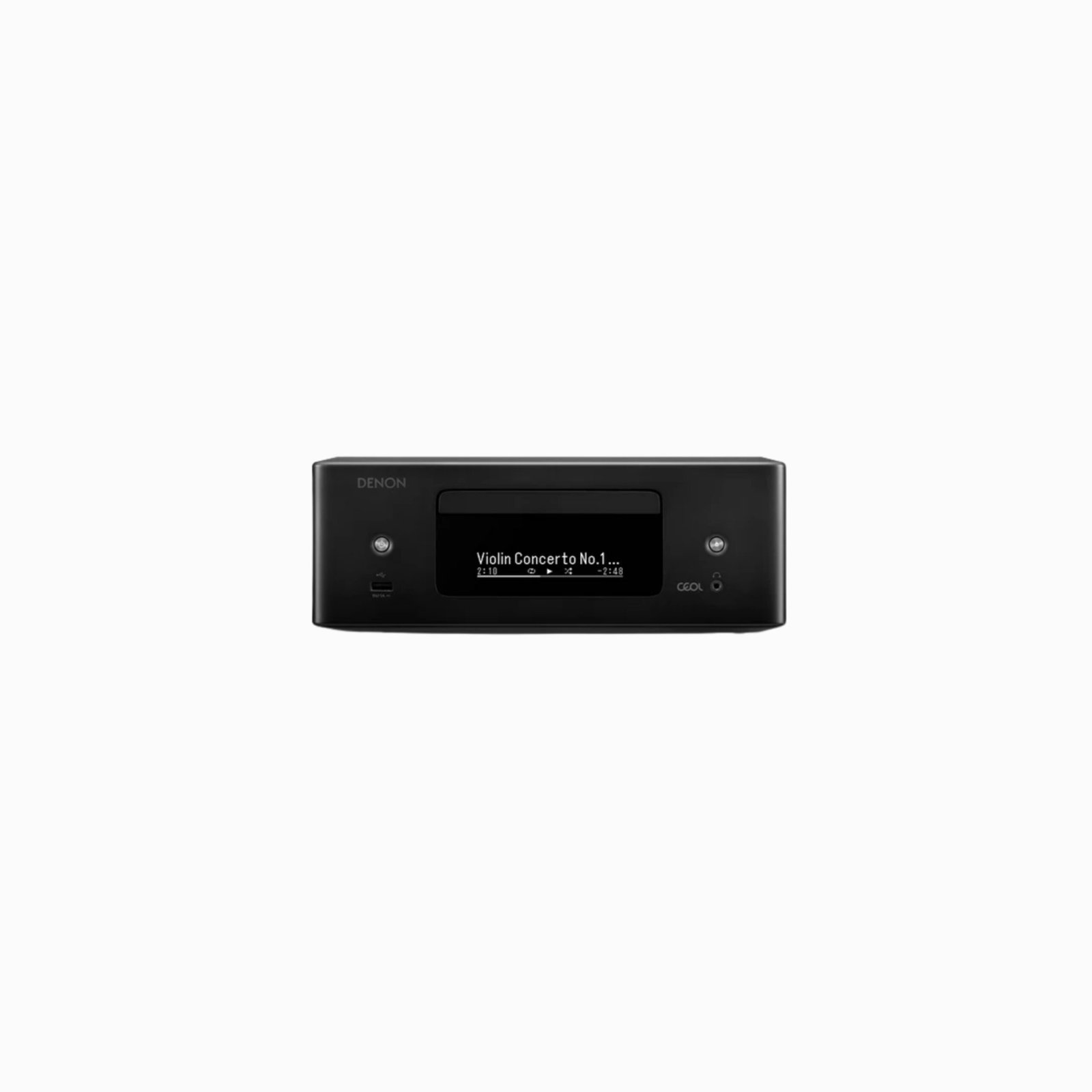

CEOL N-12
Mini all-in-one Hi-Fi system with CD player, radio, and HEOS® Built-in
Superb sound from an elegant, compact package. With a radio tuner, CD player, and HEOS® Built-in, plus HDMI ARC for TV connection, phono input, and audio pre-out, it’s the perfect audio hub for a small living space.
Features
High-Quality Power Output2 x 65 W
CD Compatibility: CD / CD-R/RW / WMA / MP3Yes / Yes / Yes / Yes
Tuner: FM/AMYes / Yes
Phono MM InputYes
Network Audio StreamingYes
Spotify Connect*/Tidal*/Deezer*/others *Yes / Yes / Yes / Yes
Amazon Prime Music*/Pandora*Yes / Yes
AirPlay 2Yes
Roon TestedYes
Internet RadioTuneIn
HEOS Multi-Room and Streaming Yes
Voice Control —Works with Amazon AlexaYes
Auto Power On by Optical Input SignalYes
TV Remote LearningYes
Quick Select ButtonsYes
Bluetooth/aptX/NFCYes / No / No
Bluetooth Headphone TransmissionYes
USB Audio: Front/RearYes / No
USB-A: DSD/WAV/FLAC/AIFF/ALAC5.6 / 192 / 192 / No / 192
Ethernet/Wi-FiYes / Yes
WiFi Setup: WPS/Wi-Fi SharingYes / Yes
Lossy Formats: MP3/WMA/AACYes / Yes / Yes
Lossless Formats: FLAC HD/ALAC/WAV/AIFF/DSDYes / Yes / Yes / No / Yes
Gapless PlaybackYes (FLAC, WAV, DSD)
Tone Control: Bass/Treble/BalanceYes / Yes / Yes
Low Noise OELD Display3 line
ClockYes
Sleep TimerYes
Programmable Timer: Once/DailyYes / Yes

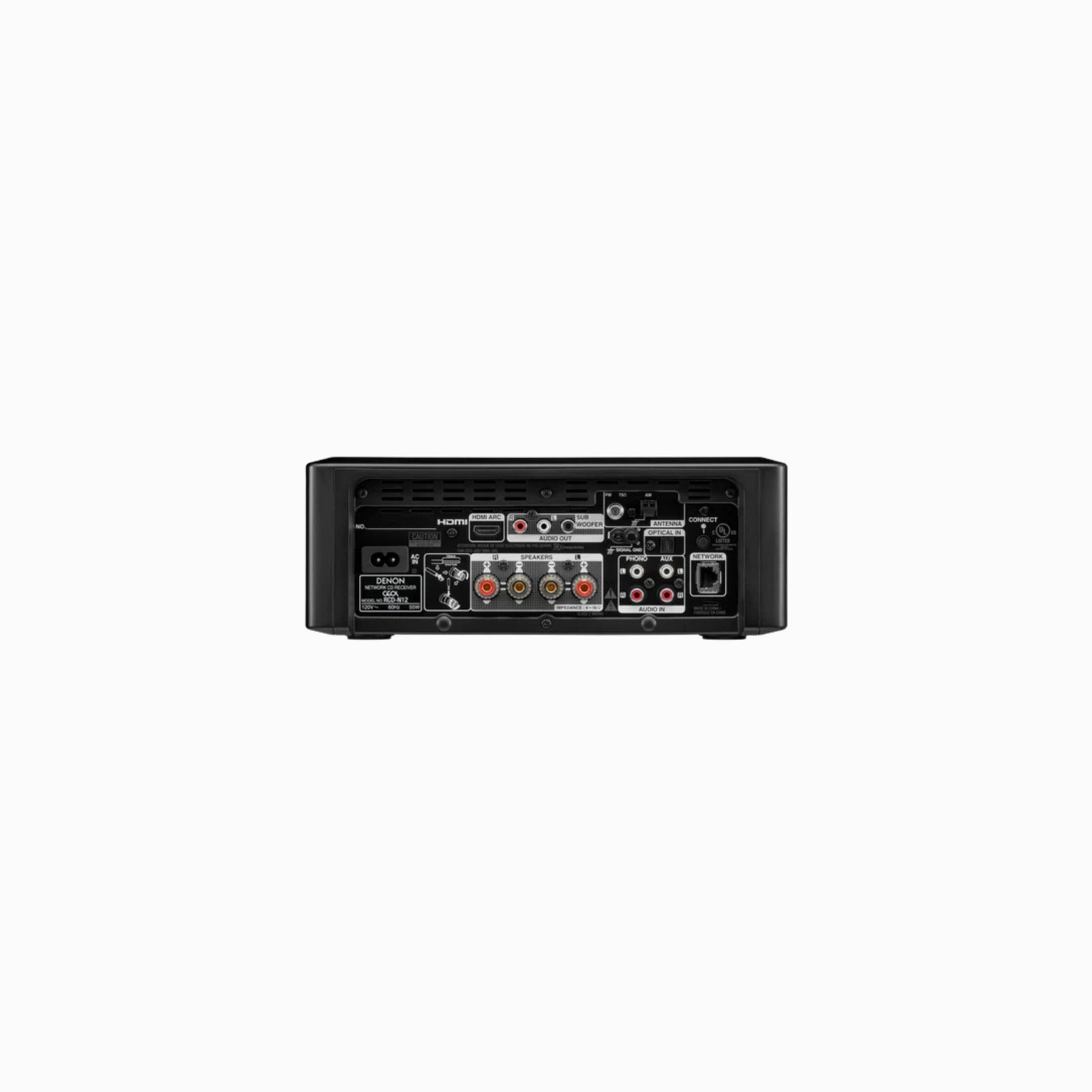

Inputs/Outputs
AUDIO
Analog In/Out2 (AUX, PHONO MM) / No
Digital Optical In/Out1 / No
HDMI ARC InputYes
OTHER
Subwoofer Pre-OutYes
Main Pre-OutYes
Speaker Terminal: Push Type/ScrewNo / Yes
Headphone OutYes
Specs
AUDIO SECTION (ANALOG IN)
Power Output (4 ohms, 1 kHz, 0.7% THD)2 x 65W
Number of Channels2
Freq. Response (Analog In)10 Hz–40 kHz
Signal-to-Noise Ratio (Audio)90dB
Input Sensitivity/Impedance (Analog In)200mV / 30 kohms
Total Harmonic Distortion (Audio)0.1 (1 kHz/5W/ 4 ohms)
AUDIO SECTION (PHONO (MM))
Freq. Response (Phono)20Hz–20kHz (RIAA deviation)
Signal-to-Noise Ratio (Phono)74dB
Input Sensitivity/Impedance (Phono)2.5mV / 47 kohms
TUNER SECTION FM
Frequency Range FM87.5–108 MHz
Signal-to-Noise Ratio (Mono/Stereo) FM70 / 70 dB
Total Harmonic Distortion (Mono/Stereo) FM0.4 / 0.4%
General
Available Colors: Black/WhiteYes / No
Remote ControlRC1255
Power Consumption in W55
Standby Consumption in W0.4
Maximum Dimensions (W x D x H) in Inches11 1/8 x 11 59/64 x 4 1/4
Weight in lbs7 lbs, 8 oz
Carton Maximum Dimensions (W x D x H) in Inches15 5/16 x 13 3/16 x 9 1/16
Carton Weight (inc. product) in lbs 10 lbs, 9 oz
What’s in the Box (for the US: )Main unit, remote control, batteries, HDMI cable, AM/FM antenna, AC cord, quick start guide
