Description

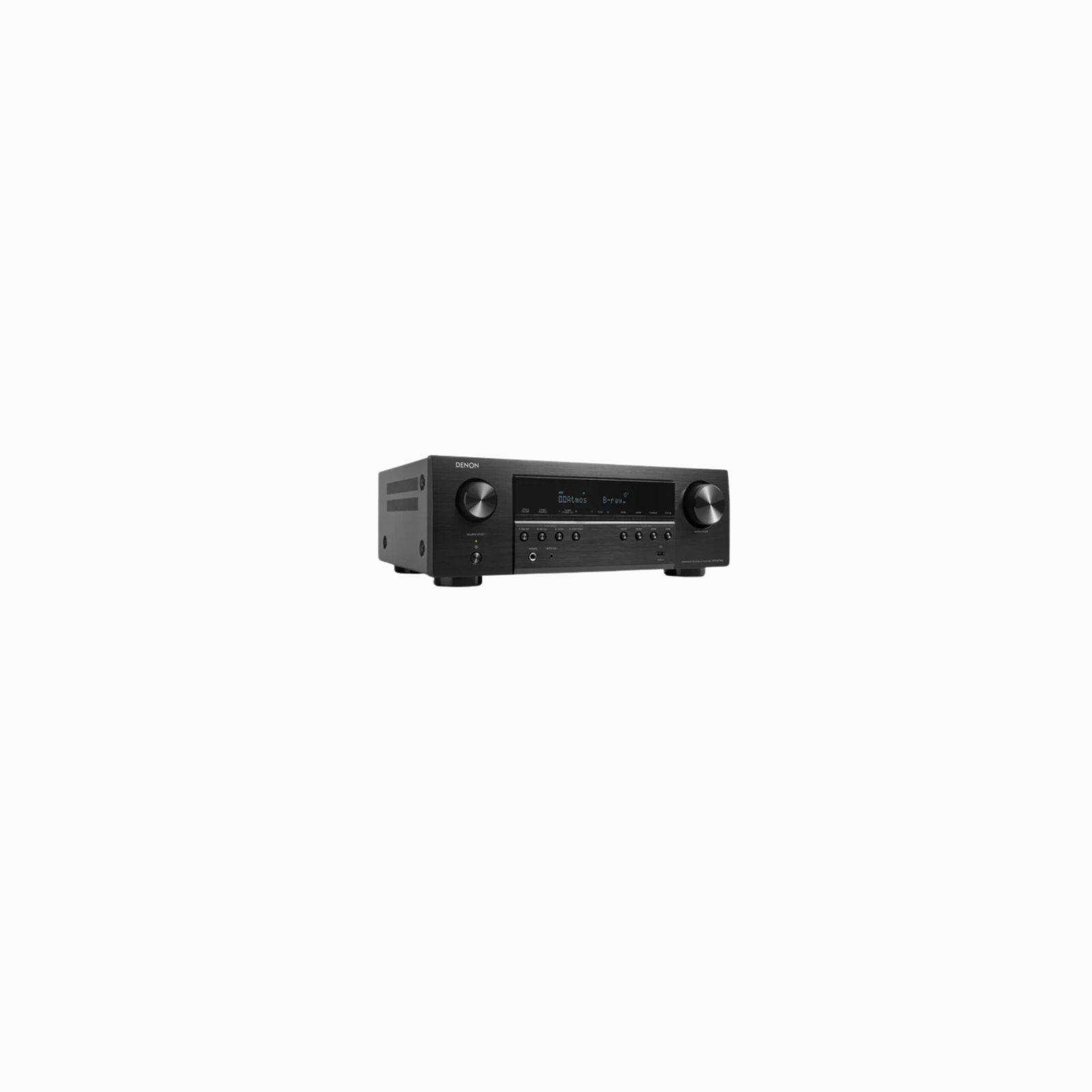

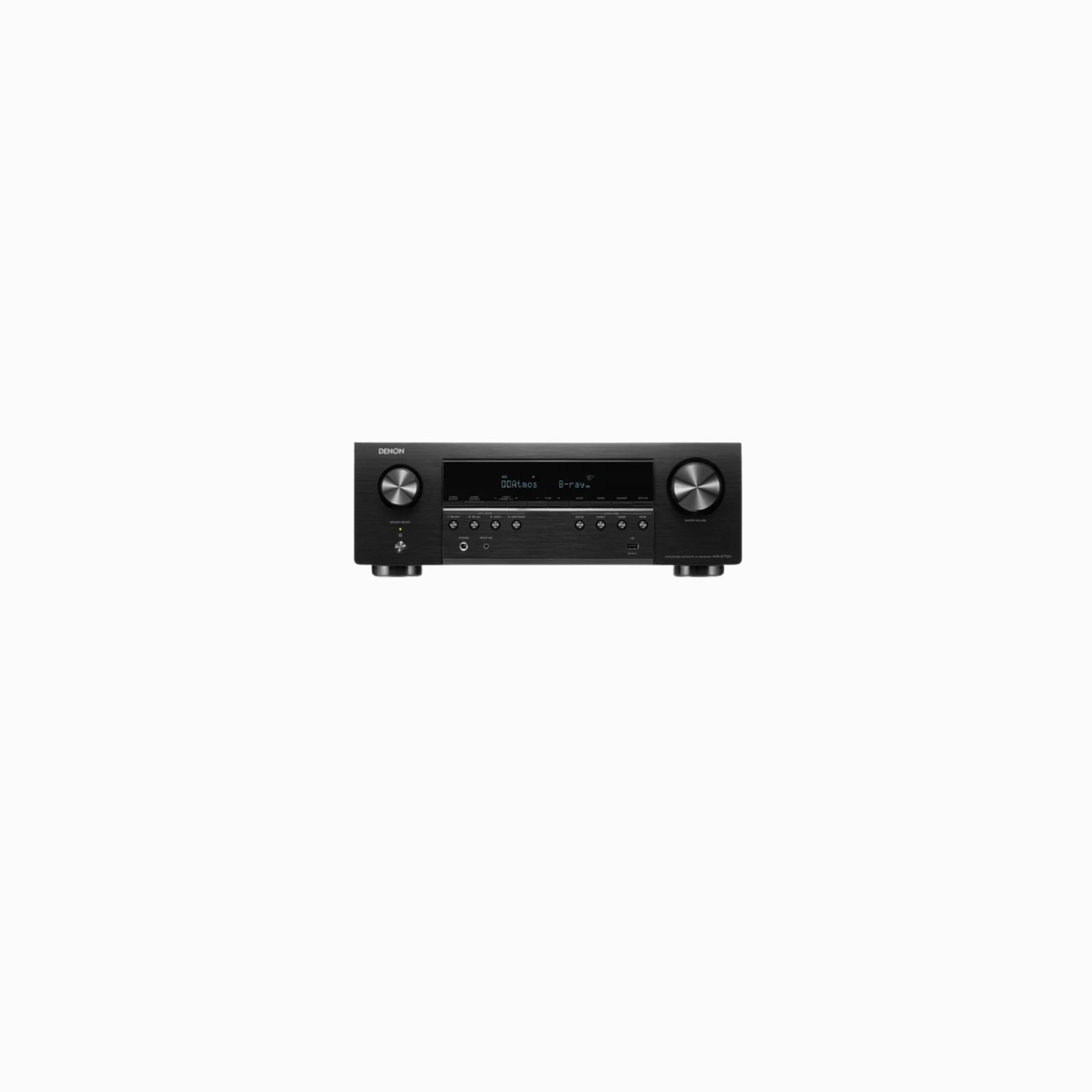

Denon AVR-S770H – 7.2 Channel 8K Dolby Atmos AV Receiver
AVR-S770H
7.2 Ch. 75W 8K AV Receiver with HEOS® Built-in
Enjoy incredible 8K video and 3D audio from the AVR-S770H. Fill small to mid-size rooms with sound from a 7.2 or 5.2.2 surround sound setup with Dolby Atmos and DTS: X. And with HEOS® Built-in, you can stream and share music to any HEOS-enabled speaker throughout your home.
- 7.2 channels
- 8K HDMI
- Wi-Fi and Bluetooth
- 3D audio from Dolby Atmos and DTS: :X
- HEOS® Built-in
- Audyssey room correction
This is the heart of your home theater
Enjoy 8K video and true surround sound from a 5.2-channel receiver with HEOS® wireless music streaming.
Enjoy 8K video and spectacular 3D sound
Denon quality sound
Fill a small to mid-size room with dynamic Denon sound.
Spectacular 3D audio
Feel like you’re in the middle of a movie with Dolby Atmos.
Geared for 8K
Enjoy amazing video quality from the latest 8K technology.
Enjoy incredible 8K video and 3D audio
With HEOS® Built-in, easily access streaming music and share with HEOS-enabled speakers in other rooms.
High-performance discrete 7-channel amplifier
Discrete high-current amplifiers on all channels deliver up to 75W per channel (at 8 ohms, 20-20kHz, THD 0.08%)—enough power to drive most speakers in a mid-size room.
Built-in Wi-Fi and Bluetooth
Provides both Wi-Fi and Bluetooth connectivity for your wireless network or direct music streaming from your smart devices. Use AirPlay to stream Apple Music.
Simple setup and Audyssey room correction technology
Our award-winning guided setup assistant provides clear, step-by-step instructions to get you started. Includes Audyssey MultEQ software for accurate calibration that optimizes the listening experience in your room.
Over a century of innovation
Founded in 1910, Denon enables the moments that matter through the relentless pursuit of quality, innovation, and audio performance.
Tailor your sound with complete connectivity & control
Every element of a Denon product is thoughtfully crafted to deliver an unforgettable audio experience.
Specifications
Multichannel Surround
|
DTS HD Master / DTS:X / DTS:X Pro
|
Yes / Yes / No |
|---|---|
|
DTS Neo:6 / DTS Neural:X
|
No / Yes |
|
DTS Virtual:X
|
Yes |
|
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music
|
Yes / Yes / Yes / Yes |
|
Dolby ProLogic Il / Dolby Surround
|
No / Yes |
|
Multichannel Stereo
|
Yes |
|
Dialog Enhancer
|
Yes |
|
Max. number of processing (preamp) channels
|
7.1 |
Sound Enhancements
|
Discrete Power Amplifier
|
7 |
|---|---|
|
Audyssey
|
MultEQ |
|
Audyssey Dynamic EQ / Dynamic Volume
|
Yes / Yes |
|
Compressed Audio Restorer
|
Yes |
Network
|
Media Server
|
Yes |
|---|---|
|
HEOS Wireless Multi-Room Technology
|
Yes |
|
Bluetooth Re-Transmit for Bluetooth Headphones
|
Yes (with volume control) |
|
Alexa / Google Voice Assistant / Apple HomePod
|
Yes / Yes / Yes |
|
Lossy Formats: MP3 / WMA / AAC
|
Yes / Yes / Yes |
|
Lossless Formats: FLAC / ALAC / WAV
|
Yes / Yes / Yes |
|
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
|
Yes / Yes / Yes |
|
DSD Audio Streaming
|
Yes (2.8/5.6MHz) |
|
FLAC HD 192/24
|
Yes |
|
WAV 192/24
|
Yes |
|
ALAC 192/24
|
Yes |
|
Gapless playback
|
Yes (FLAC, WAV, ALAC, DSD) |
|
AirPlay Audio Streaming
|
Yes (AirPlay2) |
|
Internet Radio
|
Yes (TuneIn) |
|
Spotify
|
Yes (connect) |
|
Pandora
|
Yes |
|
SiriusXM
|
Yes |
|
Other Streaming Services
|
Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix |
|
Roon Tested
|
Yes |
|
HEOS App Control
|
Yes |
|
Compatible with Remote APP for Smart Phones
|
Denon AVR Remote |
|
Compatible with Remote APP for Tablets
|
Android / iOS / Amazon Kindle |
|
Ethernet Ports
|
Yes |
|
Wi-Fi
|
Yes |
|
Bluetooth
|
Yes |
HDMI
|
HDMI Inputs: Back/Front
|
6 (3x 8K) / Yes |
|---|---|
|
HDMI Outputs: Main/Zone
|
1 / No |
|
HDMI max Resolution (8k / 4k)
|
8k/60 – 4k/120 |
|
HDMI to HDMI Scaling
|
up to 8K 60/50 |
|
HDMI: 8K / 4K / CEC / eARC
|
Yes / Yes / Yes / Yes |
|
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR /HLG
|
Yes / Yes / Yes / Yes |
|
HDMI: ALLM / QMS / QFT / VRR
|
Yes / No / Yes / Yes |
|
HDMI Pass-Though in Standby Mode
|
Yes |
Multiroom / CI
|
HEOS Multiroom integrated
|
Yes |
|---|---|
|
TV Sound grouping
|
Yes |
|
Multiroom zones
|
2 |
|
Main room multichannel audio – Zone stereo downmix
|
Yes |
|
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
|
Yes (2ch) / Yes (2ch) / Yes / Yes |
|
Zone Audio Output: Speaker / Pre-Out
|
Yes / No |
|
Webbrowser Setup
|
Yes |
|
IP Control / RS232 Control / Web Control / App Control
|
Yes / No / Yes / Yes |
Others
|
Voice Control – Works with Amazon Alexa
|
Yes |
|---|---|
|
Voice Control – Google Assistant / Apple Siri
|
Yes |
|
Auto speaker setup by microphone
|
Audyssey MultEQ |
|
Front Display
|
1 line FLD |
|
Graphic User Interface – GUI
|
High Definition 1080p |
|
GUI languages
|
3 |
|
Setup Assistant
|
Yes |
|
Quick Select Plus / Quick Select
|
Yes / No |
|
Firmware Update by Network / USB
|
Yes / Yes |
|
Variable Crossover
|
Yes |
|
Optimized Bass Redirection
|
Yes |
|
HDMI Diagnostic Mode
|
Yes |
|
ECO Mode
|
Yes |
|
Auto Power off
|
Yes |
|
Sleep Timer
|
Yes |

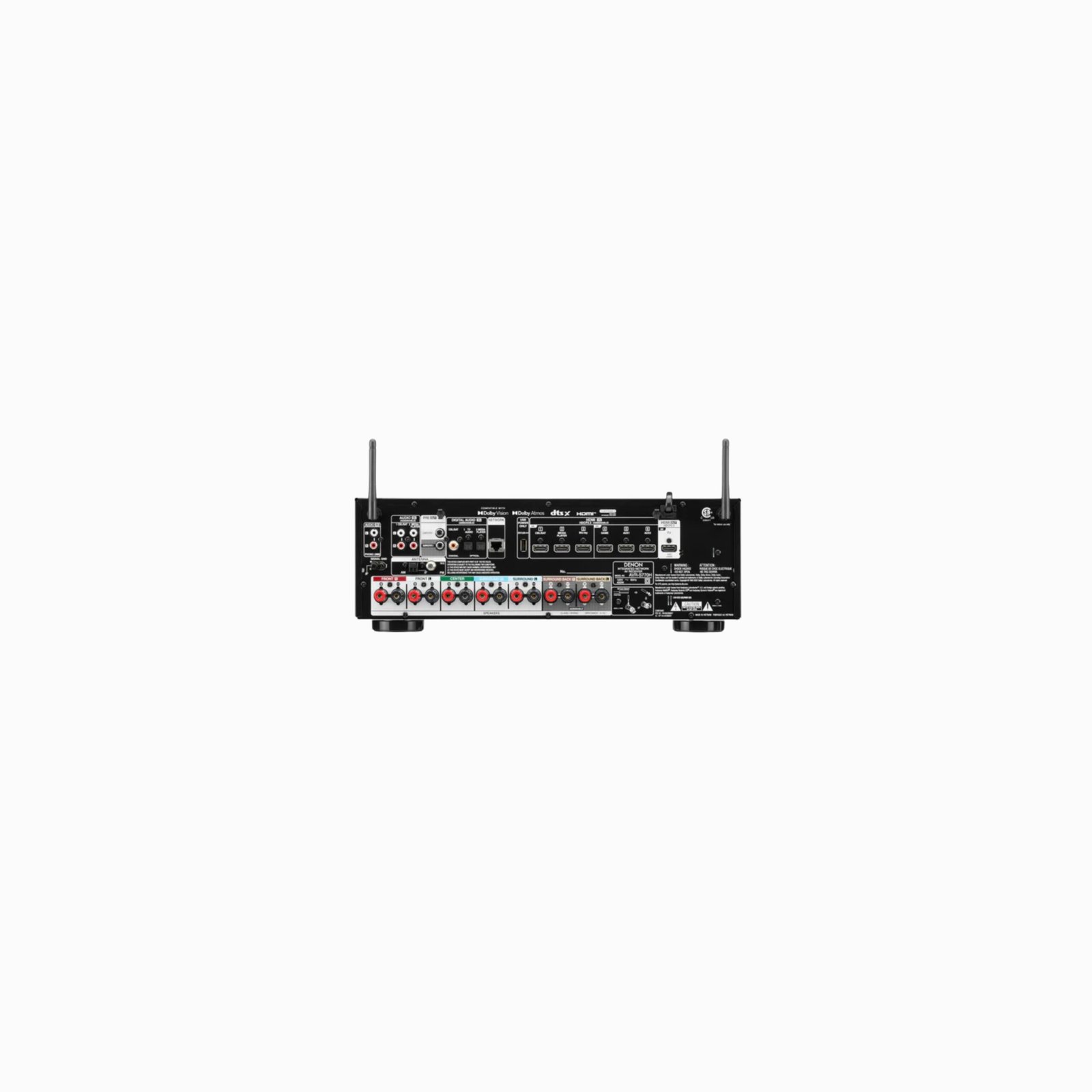

Inputs/Outputs
|
HDMI In/Out
|
6 / 1 |
|---|---|
|
Analog In/Out
|
2 / No |
|
Phono (MM) In
|
Yes |
|
Digital in: Optical/Coaxial
|
2 / 1 |
|
Multichannel Pre-Out
|
Yes (0.2) |
|
Subwoofer Out
|
2 |
|
Speaker Terminal: Gold-Plated Screw / Regular Screw
|
No / Yes |
|
Number of Speaker Terminals
|
7 |
|
Multi-Room Speaker Terminal
|
assignable |
|
USB Audio Input Front
|
Yes |
|
USB Power 5V/1.5A Rear
|
Yes |
Specifications
|
Number of Power Amps
|
7 |
|---|---|
|
Power Output (8 ohm, 20 Hz–20 kHz, 0.08% 2ch Drive)
|
75 W |
|
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
|
110 W |
|
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)
|
165 W |
General
|
Available colors: Black / Premium Silver
|
Yes / No |
|---|---|
|
System Remote Control
|
RC-1257 |
|
Power Consumption in W
|
400 |
|
Power Consumption No-Sound (ECO on / off) in W
|
29 W / 39 W |
|
Standby Consumption in W
|
0.1 |
|
CEC Standby Consumption in W
|
0.5 |
|
Network Standby Consumption in W
|
Less than 2.0 |
|
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in in ( Antenna:Vertical :(W x D x H) in in) |
17.1× 13.3 × 6.0 |
|
Carton Maximum Dimensions (W x D x H) in
|
20.6 x 17.1 x 9.12 |
|
Weight in lbs
|
19.0 |
|
Carton Weight (inc. product) in lbs
|
23.4 |
