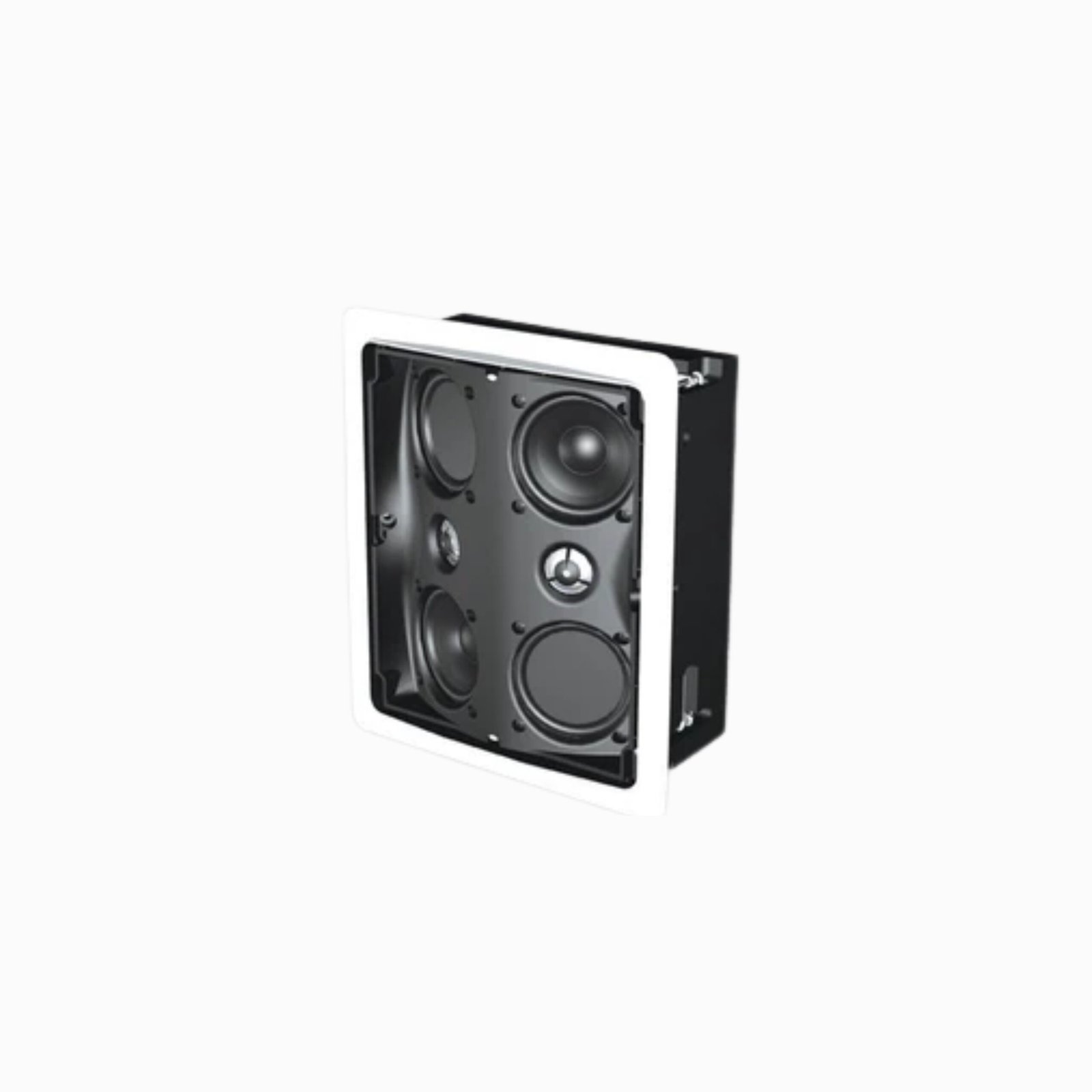

UIW RSS III In-Ceiling/In-Wall Bipolar Loudspeaker Reference In-Wall / In-Ceiling Surround Specially designed for use in custom home theaters of the highest quality, UIW RSS III speakers deliver spacious surround sound while remaining practically invisible in your wall or ceiling.

Warranty:

3-year manufacturer’s warranty

Definitive Technology UIW RSS III Features:

  • Bipolar arrays evenly disperse sound effects over a broad area
  • Dual 1ā€³ pure aluminum dome tweeters produce pristine highs
  • High dynamic impact with a pair of 3.5ā€³ cast basket drivers and two 3.5ā€³ pressure-coupled Low Bass radiators
  • Integrated dense wood enclosures provide easy installation and consistent high performance

In-Ceiling 360-Degree Sound

Featuring two aluminum dome tweeters, a pair of 3.5ā€ cast-basket drivers, and two 3.5ā€ pressure-coupled Low Bass Radiators, the UIW RSS III produces a uniquely immersive experience that completely envelops listeners in an expansive, 360-degree soundstage.

Bipolar Technology for a theater-like presentation
Employing Definitive Technologyā€™s fabled Bipolar driver architecture, UIW RSS Bipolar in-wall/ in-ceiling loudspeakers fill the room with a perfect combination of direct and reflected sound for stunning surround effects.

Flagship Definitive Technology Drivers for reference loudspeaker performance
Ultimate In-Wall Reference Series loudspeakers are designed with the same driver technologies as our flagship floor-standing speakers to deliver an ultra-realistic theater experience that’s all in the family.

Dual 1ā€ Pure Aluminum Tweeters
The RSSIII aluminum dome tweeters deliver a clear, precise high-frequency response. Their ultralight, rigid construction enables them to play significantly higher frequencies than we can hear, providing effortless, distortion-free highs within and beyond the audible range.

Installation Flexibility Surround Sound Cinema Anywhere
Whether new or existing construction, walls or ceilings, residential or commercial, UIW Reference Series loudspeakers feature simple, secure installations. From metal pivoting lock arms to paintable grilles and frames to fully sealed enclosures, Definitive Technology engineers designed speakers that put installation simplicity on equal footing with sound quality.

Rotating Arrays for optimal directivity
When RSSIII Bipolar speakers are installed in the ceiling, the driver arrays can be rotated 90Ā° to optimize performance for your listening area.

Fully enclosed for powerful sound where you want it
UIW Reference Series loudspeakers are fully enclosed and sealed with dense, acoustically inert, anti-resonant, anti-vibration MediteĀ® wood. With the RSSIII, youā€™ll hear loud, accurate, uncolored midrange and tight, powerful bass with no buzzing or sound leakage into walls and ceilings.

Definitive Technology UIW RSS III Technical Specifications:

Driver Complement (2) 1″ (2.54 cm) d (Round) – Tweeter

(2) 3.5″ (8.89 cm) d (Round) – Mid/Woofer

(2) 3.5″ (8.89 cm) d (Round) – Bass Radiator
Audio Quality Total Frequency Response: 40 Hz ā†’ 30,000 Hz

Nominal Impedance: 8 ohms ā†’ 4 ohms

Max Sensitivity (1 watt @ 1 meter): 92 dB
A/V Receiver Crossover Settings Small (120 Hz)
Recommended Amplifier Power Per Channel 10 watts ā†’ 300 watts
Speaker Inputs (1) Pair of Heavy Duty, Spring-Loaded
Shape Rectangle
Dimensions 9.88″ (25.1 cm) h x 8.31″ (21.11 cm) w
Grille Dimensions 11″ (27.94 cm) h x 9.44″ (23.98 cm) w
Included Accessories (1) Wall Mounting Template

(1) Paint Mask

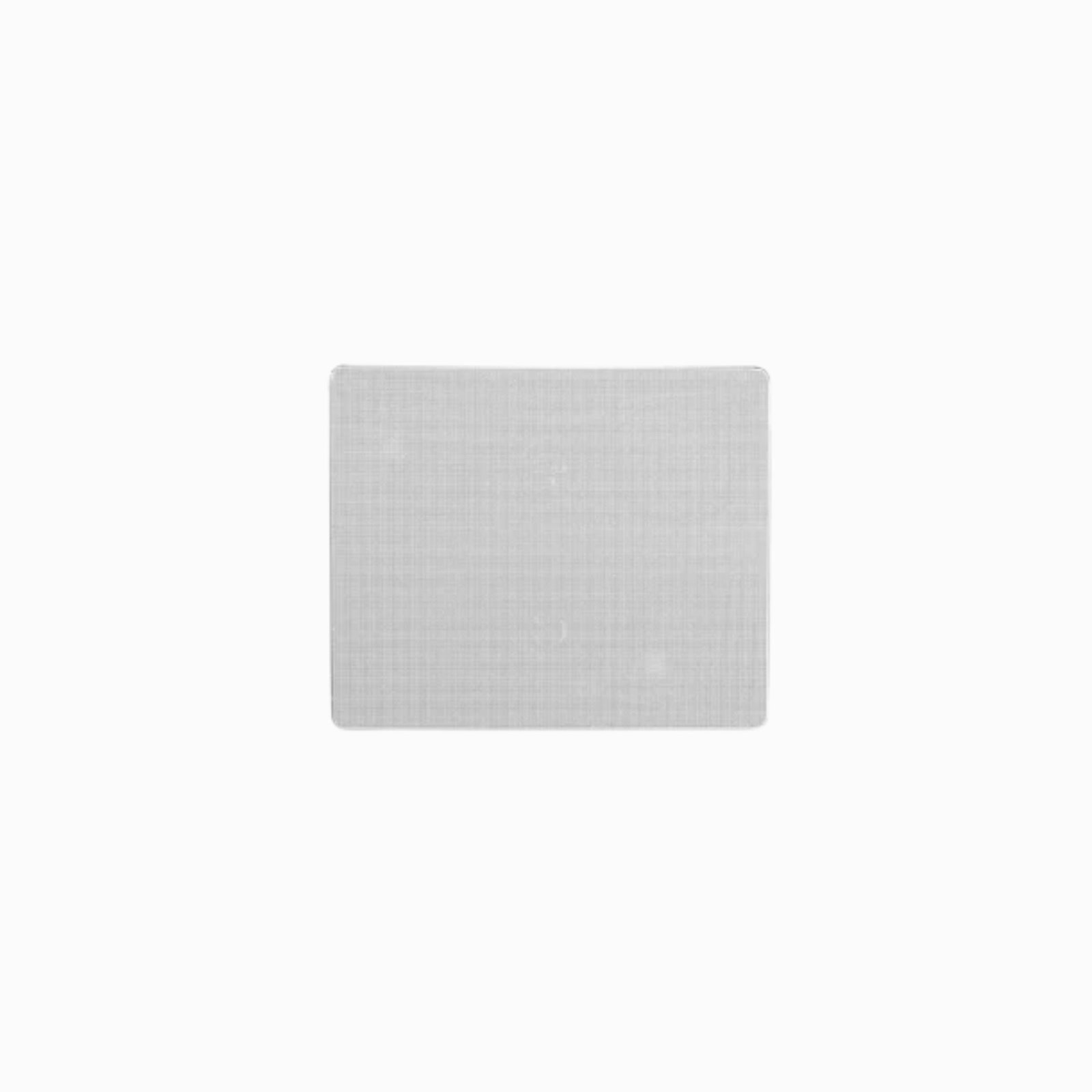

(1) Paintable Grille

(1) Self-Adhering Foam Gasket
