Definitive Technology UIW RSS III Reference In-Ceiling/In-Wall Bipolar Speaker (Each)

Key Features

  • Reference-grade bipolar architectural speaker designed for in-ceiling or in-wall installation in home theatre and music systems

  • Bipolar driver configuration radiates sound in multiple directions (forward and to the sides) for wide, immersive coverage

  • Dual mid/bass drivers provide rich midrange and strong low-frequency performance

  • Pure Aluminum Dome tweeters deliver clear, detailed high frequencies with low distortion

  • Flush-mount, paint-ready grille allows discreet installation that blends into the ceiling or wall surface

  • Rigid, acoustically optimized frame and baffle construction reduce resonance and coloration

  • Wide dispersion pattern ensures even sound coverage across the listening area

  • Excellent choice for surround channels, height channels (e.g., Dolby Atmos), or diffuse ambient audio effects

  • Compatible with a wide range of AV receivers and amplifiers for flexible system integration

  • Built for reliable, long-term residential use with refined dynamics and robust performance

  • Ideal for enhancing immersive home theatre systems or whole-home audio installations

Description

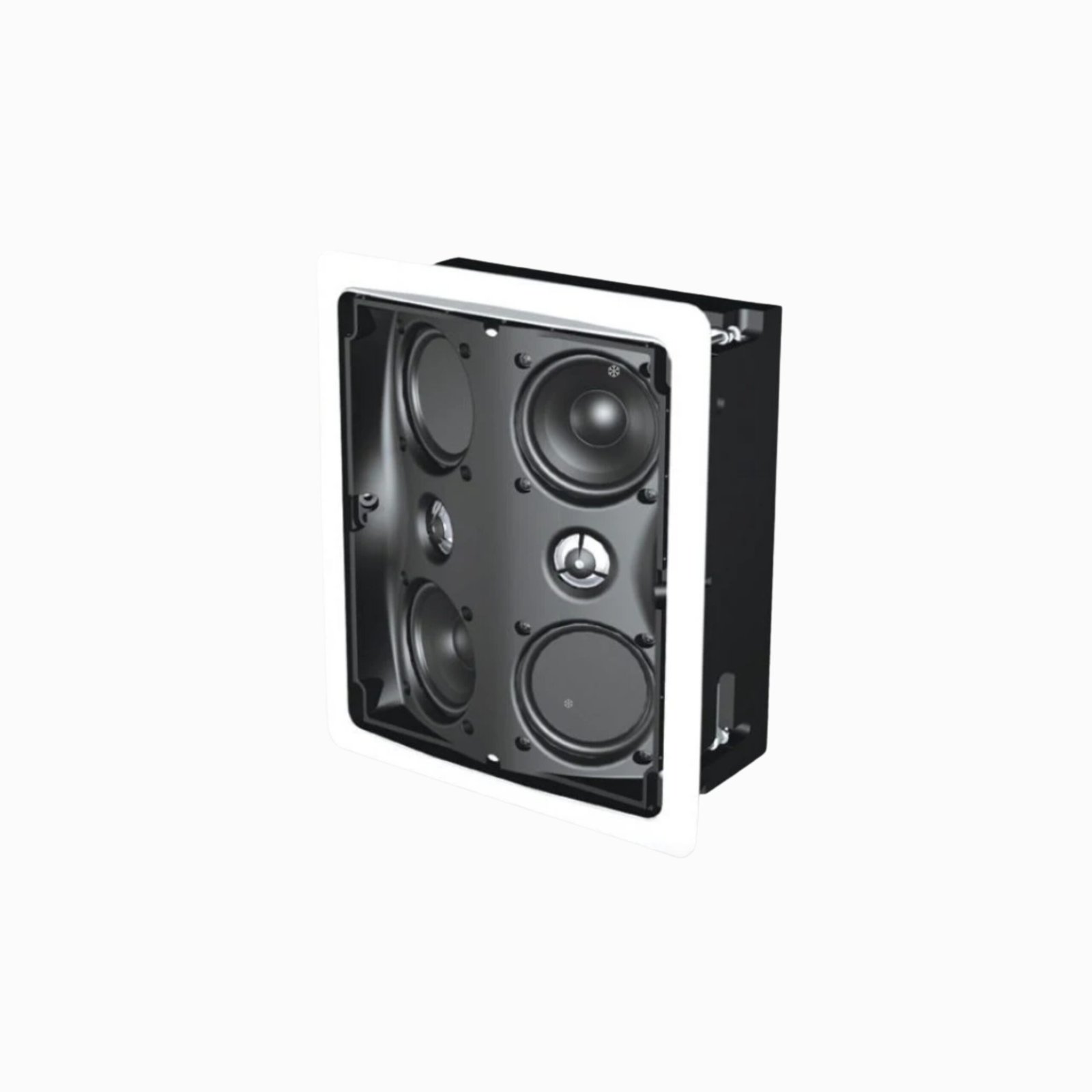

Definitive Technology UIW RSS III Reference In-Ceiling/In-Wall Bipolar Speaker

UIW RSS III

  • Bipolar arrays evenly disperse sound effects over a broad area
  • Dual 1″ pure aluminum dome tweeters produce pristine highs
  • High dynamic impact with a pair of 3.5″ cast basket drivers and two 3.5″ pressure-coupled Low Bass radiators
  • Integrated dense wood enclosures provide easy installation and consistent high performance

In-Ceiling Or In-Wall, They’re Incredible

The Definitive Technology Architectural Speaker line delivers high performance sound while remaining practically invisible. Intended for use in custom home theaters of the highest quality, UIW RSS III speakers feature non-resonant medite cabinets, producing the tightest bass, clearest midrange and an ideal combination of direct and ambient sound. The result is uniquely immersive surround performance that completely envelops listeners in an expansive, 360-degree sound stage.

Key Features
Bipolar Surround Experience

Sound engulfs you anywhere in the room with dual 3-way full-range systems in each speaker–a total of 6 driver/radiators per unit.

Pure Aluminum

Smooth, high frequency response rings true from the pure aluminum dome tweeter set among high definition bass drivers with cast baskets.

Greater Degrees of Sound Control

For in-ceiling installations, the RSS III’s rotating 90-degree driver arrays give you the freedom to optimize performance in relation to your room and seating arrangement.

Non-Resonant Sealed Medite

Enclosed in dense wood medite cabinets that eliminate vibrations and buzzing, the UIW RSS III reveals natural, uncolored midrange and tight, detailed bass.

Simple Stealth Installation

With a flush mount design and rotating dogleg clamps that provide secure, non-resonant mounting, the UIW RSS III is easily installed in both new and existing construction applications.



Specifications

OVERALL

Total Pieces: 1

ACCESSORIES

Included Accessories
(1) Wall Mounting Template
(1) Paint Mask
(1) Paintable Grille
(1) Self Adhering Foam Gasket

IN-WALL SPEAKER

Qty Included: 1
Driver Complement
(2) 1″ (2.54 cm) d (Round) – Tweeter
(2) 3.5″ (8.89 cm) d (Round) – Mid/Woofer
(2) 3.5″ (8.89 cm) d (Round) – Bass Radiator
Grille Dimensions: 11″ (27.94 cm) h x 9.44″ (23.98 cm) w

IN-WALL MOUNT

Shape: Rectangle
Dimensions: 9.88″ (25.1 cm) h x 8.31″ (21.11 cm) w

IN-CEILING MOUNT

Shape: Rectangle
Dimensions: 9.88″ (25.1 cm) h x 8.31″ (21.11 cm) w

INPUTS

Audio Inputs
Speaker Inputs: (1) Pair of Heavy Duty, Spring-Loaded

AUDIO QUALITY

Total Frequency Response: 40 Hz ? 30,000 Hz
Nominal Impedance Range: 8 ohms ? 4 ohms
Max Sensitivity (1 watt @ 1 meter): 92 dB

CROSSOVER

A/V Receiver Crossover Settings: Small (120 Hz)

EXTERNAL AMPLIFIER

Recommended Amplifier Power Per Channel: 10 watts ? 300 watts
