Key Features
Audio Performance
-

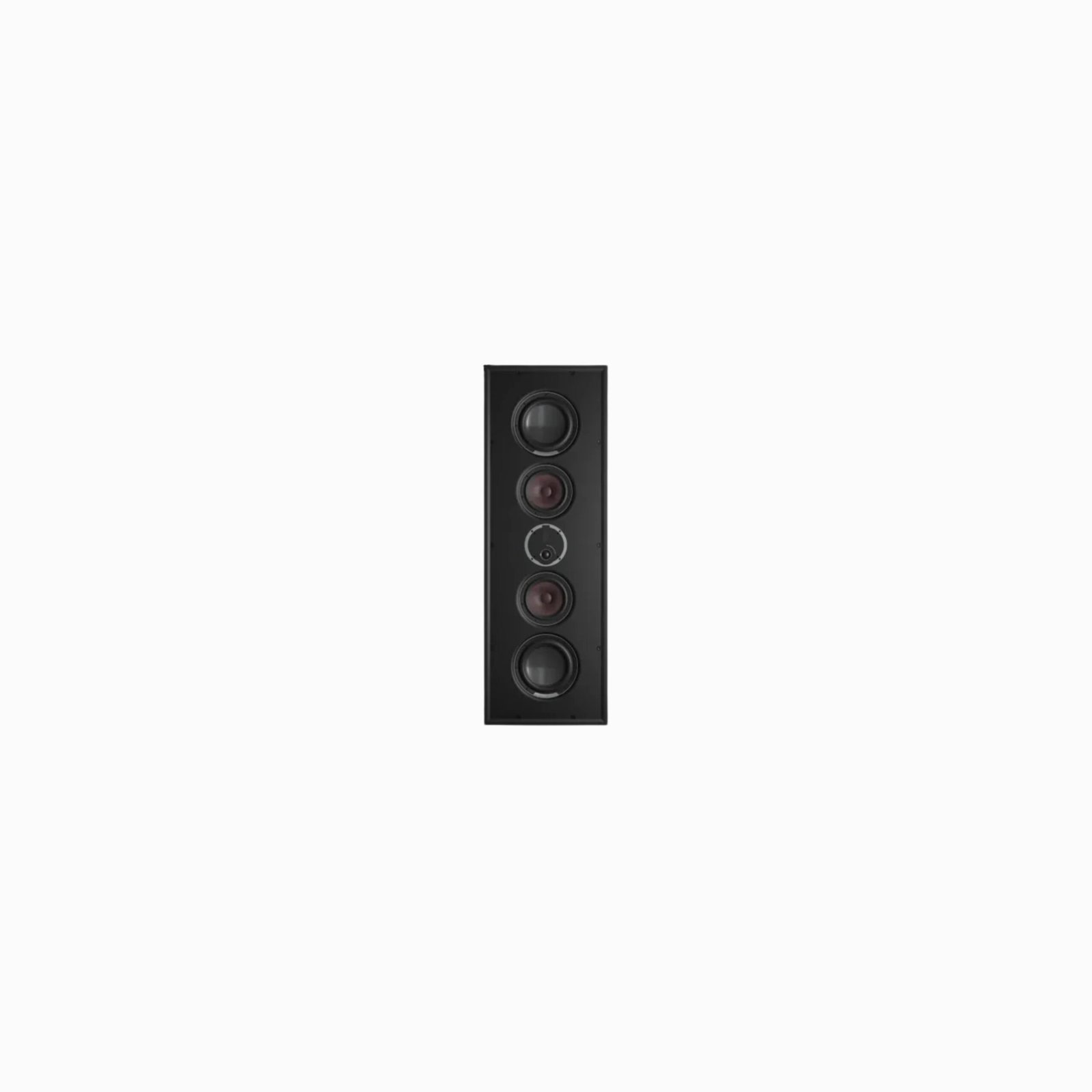

High-end in-wall loudspeaker designed for premium music and home theatre systems.
-
Dual 8-inch bass/mid drivers deliver powerful midrange and strong low-frequency performance.
-
Integrated hybrid tweeter module combining a soft dome tweeter and a ribbon tweeter for exceptional detail and wide dispersion.
-
Dual 10-inch passive radiators extend bass depth, giving performance similar to a full-size floorstander.
-
Wide-dispersion design ensures consistent sound quality even when listening off-axis.
Design and Installation
-
Ultra-slim in-wall construction with a shallow mounting depth suitable for standard wall cavities.
-
Paintable magnetic grille for a discreet, flush-fit appearance.
-
Rigid MDF baffle structure minimizes cabinet resonance and enhances clarity.
-
Secure dogleg mounting system for straightforward installation.
Key Technologies
-
Soft Magnetic Composite (SMC) technology significantly reduces distortion in the magnet system.
-
Hybrid tweeter module enhances high-frequency detail and improves room coverage.
-
Passive radiator system provides deep, controlled bass without needing a large enclosure.
Specifications (Typical)
-
Frequency response approximately 48 Hz to 25 kHz.
-
Sensitivity around 89 dB.
-
Nominal impedance approximately 8 ohms.
-
Maximum sound pressure level around 112 dB.
-
Recommended amplifier power range approximately 40 W to 400 W.
Usage
-
Suitable as left, right, or center channel in high-performance home theatre setups.
-
Works effectively in large rooms and with high-quality subwoofers.
-
Designed for installations requiring reference-level performance with minimal visual impact.
