Description

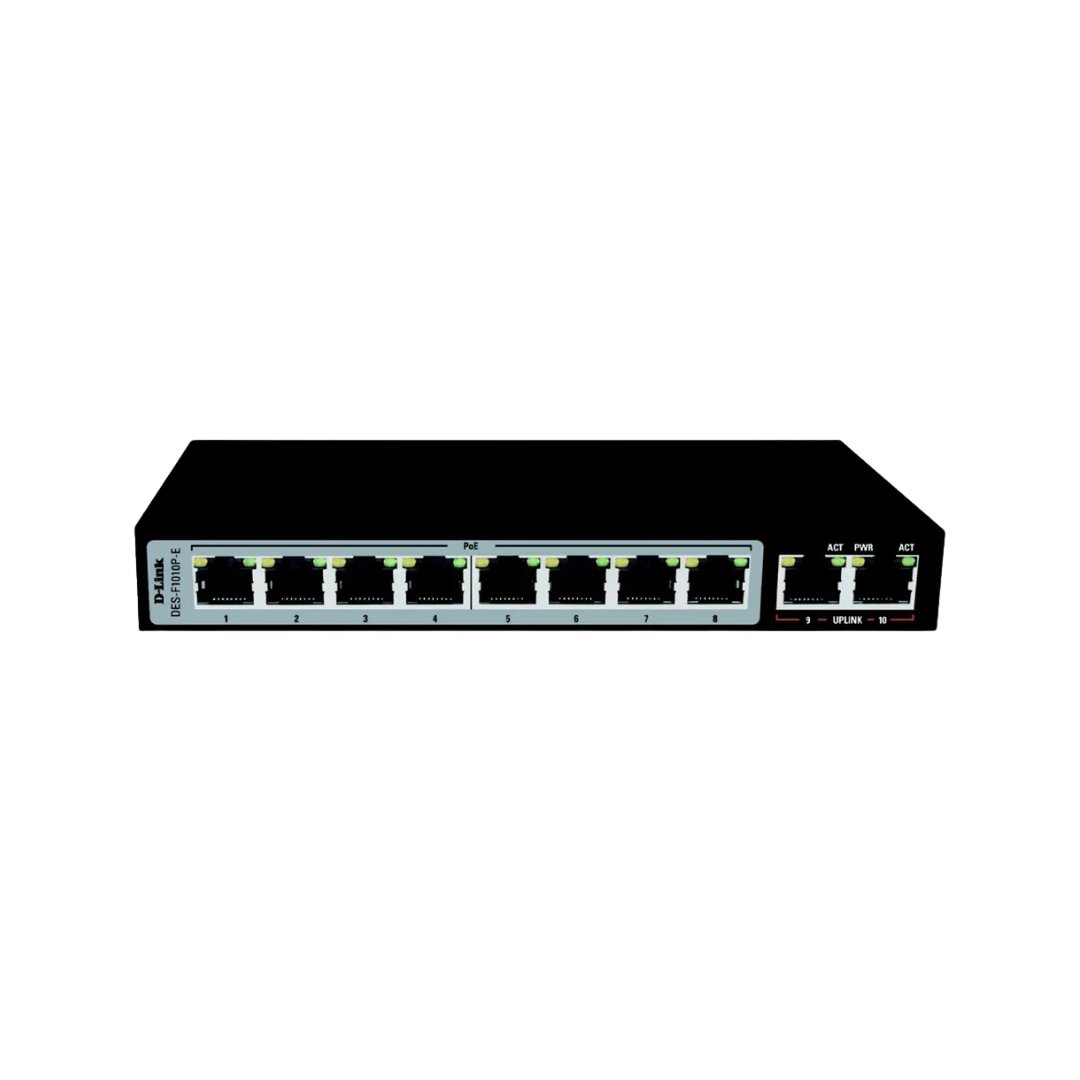

The D-Link DES-F1010P-E is a versatile 10-port switch designed for seamless connectivity and efficient power distribution.
—> Port Configuration: 8 fast Ethernet PoE ports support both IEEE 802.3af and IEEE 802.3at PoE protocols, supplying up to 30 watts of power each.
2 10/100 Mbps uplink ports facilitate connections to other network devices.
—> Power over Ethernet (PoE):Â The DES-F1010P-E enables easy connection and power supply to PoE-capable devices such as wireless Access Points (APs) and IP cameras with a total PoE budget of 96 watts. It enables users to attach IEEE 802.3af-compliant devices without requiring additional power sources and is especially beneficial for devices located far from power outlets, minimising cable clutter.
—> PnP Installation: The DES-F1010P-E is a Plug-and-Play device that requires no configuration with a simple and hassle-free setup that allows connecting multiple computers, sharing files, music, and video across your home or small office network.
—> Reliable Connection: 802.3x flow control on each port minimises dropped packets when the port’s receiving buffer is full, ensuring a more reliable connection for all connected devices.
—> Smart Features:Â Built-in lightning protection against voltage spikes (6KV).
—> High Transmission Distance:Â Ideal for surveillance solutions, the DES-F1010P-E supports high-distance connectivity and can be used with Cat5e or Cat6 cables.
Warranty
1-year manufacturer’s warranty
D-Link DES-F1010P-E Key Features
- Superior Connectivity
8 10/1 0OMbps Fast Ethernet ports
2 10/1 0OMbps uplink port
96 watts available for PoE
Flow control for protection against data loss
Maximum distance of 250m - Standards
IEEE 802.3 1 0BASE-T Ethernet (twist-pair copper)
IEEE 802.3u 1 00BASE-TX Fast Ethernet (twisted pair copper)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet - Easy to use
Plug-and-play installation
IEEE 802.3x Flow Control
Auto MDI I MDIX crossover for all ports
Fanless device
