Bowers & Wilkins CWM7.3 S2- 6 Inches, 3-Way In-Wall Speaker (Each)

Key Features

  • 3-Way In-Wall Speaker Design
    Dedicated woofer, midrange, and tweeter drivers deliver broad, balanced sound with clear highs, detailed mids, and solid low-frequency performance — ideal for high-fidelity music and home theatre.

  • 6-Inch Woofer Driver
    Provides strong low-frequency foundation and natural midrange for rich, full-range audio directly from the wall.

  • Dedicated Midrange Driver
    Ensures precise and transparent midrange reproduction for clear vocals and instrument detail.

  • Decoupled Double-Dome Tweeter
    Produces smooth, extended high frequencies with excellent clarity and low distortion for refined treble response.

  • Wide Sound Dispersion
    Engineered to radiate sound broadly across the listening area, enhancing stereo imaging and immersion.

  • Optimized Crossover Network
    Precisely manages driver hand-off for coherent, seamless sound across the full audio spectrum.

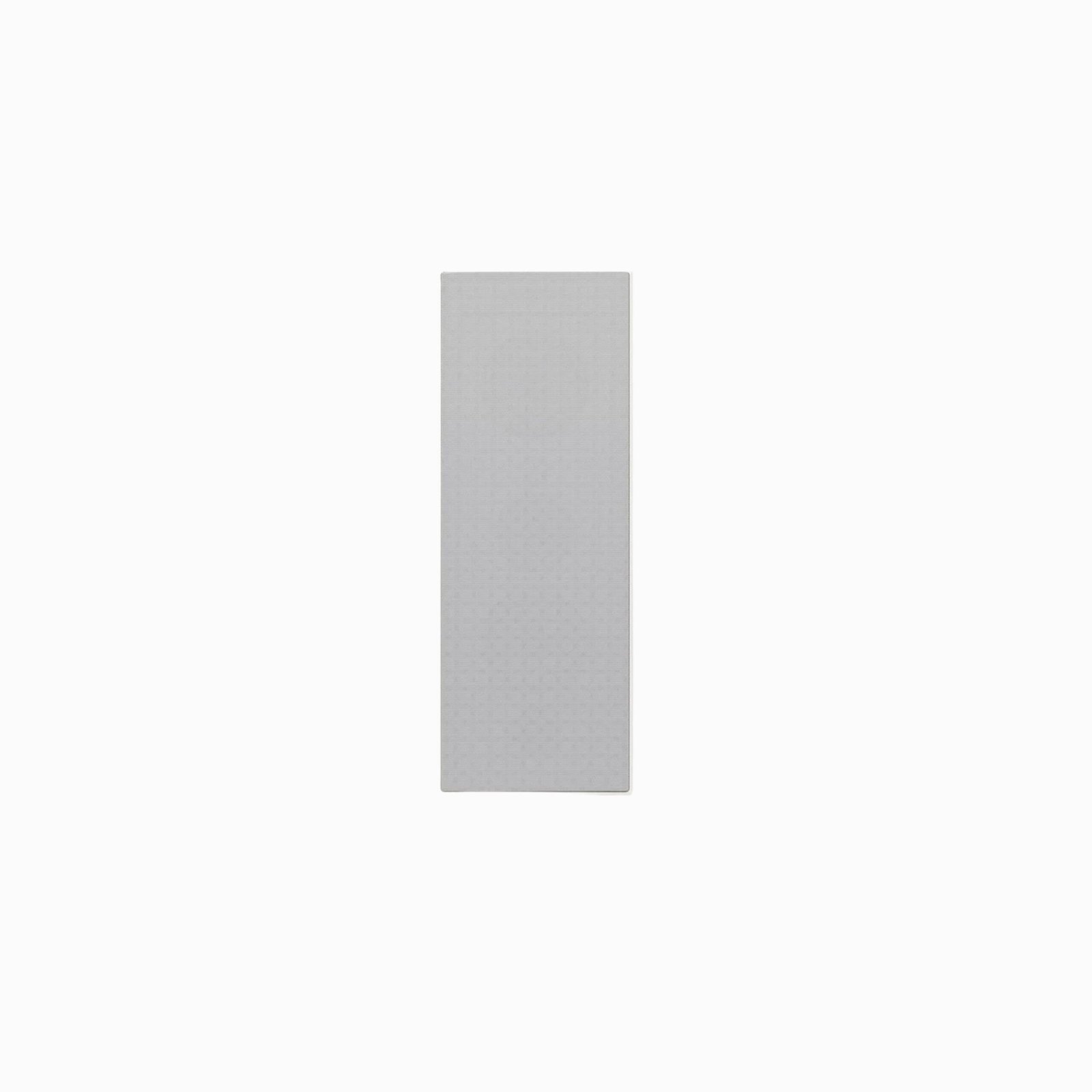

  • Low-Profile, Paintable Grille
    Sleek grille integrates into walls and can be painted to match décor for a clean, unobtrusive look.

  • Flush-Mount Installation
    Designed for secure in-wall mounting with included hardware for a tidy, integrated finish.

  • Rigid Back-Box Compatibility
    Can be paired with an optional back box to improve bass response and reduce sound transmission to adjacent areas.

  • Durable Construction
    Built with quality materials for long-lasting, reliable performance in residential or commercial installations.

  • Versatile Application
    Suitable as left, centre, or right channels in custom home theatre systems or as part of distributed audio in high-end audio environments.

Description

 Bowers & Wilkins CWM 7.3 S2

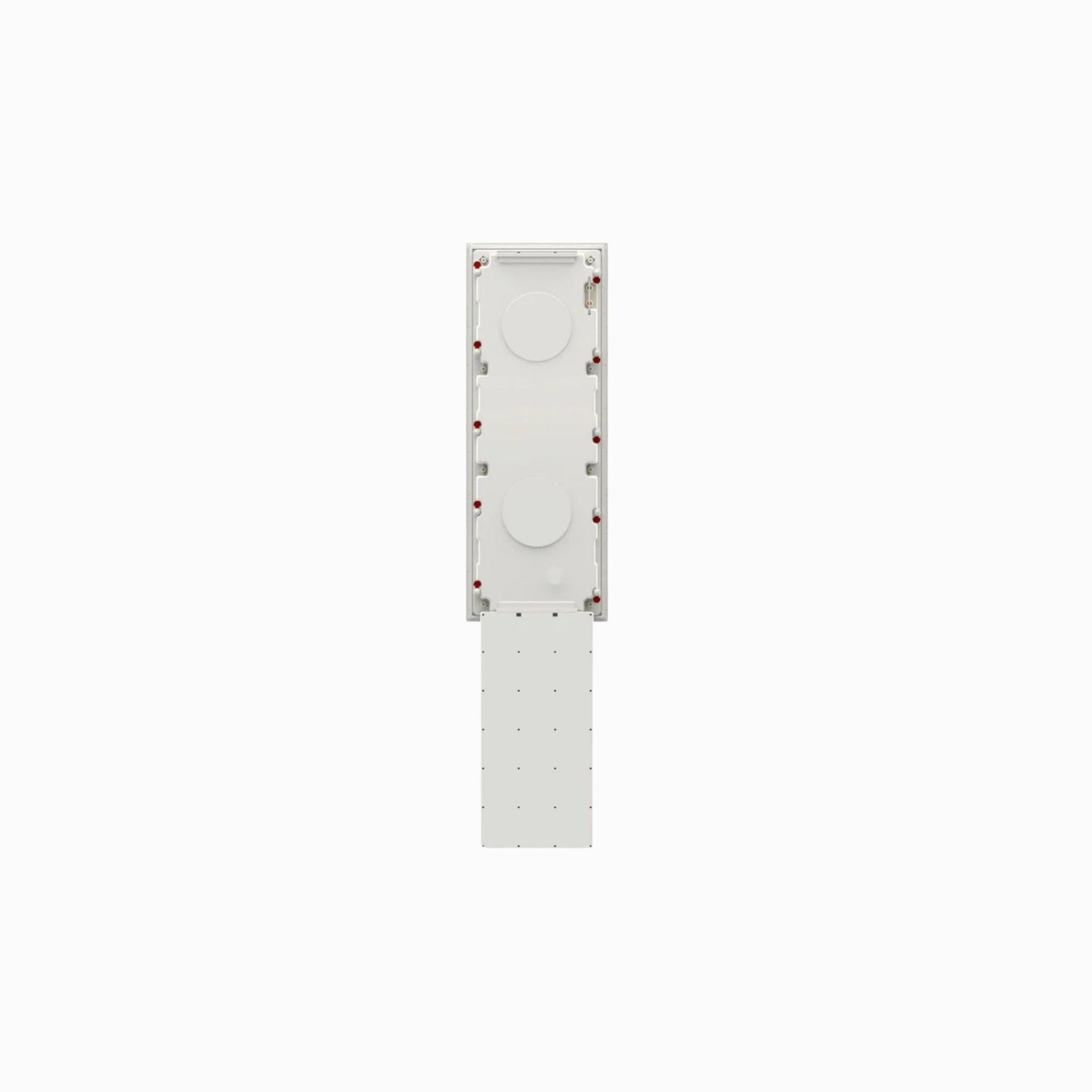

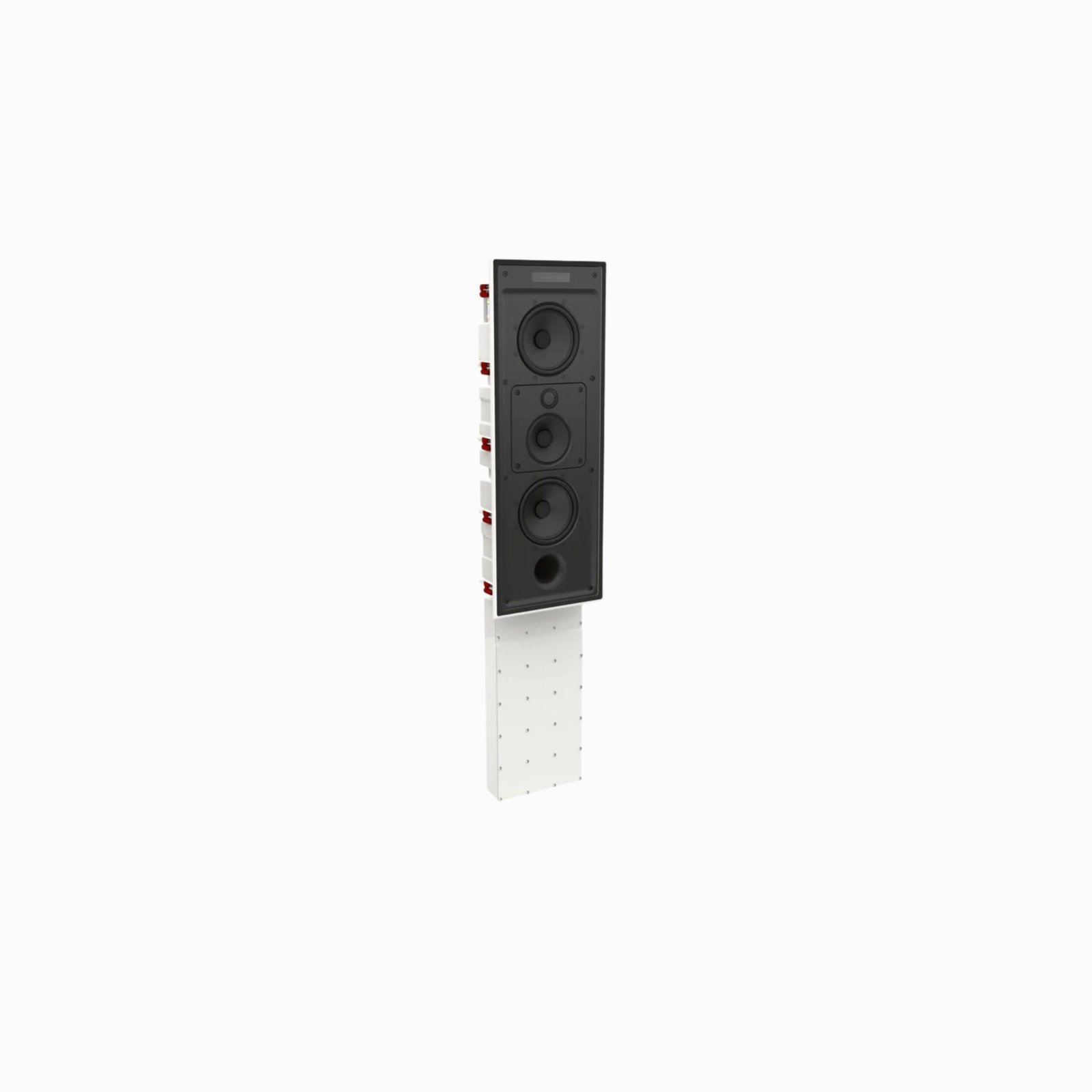

The CWM 7.3 S2 features an integrated back box that optimizes its performance, cuts down on sound transference through walls, and also makes it easy to retrofit. Its design incorporates twin 150mm (6in) Aerofoil profile bass drivers, a 100mm (4in) Continuum cone FSTTM mid-range driver, and a Carbon Dome 25mm (1in) tweeter, all proven technologies shared with the acclaimed 700 Series range of loudspeakers. These outstanding transducers, when combined with high-quality, optimized, components on the crossover and a critically formed baffle constructed from glass-reinforced ABS, produce a truly remarkable in-wall speaker.



 Specifications

Technical features
Carbon Dome tweeter
Continuum cone FST midrange
Aerofoil profile bass cones
Flowport™
Description
3-way in-wall system
Drive units
1x ø25mm (1 in) Carbon Dome high-frequency
2x ø100mm (4 in) Continuum cone mid/bass
2x ø150mm (6 in) Aerofoil profile bass
Frequency range (-6dB)
-6dB at 43Hz – 33kHz
Frequency Response -3dB
45Hz – 28kHz ±3dB
Sensitivity
90dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 80Hz – 33kHz
<0.5% 120Hz – 33kHz
Impedance Nominal
8Ω (minimum 3.1Ω)
Recommended amplifier power
25W – 200W into 8Ω on unclipped program
PMK
7.3W
Approximate Dimensions
Frame height: 29″
Frame width: 11″
Cut-out height: 28″
Cut-out width: 9.9″
Cut-out width w/PMK: 28.1
Cut-out height w/PMK: 10.1″
Depth (behind surface): 4.02″
Protrusion: 0.28″
Approximate Weight
Unit: 27.32 lbs
Shipping: 35 lbs
UPC
714346332151
Series
700 Series, CI 700 Series
Distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 80Hz – 33kHz
<0.5% 120Hz – 33kHz
Drivers
1x ø25mm (1 in) Carbon Dome high-frequency
1x ø100mm (4 in) Continuum cone FST midrange
2x ø150mm (6 in) Aerofoil profile bass
Frequency Response
45Hz – 28kHz ±3dB
Frequency Variance
-6dB at 43Hz and 33kHz
Impedance
8Ohms (minimum 3.1Ohms)
Sensitivity
90dB spl (2.83Vrms, 1m)
Total Amp Power
Recommended 25W – 200W into 8Ohms on unclipped program
Tweeter
Carbon Dome tweeter
