Bowers & Wilkins CCM7.5 S2- 2-Way In-Ceiling Speaker (Each)

Key Features

  • 2-Way In-Ceiling Speaker Design
    Combines a dedicated woofer and tweeter in a compact, ceiling-mounted form to deliver balanced, full-range audio ideal for music and home theatre applications.

  • 7.5-Inch Woofer Driver
    Larger woofer provides deeper low-frequency performance and richer midrange, enhancing overall sound presence in larger rooms or open spaces.

  • Decoupled Double-Dome Tweeter
    Produces smooth, extended high frequencies with excellent clarity and minimal distortion for detailed treble response.

  • Wide Sound Dispersion
    Engineered to radiate sound broadly across the listening area, improving stereo imaging and immersion.

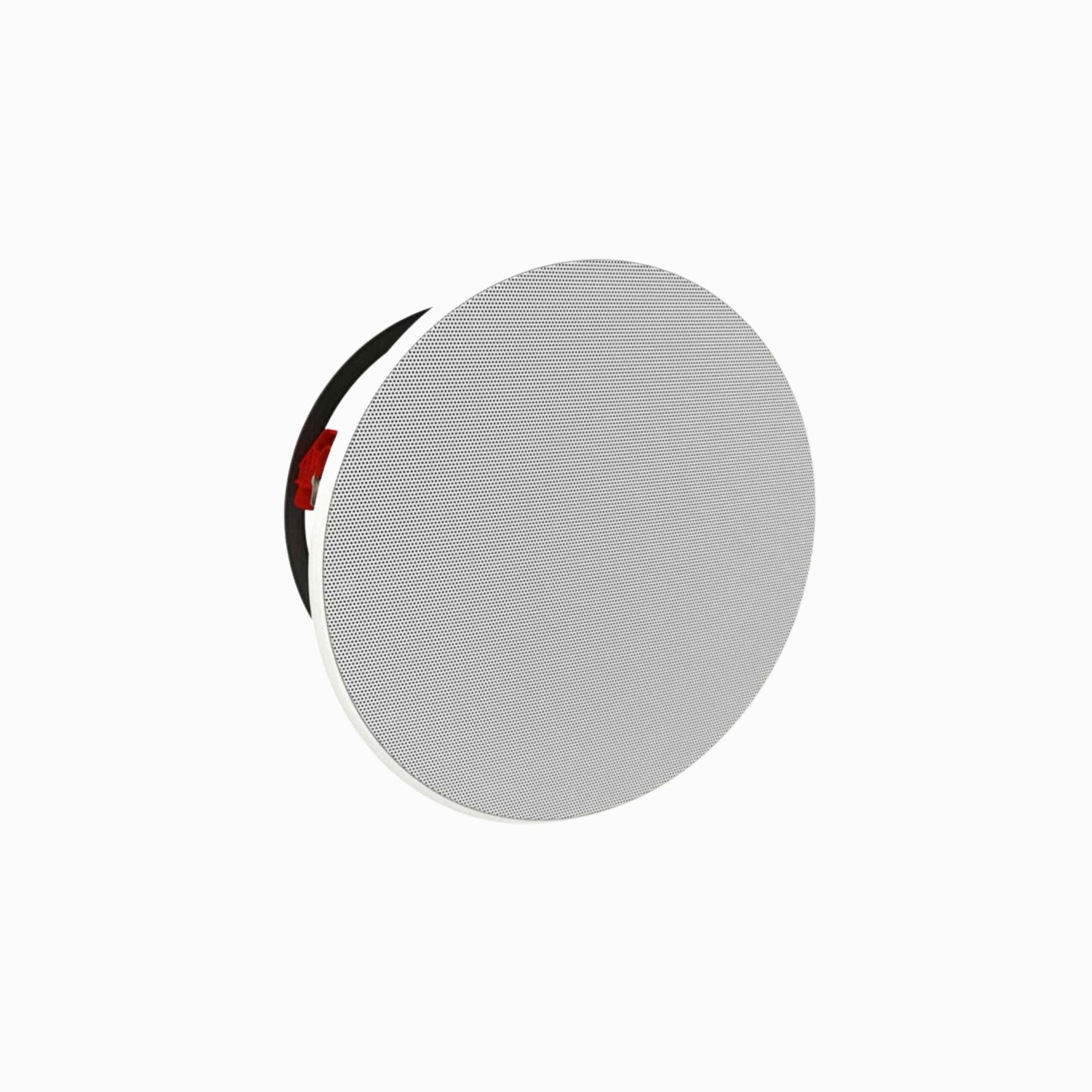

  • Low-Profile, Paintable Grille
    Sleek grille integrates into ceilings and can be painted to match décor for a clean, unobtrusive look.

  • Optimized Crossover Network
    Precisely balances transitions between woofer and tweeter for coherent, natural sound across the frequency range.

  • Flush-Mount Installation
    Designed for secure in-ceiling mounting with included hardware for a clean, integrated finish.

  • Rigid Back-Box Compatibility
    Can be paired with an optional back box to improve bass response and reduce sound transfer to adjacent rooms.

  • Durable Construction
    Built from quality materials for reliable, long-lasting performance in both residential and commercial audio environments.

  • Versatile Application
    Ideal for whole-home distributed audio, background music zones, or as main or surround channels in immersive home theatre installations.

Description

Bowers & Wilkins CCM 7.5 S2

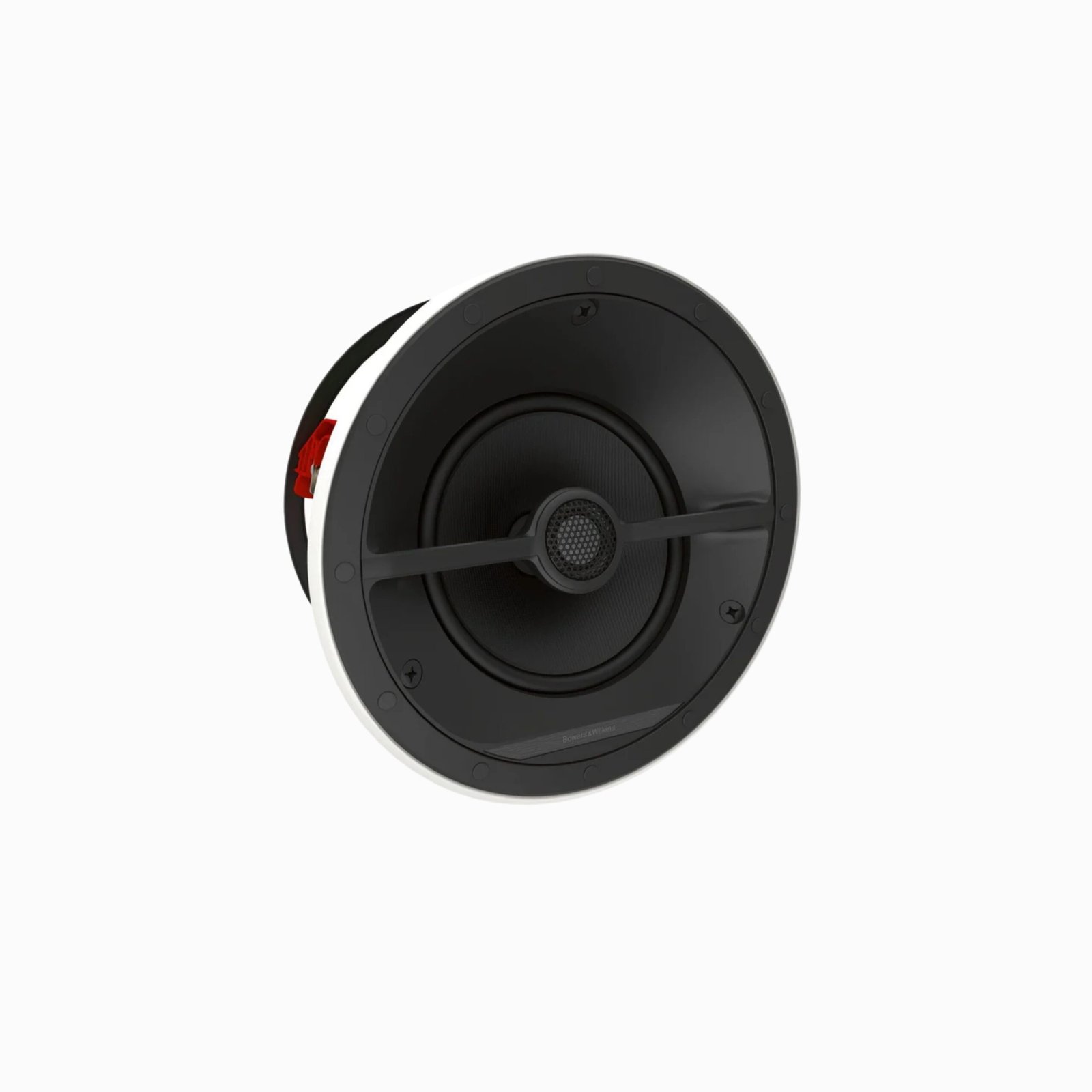

Designed for down-firing, in-ceiling use, CCM7.5 S2 can be used as the left, center, right and rear-channel rear speakers in a discreet home cinema system. Its configuration includes a 25mm (1in) Carbon Dome tweeter and a 180mm (7in) Continuum cone mid/ bass cone angled to the mounting surface, allowing for easy direction of the whole array towards the listener to ensure they hear the correct balance of sound. That way, the dialogue is crystal clear, and special effects come across accurately. Thanks to Bowers & Wilkins unique QuickDogs fixing method, installation is simple and if preferred, the supplied round grille can be replaced with an optional, square grille.

This is a very serious in-ceiling speaker. If you own a 700 series B&W speaker or even some of the top-of-the-line 800 models, you probably know all about the Continuum mid/bass driver they use. B&W developed this special driver a few years ago for their new 800 models and has been moving its great tech into more affordable products like the 700 series.

We were really impressed to see the S2 version of the 7.5 added this tech with a 7” version of it. The great news for home theater is in the CCM 7.5 S2, the entire driver assembly is at an angle, so you simply rotate the entire speaker at the listening area when you install it.

Even more impressive is just how low in bass response this speaker can reach. Their 3dB down point is 32 Hz which is incredible for an in-ceiling speaker! These move up to the same Carbon Dome tweeter found in the 700 series. For more information on the great tech in these, check out our full overview of the 700 S2 series.

Needless to say, the CCM 7.5 S2 is ideal for Atmos height channels in a serious B&W home theater system. For those of you wanting to do an all in-ceiling 5.1 system in a family room, 3 of these across the front with their angled enclosure can serve you well as your main front channels and simply add another pair for the rears.



 Specifications

Design
2-way in-ceiling system
Technical Features
Carbon Dome tweeter
Continuum mid/bass
Drive units
1x 25mm (1″) Carbon Dome high-frequency
1x 180mm (7″) Continuum cone mid/bass
Frequency range (-6dB)
-6dB at 25Hz – 33kHz
Frequency Response -3dB
32Hz – 28kHz ±3dB
Sensitivity
90dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 70Hz – 33kHz
<0.5% 100Hz – 28kHz
Impedance Nominal (min)
8 Ohm (Minimum 4.8 Ohm)
Recommended amplifier power
25W – 150W into 8 Ohm on unclipped program
Recommended Back Box
BB 6C
Square Grille Option (Sold Separately)
GR68SQ
Approximate Dimensions
Frame Diameter: 11.4″
Depth (Behind Surface): 5″
Cutout Diameter: 10″
Protrusion: 0.33″
Approximate Weight
Unit: 6.83 lbs
Shipping: 10 lbs
UPC
714346332205
Series
700 Series, Cinema 7 Series Marine Series
Distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 70Hz – 33kHz
<0.5% 100Hz – 28kHz
Drivers
1x ø25mm (1in) Carbon Dome high-frequency
1x ø180mm (7in) Continuum cone mid/bass
Frequency Response
32Hz – 28kHz ±3dB
Frequency Variance
-6dB at 25Hz – 33kHz
Impedance
8Ohms (4.8Ohms minimum)
Sensitivity
90dB spl (2.83Vrms, 1m)
Total Amp Power
Recommended 25W – 150W into 8Ohms on unclipped program
Tweeter
Carbon Dome tweeter
