Bowers & Wilkins CCM7.3 S2- 3-Way In-Ceiling Speaker (Each)

Key Features

  • 3-Way In-Ceiling Speaker Design
    Combines dedicated bass, midrange, and tweeter drivers to deliver a full, balanced frequency response with clear highs, detailed mids, and robust lows — ideal for high-quality music and home theatre audio.

  • Large Woofer and Midrange Drivers
    Includes oversized bass and midrange drivers for extended low-frequency performance and solid midrange clarity in ceiling installations.

  • Decoupled Double-Dome Tweeter
    Provides smooth, extended high frequencies with excellent clarity and minimal distortion for natural treble response.

  • Wide Sound Dispersion
    Engineered to radiate sound broadly throughout the listening space, enhancing stereo imaging and immersion.

  • Optimized Crossover Network
    Precisely balances transitions between drivers for seamless, coherent sound reproduction across the audio spectrum.

  • Flush-Mount Installation
    Designed for secure, flush in-ceiling mounting with included hardware for a clean, integrated look.

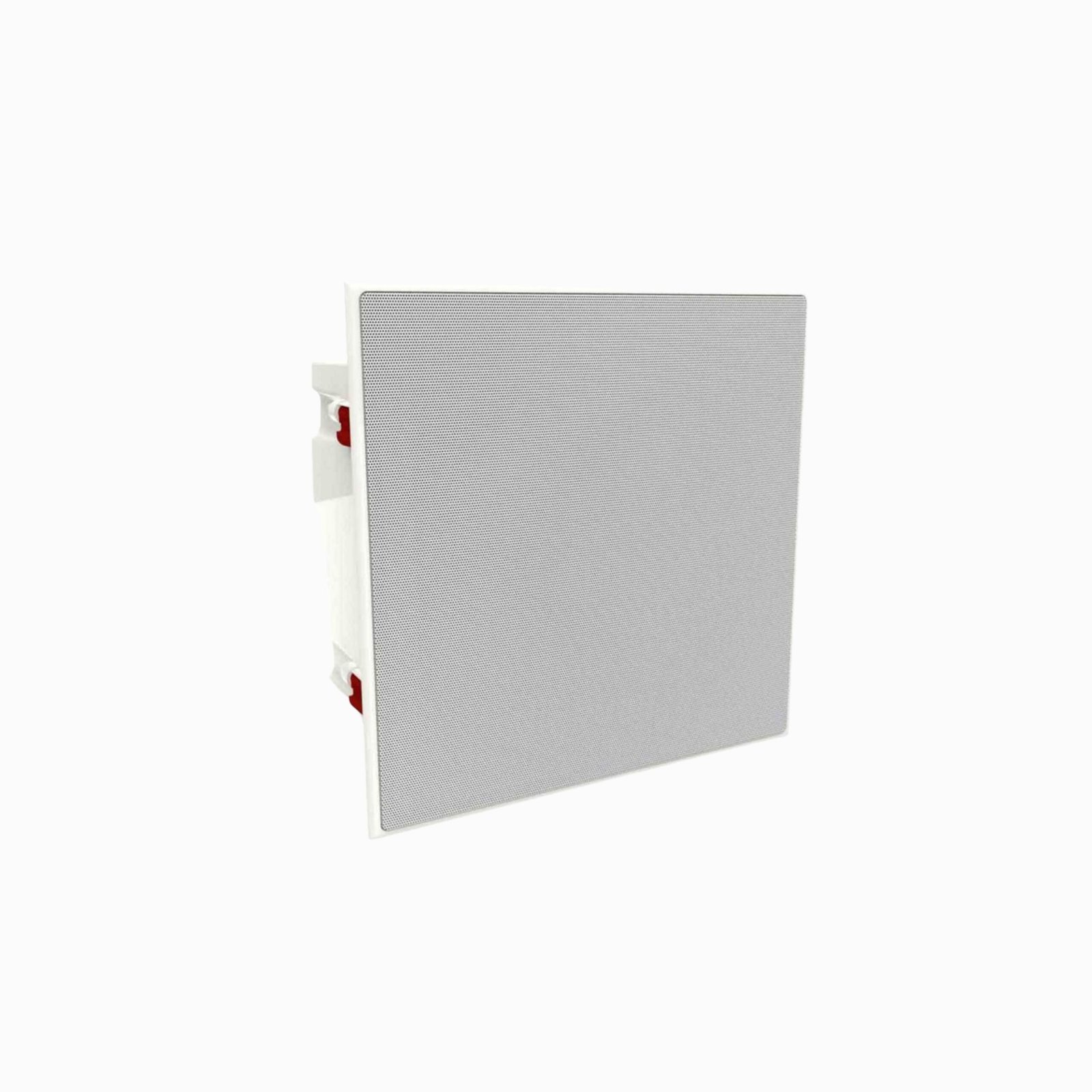

  • Low-Profile, Paintable Grille
    Sleek, unobtrusive grille that can be painted to match your ceiling décor for a discreet installation.

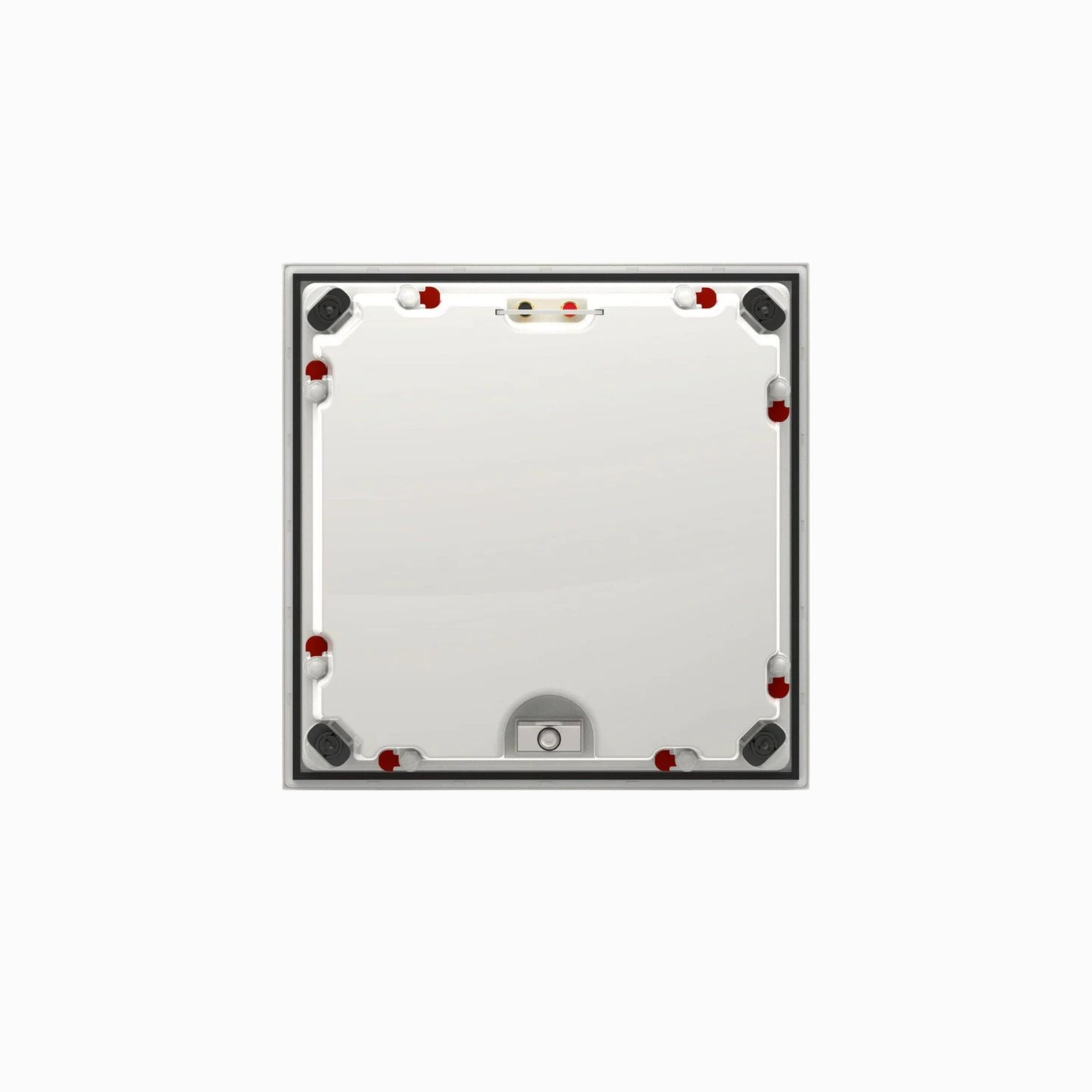

  • Rigid Back-Box Compatibility
    Can be used with an optional back box to improve bass response and reduce sound transmission to adjacent rooms.

  • Durable Construction
    Built from high-quality materials for reliable, long-term performance in residential or commercial audio setups.

  • Versatile Use
    Ideal for distributed audio systems, dedicated home theatre installations, or any ceiling-mounted application requiring detailed, high-fidelity sound.

Description

Bowers & Wilkins CCM 7.3 S2

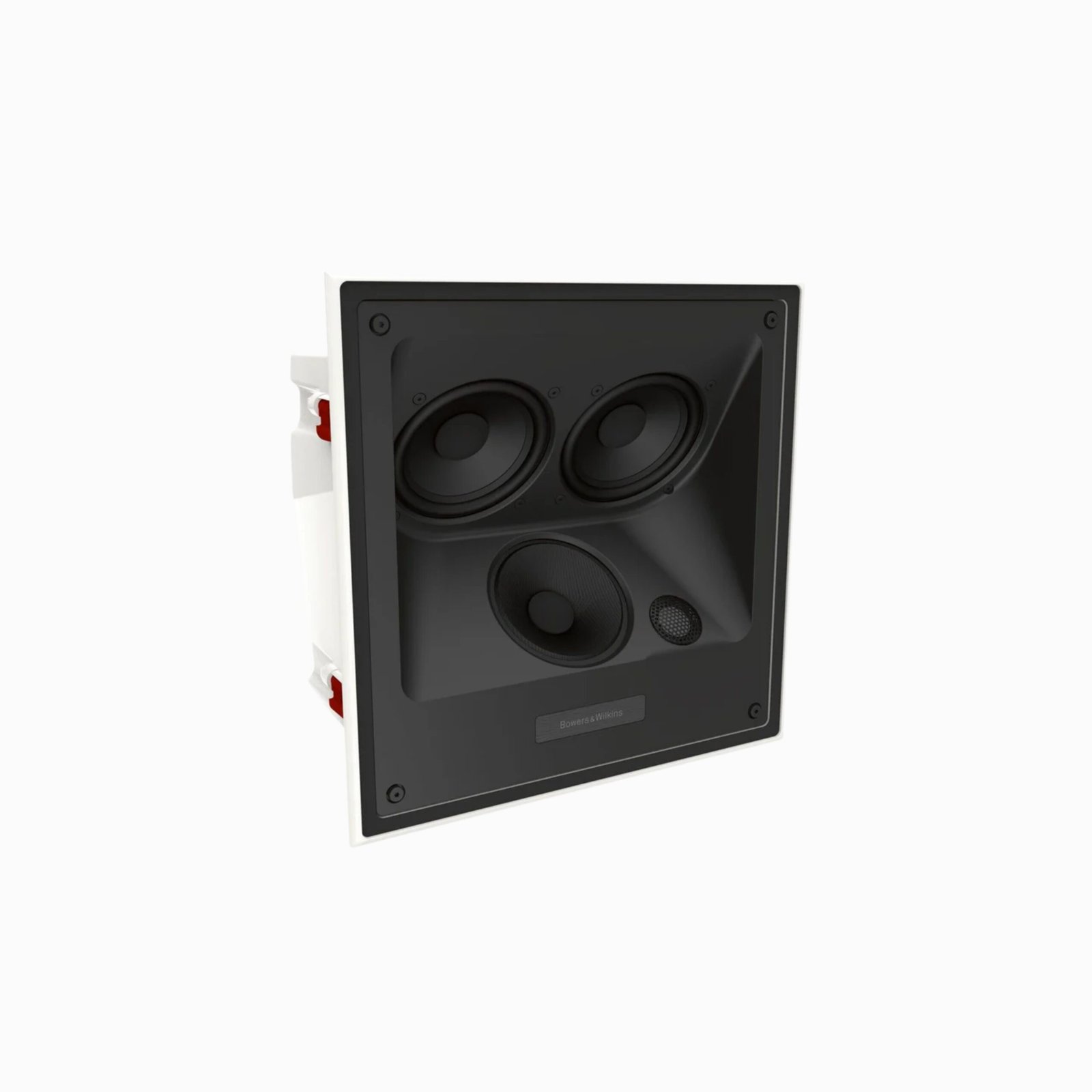

The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and 2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass-reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces, and optimizes sound quality.

Drive Units

  • 1″ Carbon Dome Tweeter
  • 1 x 4″ Continuum Cone FST Midrange
  • 2 x 5″ Aerofoil Profile Bass
  • 25 – 200W



 Specifications

Design
3-way in-ceiling system
Technical Features
Carbon Dome tweeter
Continuum cone FST midrange
Aerofoil profile bass cones
Drive units
1x 25mm (1″) Carbon Dome high-frequency
1x 100mm (4″) Continuum cone FST midrange
2x 130mm (5″) Aerofoil profile bass
Frequency range (-6dB)
-6dB at 52Hz and 33kHz
Frequency Response -3dB
55Hz – 28kHz ±3dB
Sensitivity
90dB spl (2.83Vrms, 1m)
Impedance Nominal (min)
8 Ohm (Minimum 3.1 Ohm)
Recommended amplifier power
25W – 200W into 8 Ohm on unclipped program
PMK
7C
Approximate Dimensions
Frame
Height: 14″
Width: 14″
Cutout
Height: 13.1″
Width: 13.1″
Height With PMK: 13.2″
Width With PMK: 13.2″
Protrusion
0.3″
Depth
7.66″
Approximate Weight
Unit: 19.84 lbs
Shipping: 23 lbs
UPC
714346332144
Series
700 Series, CI 700 Series D
Distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz – 33kHz
<0.5% 120Hz – 33kHz
Drivers
1x ø25mm (1in) Carbon Dome high-frequency
1x ø100mm (4in) Continuum cone FST midrange
2x ø130mm (5in) Aerofoil profile bass
Frequency Response
55Hz – 28kHz ±3dB
Frequency Variance
-6dB at 52Hz and 33kHz
Impedance
8 Ohms (3.1 Ohms)
Sensitivity
90dB spl (2.83Vrms, 1m)
Total Amp Power
Recommended 25W – 200W into 8Ohms on unclipped program
Tweeter
Carbon Dome tweeter
