Bowers & Wilkins CCM664SR- 6 Inches, 2-Way Stereo In-Ceiling Speaker (Each)

Key Features

  • 2-Way In-Ceiling Speaker Design
    Combines a dedicated woofer and tweeter to deliver balanced, full-range audio for music and home theatre applications.

  • 6-Inch Continuum™ Cone Woofer
    Uses Bowers & Wilkins’ Continuum cone technology for natural, detailed midrange and accurate bass response.

  • Decoupled Double-Dome Tweeter
    Provides clear, extended high frequencies with minimal distortion, enhancing vocal and instrumental clarity.

  • Wide Dispersion Pattern
    Engineered for broad and even sound coverage throughout the listening area when installed in ceilings.

  • Rigid Back-Box Compatibility
    Can be installed with a back box to improve low-frequency response and reduce sound transfer to adjacent rooms.

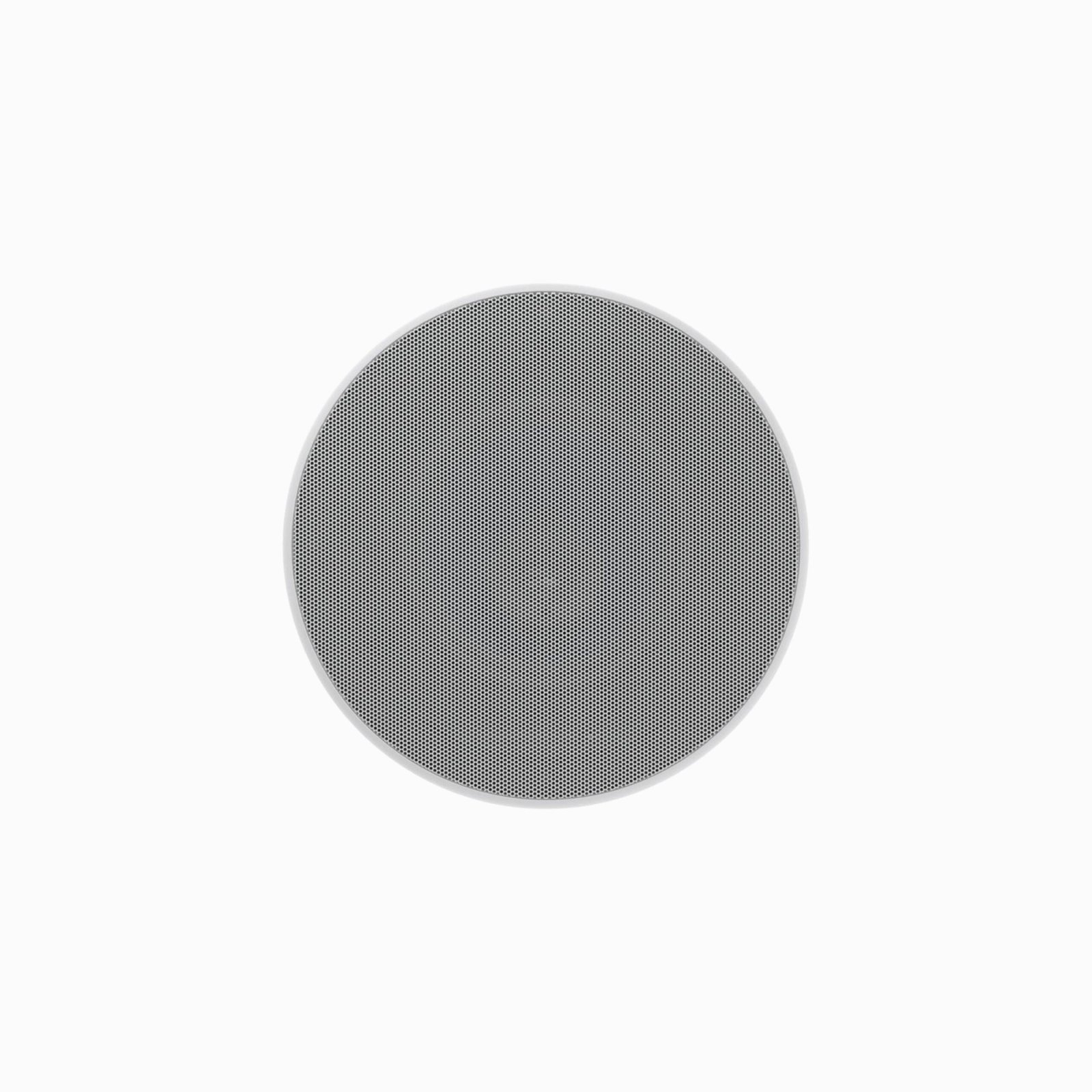

  • Low-Profile Grille Design
    Discreet, paintable grille integrates seamlessly into ceilings for a clean, minimalist appearance.

  • High-Quality Crossover Network
    Optimized crossover components provide smooth frequency transitions and coherent sound reproduction.

  • Easy Installation System
    Designed for secure, flush mounting with intuitive mounting tabs and hardware.

  • Reliable Everyday Performance
    Built for consistent, long-lasting performance in residential or commercial audio environments.

  • Ideal for Multi-Room Audio or Home Theatre
    Excellent choice for background music zones, surround channels, or discrete main speakers in ceiling installations.

Description

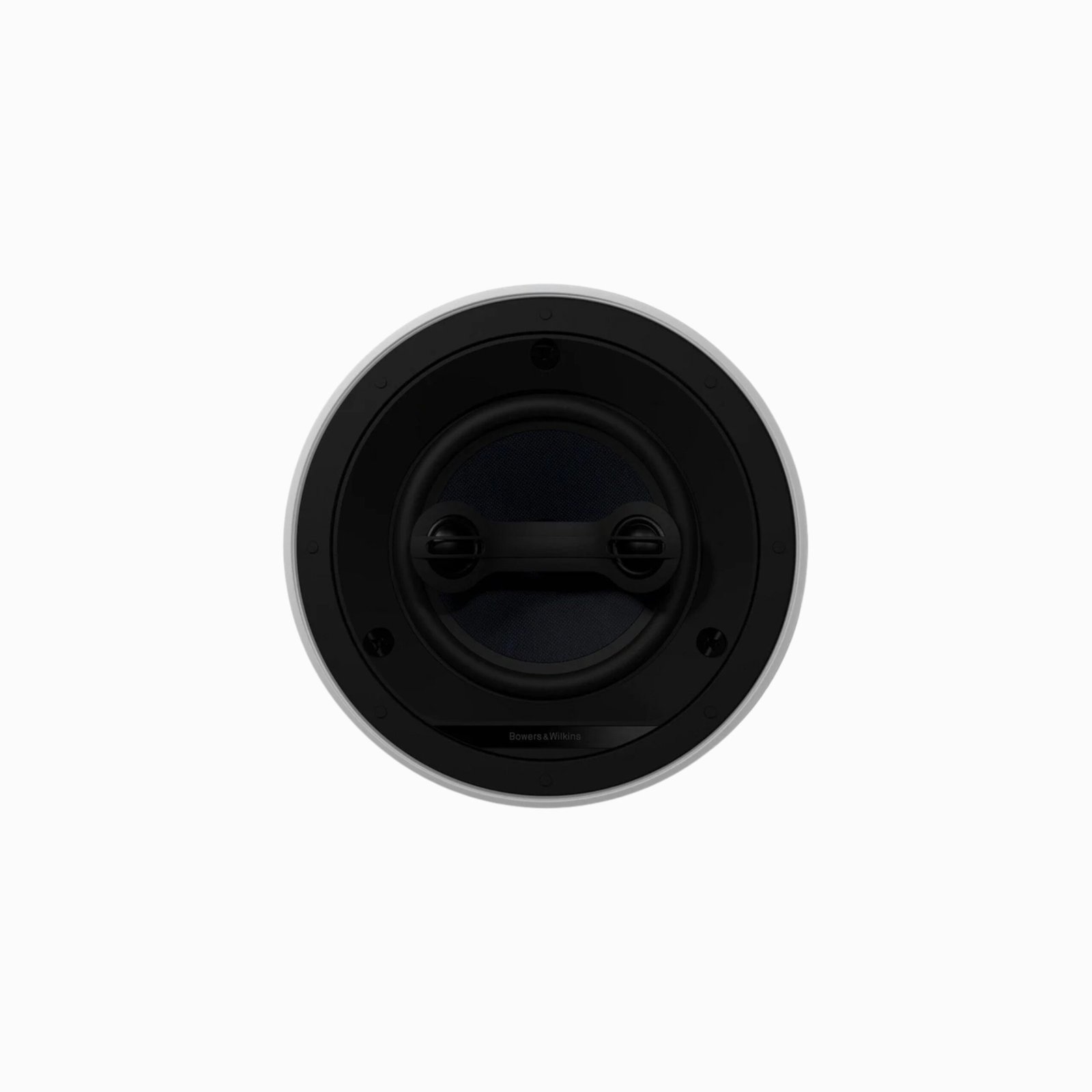

Bowers & Wilkins CCM 664SR

The CCM664SR is a dual, two-way ceiling speaker combining two offset tweeters and a twin voice coil bass/midrange driver to allow either for a combined stereo signal from one speaker or for rear-channel surround sound.

See nothing, hear nothing

The CCM664SR is a dual, two-way ceiling speaker featuring a 150mm(6in) woven glass fiber cone bass/midrange driver and two offset soft dome tweeters. The twin voice coil bass/midrange driver and tweeters allow a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel. The CCM664SR also includes a two-position stereo/surround switch to instantly make the speaker suitable to be used as a surround channel. Incorporating QuickDogs and plug-and-play functionality, it is quick and easy to install.

Features a 150mm (6in) woven glass fiber cone bass/midrange driver and soft dome tweeters, as well as a two-position stereo/surround switch to instantly change between modes.



 Specifications

Description
2-way dual-channel in-ceiling system
Drive Units
2x ø20mm (1in) soft dome tweeter
1x ø150mm (6in) blue aramid fiber cone bass/midrange
Frequency Range (-6dB)
48Hz – 30kHz48Hz – 30kHz
Recommended Amp Power
25 – 80w (per channel)
Sensitivity SPL (2.83V, 1m)
83dB (per channel)
89dB (both channels driven)
Impedance Nominal (min)
8 ohms (4 ohms) (per channel)
Approximate Dimensions
Frame Dimensions
Frame Diameter: 9.5 ”
Depth Behind Surface: 5.2 “
Cut-out Dimensions
Cut-out diameter: 8 ”
Protrusion: 0.2″
Pre-mount Kit
C6
Recommended Back Box
C6
Approximate Weight
Shipping: 10 lbs
UPC
714346310371
Series
CI 600 Series
Drivers
2x ø20mm (1in) soft dome tweeter
1x ø150mm (6in) black glassfiber cone bass/midrange
Impedance
8Ohms (4Ohms per channel)
Total Amp Power
Recommended 25- 80w (per channel)
