Bowers & Wilkins CCM632- 6 Inches, 2-Way In-Ceiling Speaker (Each)

Key Features

  • 2-Way In-Ceiling Speaker Design
    Combines a dedicated woofer and tweeter to provide balanced, full-range sound suitable for music and home theatre applications.

  • 6-Inch Woofer Driver
    Delivers clear midrange and solid low-frequency performance for natural, detailed audio.

  • Decoupled Double-Dome Tweeter
    Produces smooth, extended high frequencies with excellent clarity and minimal distortion.

  • Wide Sound Dispersion
    Engineered to radiate sound broadly for even coverage throughout the listening area when installed flush in ceilings.

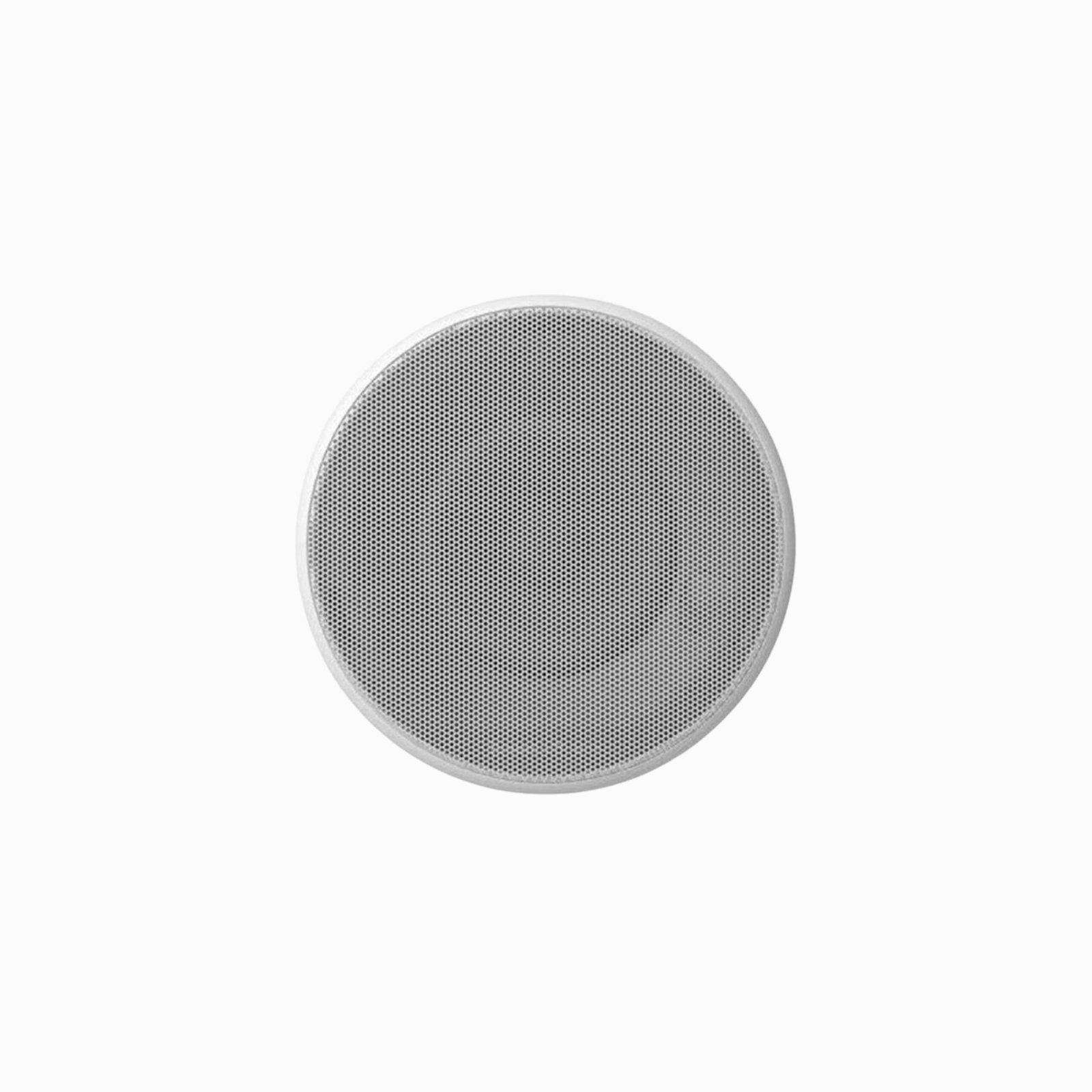

  • Low-Profile, Paintable Grille
    Discreet grille blends into the ceiling and can be painted to match room décor for a seamless look.

  • Optimized Crossover Network
    Designed for smooth frequency transitions between woofer and tweeter for coherent sound reproduction.

  • Rigid Back-Box Compatibility
    Can be paired with an optional back box to improve bass response and reduce sound transfer to adjacent spaces.

  • Flush-Mount Installation
    Easy to install with secure mounting clamps and hardware for a tidy, flush finish.

  • Durable Construction
    Built to deliver reliable performance over time in residential or commercial audio setups.

  • Versatile Application
    Ideal for distributed audio, background music, or immersive home theatre installations where discreet, high-quality sound is desired.

Description

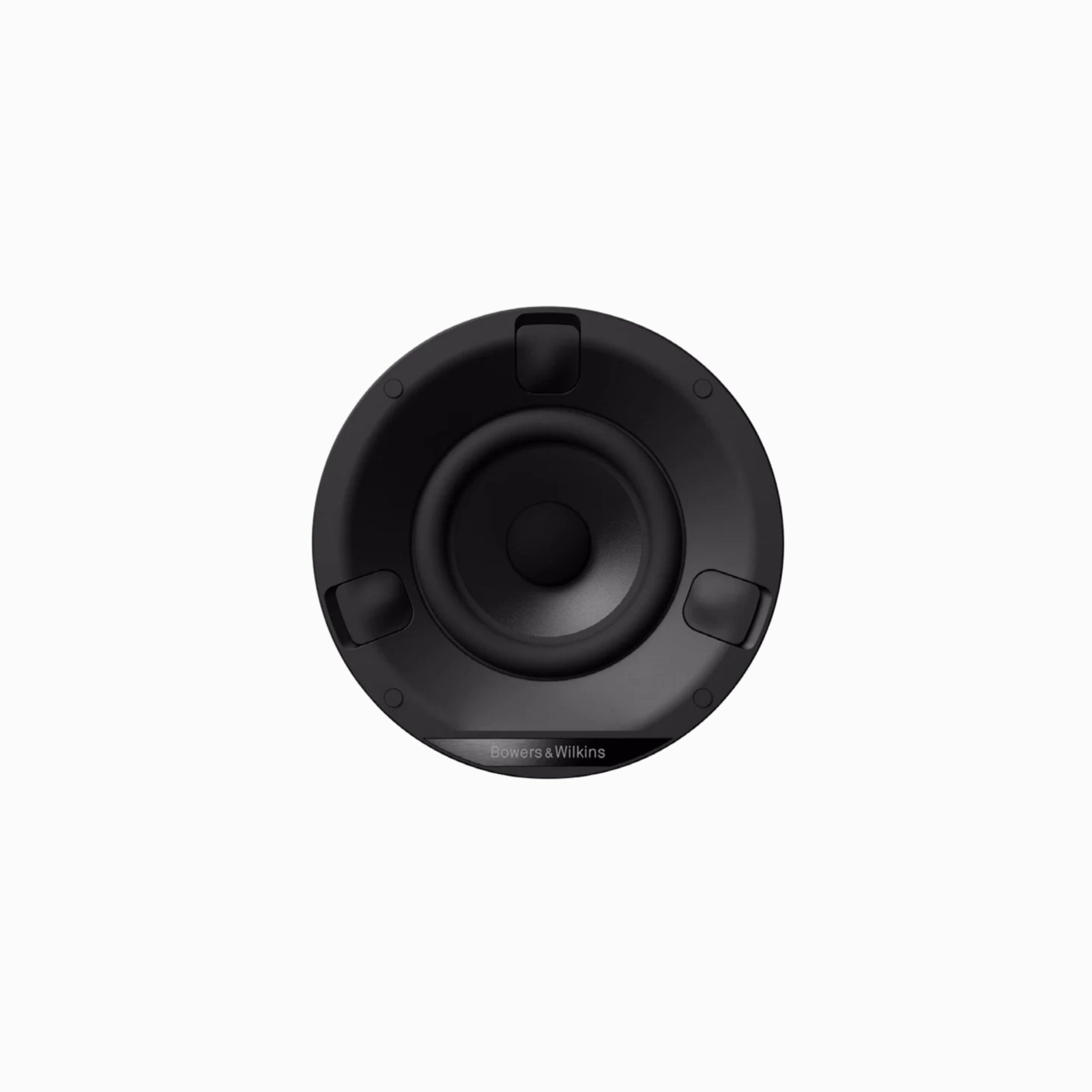

Bowers & Wilkins CCM 632

CCM632 is an in-ceiling speaker designed to deliver a full range of sound at high quality in a very small space. Each speaker comes with an integral enclosure to minimize acoustic bleed into adjoining spaces. Speakers are supplied in pairs, with each pack including round and square magnetically fixed, and fully customizable, grille/bezel assemblies.

In-ceiling speakers, designed to squeeze into small spaces or be used in multiples for diffuse, background sound, are really difficult to get right. If the driver’s too small, there won’t be enough bass without adding a bulky subwoofer, but the common alternative is a 2-way where the tweeter sits in front of a small bass/midrange driver. The problem with these is that the driver fires around the tweeter’s body, inevitably leading to coloration. The new Bowers & Wilkins CCM632 is a single 75mm (3inch) full-range driver with beautifully well-balanced sound, that sidesteps traditional small speaker issues yet still takes up less than 150mm (6”) diameter space installed.

The CCM632 also features Bowers & Wilkins’ new and innovative ZipDogs fixing method. These make short work of installation and cope with almost any thickness of the mounting panel.



 Specifications

Description
2-way in-ceiling system
Drive Units
1x ø25mm (1in) Nautilus™ swirl loaded aluminum dome tweeter
1x ø150mm (6in) blue aramid fiber cone bass/midrange
Frequency Range (-6dB)
45Hz – 50kHz
Recommended Amp Power
25 – 150w
Sensitivity SPL (2.83V, 1m)
88dB
Impedance Nominal (min)
8 ohms (4.5 ohms)
Approximate Dimensions
Frame Dimensions
Frame Diameter: 9.5 ”
Depth Behind Surface: 5.2 “
Cut-out Dimensions
Cut-out diameter: 8 ”
Protrusion: 0.2 “
Pre-mount Kit
C6
Recommended Back Box
C6
Approximate Weight
Shipping: 10 lbs
UPC
714346323807
Series
CI 600 Series
Drivers
1x Ø75mm (3 in) paper cone full-range
Frequency Response
112Hz – 16kHz
Impedance
8 Ohms (5 Ohms)
Sensitivity
84dB (2.83V, 1m)
Total Amp Power
Recommended 10W – 60W
