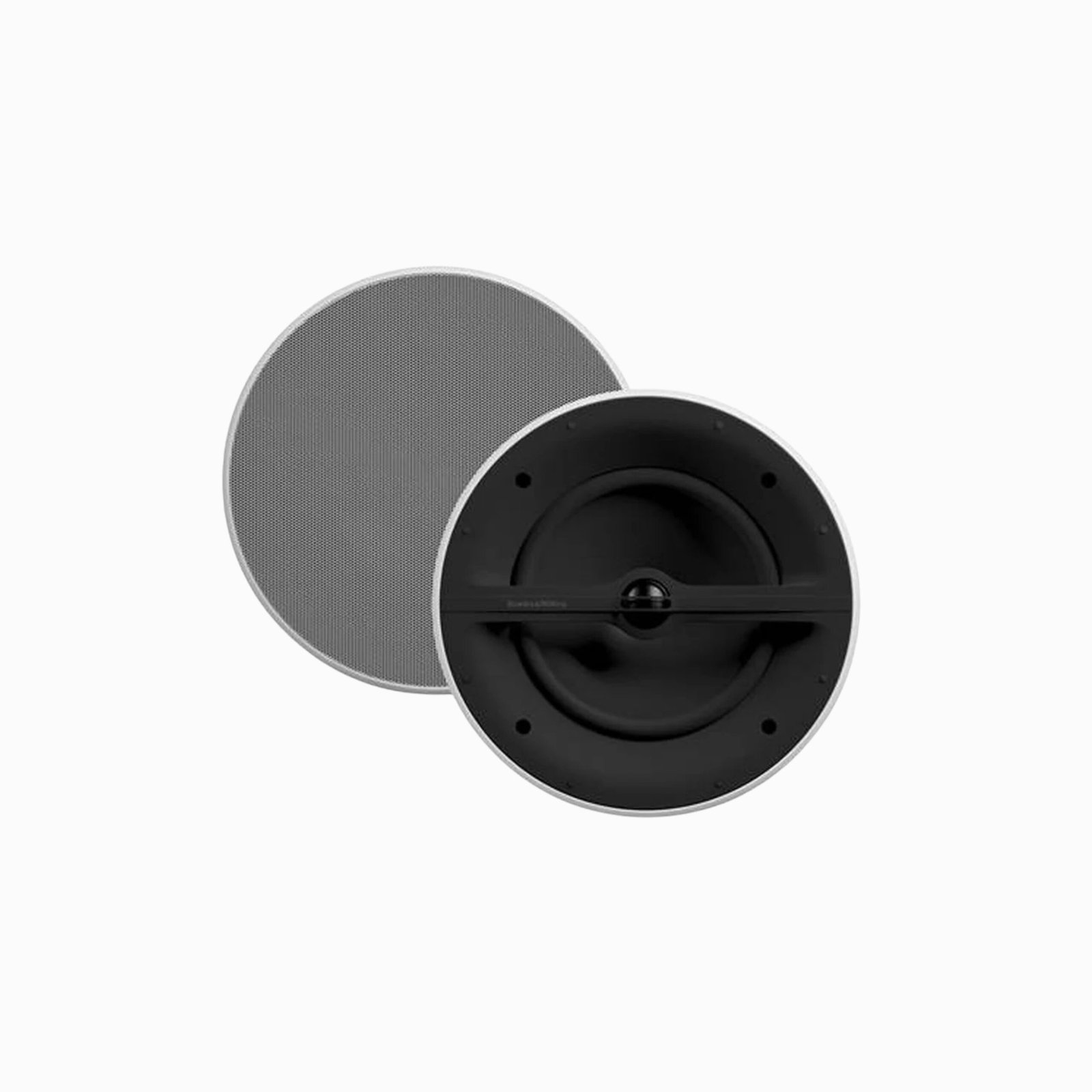

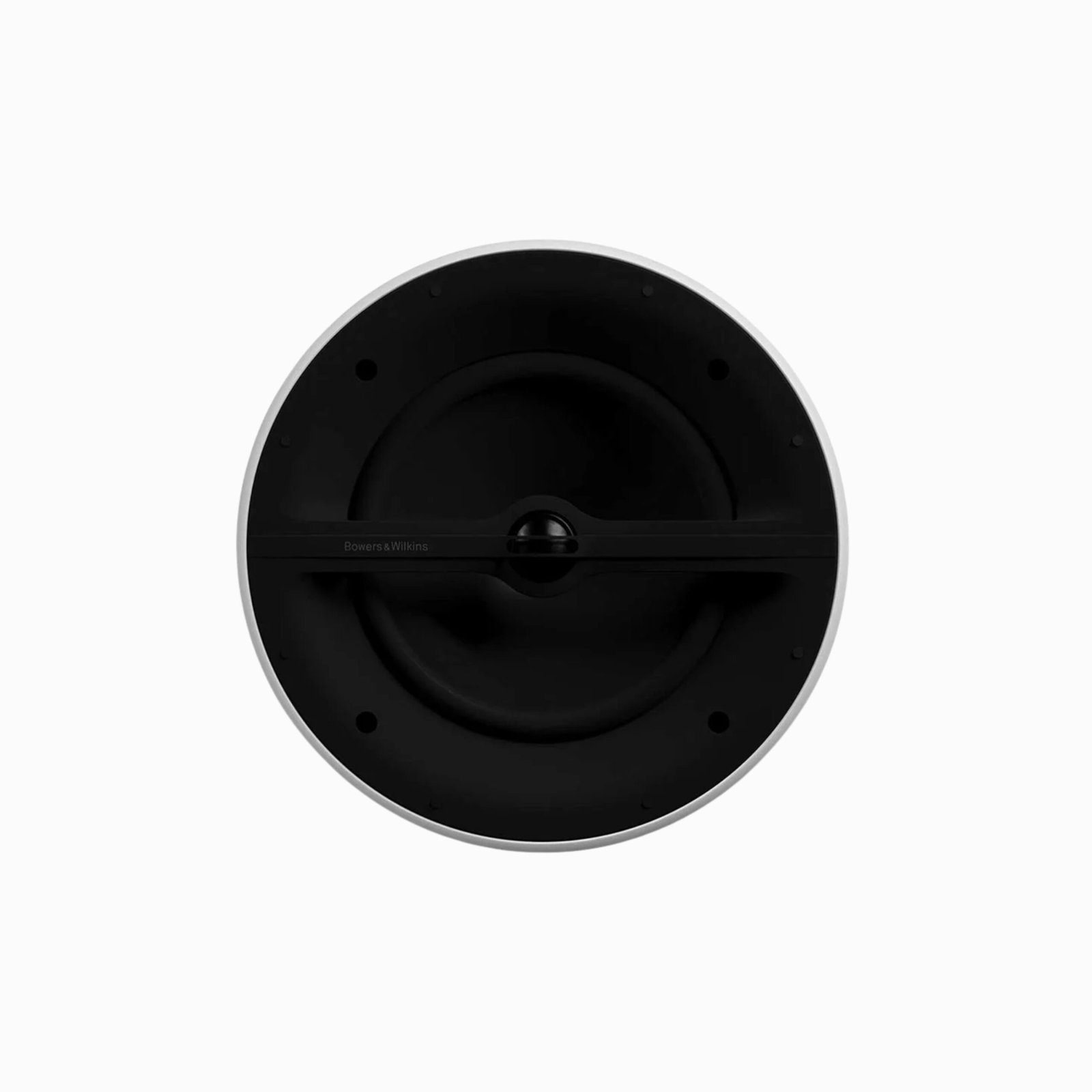

Bowers & Wilkins CCM382- 8 Inches, 2-Way In-Ceiling Speaker (Each)

Key Features

  • 2-Way In-Ceiling Speaker Design
    Combines a dedicated woofer and tweeter to deliver balanced, full-range sound ideal for music, movies, and general audio playback when installed in ceilings.

  • 8-Inch Woofer Driver
    Larger driver provides deeper, more authoritative low-frequency performance along with clear midrange response.

  • Decoupled Double-Dome Tweeter
    Produces smooth, extended high frequencies with excellent clarity and minimal distortion for detailed audio.

  • Wide Sound Dispersion
    Engineered for broad, even sound coverage across the listening area, enhancing stereo imaging and immersion.

  • Low-Profile, Paintable Grille
    Sleek, unobtrusive grille that blends into ceilings; paintable to match room décor for a seamless installation.

  • Optimized Crossover Network
    Ensures smooth transitions between woofer and tweeter for coherent and balanced sound reproduction.

  • Flush-Mount Installation
    Designed for secure in-ceiling installation with included mounting hardware for a clean, flush finish.

  • Rigid Back-Box Compatibility
    Can be paired with an optional back box to improve bass response and reduce sound transmission to adjacent spaces.

  • Durable Construction
    Built to deliver reliable, long-lasting performance in residential or commercial audio setups.

  • Versatile Use
    Ideal for whole-home audio, distributed music systems, or as main or surround speakers in immersive home theatre systems.

Description

  Bowers & Wilkins CCM 382

8″ 2-Way In-Ceiling Speakers – Pair

One of the challenges of custom installation is generating great sound in those hard-to-access places. Perfect for small spaces, the CCM382 speakers ensure that you can have fantastic sound everywhere you want it.

The coaxial CCM362 and CCM382 offer a choice of size dependent on the output level required. Both are balanced for wide-angle listening, commensurate with their in-ceiling placement, and both offer a choice of round or square aspect.

Speakers from Bowers & Wilkins have always been recognized as delivering the best audio experience at any level. Techniques and materials honed to perfection in our core models have been successfully carried over to their custom products so that those who want to hear everything whilst seeing nothing have had a clear solution. The three models in the B&W CI 300 Series have been specifically designed to cope with more demanding environments of high humidity, such as a shower room or indoor swimming pool.



 Specifications

Design
2-way in-ceiling system
Drive Units
1x 25mm (1in) soft dome tweeter
1x 200mm (8in) Polypropylene cone bass/midrange
Frequency Range (-6dB)
45Hz – 30kHz
Recommended Amp Power
25 – 130w
Sensitivity SPL (2.83V, 1m)
90 dB
Impedance Nominal (min)
8 ohms (5.0 ohms)
Frame Dimensions
Frame Diameter: 11.4
Depth Behind Surface: 3.4 “
Cut-out Dimensions
Cut-out diameter: 9.9 ”
Protrusion: 0.2 “
Power Handling
80W
Pre-mount Kit
PMK C8
Recommended Back Box
BB 6C
Approximate Weight
Shipping: 10 lbs
UPC
714346313617
Series
CI 300 Series
Frequency Response
45-30kHz
Impedance
8 Ohms
power_range
10-80 watts
Sensitivity
90 dB
Tweeter
Soft-dome
