Bose Designmax DM2C-LP In-Ceiling loudspeaker (Black)(Pair)
Bose Designmax DM2C-LP In-Ceiling loudspeaker (Black)(Pair) - Image 2
Bose Designmax DM2C-LP In-Ceiling loudspeaker (Black)(Pair) - Image 3
Bose Designmax DM2C-LP In-Ceiling loudspeaker (Black)(Pair)
Bose Designmax DM2C-LP In-Ceiling loudspeaker (Black)(Pair)
Bose Designmax DM2C-LP In-Ceiling loudspeaker (Black)(Pair)
Category: In-Ceiling

Bose Designmax DM2C-LP In-Ceiling loudspeaker (Black)(Pair)

Key Features

Balanced Acoustic Performance

  • Wide frequency response designed for clear, natural sound

  • Smooth midrange and well-controlled highs for both music and speech

  • Engineered for consistent coverage and tonal balance

Low-Profile In-Ceiling Design

  • Discreet installation that sits flush with ceiling surfaces

  • Designed for standard ceiling cut-outs

  • Paintable grille options help match décor while the black finish blends with darker surfaces

Durable Construction

  • Built with components suited for long-term use

  • Moisture-resistant driver and frame materials

  • Suitable for a range of indoor installation environments

Easy Installation

  • Includes mounting hardware

  • Quick-connect terminals for secure and efficient wiring

  • Designed to install cleanly into ceilings with minimal effort

Ask a question
Delivery & Return

Description

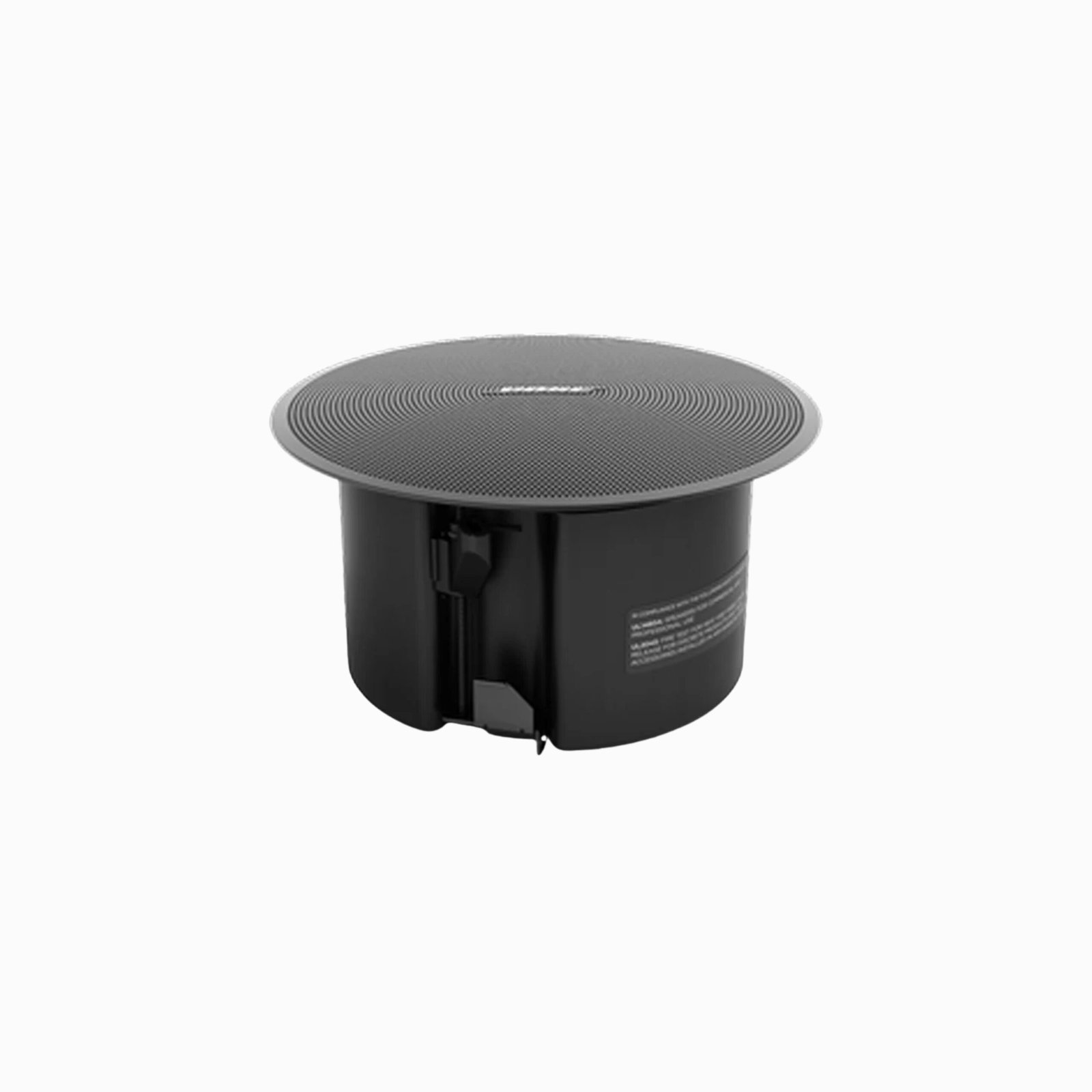

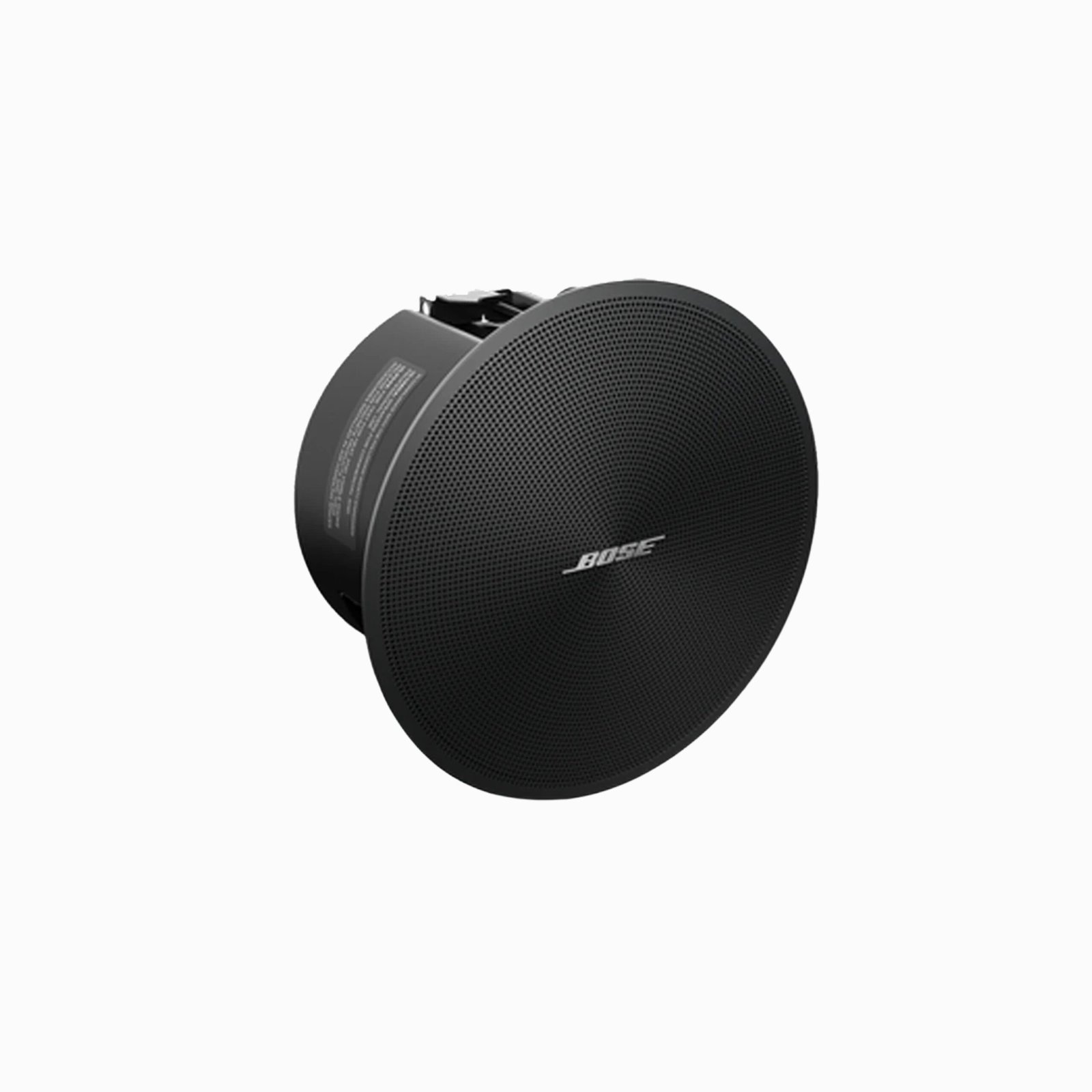

A complete loudspeaker assortment to enhance any space, DesignMax loudspeakers offer rich lows, and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The 20-watt DesignMax DM2C-LP loudspeaker makes it easy to bring great sound to tight spaces. Ideal for background music, the DM2C-LP loudspeaker features a 2.25-inch transducer and 85 Hz – 19 kHz frequency range. The in-ceiling DM2C-LP has a low-profile backcan and is installed easily via QuickHold mounting arms.

FEATURES

Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver instantly impressive sound with custom Bose drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Install in confined ceiling spaces with low-profile backcan measuring just 10 centimeters (3.9 inches) high

Applications

  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues



SPECificationS

Technical Summary

Frequency Response (+/-3 dB)
95 – 18,000 Hz

Nominal coverage (H x V)
150° conical

Power Handling, peak
80 W

Maximum SPL @ 1m
97 dB

Frequency Range (-10 dB)
85 – 19,000 Hz

Power Handling, long-term continuous
20 W

Sensitivity (SPL/1W @ 1 m)
84 dB

Nominal Impedance
16 Ω (transformer bypass)
