Key Features

Direct-drive turntable design — uses a direct-drive motor instead of belt-drive, giving quick start-up and stable speed, which is great for DJs as well as home listening.

Manual operation with selectable speeds — supports standard 33⅓ RPM and 45 RPM records (some versions also support 78 RPM with optional stylus), letting you play LPs, singles, or older records.

USB output for digitizing vinyl — you can connect to a computer via USB to record or digitize your vinyl collection easily.

Built-in preamp (switchable / line-level) — makes it easier to connect to most modern amplifiers, powered speakers, or home stereo systems without needing a separate phono preamp.

Adjustable pitch control ±10% — gives speed fine-tuning, useful for DJs or if you want precise pitch/speed matching when playing vinyl.

Sturdy, professional build quality — heavy, stable construction to reduce vibrations and improve playback stability and fidelity.

Detachable headshell + removable dust cover — for protection when not in use, and easier cartridge/stylus changes or upgrades.

Tonearm with anti-skate and counterweight adjustment — allows proper tracking force and anti-skate calibration for accurate playback and minimal record wear.

Description

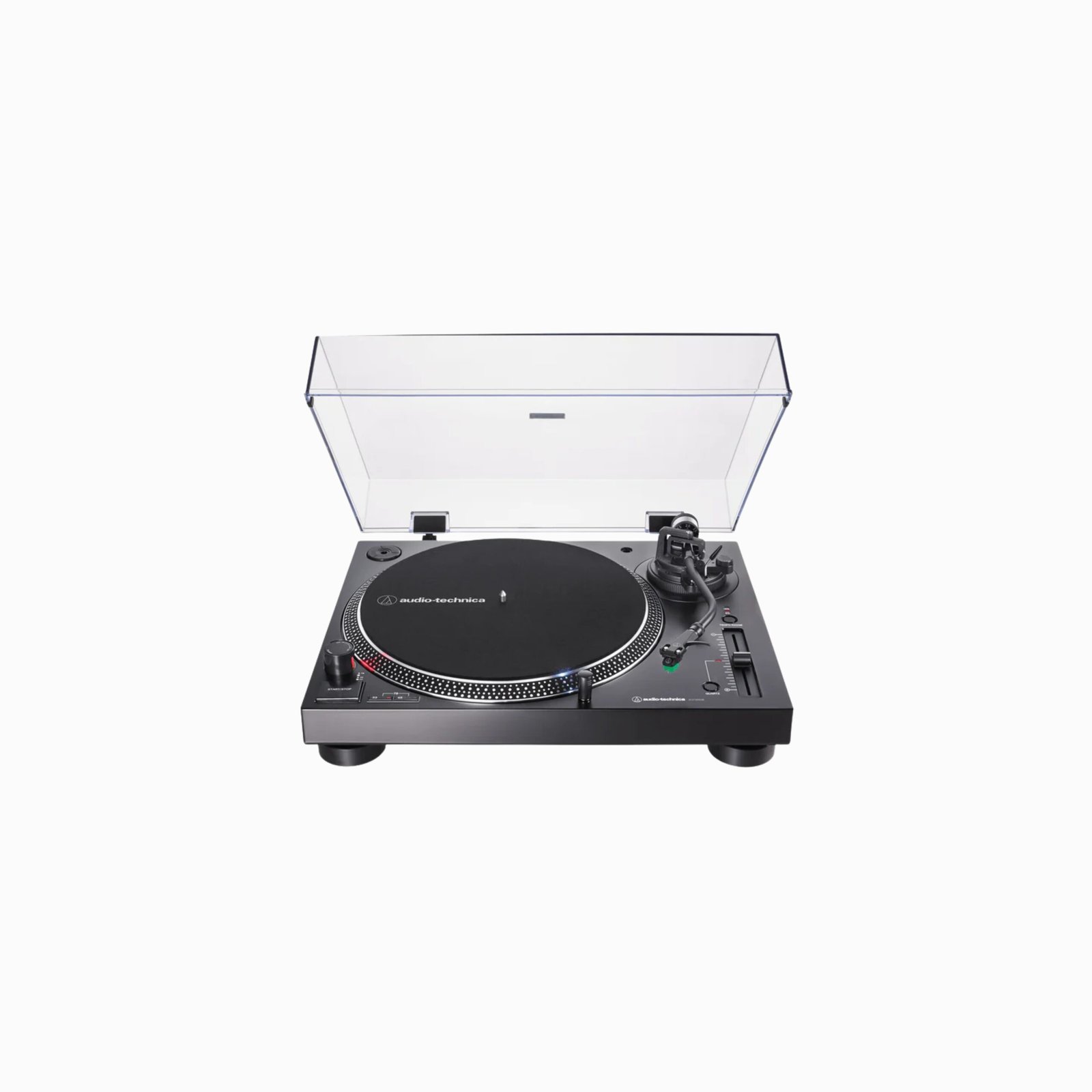

Audio Technica AT-LP120-USB – Fully Automatic Direct-Drive Turntable

AT-LP120-USB

This model has been discontinued. Please see the AT-LP120XUSB Direct-Drive Turntable. This professional stereo turntable features a high-torque direct-drive motor for quick start-ups and a USB output that connects directly to your computer. Other features include: forward and reverse play capability; cast aluminum platter with slip mat and a start/stop button; three speeds 33/45/78; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-10% or +/-20% adjustment ranges; and removable hinged dust cover. A selectable internal stereo phono pre-amplifier allows the turntable to plug directly to components with no dedicated turntable input. A USB cable and adapter cables are included along with Mac- and PC-compatible Audacity software to digitize your LPs. Available in silver (AT-LP120-USB) and black (AT-LP120BK-USB).

Features

Convert your vinyl records to digital audio files
Mac- and PC-compatible Audacity software digitizes your records
Direct-drive, high-torque motor
Fully manual operation
Selectable 33/45/78 RPM speeds
Professional anti-resonance, die-cast aluminum platter with slip mat
½” mount universal headshell with AT95E Dual Magnet™ phono cartridge and long-life diamond stylus
Balanced S-shaped tone arm with hydraulically damped lift control and lockable rest
Built-in switchable phono pre-amplifier with RCA output cables
Stroboscopic platter with speed indicator
Forward/reverse operation and variable pitch control with quartz speed lock
Popup stylus target light for easier cueing in low light
Includes: Mac- and PC-compatible Audacity software, USB cable, Two output adapter cables (dual RCA female to mini-plug male & dual RCA female to mini-plug female), Power cord, 45 RPM adapter, Phono cartridge (78 RPM records require additional cartridge, not included), Counterweight, Slip mat, Removable hinged dust cover
Available in silver (AT-LP120-USB) and black (AT-LP120BK-USB)

Specifications

Type	3-speed, fully manual operation
Motor	DC motor
Drive Method	Direct drive
Speeds	33-1/3 RPM, 45 RPM, 78 RPM
Turntable Platter	Die-cast aluminum
Starting Torque	>1.6 kgf-cm
Braking System	Electronic brake
Wow and Flutter	<0.2% WRMS (33 RPM)
Signal-to-Noise Ratio	>50 dB
Output Level	Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 150 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain	36 dB nominal, RIAA equalized
USB Function	A/D, D/A – 16 bit 44.1 kHz or 48 kHz USB selectable; Computer interface – USB 1.1 Compliant Windows XP, Vista or MAC OSX
Power Supply Requirements	115/230V AC, 60/50 Hz
Dimensions	450.0 mm (17.72″) W x 352.0 mm (13.86″) D x 157.0 mm (6.1″) H
Weight	10.7 kg (23.5 lbs.)
Accessories Included	Headshell/cartridge; AC line cord; dual RCA (female) to 3.5 mm (1/8″) mini-plug (male) stereo adapter cable; dual RCA (female) to 3.5 mm (1/8″) mini-plug (female) stereo adapter cable; 45 RPM adapter; USB cable; recording software
Pitch Variation	+/-10% or +/-20%
