Category: Amplifier

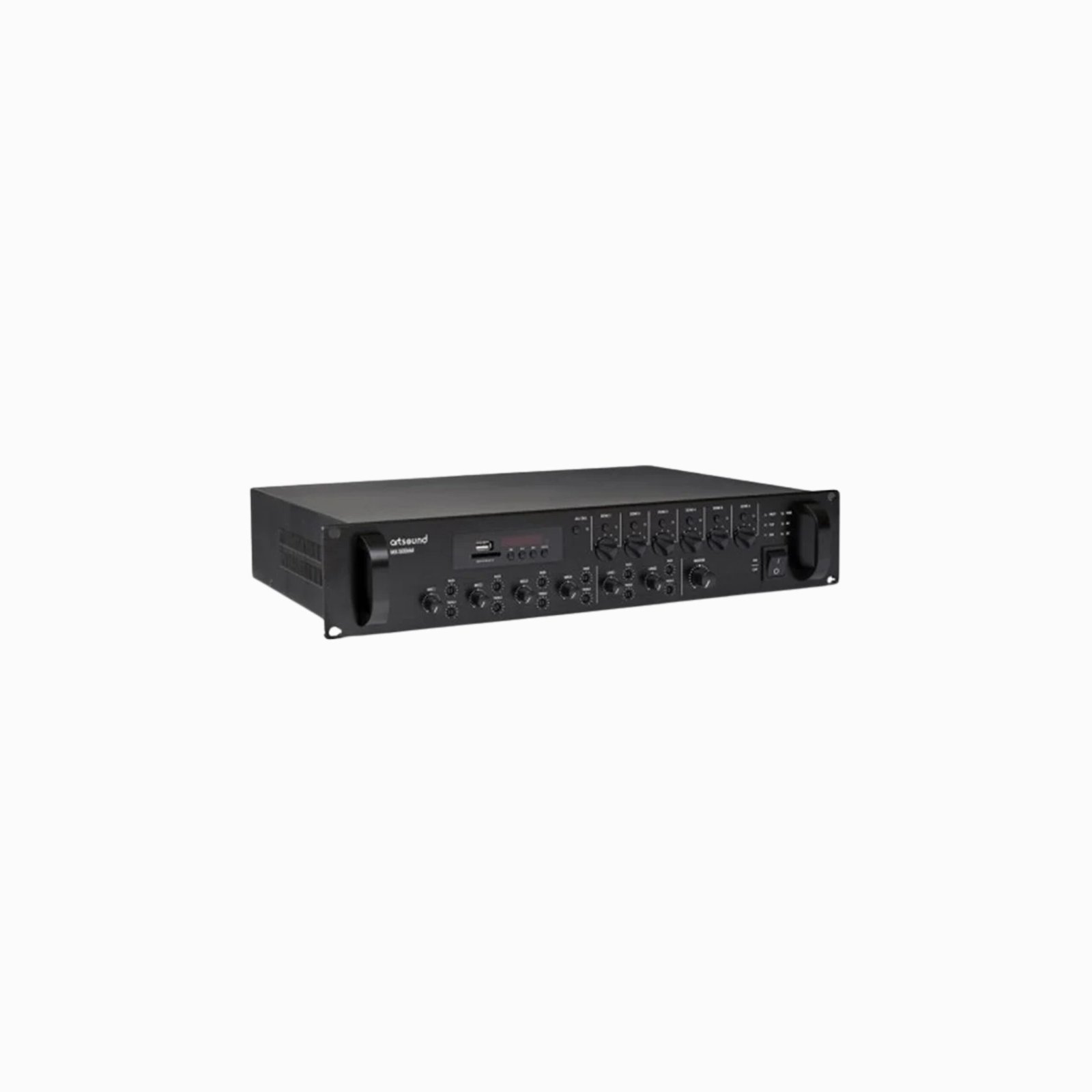

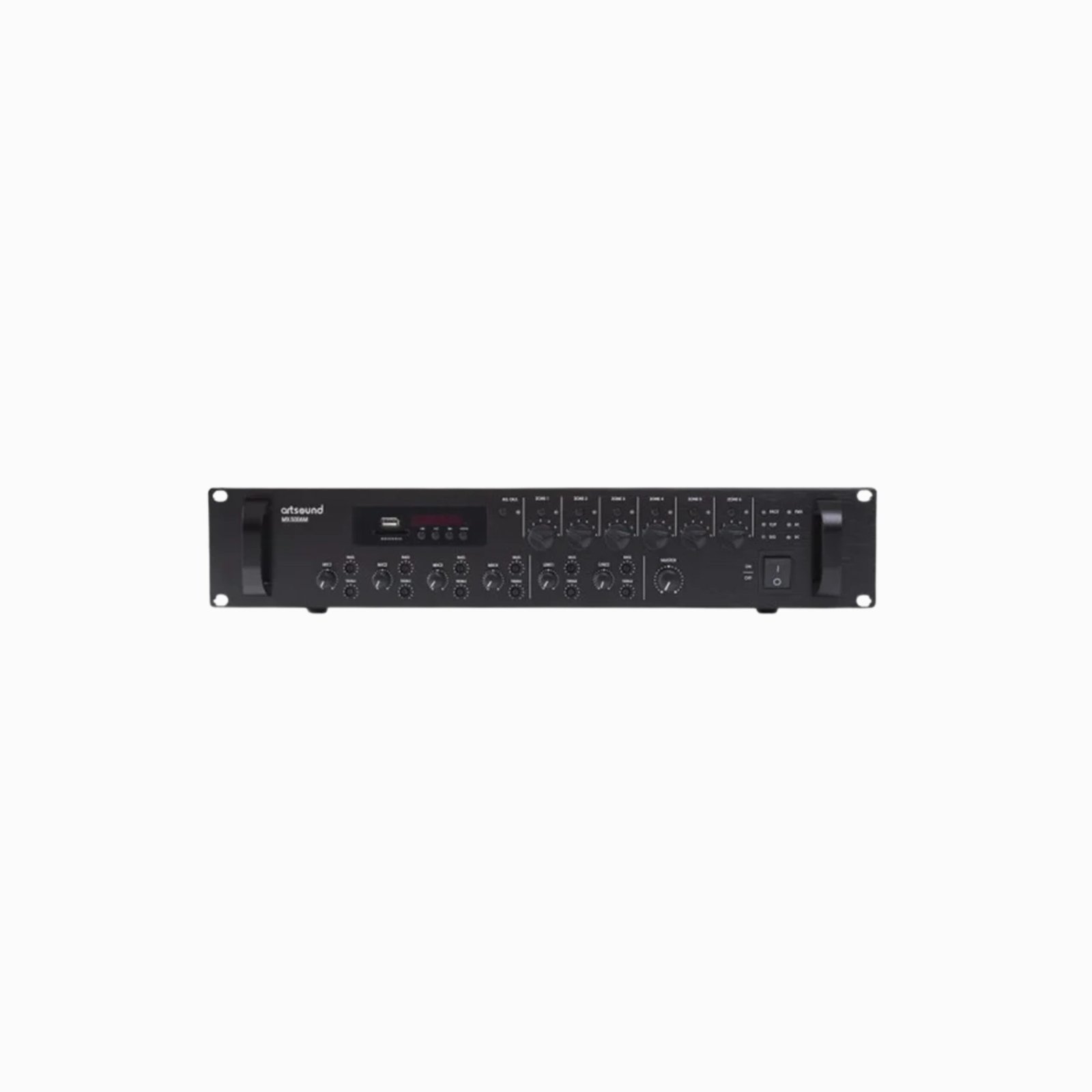

ArtSound MX-5006M - 500 Watts Mixing Amplifier with Bluetooth, 6 Zones

Key Features

  • 500 W total output power for driving multiple speaker zones with ample headroom

  • 6-zone audio distribution for independent audio control across different rooms or areas

  • Built-in Bluetooth connectivity for easy wireless streaming from smartphones, tablets, and other devices

  • Multiple input options including mic inputs, auxiliary inputs, and line-level sources for flexible system integration

  • Microphone priority and paging support for announcements and public address use

  • Tone controls and level adjustments for each zone to fine-tune bass, treble, and volume

  • Durable rack-mountable design suitable for commercial and residential installations

  • Independent volume control for each zone for customized listening preferences

  • Protection features including thermal and short-circuit safeguards for reliable long-term operation

  • Ideal for schools, offices, retail spaces, restaurants, and multi-room audio systems

Description

ArtSound MX-5006M – 500 Watts Mixing Amplifier with Bluetooth, 6 Zones

MX-5006M

Mixer amplifier 6 zones, 100V, 19″, 3U, 500W

  • 6 Zones
  • Built-in source
  • EMC input

Description

This compact, integrated amplifier generates up to 500 W. In no time at all, you create 6 zones that operate independently. They each have their own volume level and selective call option.

Mixing amplifier with up to 500W of power and built-in FM radio and Bluetooth.

Possibility of setting 6 different volume zones.

Optional selective microphone available (MIC-216)



Specifications

Frequency range
50 Hz – 16 kHz
Dimensions
88 x 484 x 353 mm – 2RS
Weight/piece
7,2 kg
AUX input
2 (RCA)
Output capacity RMS 8Ω
500 W
Power supply
240V AC / 24V DC
Tone control
yes (per input)
Direct output
4-16 Ω / 70V / 100V
MIC input
4 (combo XLR/Jack) + 2 (selective paging RJ45)
Chime function
Yes
Priority levels
5 EMC input (externally injected signal) ALARM trigger (built-in) TEL input / REMOTE MIC (MIC-216) CHIME MIC1 (prior to MIC2-4/LINE1-2)
Power consumption
360 W
priority input
5 entrée EMC (signal injecté) déclenchement ALARME (intégré) entrée TEL / REMOTE MIC (MIC-216) CHIME (sonnerie) MIC1 (prioritaire sur MIC2-4/LINE1-2)
Output capacity 100V
500 W
Built-in source
USB/SD – FM tuner – Bluetooth
Line-out
yes
The zones
6
