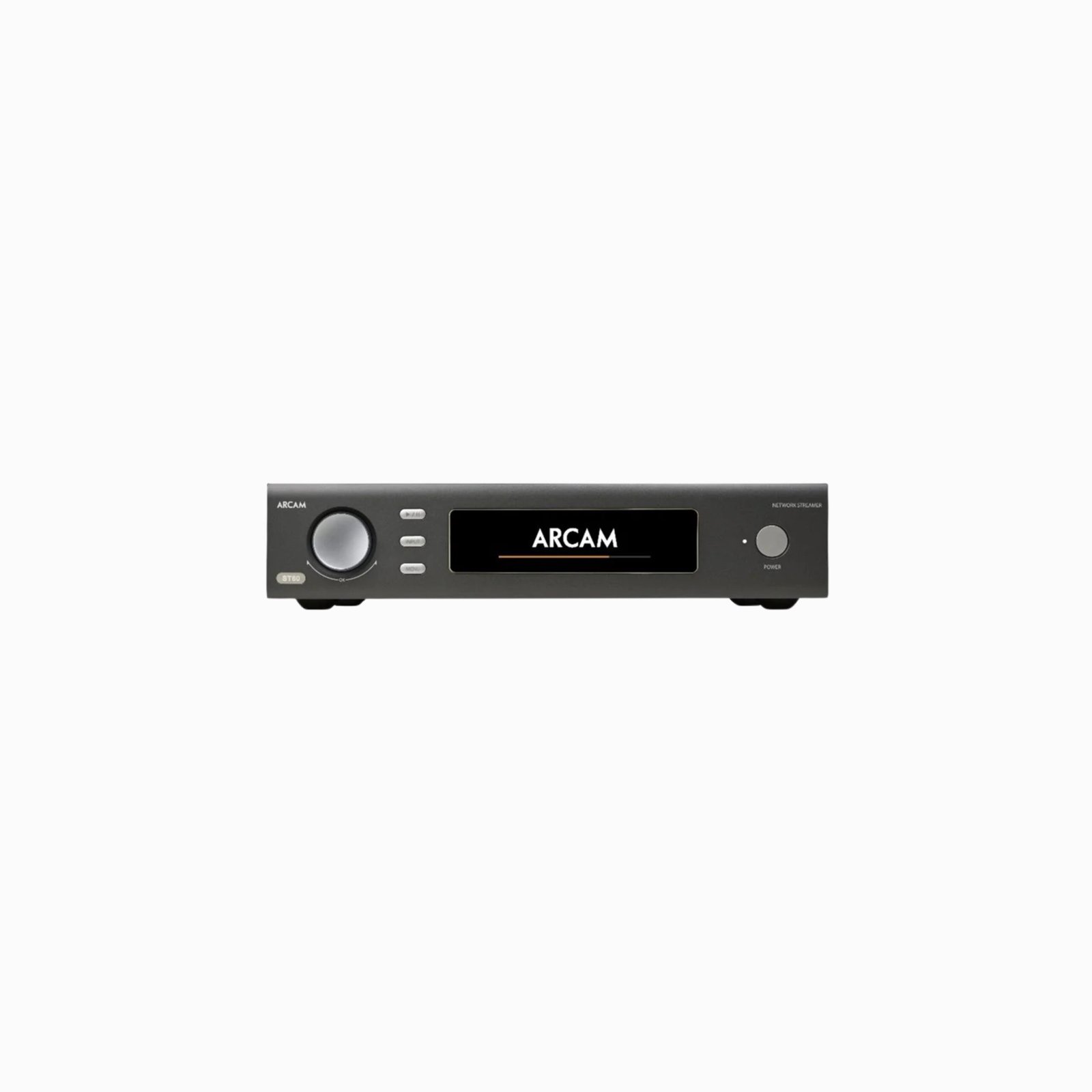

Arcam ST60

High-performance network music streamer designed for audiophile-grade playback
ESS Sabre Reference DAC delivers detailed, accurate, and natural sound quality
Built-in Wi-Fi and Ethernet connectivity for stable network streaming
High-resolution audio support including FLAC, WAV, AIFF, ALAC, and DSD formats
Wireless streaming compatibility with Apple AirPlay 2, Google Chromecast, and Bluetooth
Roon Ready support for advanced music library management and bit-perfect playback
UPnP network playback for streaming from local servers and NAS devices
Digital outputs including coaxial and optical for use with external DACs
USB input for direct playback from USB storage devices
MusicLife app control for easy browsing and system control
Front-panel colour display shows album art, track information, and system status
Rigid aluminium chassis design minimises vibration and electrical interference
Designed to match Arcam Radia and HDA series components for a cohesive system setup

Description

Digital to Analogue Conversion	ESS9038 32-bit/192kHz Delta-Sigma DAC
Signal/Noise Ratio (Awtd)	118dB unbalanced, 122db balanced
Harmonic Distortion (1kHz)	<0.0008%
Frequency response	10Hz – 20kHz ± 0.5dB
Output Level (Fixed)	2.2Vrms unbalanced, 4.5Vrms balanced
Output Impedance	47Ω unbalanced, 600Ω balanced
Minimum Recommended Load	5kΩ
RMS Jitter	< 20 psec

SPDIF Receiver	AKM4113
Supported sample rates Optical	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
Supported sample rates Coaxial	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit depth	16-bit – 32-bit

USB	USB 2.0 High Speed (480Mbps)
Ethernet	10/100Mbps
Wireless	802.11b/g/n
Mains voltage	110–240V, 50–60Hz
Maximum power consumption	10W
Low power standby consumption	0.5W
Network standby consumption	2W
Dimensions W x H x D (including feet and control knob)	433x102x306mm
Weight (net)	5.5kg
Weight (gross)	7.9kg
Supplied accessories	Mains leads Remote control 2 x AAA batteries User Manual 2 x WiFi Antenna
