Acoustic Energy AE309 – 2.5 Way Floor Standing Speaker (Pair) (Black)

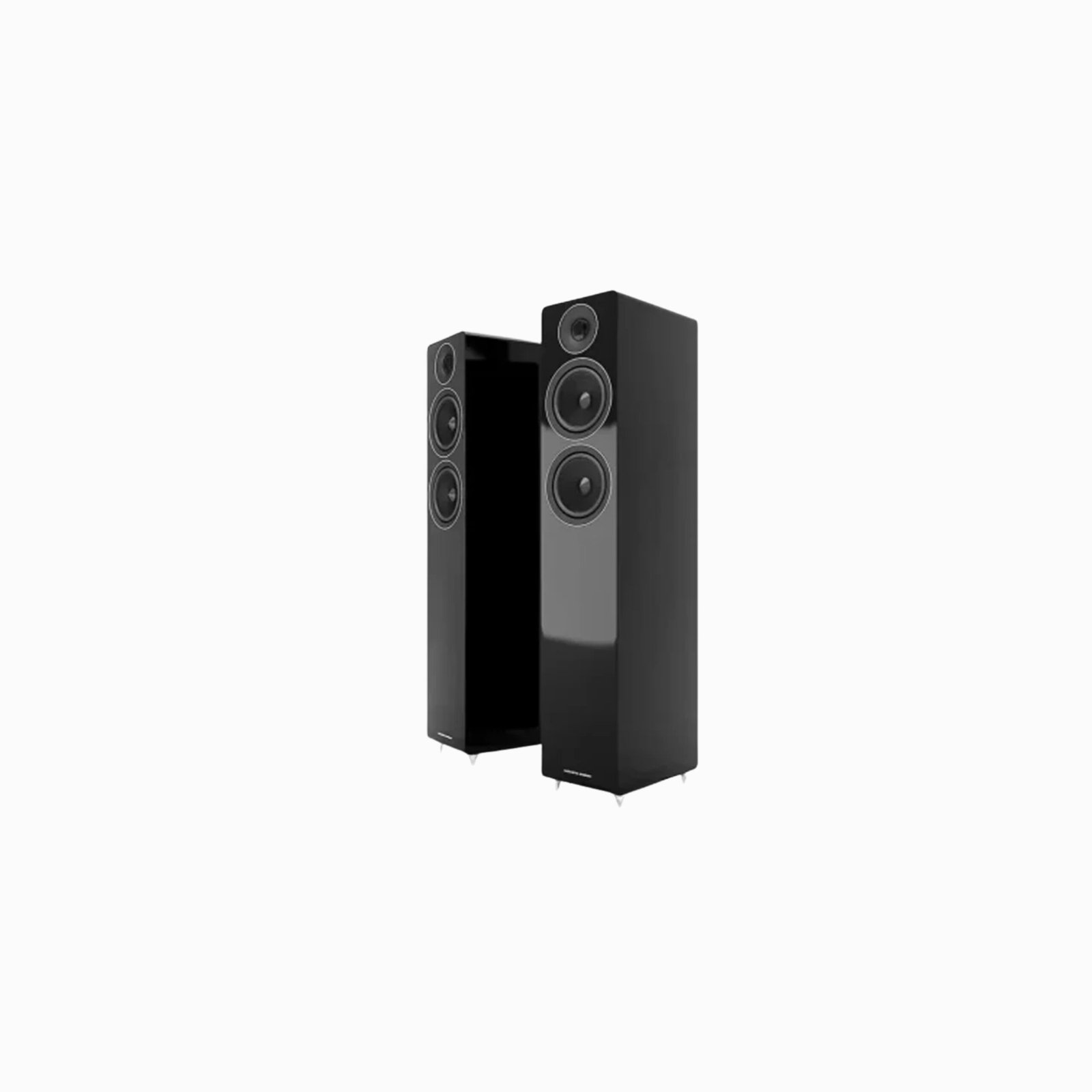

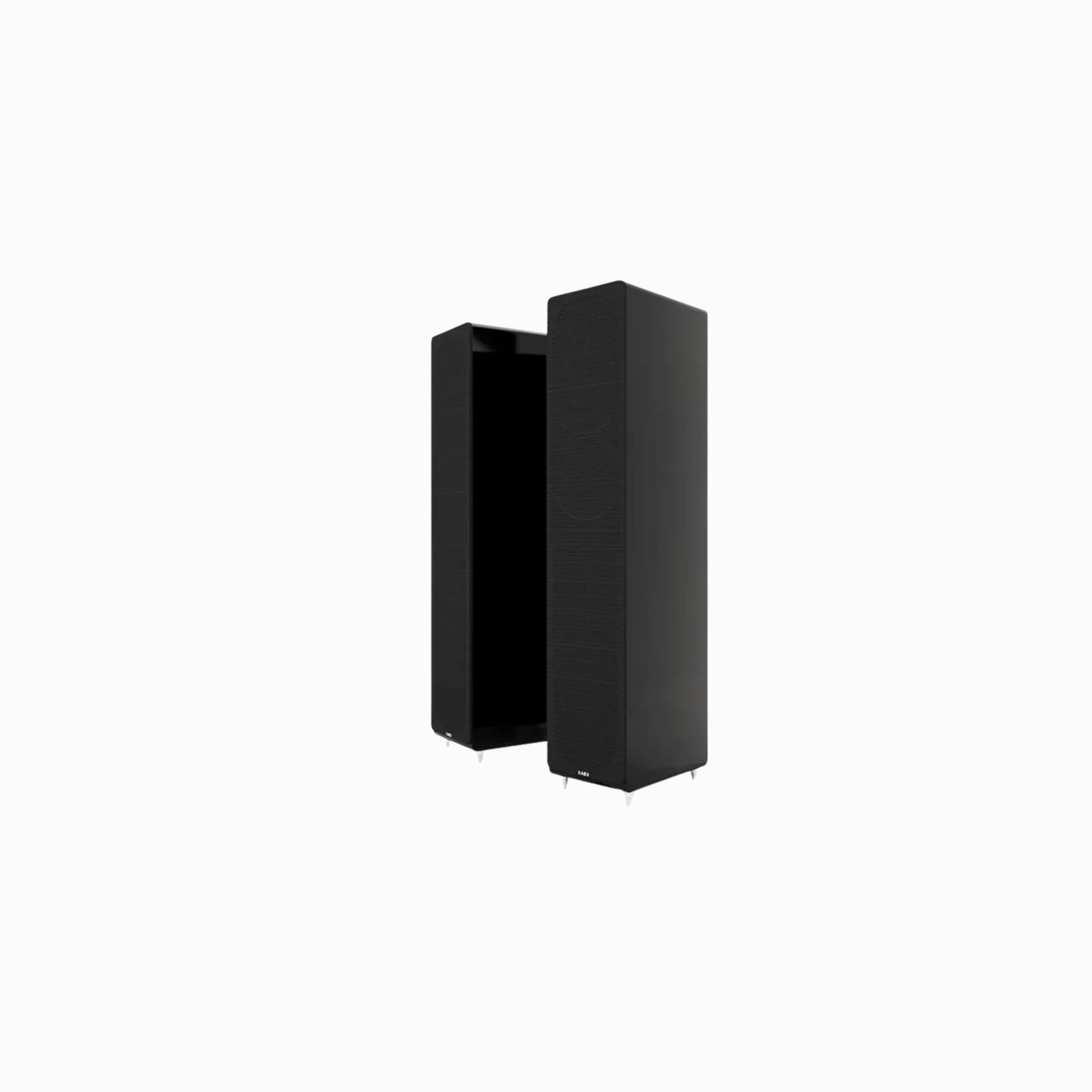

Acoustic Energy AE309 Floor-standing Loudspeakers

The AE309 is a slim-line floor-standing loudspeaker with compact dimensions, suitable for medium to large-sized rooms. Similar to the AE300 comparison, the AE309 offers higher levels of performance and finish than its 100 Series equivalent.

The AE309 uses two latest-generation 130mm mid-bass drive units. Featuring a brand new ceramic aluminium sandwich cone with an ultra-shallow profile and ultra-high force, long-throw motor system, this new driver boasts improved dispersion, extended bass slam and overall power handling.

A new 28mm aluminium tweeter has been developed for the 300 Series, which offers high power handling and a low fundamental resonance to reduce distortion. However, the main benefit of this new design is the excellent dispersion characteristics thanks to our Wide Dispersion Technology waveguides. The waveguides shape the acoustic output of the tweeter to match the woofer and provide a wider sweet spot in your listening environment.

The inert, 18mm high-density MDF cabinet utilises proprietary bracing technology derived from the award-winning Reference Series to reduce cabinet colouration and allow the new transducers to breathe freely within the listening environment. The slot-shaped duct port on the rear of the speaker augments the bass output and has been carefully developed to reduce the effect of air turbulence with a clean, undistorted bass performance. The base of the cabinet is pre-loaded with an inert mass material, which adds damping and reduces cabinet colouration. The mass loading, coupled with 8mm floor spikes, helps stability and provides a solid foundation for the drive units to operate without resonances from the cabinet interacting with the floor surface.

The result of this latest drive unit technology and enclosure design is a slim-line, powerful floor-standing loudspeaker for the discerning listener when refined audio quality coupled with elegant aesthetics are paramount.

Finished in a choice of Piano gloss black, white or satin real walnut wood veneer finishes, the AE309 will easily integrate within any home décor.

TWEETER

A new 28mm aluminium tweeter has been developed for the 300 Series, which offers high power handling and a low fundamental resonance to reduce distortion. However, the main benefit of this new design is the excellent dispersion characteristics thanks to our Wide Dispersion Technology waveguides. The waveguides shape the acoustic output of the tweeter to match the woofer and provide a wider sweet spot in your listening environment.

DRIVERS

Tracing its lineage back to the original AE1, the AE300 uses the latest generation of our 130mm mid-bass drive unit. Featuring a brand new shallow profile aluminium sandwich cone with an ultra-high force, long-throw motor system. This new driver boasts improved dispersion, extended bass slam and overall power handling.

CABINET

The inert 18mm high-density MDF cabinet utilises proprietary bracing technology derived from the award-winning Reference Series to reduce cabinet colouration and allow the new transducers to breathe freely within the listening environment. The slot-shaped duct port on the rear of the speaker* augments the bass output and has been carefully developed to reduce the effect of air turbulence with a clean, undistorted bass performance.

Specifications
