Yamaha Stagepas 1K PA System - All-in-One Portable PA System

  • Key Features

    • All-in-one portable PA system combining a powerful speaker, mixer, and amplifier in a single unit for quick setup and use.

    • High-power amplifier delivering strong, clear sound capable of filling medium to large spaces.

    • Integrated digital mixer with multiple channels for microphones, instruments, and line-level sources.

    • Hi-Z inputs for direct connection of acoustic-electric guitars and other high-impedance instruments.

    • Bluetooth audio streaming for wireless playback from phones, tablets, and music devices.

    • Professional sound shaping tools, including digital effects, EQ, and compression settings tailored for speech or music applications.

    • Line array design with multiple high-frequency drivers and a large subwoofer for balanced full-range sound with strong bass presence.

    • Wide coverage sound dispersion to deliver uniform audio from the front to the back of the audience.

    • Simple and fast setup with components that fit together without needing additional stands or complex cabling.

    • Portable and rugged construction with a lightweight design and protective build for easy transport.

    • Scalable system capability allowing linking of multiple units for expanded coverage and input flexibility.

Description

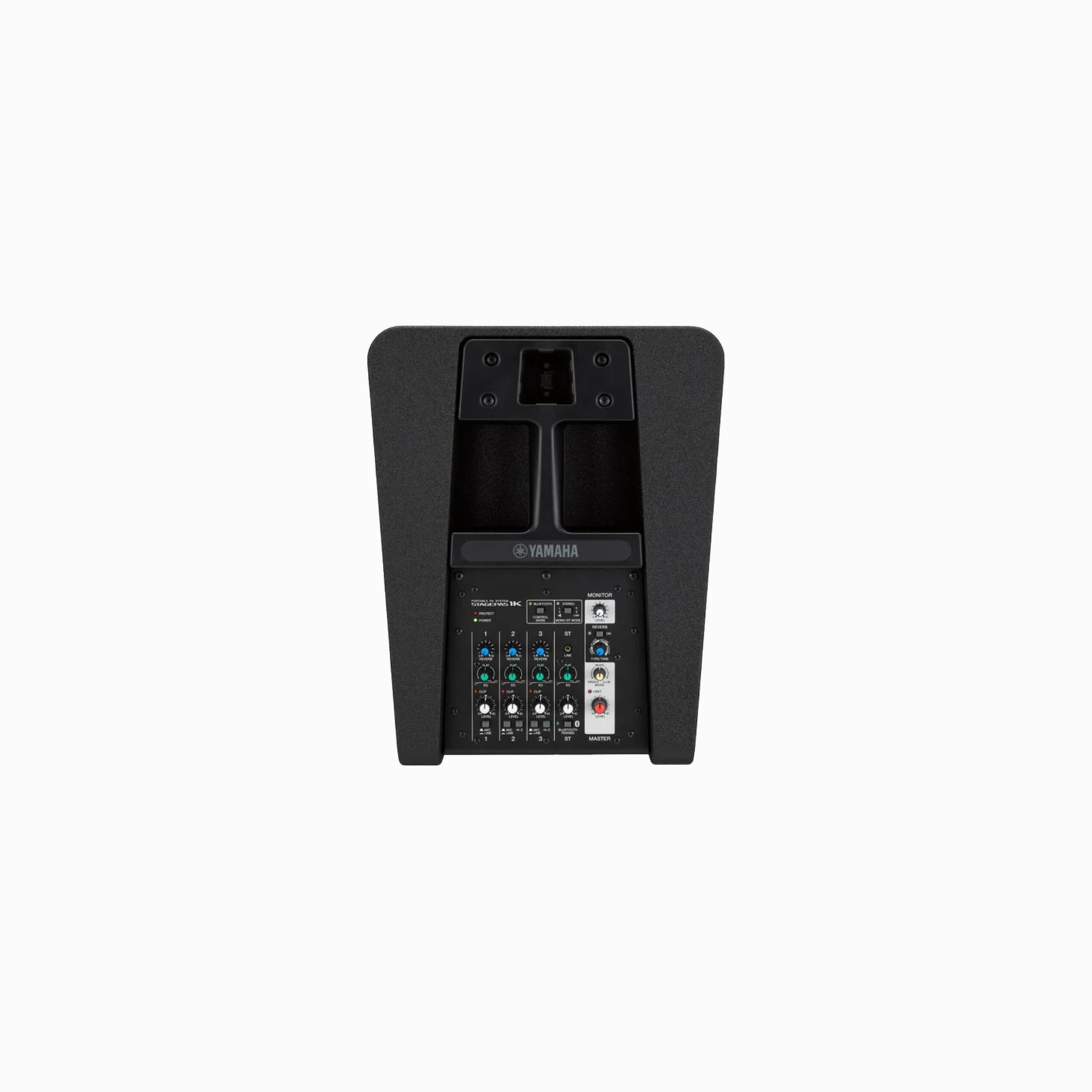

Yamaha Stagepas 1K PA System – All-in-One Portable PA System

Stunningly Simple. Impressively Professional.

The STAGEPAS 1K is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage. Delivering professional-level audio performance with a setup so simple that it enables aspiring artists to focus on their music and get the most out of their performances. The STAGEPAS 1K surpasses other portable PAs with the highest standard of sound quality and sound pressure, a lightweight cabinet design, professional mixing functions, and simple operability. By adopting a concert-quality mixer and speaker, we have defined a new standard for portable PA by utilizing Yamaha’s unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.

Simple setup and simple control allow you to focus on your performance

The STAGEPAS 1K comes equipped with a wealth of sound adjustment features, including a 1-knob EQ to perform multiple EQ processes simultaneously, and MODE, which allows you to adjust optimized compression settings like “Speech” or “Music” to match various applications. All adjustments can be done simply with one knob, which makes getting the perfect mix fast and easy with no need to learn a complex workflow and allows you to focus on your performance without worrying about time-consuming parameter adjustment.

Best-in-Class Compact Power

A 1000 W amplifier drives the array speaker with 10 small-diameter 1.5″ units, as well as a class-leading 12″ subwoofer. The impressive 170° horizontal and 30° vertical coverage area delivers consistent performance over long distances, projecting uniform, high-quality sound from the front to the rear of the audience.

STAGEPAS 1K Portable PA System

1000W, portable PA system with 5-channel digital mixer, 12” subwoofer, 1.5” x10 line array speaker, a Bluetooth input, SPX digital reverbs, and 1-knob EQ and multi-band comp for master output.

  • 1000W (HF:190W+LF:810W) power output
  • The biggest in the class 12” subwoofer for low frequency
  • 1.5” x10 slim line array speaker for high frequency
  • Digital mixer (3 mono mic/line + 1 stereo line)
  • Multi-band comp “mode” for master output
  • 1-knob EQ for per channel
  • High resolution SPX digital reverbs (4types, parameter control)
  • 2x Hi-Z (high impedance) inputs
  • Link out and monitor out
  • Dedicated cover included
  • Optional reverb foot switch
  • Optional dolly for more portability

DL-SP1K Dolly

Dedicated dolly for STAGEPAS 1K, STAGEPAS 1K mkII, DXL1K

  • Compatible models: STAGEPAS 1K, STAGEPAS 1K mkII, DXL1K

FC5 Foot Switch

A foot switch controller for Yamaha portable PA systems and mixers.



Specifications

Outline

Type
Powered subwoofer with a line array speaker

Mixing capability

Mixing channels
5 (3 mono + 1 ST)
Input channel functions
Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
Output channel functions
MODE (SPEECH – MUSIC – CLUB)

I/O

Inputs
3 mono mic/line + 1 stereo line/2 mono line
Outputs
1 Link out, 1 Monitor out
Bluetooth
Bluetooth Ver.5.0, A2DP (SBC, AAC)
Control and others
Reverb foot switch, STAGEPAS Editor (iOS/Android app)
DSP
SPX digital reverb (4 programs, parameter control)

I/O

Speaker type
Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed
Frequency range (-10dB)
37 Hz – 20 kHz
Nominal coverage
H
170°
V
30°
Components
LF
Powered subwoofer: 12” (30 cm) Cone
HF
Line array speaker: 1.5” (3.8 cm) Cone x 10
Power rating
Dynamic
1000W (Powered subwoofer: 810W, Line array speaker : 190W)
Maximum output level (1m; on axis)
119 dB SPL
Power requirements
Depending on area of purchase: 100V 50Hz/60Hz, 110V/120V 60Hz, 220V-240V 50Hz/60Hz
Power consumption
25 W (Idle), 85 W (1/8 power)
Accessories
Power cord x 1, Cover x 1
Options
Yamaha DL-SP1K (Dedicated dolly), FC5 (foot switch) for reverb ON/OFF
Others
Handle: 1 x Powered subwoofer
Dimensions (W x H x D)
System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)
Weight
System: 23.0kg (maximum), Line array speaker: 1.8kg, Powered subwoofer: 20.0kg, Spacer: 0.6kg (each)
