Description

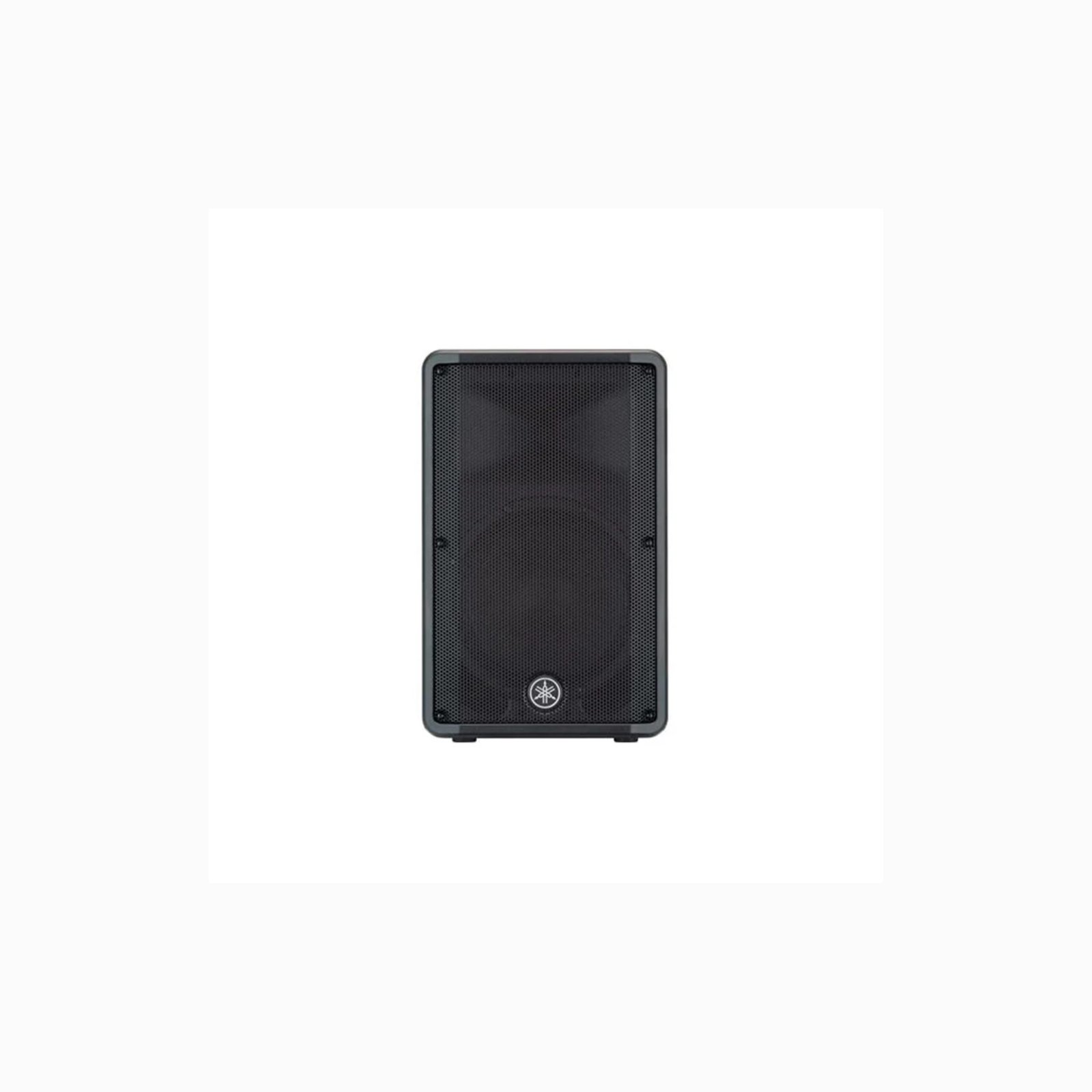

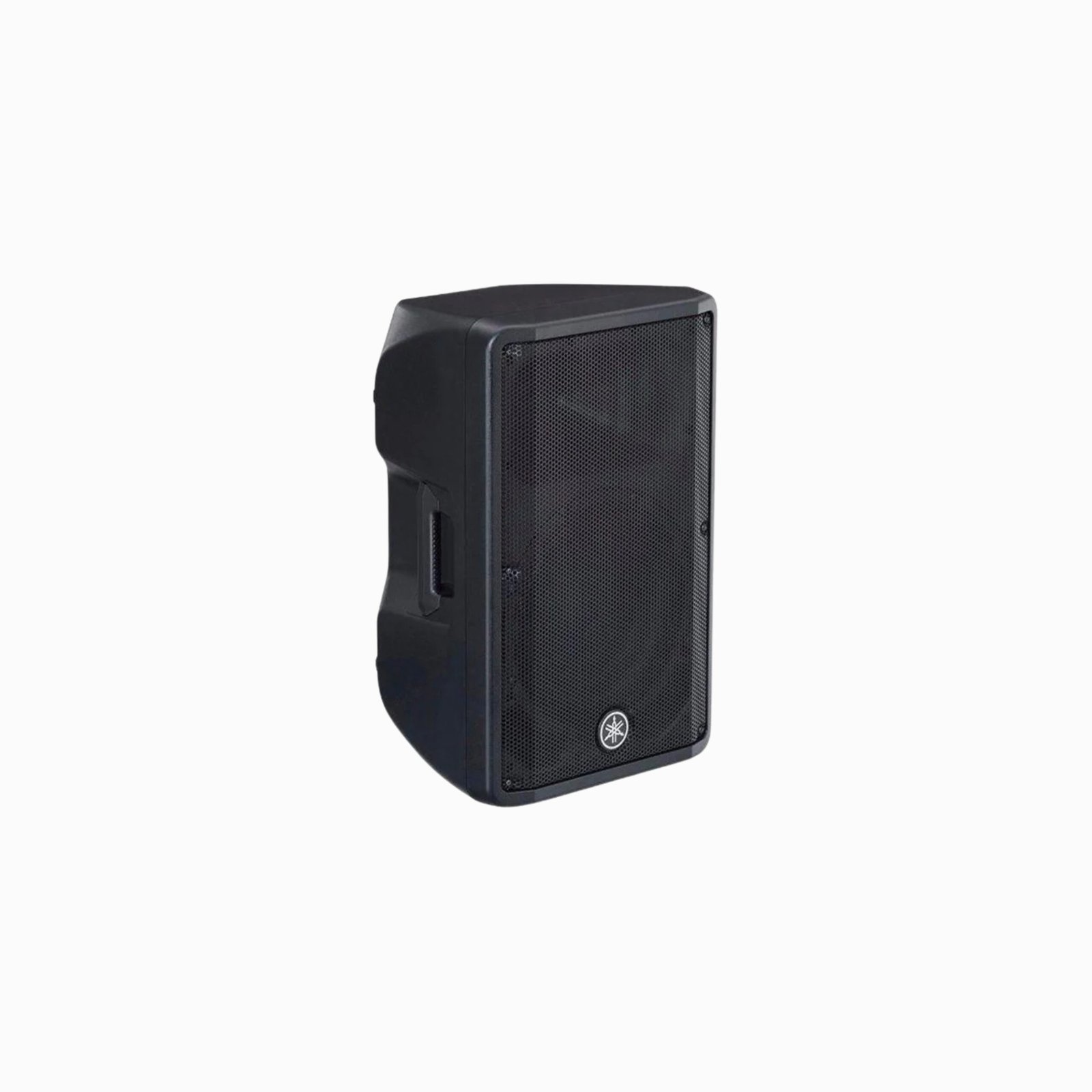

Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR12- 12″ 2-Way Powered Loudspeaker from Yamaha is capable of up to 1000W of dynamic output via its Class D amplifier. The loudspeaker features a 12″ woofer and a 1.4″ high-frequency driver and provides a maximum output of 131 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4″, XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design, the DBR12 is portable and can be easily transported.
High-Efficiency Class D Amplifier
The DBR12’s lightweight, high-performance Class-D amplifier is capable of producing up to 1000 W of power, achieving an SPL of 131 dB, delivered with clarity and dynamic characteristics
Custom Designed Transducer
The woofer delivers defined, powerful bass with minimal distortion, while the 1″ precision compression driver produces accurate mid-range and high frequencies
Portable Cabinet
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components, while ergonomic handles provide transportation and system setup
Enclosure Design for Floor Monitoring
DBR Series speakers feature an optimised 50° wedge angle for floor monitoring

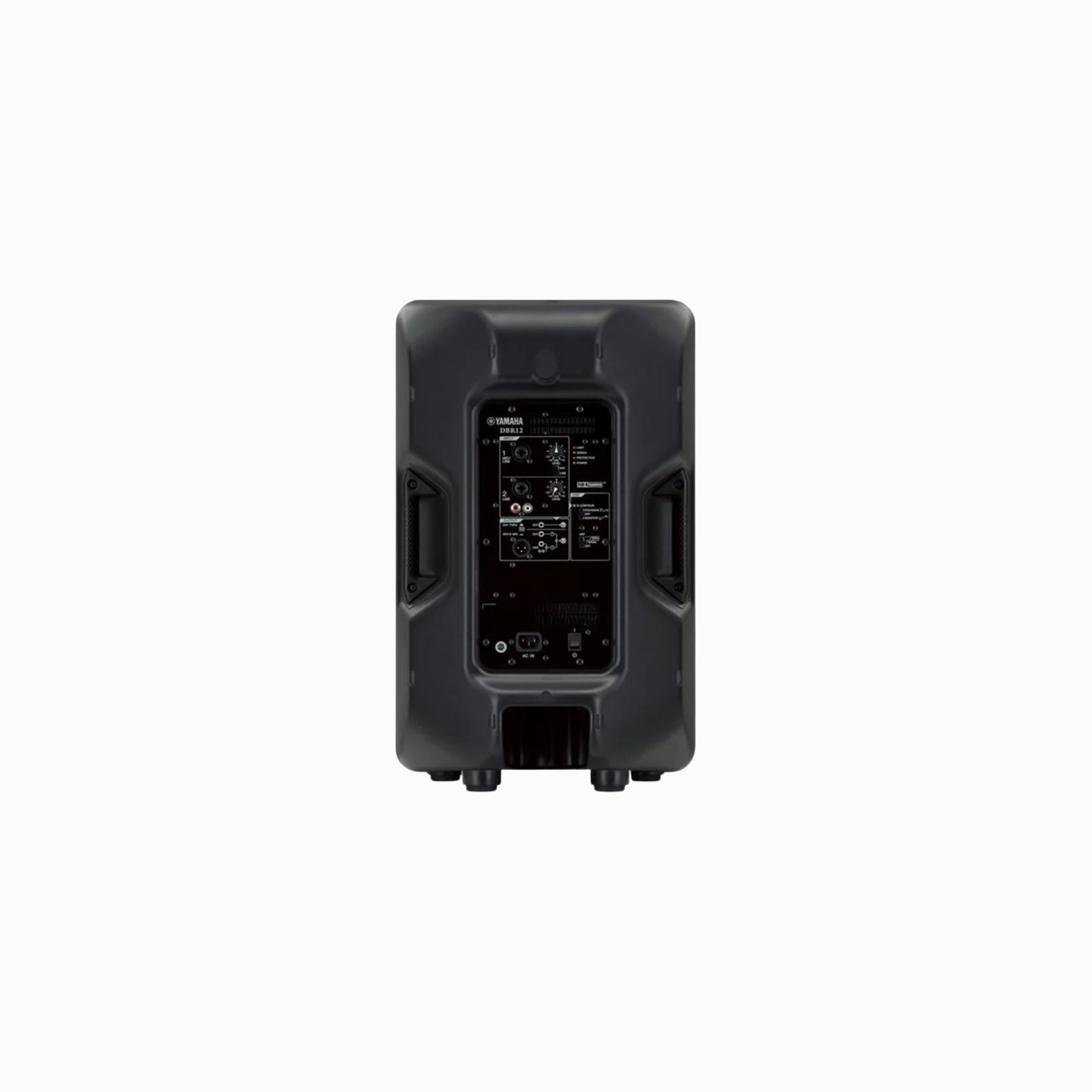

On-Board 2-Channel Mixer
DBR Series speakers have two input channels. Channel 1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. Channel 2 offers two input options: a combo jack that accepts XLR or TRS Phone, and a stereo RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either Channel 1 + 2 MIX to mix the signal of Channel 1 and Channel 2, or Channel 1 THRU to pass the signal from Channel 1 only
Rigging Points for Installation Applications
DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardised eye-bolts
- 2-way powered PA speaker
- 12″ cone woofer
- 1-7/16″ compression-driver tweeter
- maximum output power: 1000 watts
- maximum SPL: 131 dB
- frequency range: 52-20000 Hz
- nominal coverage: 90° horizontal, 60° vertical
- 35mm socket for pole mounting
- dimensions: 14-7/8″W x 23-3/4″H x 13-3/4″D
- weight: 15.8 Kgs
