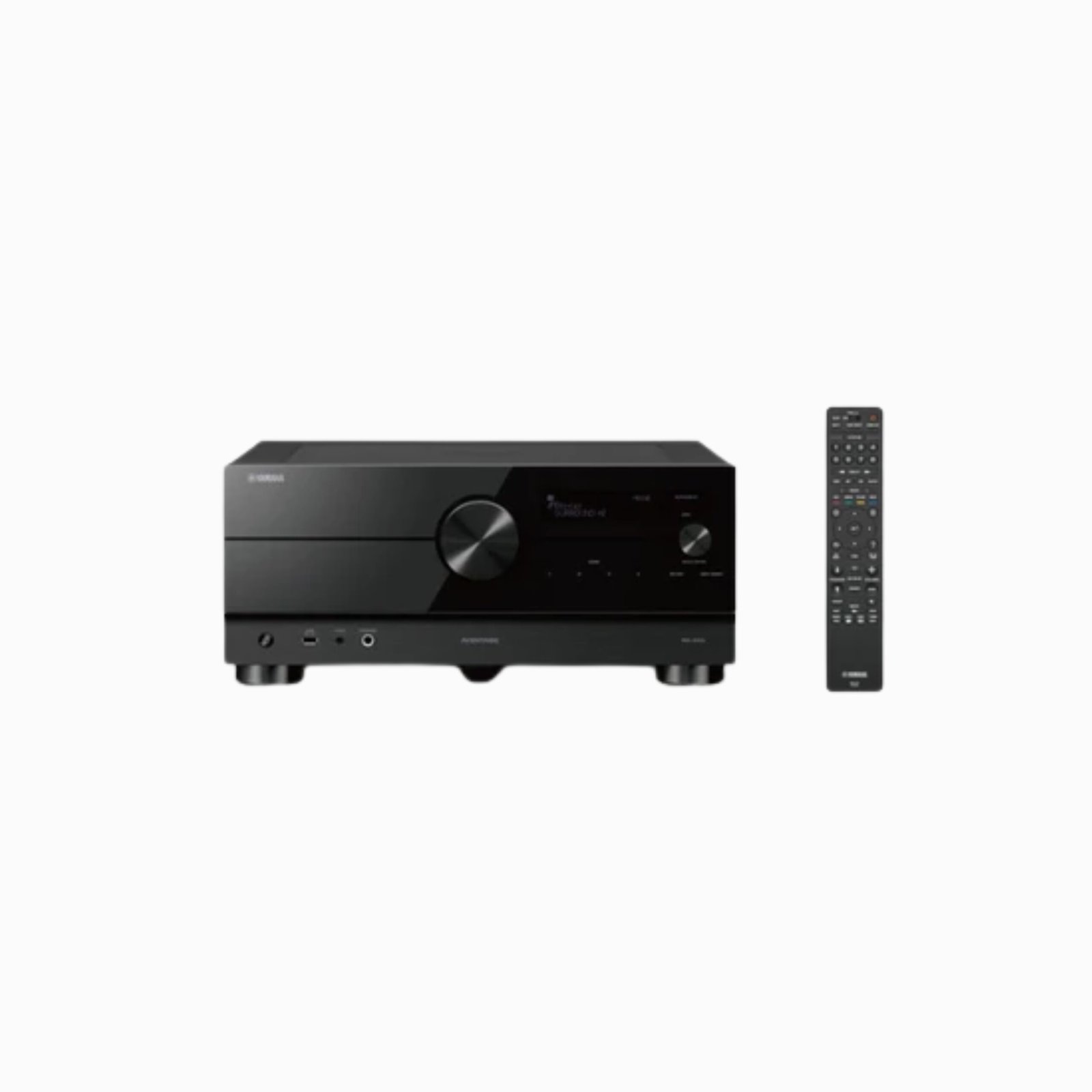

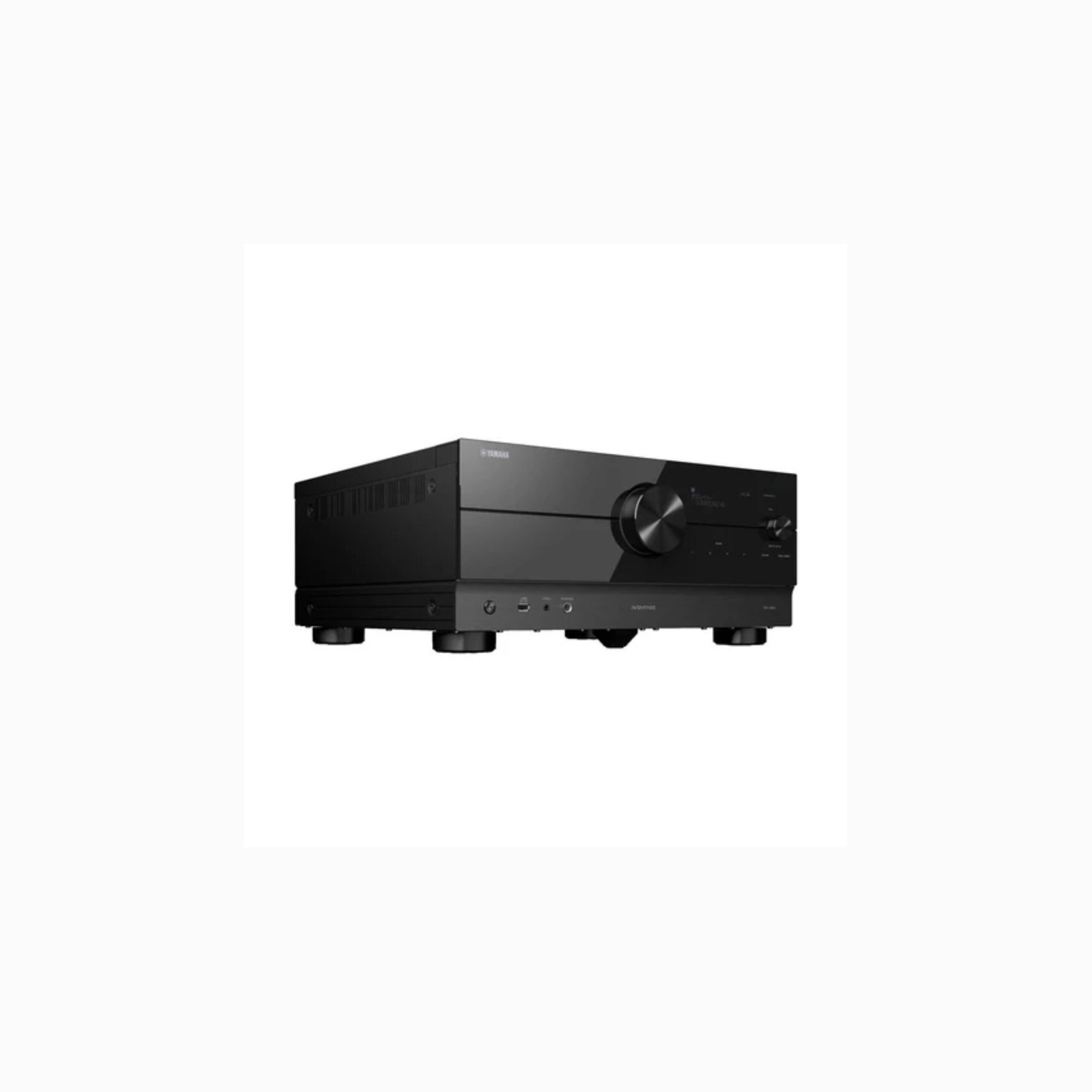

Pure power and precision. The Yamaha A6A has been carefully designed so every element of your entertainment is the best it can be. From slight whispers of sound to swift on-screen movements, the A6A ensures you won’t miss a thing.

Features:

  • High slew rate design
  • Compressed Music Enhancer
  • MusicCast multiroom audio
  • Wi-Fi, AirPlay 2, and Spotify Connect
  • Streaming services, including Spotify, Amazon Music, Pandora, TIDAL, Deezer, Qobuz, Napster, and SiriusXM
  • Zone 2
  • Phono input
  • Auto Power Standby
  • ECO Mode

Warranty:

1-year manufacturer’s warranty.

Anti-Resonance Technology Wedge

The Anti-Resonance Technology Wedge is a fifth foot in the center of the receiver. It is engineered to dampen vibrations from the power transformer, power transistors, and heat sinks, as well as vibrations that might be caused by the sound from the speakers.

CINEMA DSP 3D

This sound field creation technology is designed to effectively reproduce the spaces of concert halls and music clubs in your home for a more realistic soundstage.

4K60 Resolution with 8K60 and 4K120 Support via Future Firmware Update

The RX-A2A supports end-to-end 4K UHD resolution and higher refresh rates for a smoother, more realistic viewing experience. 8K60B and 4K120AB support is scheduled to be added via a future firmware update.

Dolby Vision, HLG, and BT.2020 Support; HDR10+ via Future Firmware Update

Dolby Vision, HLG, and BT.2020 provide deeper contrast and more vibrant images that stay true to the creator’s intent when paired with compatible content and displays. HDR10+ support is scheduled to be added via a future firmware update.

Control via the MusicCast App

The free MusicCast app puts control of the receiver into the palm of your hand. Access your sources and streaming services, adjust volume and sound settings, and link with other MusicCast devices for simultaneous playback throughout your home.

Voice Control with Amazon Alexa and MusicCast

With Alexa voice control integration, all you have to do is ask. Use any Alexa-enabled device, such as your Echo or Echo Dot, to control either the receiver by itself or multiple MusicCast devices throughout your home.

AV Setup Guide App

This app provides guidance through installation, cable connections, and various other settings, and includes web setup for custom integration.

Wireless Surround Speakers via MusicCast Surround with Optional Equipment

Combine the receiver with optional MusicCast wireless speakers and enjoy the convenience of a home theater with wireless surround speakers in a 5.1-channel setup.

YPAO RSC with Multipoint

YPAO (Yamaha Parametric Room Acoustic Optimizer) analyzes the room acoustics with the included microphone to tune your system for optimal sound in your room. It uses precision EQ calculation to help achieve natural room acoustics. RSC (Reflected Sound Control) is used to further optimize sound parameters for enhanced performance from CINEMA DSP, Dolby Atmos, and DTS: X.

ALLM, VRR, QFT, and QMS via Future Firmware Update

These gaming and multimedia features help provide more seamless motion and transitions for enhanced overall performance. Support for these on three HDMI inputs, allowing simultaneous connection of multiple next-generation consoles, is scheduled to be added via a future firmware update.

Dolby Atmos Height Virtualization via Future Firmware Update

This virtual surround sound technology simulates the effect of height speakers to create the Dolby Atmos experience with only forward-facing drivers. This feature is a planned addition via a future firmware update.

Specification:

Model Number Yamaha RX-A6A
Channels 7.2
Power Output per Channel 2-Channel Driven: 100 W at 8 Ohms / 20 Hz to 20 kHz / 0.06% THD
DTS Compatibility DTS:X
Dolby Compatibility Dolby Atmos
Upmixing Technology DTS Neural:X, Dolby Atmos Height Virtualization Technology
HDR Compatibility HDR10, Dolby Vision, Hybrid Log Gamma
Pass-Through Support 4K60p
Rear A/V Inputs
  • 7 x HDMI
  • 1 x Optical TOSLINK
  • 1 x Digital Coaxial
  • 3 x Stereo RCA
  • 1 x Stereo RCA (Phono) with Ground Screw
Rear A/V Outputs
  • 1 x HDMI
  • 2 x RCA Subwoofer Pre-Out
  • 1 x Stereo RCA Zone 2
  • 1 x Stereo RCA Pre-Out
Front I/O
  • 1 x 1/4″ / 6.35 mm Headphone Output
  • 1 x USB Type-A Input
  • 1 x 1/8″ / 3.5 mm Setup Mic Input
Other Rear I/O
  • 1 x RJ45 (Ethernet)
  • 2 x Bluetooth/Wi-Fi Antenna Terminal
  • 1 x 1/8″ / 3.5 mm (IR) Input
  • 1 x 1/8″ / 3.5 mm (IR) Output
  • 1 x 1/8″ / 3.5 mm (12 V Trigger) Output
  • 1 x AM Antenna Terminal Input
  • 1 x FM Antenna Terminal Input
Speaker Connectors 9 x Binding Post Pairs
HDCP Support Version 2.3
Audio Return Channel (ARC) Yes, eARC
HDMI CEC Yes
Media Card Slot None
A/B Speaker Selection No
Bi-Amp Capability Yes
Supported Audio Codecs AAC, SBC
Wireless Audio Protocols AirPlay 2, MusicCast
Virtual Assistant Support Amazon Alexa, Apple Siri, Google Assistant
Tuner Type AM, FM
Power Consumption Standby: 0.1 W
Dimensions (W x H x D)
  • 17.1 x 9.6 x 14.6″ / 43.4 x 24.4 x 37.1 cm (Antenna Up)
  • 17.1 x 9.6 x 14.6″ / 43.4 x 24.4 x 37.1 cm (Antenna Down)
Weight 22.5 lb / 10.2 kg
