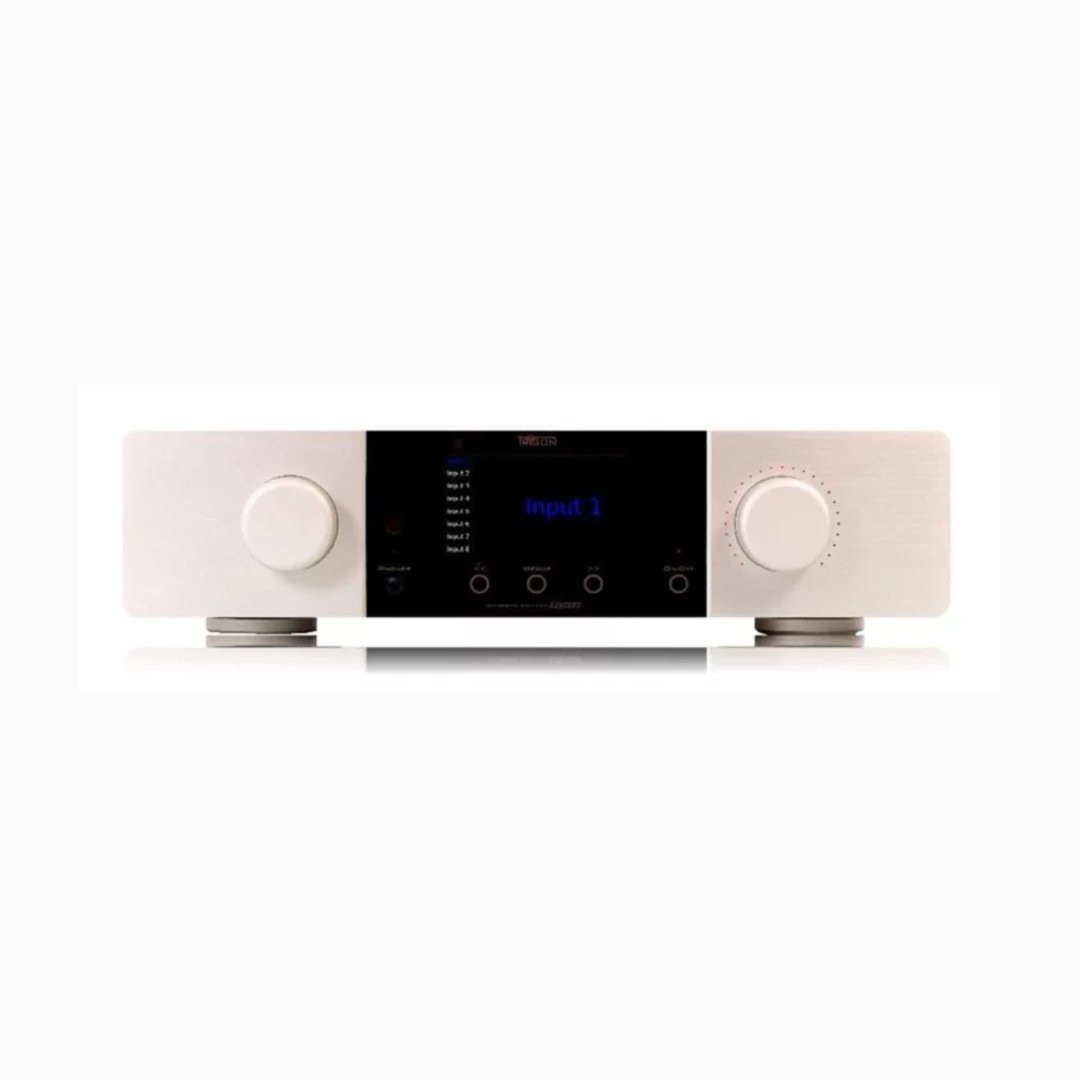

Trigon Trine EXXCEED Integrated Amplifier

Trigon Trine EXXCEED Integrated Amplifier

  • High-performance integrated amplifier designed for audiophiles seeking clarity and precision.

  • Features advanced circuitry for low distortion and high signal fidelity.

  • Offers multiple input options for versatile connectivity with various audio sources.

  • Smooth, natural sound reproduction with detailed midrange and clear highs.

  • Elegant and minimalistic design suitable for any high-end audio setup.

  • Robust build quality ensures long-lasting performance.

  • Ideal for home audio systems, delivering immersive listening experiences.

Description

Trigon Trine EXXCEED Integrated Amplifier

Description

The Exxceed Amp Integrated amplifier is the first component of a new generation of audio components. Analog and digital. Technology, sound, and design at the highest level. Now and in the future.

In the Exxceed Amp Integrated, the essence of 20 years of experience in amplifier construction is concentrated, classic and modern at the same time. This combines a classic, complex analogue double mono setup with the option of providing adequate access to not only four analogues but also four, when using the optional USB/DSD module, up to five high-resolution digital sources. In this way, confident performance development is combined with the reproduction of musical subtleties, creating the technical basis for music reproduction that is committed to the ideal of authenticity. Music gets a stage and becomes an experience.

You can enjoy the latter not only via connected speakers but also via headphones thanks to the integrated headphone amplifier.

The Exxceed Amp Integrated is presented in a timelessly elegant housing made of solid aluminium and steel with no visible screw connections. The housing architecture with your choice of surfaces – anodized, nextel-coated, or chrome-plated – not only enables adaptation to the individual ambience but also protects the highly amplified audio signals from sound-damaging influences caused by microphonics with technical features such as the sandwich construction of the housing cover and the Trigon vibration absorber feet.

The symmetrically arranged controls, source selection on the left and volume on the right, represent the recurring, intuitive basic functions. The large TFT display, which can be switched off and can be individually configured in colour, clearly shows all operating states and operating functions.

In the menu mode, which can be selected via the touch function, both controllers have a second function: select on the left, set on the right. For example, the balance, the level of the inputs, their names, or the various filters of the integrated digital-to-analog converter. Of course, the most important functions of the Exxceed Amp can also be controlled with the optionally available Trigon infrared system remote control Director Premium.

The clarity of the design and operating logic combines aesthetic standards and problem-free suitability for everyday use. The value of the external appearance is a reflection of the technical know-how and its implementation inside. The design of the Exxceed Amp Integrated combines optical, haptic, and, of course, musical properties at an outstanding level.

Technical Data

Entrances 5x analogue, 4x digital SPDIF
1x USB HiRes Audio PCM 384kHz 32bit/DSD 64, 128, 256
Input resistance analogue 47 KOhm
Input sensitivity 0.5V (analog)
Output power 2x 95 / 130 W at 8/4 ohms
Damping factor >100 (related to 8 ohms 1KHz)
Total harmonic distortion (THD + N) <0.02%
Exits 1x speaker, 1x headphones,
1x unbalanced Line Out / Rec Out,
1x balanced XLR pre-out
Frequency response digital inputs 20 Hz – 22kHz (-3dB)
analog inputs 10Hz – 100kHz (-3dB)
External voltage distance > -86 dB related to 1 watt at 4 ohms
signal-to-noise ratio > -94 dB related to 1 watt at 4 ohms
Weight 18.3kg
Dimensions 440 x 110 x 380 mm (WxHxD)
