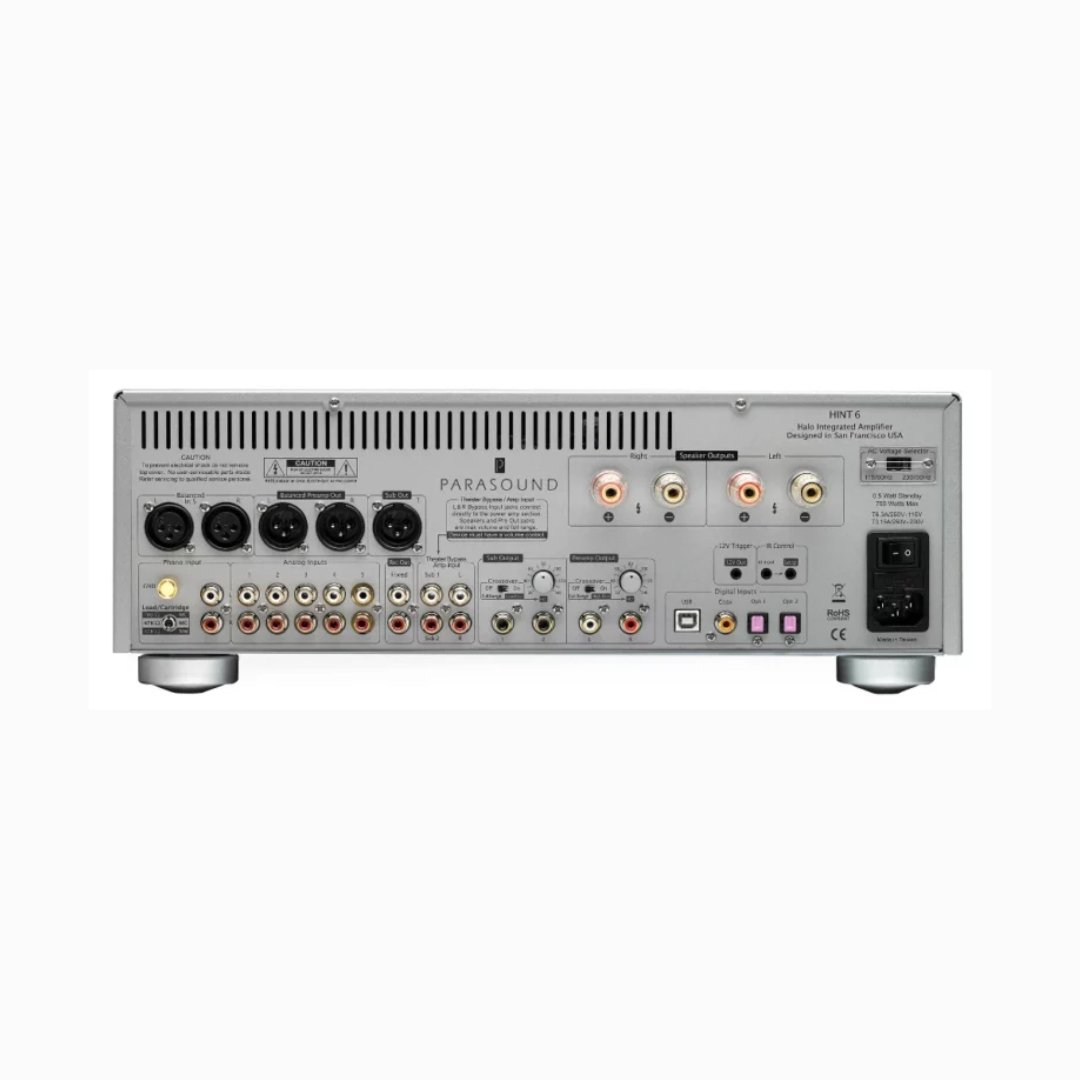

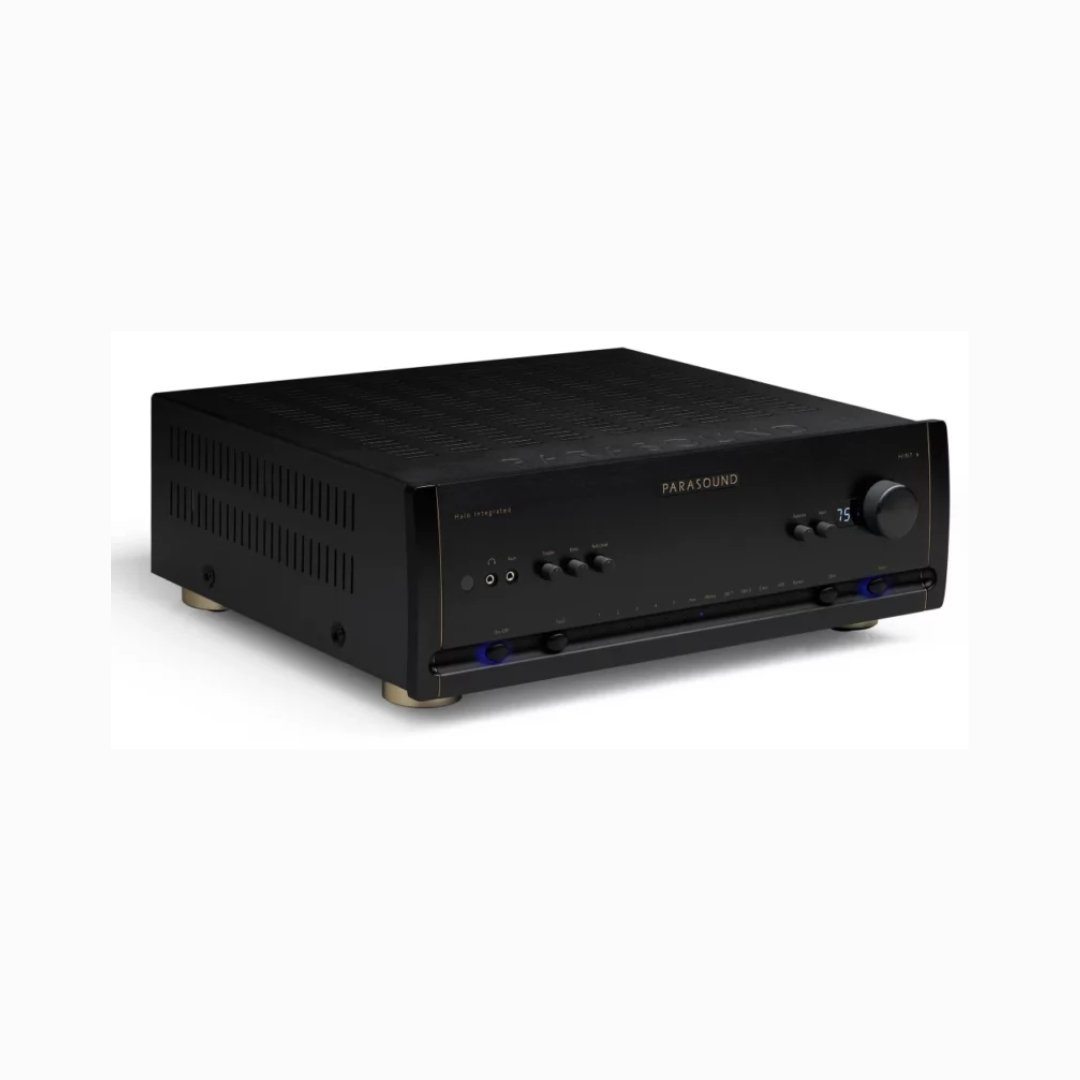

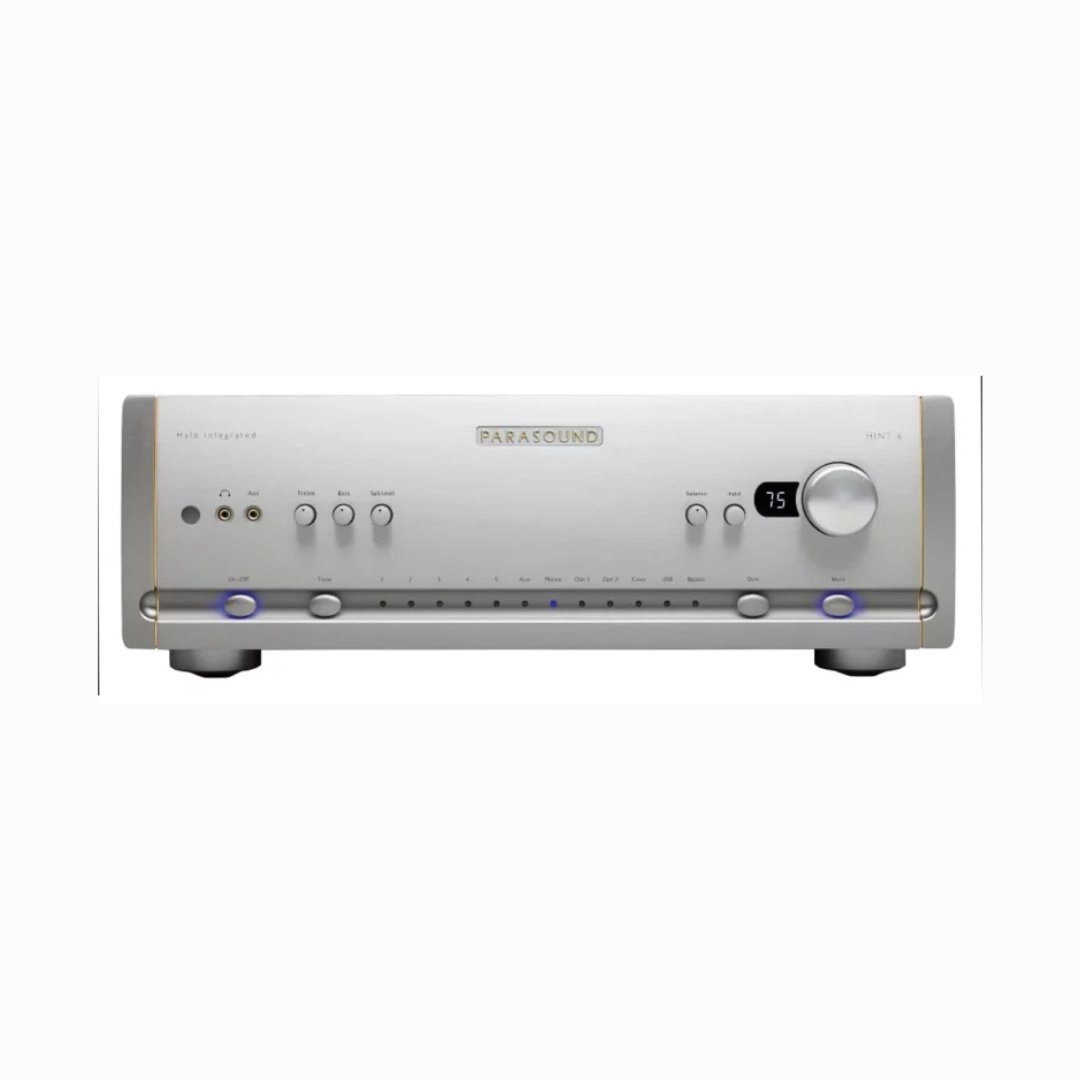

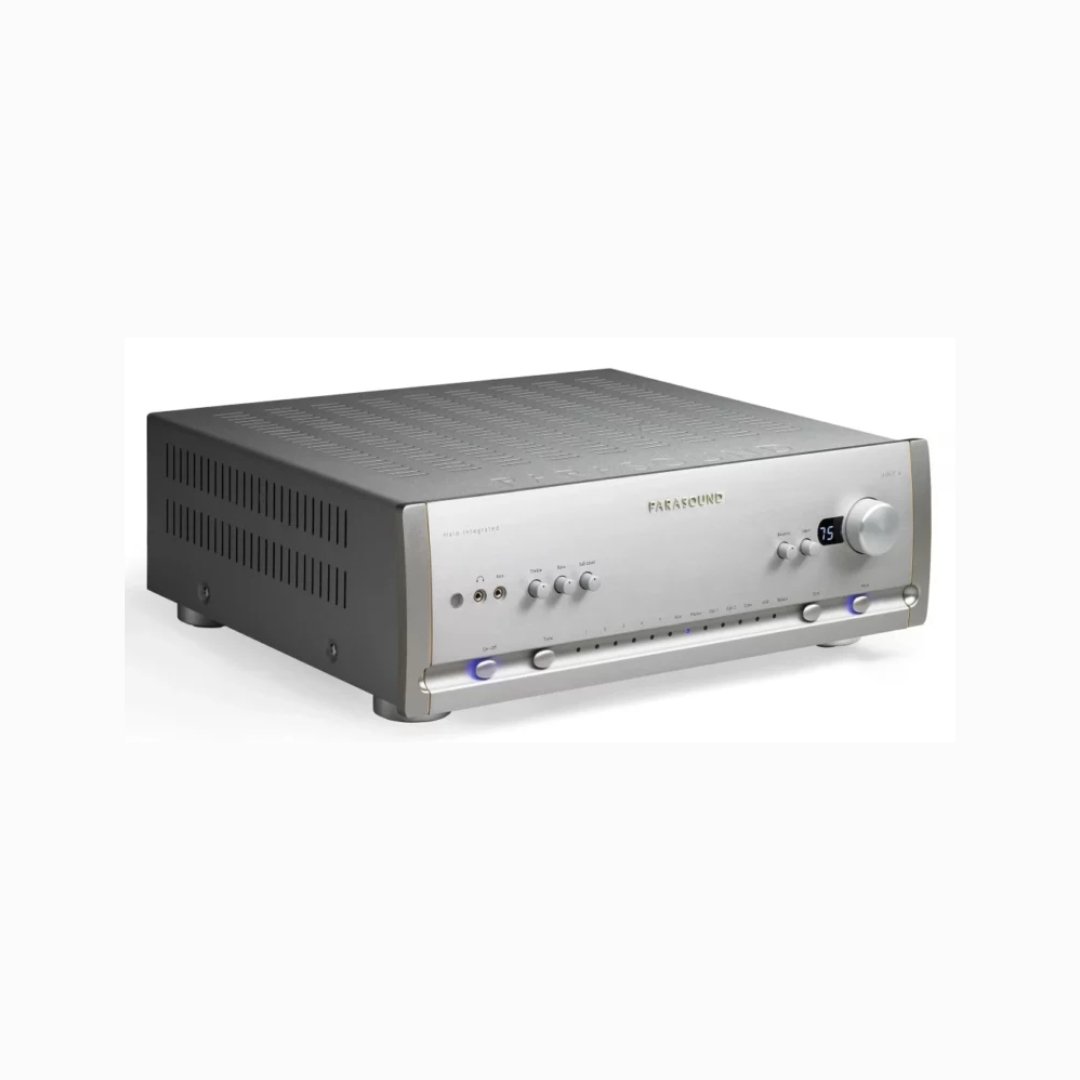

Parasound HALO HINT6 Integrated Amp

High-performance integrated amplifier combining preamp and power amp in one unit.
Delivers clean, detailed sound with 150 watts per channel into 8 ohms.
Features balanced XLR and single-ended RCA inputs for versatile connectivity.
Supports bi-amping and multi-zone configurations for flexible setups.
Equipped with a high-quality headphone output for personal listening.
Robust build quality with a sleek, modern design.
Includes a remote control for convenient operation.
Designed for audiophiles seeking clarity, power, and musicality in one amplifier.

Description

Parasound HALO HINT6 Integrated Amp

Description

The Parasound HALO HINT6 Integrated Amp offers high-end performance in a compact and stylish design. With two channels delivering 160 watts per channel into 8 Ω, it delivers exceptional audio performance. The high bias Class A/AB operation ensures accurate and detailed sound reproduction. Its stable operation with 2 Ω loads provides flexibility for various speaker configurations. The direct-coupled design, without capacitors in the signal path, preserves signal integrity and enhances transparency. With balanced XLR and unbalanced RCA inputs and gold-plated speaker terminals, it offers versatility and reliability. Experience high-end performance in a compact form with the Hint 6 integrated amplifier.

New Features

Burr Brown analog resistor ladder volume control
Dimmable front panel volume display
Updated USB receiver is Plug and play with Windows 10 and MAC
An additional optical input (2 total)
Ball bearing-supported solid aluminum volume knob
Programmable default turn-on volume setting
Favorite volume memory with the remote control button
Increased phono stage gain for lower output cartridges
Improved Left/Right channel separation and balance tracking
Updated cosmetics with subtle gold highlights

Specifications

Power Output – (0.9% THD)
(Both channels driven, 20 Hz – 20 kHz)
180 watts x 2 @ 8 Ω RMS
270 watts x 2 @ 4 Ω RMS

Power Output – (0.05% THD)
(Both channels driven, Thank 20 Hz – 20 kHz)
160 watts x 2 @ 8 Ω RMS
240 watts x 2 @ 4 Ω RMS

Current Capacity
45 amps peak per channel

Frequency Response
10 Hz – 100 kHz, +0/-3 dB
20 Hz – 20 kHz, +0/-0.5 dB

Total Harmonic Distortion (THD)
< 0.01 %, average listening levels
< 0.05 %, 160 watts x 2 @ 8 Ω

Interchannel Crosstalk
> 70 dB at 20 kHz
> 78 dB at 1 kHz

Signal to Noise Ratio – IHF A-weighted
Line in: – 103 dB (input shorted)
Digital in: – 106 dB

Amplifier Damping Factor
> 800 at 20 Hz

Preamplifier Stage Input Sensitivity
300 mV in for 1 V at Preamp Output jacks
Total Preamp Stage Gain: 10 dB
Max Output Unbalanced: 7 V
Max Output Balanced: 9 V

Power Amplifier Stage Sensitivity
1 V at Bypass/Amp In for 28 V at Speaker Out
Total Amp Stage Gain: 28 dB

Phono Stage Sensitivity / Input Impedance
MM: 41 dB / 47 k Ω
MC: 54 dB / 47 k Ω or 100 Ω

High & Low Pass Crossover Slope
12 dB per octave

Supported DAC Sampling Rates
USB: up to 384 kHz / 32-bit PCM
DSD Native: DSD 64, DSD 128, DSD 256
DSD over PCM (DoP) at 384 kHz

Coax/Optical: up to 192 kHz / 24-bit PCM

Digital to Analog Converter
ESS Sabre32 Reference ES9018K2M
384 kHz / 32-bit

USB 2.0 Controller
Savitech SA9227, 384 kHz / 32-bit

Headphone Amplifier
Texas Instruments TPA6120A
Output Impedance 10 ohms

XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return)

Input Impedance
Unbalanced: 24 k Ω
Balanced: 100 kΩ per leg

Preamplifier Output Impedance
Unbalanced: 100 Ω
Balanced: 470 Ω per leg

Dimensions
Width: 17-1/4″ (437 mm)
Depth: 16-1/4″ (413 mm)
Depth, with cables 17-1/4″ (437 mm)
Height, with feet: 5-7/8″ (150 mm)
Height, without feet: 5-1/4″ (133 mm), 3U

Net Weight
33 lb. (15 kg)

Shipping Weight
45 lb. (20.4 kg)

Power Requirement
Standby: 0.5 watts
Idling power: 70 watts
Maximum: 750 watts
110-125 VAC 60 Hz or 220-250 VAC 50 Hz
AC mains voltage is set on the rear panel
