AV Shack Brings you TEAC TN-3B – Turntable with Phono Stage and USB

High quality belt drive deck
Every aspect of the Teac TN-3B’s construction is designed and built to perform. The belt driven, die-cast aluminium platter uses direct outer belt drive for a larger contact area. This helps give you a smooth and steady sound. A high-torque motor offers stable and consistent speed for solid and dynamic audio.

Advanced isolation
Vibration and the attempt to quell it is a major issue with any turntable. The Teac TN-3B minimises the harmful effects of distortion through vibration with a multi-layered defence. Machined aluminium feet with rubber isolators attach to a high-density MDF plinth for high resistance to acoustic feedback. The bottom panel also features a honeycomb pressing, further increasing the turntable’s rigidity and resistance to vibration.

Impressive tonearm
Designed by tonearm experts SAEC, the knife-edge arm delivers superb performance for a deck at this price. Usually only found in far more expensive designs, the knife-edge, pivot-point bearing gives the tonearm much greater agility. This helps in tracking the record grooves more accurately, meaning you hear more of the music, more of the time. With adjustable tracking and anti-skating, you can also easily add your choice of cartridge when it’s time to upgrade.

Latest Audio Technica cartridge
This Teac also benefits from being fitted with the latest Audio Technica cartridge. Featuring an elliptical stylus, the Audio Technica AT-VM95E is a great upgrade over standard cartridges. Compared to more basic conical cartridges, the elliptical stylus on the VM95E literally gets deeper into the groove – pulling out more music.

Built-in phono stage and USB connectivity
With a built-in phono stage, this Teac turntable can be plugged into any amp or AV receiver with standard phono inputs. Added to this, a USB output allows you to copy records straight on to your computer’s hard drive, from where it’s easy to download the music onto your MP3 player or stream to your compatible hi-fi.

Luxury finish
It’s not just the sound that’s sleek and glossy, the TN-3B matches the sound with its smooth finish. Available in the piano black, white or cherry, the multi-layer, lacquer finish stands out from the crowd.

Engineered for sound, the Teac TN-3B brings your vinyl collection to life.





SPECIFICATIONS:



Turntable section

Type: Belt-drive

Motor: DC Motor

Rotation Speeds: 33-1/3 rpm, 45 rpm

Wow-and-Flutters: less than 0.1%

S/N Ratio: 67dB (A-weighted, 20kHz LPF)

Turntable (Platter): Die-cast aluminium, 30cm diameter



Tonearm section

Type: Static-balanced, S-shape with knife-edge bearings

Effective Length: 223mm

Anti-skating mechanism: Supported

Stylus Pressure Range: 0g to 5.0g

Compatible Cartridge Weight:

– 3.0g to 12.0g

– 14g to 23g (including Head-shell)



Cartridge sections

Type: VM-series (Moving Magnet-type)

Output Voltage: 4.0mV (1kHz, 5cm/sec.)

Stylus Pressure Range: 1.8g to 2.2g (2.0ｇ recommended)

Cartridge Weight: 6.1g

Head-shell Weight: 11g (incl. screws, nuts, and wires)

Stylus Life: approx. 300 hours (depending on conditions)

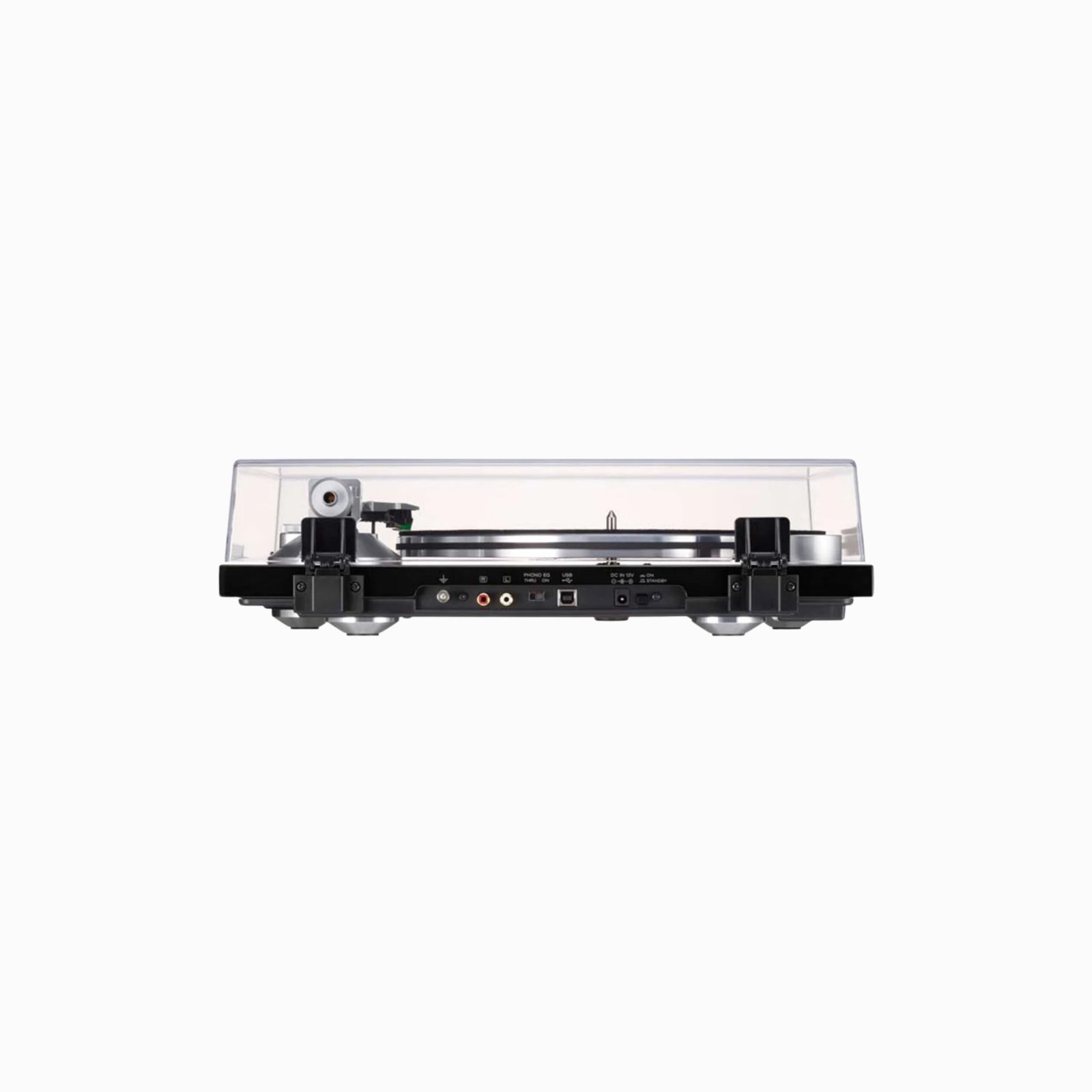

Analog Outputs

Connector: RCA output x 1 pair (gold-plated)

Output Voltage:

– PHONO EQ THRU: 4.0mV (1kHz, 5cm/sec.)

– PHONO EQ ON: 224mV (-13dBV)



USB section

Connector: USB B-type (FULL-SPEED) x 1 (DC 5V 500mA supply required)

Sampling Frequency: 8k / 11.025k / 16 k/ 22.05k / 32k / 44.1k / 48kHz

Bit depth: 16-bit



General

Power: AC 100V to 240V, 50/60Hz

Power Consumption: Less than 1.5W

Standby Power: Less than 0.5W

GND terminal: Fitted

Operating temperature range: 5℃ to 35℃

Overall dimensions:

– 420 x 117 x 356mm / 16.5” x 4.6” x 14.0” (dust cover closed)

– 420 x 381 x 402mm / 16.5” x 15.0” x 15.8” (dust cover opened)

Weight: approx.5.0Kg / 11.0 lbs.



Included accessories

– Felt mat x1

– EP adapter x1

– Counter-weight x1

– Headshell (with AT-VM95E pre-installed) x1

– Platter x1

– Dust cover x

– Rubber feet for dust cover x2

– Hinges x2

– RCA audio cable x1

– AC Adapter (GPE053A-V120050) x1

– Owner’s manual (incl. Warranty) x1
