TEAC AI-301DA- Integrated Amplifier with DAC
TEAC AI-301DA- Integrated Amplifier with DAC - Image 2
TEAC AI-301DA- Integrated Amplifier with DAC
TEAC AI-301DA- Integrated Amplifier with DAC
Category: Amplifier

TEAC AI-301DA- Integrated Amplifier with DAC

Key Features

  • Integrated stereo amplifier with built-in high-performance DAC for digital and analog source playback

  • Supports USB audio input for direct connection to computers and digital music sources

  • High-quality digital-to-analog conversion for detailed and dynamic sound from digital audio files

  • Multiple analog inputs, including line-level and phono inputs for turntable connection

  • Dedicated moving magnet (MM) phono stage for vinyl playback withoutan  external preamplifier

  • Robust amplification stage delivering clear, low-distortion audio to a wide range of speakers

  • Bass and treble tone controls for tailored sound adjustments

  • Speaker A/B switching for flexible multi-speaker setup

  • Compact and sturdy chassis with a premium finish suited for desktop and home Hi-Fi systems

  • Front-panel headphone output for private listening

  • Easy-to-use remote control and intuitive front-panel interface

  • Ideal for combining digital streaming sources, CD players, and vinyl playback in one integrated system

Ask a question
Delivery & Return

Description

AV Shack brings you TEAC AI-301DA- Integrated Amplifier with DAC



TEAC AI-301DA-X Integrated Amplifier with DAC provides your listening room or desktop setup with a warm and compelling sound presentation. With Bluetooth aptX technology for wireless streaming and high performance digital to analogue converter, this amplifier has a universal appeal.

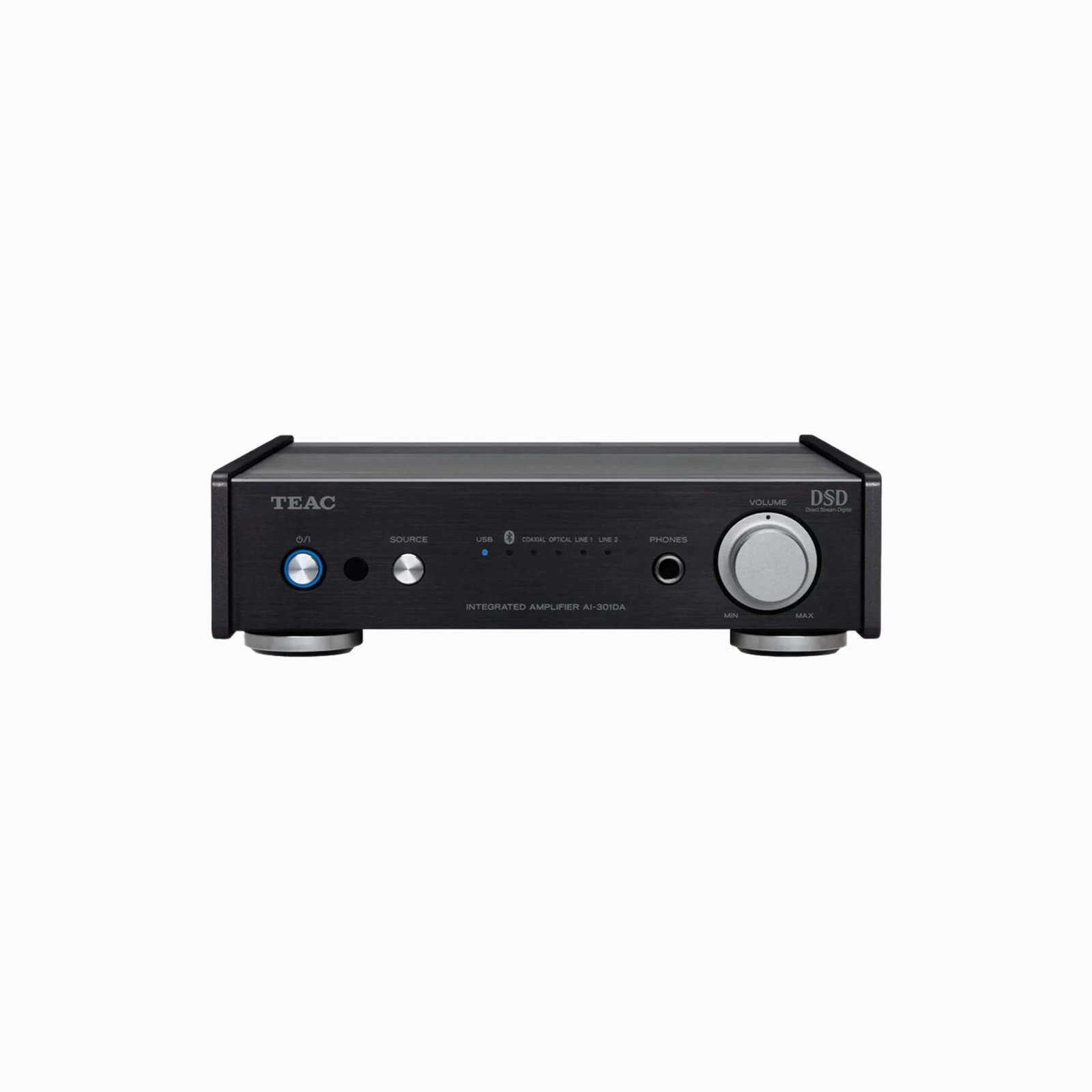

Elegant Yet Robust Design

The sleek AI-301DA-X integrated amplifier is constructed using robust aluminium. It’s compact size has a small footprint meaning it can be placed in very small places like a thin gaps in a TV stand or desktop placement. The volume knob and panels are machined to elegance, whilst the rigid aluminium body provides excellent resistance to unwanted vibrations that may adversely affect sound quality.



High Resolution Playback

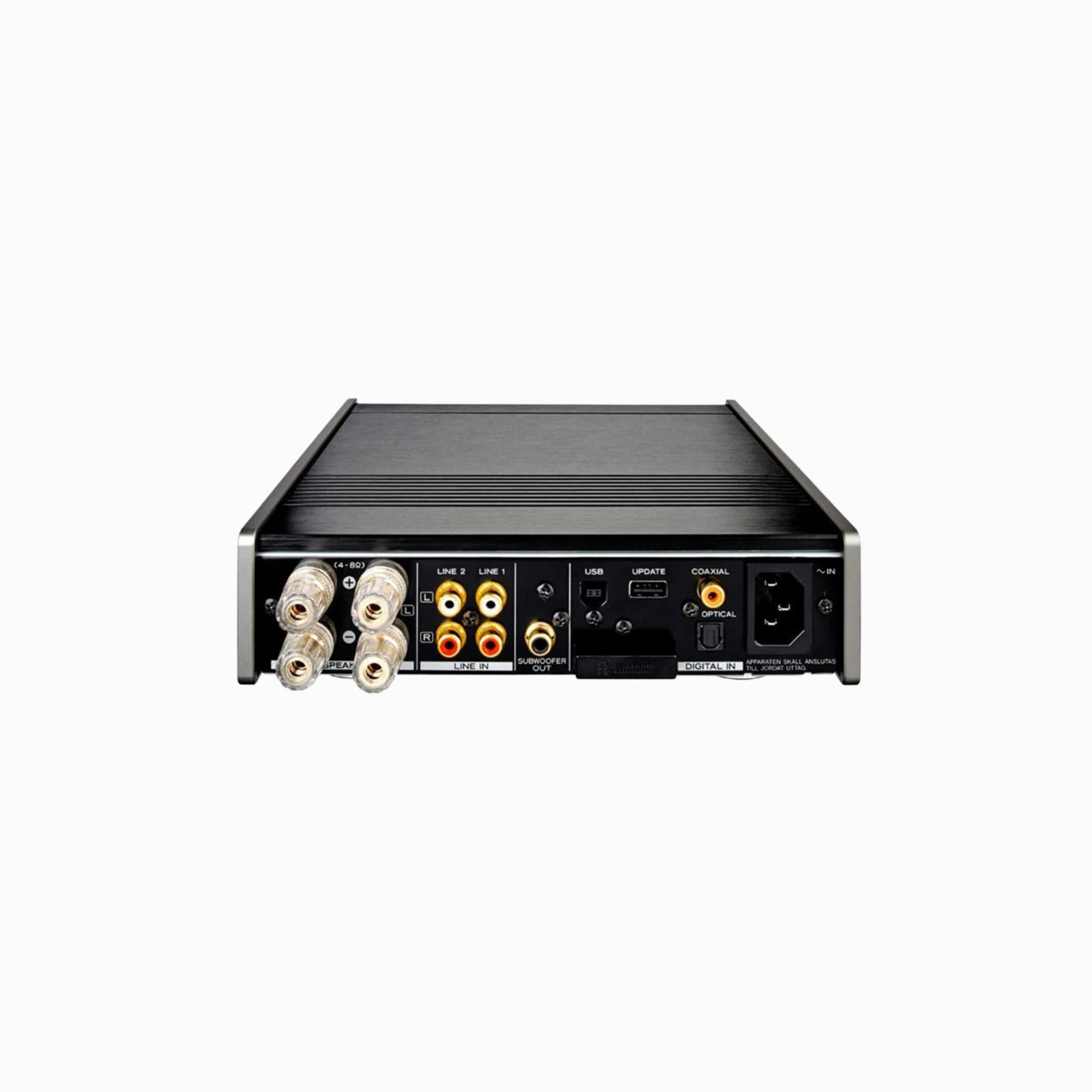

The single coaxial and Type B USB inputs support hi-res files of up to 24-bit/192kHz, while the optical input is limited to 24-bit/96kHz. Two pairs of RCA line-level inputs can be found on the rear panel, while a subwoofer output is available if you want an added punch. This integrated amplifier went through rigorous listening tests and refinements to ensure the highest quality of audio is achieved. This can be heard in the rich, musical character of the AI-301DA-X and its exceptional dynamic ability.



Built-in Bluetooth Receiver

The AI-301DA-X Integrated Amplifier features a built-in Bluetooth receiver module supporting the Qualcomm aptX codec for high quality wireless audio streaming. Qualcomm aptX is the standard for wireless Bluetooth streaming as it delivers stunning sound due to achieving low-latency and superb error recovery. To stream from your iphone or iPad the amplifier also supports AAC codec.



High Performance DAC

In order to process the huge amounts of digital audio data present in DSD128 and PCM 192kHz/32 content, a high-performance BurrBrown PCM 1795 D/A converter is employed. Its 32-bit processing conveys fine detail and a depth of sound from Hi-Res files that’s far beyond what you can hear from standard audio CD. The AI-301DA-X also has a USB port that supports DSD Native playback.



Efficient Performance

The hub of the AI-301DA-X is an energy efficient power amplifier from ICEpower of Denmark. Due to some seriously smart energy management technology, the AI-301DA- X can deliver up to 60W + 60W of output power. It also effectively detects when a digital audio signal is incoming and automatically powers up such as when you turn on your TV, letting you enjoy better TV audio with little fuss.



Key Features

– Coupling Capacitor-less Circuit with 100mw + 100mw headphone output stage
– Coaxial and optical digital inputs
– Subwoofer Pre-Out





Technical Specifications:



USB audio input:-
– DSD: DSD128 (5.6MHz), DSD64 (2.8MHz)
– PCM: 16/24/32-bit
– 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz

Coaxial digital input:-
– PCM: 16/24-bit
– 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz

Optical digital input:-
– PCM: 16/24-bit
– 32k / 44.1k / 48k / 88.2k / 96kHz

– DAC: BurrBrown PCM1795

– Bluetooth version: V2.1 + EDR
– Output: Class 2
– Supported Codec: aptX™, AAC, SBC
– Supported profile: A2DP, AVRCP

Audio Inputs
– USB:
– Connector: USB B-type × 1
– USB version: USB2.0
– Transfer mode: Asynchronous transfer mode
– Recommended software: TEAC HR Audio Player (Mac, Windows)

Coaxial digital audio:-
– Connector: RCA Pin × 1
– Input impedance: 75 Ω
– Input level: 0.5Vp-p

Optical digital audio:-
– Connector: TOS-link × 1
– Input level: –24 to –14.5dBm peak

Analog LINE audio:-
– Connector: RCA Pin × 2 pairs

Audio Outputs
– Subwoofer Pre-out:-
– Connector: RCA Pin × 1

Speaker output: RCA Pin × 1 set
– Maximum output power: 60W + 60W (4 ohms, 20Hz to 20kHz, JEITA)
– 30W + 30W (8 ohms, 20Hz to 20kHz, JEITA)
– Rated Output: 43W + 43W (4 ohms, 20Hz to 20kHz, THD 0.1%, JEITA)
– 22W + 22W (8 ohms, 20Hz to 20kHz, THD 0.1%, JEITA)
– Supported speaker impedance: 4Ω to 8Ω

Headphone output:-
– Connector: 1/4″ (6.3mm) stereo headphone × 1
– Maximum output power: 100mW + 100mW (32Ω loaded, THD 0.1%)
– Total harmonic distortion: 0.005%
– Power AC 230V, 50Hz (UK/Europe)

Audio Performance
– Frequency response: 2Hz to 100kHz (–5dB)
– Signal-to-Noise ratio: 95dB (LINE Input, IHF-A/LPF 20kHz 1kHz 2V Input)
– Total harmonic distortion: 0.01% (1kHz, 8 ohms, 1W)

Power consumption: 38W
– Overall dimensions: 8.5″ × 2.4″ × 10″ / 215 × 61 × 254mm (W×H×D)
– Weight: 4.6 lbs. / 2.1kg
