Key Features

Design & Build

Two-way in-ceiling speaker pair designed for flush ceiling installation
Slim, paintable grilles that blend discreetly into interiors
Robust construction for reliable long-term performance

Driver Configuration

5-inch bass/midrange driver for clear and balanced low to mid frequencies
1-inch high-frequency driver for smooth treble reproduction
Tuned crossover for seamless driver integration and coherent sound

Audio Performance

Wide frequency response suitable for background music, movies, and multi-room audio
Balanced, natural sound with intelligible vocals and clean highs
Designed for both ambient listening and full-range playback

Installation & Flexibility

Easy mounting with secure clamps for quick installation
Suitable for homes, offices, and commercial spaces
Install in pairs for stereo audio or multiple units for larger areas

Connectivity

Spring-clip speaker terminals for secure connection with standard speaker cables
Compatible with most home audio amplifiers and AV receivers

Applications

Ideal for distributed audio systems, in-ceiling surround sound, and multi-room setups
Good choice for living rooms, kitchens, bedrooms, and workspaces

Description

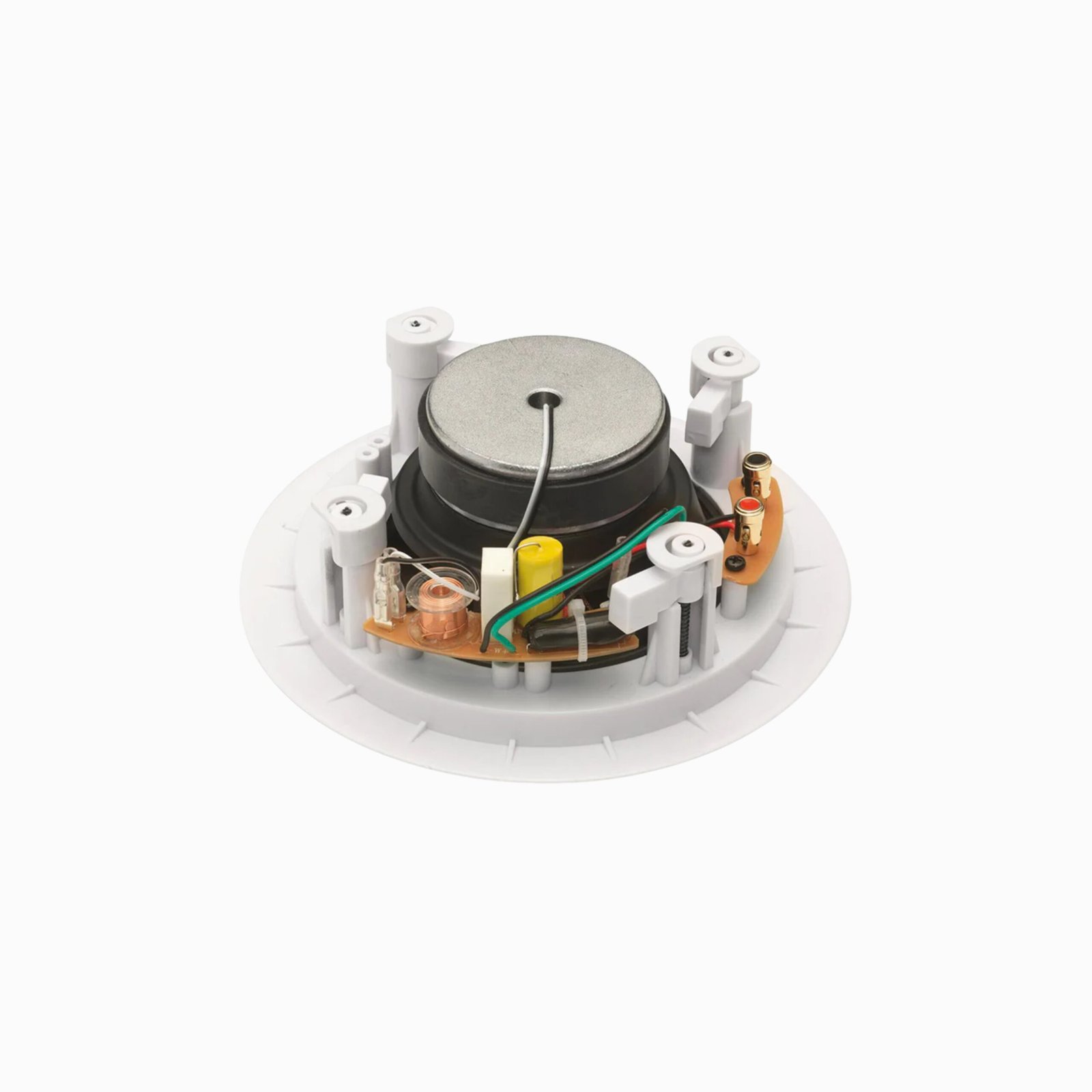

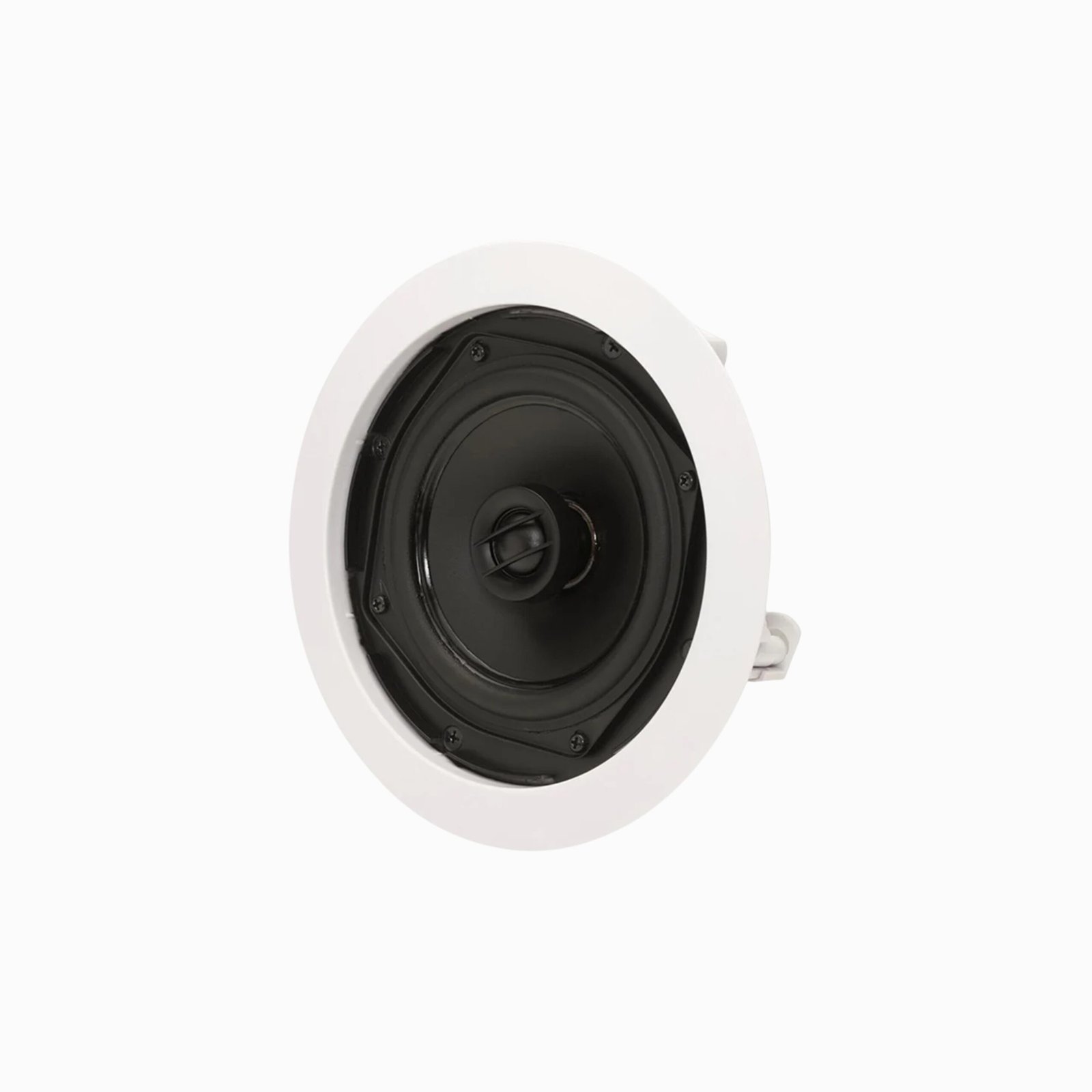

Tannoy Mercury iC5 In-Ceiling Speaker

The compact Mercury iC5 in-ceiling loudspeaker is ideal for smaller rooms or where space is at a premium. A cut out of just 168 mm (6.62”) and depth of 68 mm (2.7”) is required to install the Mercury iC5 yet it is capable of delivering a full range performance. Despite the compact 150 mm (5.00”) mid-bas driver, Tannoy’s engineering expertise has resulted in a loudspeaker with high 86dB efficiency and exceptional power handling. Ideal for use with amplifiers up to 70 Watts per channel, the Mercury iC5 is capable of delivering large scale orchestral works or rock music with ease.

The Mercury iC5 HF unit has been engineered to work in harmony with the mid-bass driver, using a potent neodymium magnet system to maintain very high power handling in a compact and shallow chassis. Its smooth HF performance, directional mounting pod and wide dispersion characteristics make for a musical and articulate loudspeaker capable of producing true high fidelity performance whatever the installation.

Installing the Mercury iC5 could not be simpler. Featuring a self-adhesive cut-out template, self-aligning clamps and gold plated spring terminals, the iC5 can be installed and running in a matter of minutes. The smooth white bezel and white push-fit grille can be painted with household paint to complement or contrast any room decor. Developed in conjunction with Tannoy’s Mercury series of traditional hi-fi loudspeakers, the Mercury iC5 is ideal for use as a main music loudspeaker or can be integrated as part of a multi-channel home theatre system.

Specifications

Performance

Recommended amplifier power (Watts RMS)	15 – 70
Sensitivity (2.83 Volts @ 1m)	89 dB
Nominal Impedance (Ohms)	6
Frequency response (-6 dB)	62 Hz – 22 kHz

Drive Units

High frequency	22 mm (0.87”), soft dome, neodymium magnet system
Low frequency	125 mm (5”) cone mineral loaded polypropylene.
Crossover frequency	4.7 kHz
