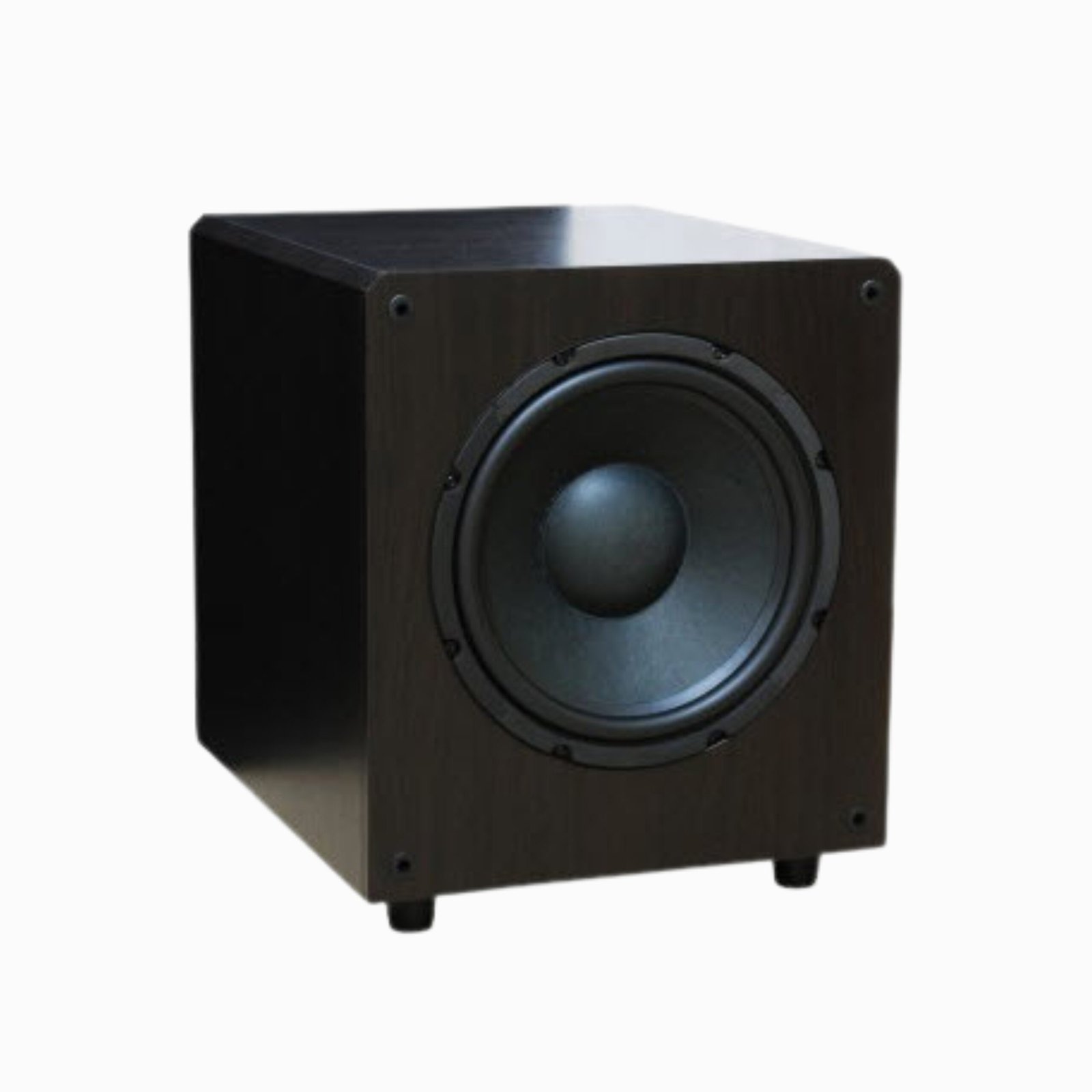

TAGA Harmony TSW-90 V4 Active Subwoofer
The Taga Harmony TSW-90 is a 10” single driver subwoofer with a built-in high-current amplifier and utilizes a slotted bass port on the rear.
The new built-in amplifier delivers slightly higher power output, better efficiency, and greater current drive, which results in lower distortion, smoother and flatter response, and much faster amp operation with significantly reduced operation noises. An integrated clipping limiter maintains the best performance and safe operation of the amp and woofer, even at extremely high volume levels.
The redesigned bass driver can operate in higher amplitude ranges and can react faster to any changes in the audio signal structure.
We changed a regular power cord to a removable IEC type one, which provides better power supply filtering and stability, and gives an option to upgrade your system with a premium audiophile power cable at any time.
The TSW-90 v.4 subwoofers deliver the most powerful, deep bass with staggering definition, location, and dynamics never met at this price level before. They are the absolute best buy in subwoofers!
| Design | Active subwoofer, 1 driver TLIE enclosure |
| Amplifier power | 95W RMS 260W Dynamic Peak Class A/B |
| Frequency response | 30Hz – 150Hz |
| Bassreflex | Single, rear, slotted |
| Bass driver | 255 mm (10”), paper 6ohm |
| Crossover filter frequency | 35Hz – 150Hz (variable) |
| Phase regulation | 0 – 180° |
| Inputs | 1 x Line-level (L/R) 1 x SUB (LFE) 1 x High-level |
| Features/accessories | Auto On/Off
Single RCA-RCA Subwoofer Cable |
| AC power/power consumption | 220V-240V 50/60Hz, 150W |
| Dimensions (H x W x D) | 40 x 33 x 40.5 cm (incl. feet) |
| Weight | 15 kg / pc. |
Finish: BLACK WENGE WALNUT
