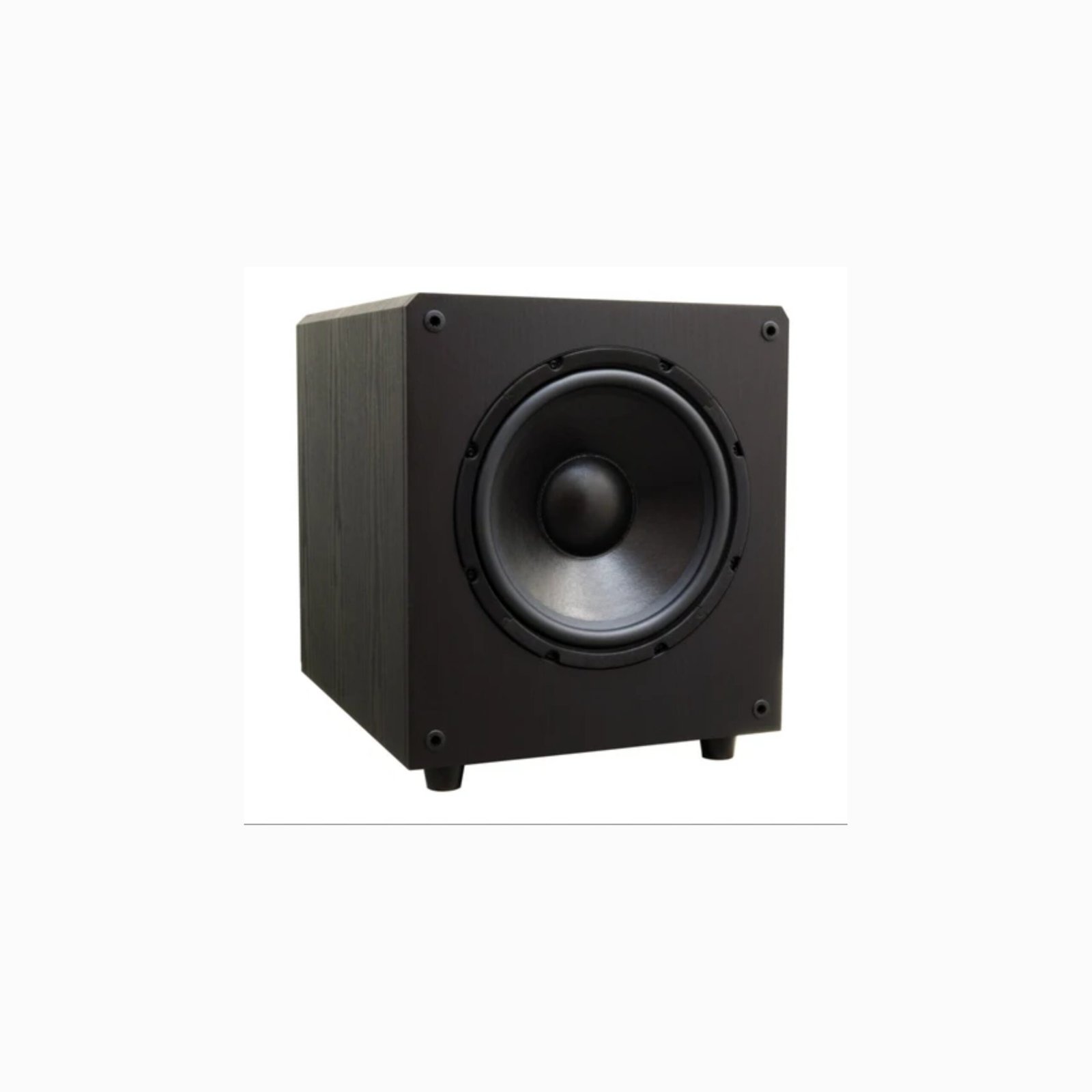

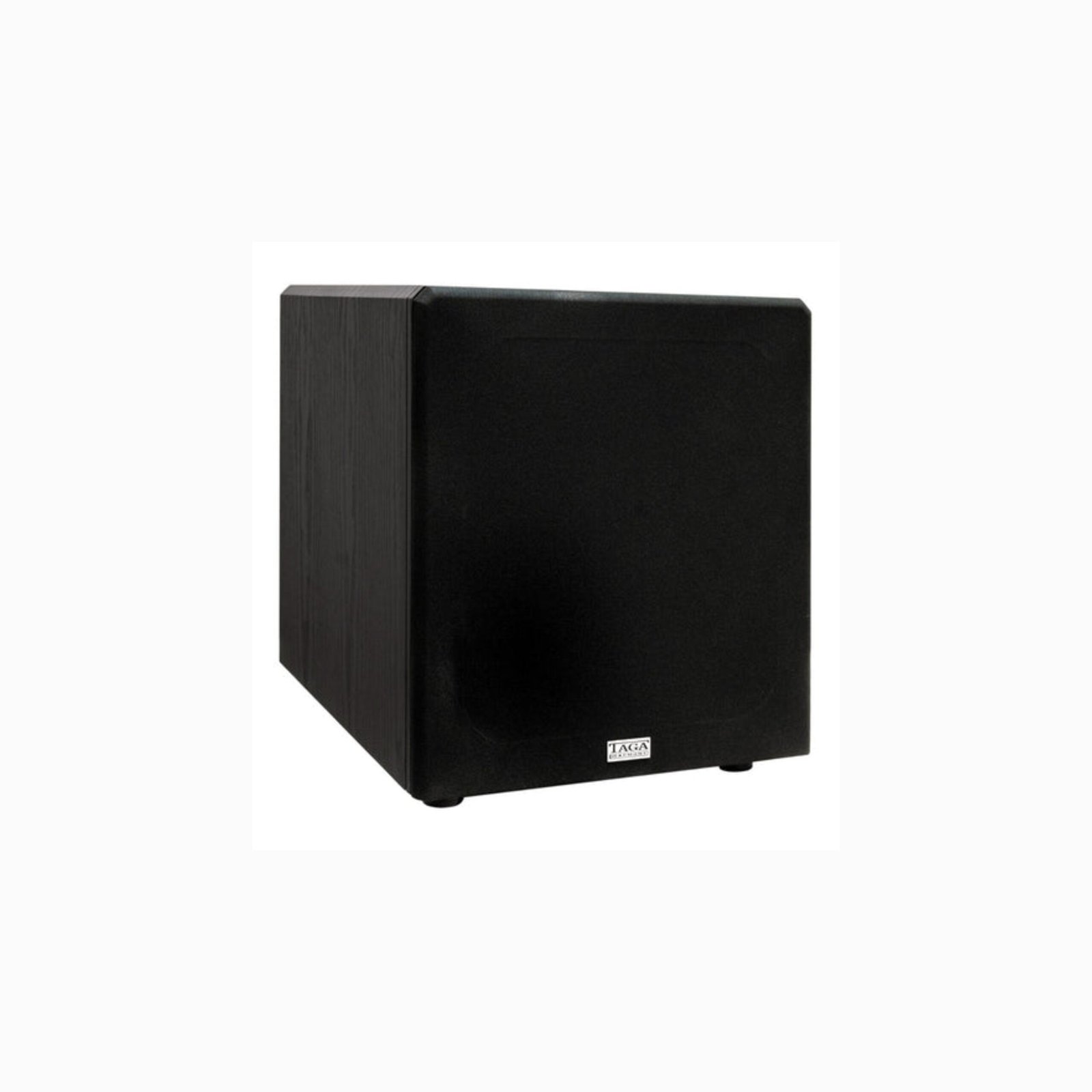

Taga Harmony TSW-210 Active Subwoofer

TSW-210 is a 10” single driver subwoofer with a built-in high-current amplifier and utilizes a slotted bass port on the rear.

The TSW-210 utilizes a new amplifier and power board structure and a new woofer.

The new built-in amplifier delivers high power output and is characterized by much better efficiency and greater current drive, which results in low distortions, smooth and flat response, and fast amp operation with significantly reduced operation noises. An integrated clipping limiter maintains the best performance and safe operation of the amp and woofer even at extremely high-volume levels.

The new bass driver can operate in higher amplitude ranges and react faster to any changes in the audio signal structure.

A removable IEC-type power cord provides good power supply filtering and stability and is an easy option to upgrade your system with a premium audiophile power cable at any time.

The TSW subwoofers deliver the most powerful, deep bass with staggering definition, location, and dynamics never met at this price level before. They are the absolute best buy in subwoofers!

Warranty:

1-year manufacturer’s warranty.

Taga Harmony TSW-210 Features:

• The TAGA Harmony TSW-210 is a 10” single driver subwoofer with a built-in high-current amplifier and utilizes a slotted bass port on the rear.
• The TSW-210 utilizes a new amplifier and power board structure and a new woofer.
• The new bass driver can operate in higher amplitude ranges and react faster to any changes in the audio signal structure.
• The TSW subwoofers deliver the most powerful, deep bass with staggering definition, location, and dynamics never met at this price level before.
• They are the absolute best buy in subwoofers!

Taga Harmony TSW-210 Technology:

CABINETS
Subwoofer cabinet design and build quality are some of the most critical elements influencing sound performance.

We have developed TLIE (Taga Low Interference Enclosures) cabinets to increase stiffness and limit any unwanted resonances of the enclosure. The TLIE cabinets are built with high-density and quality MDF boards and stand on solid feet, which provide good isolation from the floor.

The beveled top side edges not only look modern and eye-catching but also play a significant role in lowering unwanted vibrations, diffraction, turbulence, and standing waves, which can negatively affect the subwoofer’s sound performance.

Acoustic-damping material used inside enclosures eliminates the problem of internal standing waves.

Carefully selected high-quality vinyl finishes are very durable, elegant, imitate the natural wood texture, and are very pleasant to touch. The vinyl finishes are neatly applied to cabinets using precise machinery to provide the best look.

BASS DRIVER

1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
4. Terminal
5. Rigid metal chassis with anti-oxidation surface process
6. ASV bobbin copper wire voice coil
7. Spider
8. Paper cone and rubber surround
9. Paper dust cap

Paper cone woofers are equipped with Ferrum injection-molded chassis, oversized Φ156 (TSW-212) / Φ140 (TSW-210) magnets, and heavy-duty voice coils.
The cone and dust cap are very light and rigid, allowing for fast and easy motion.  Elastic rubber surround offers extended cone excursion, which results in increased speed and range.
The driver design supports high power handling and provides deep, strong, precise, and detailed bass.

BASS-REFLEX

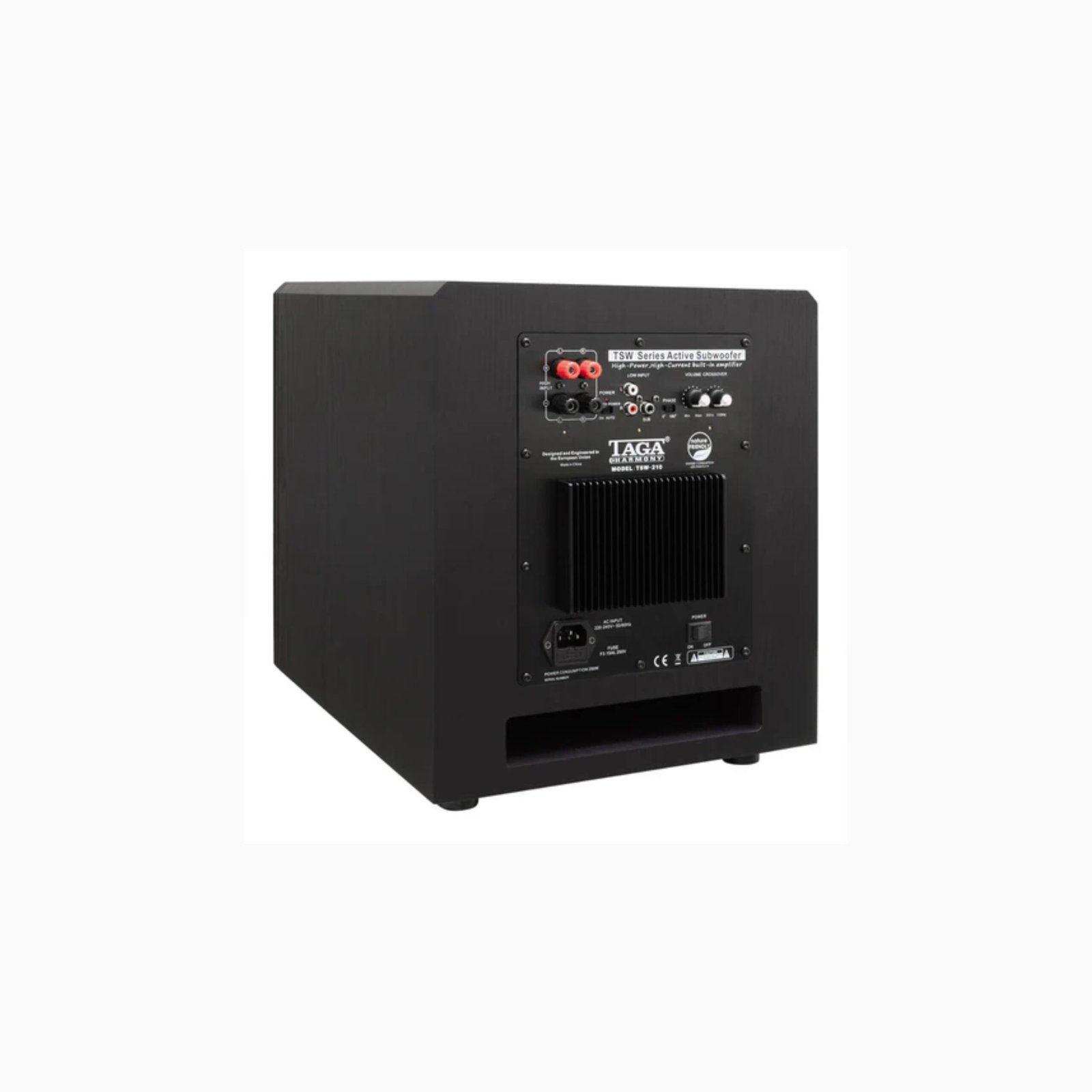

Low-turbulence and high-velocity rear slotted ports provide exceptional dispersion of low frequencies and are located very close to the floor.

AMPLIFIER
High Current Amplifier utilizes a very well-designed board layout and high-quality components to provide reliability and the highest possible bass quality.
An integrated clipping limiter maintains the best performance and safe operation of the amp and woofer, even at extremely high volume levels.
A high-quality copper wire toroidal power transformer provides stable energy, which is available at all power levels.

Taga Harmony TSW-210 Technical Specifications:
