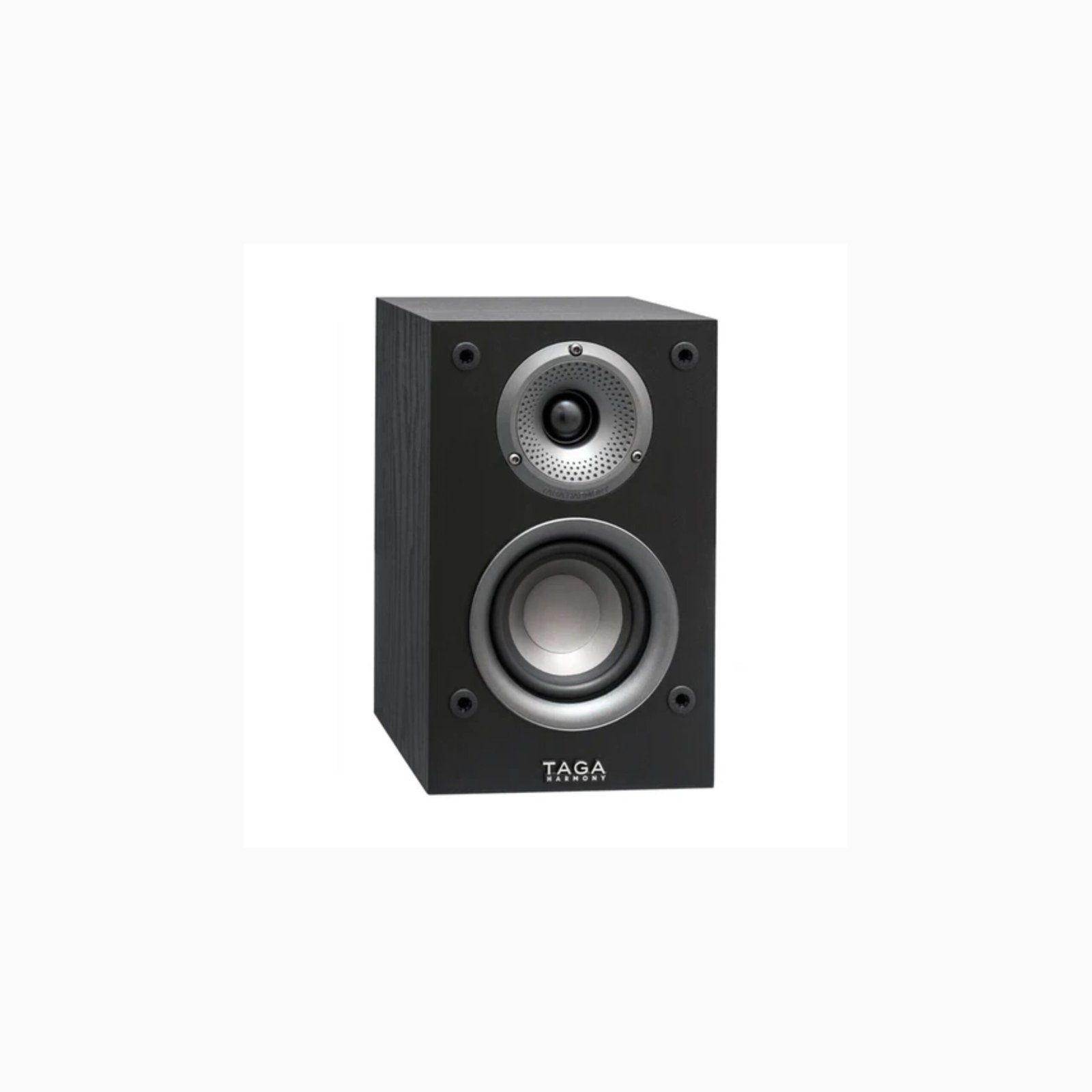

Taga Harmony TAV-807 S Surround Speakers

Technology Cabinets TLIE-I – The 2nd generation of Taga Low Interference Enclosures is made of high-quality, high-density MDF boards (F and B models: 12 mm walls and 21 mm for the front baffle

Warranty:

1-year manufacturer’s warranty.

Taga Harmony TAV-807 S Features:

• 2nd generation TLIE-I enclosure (Taga Low Interference Enclosures)
• New high-quality enclosure damping material
• TAGA Harmony’s new logo badge
• Upgraded 1” (25 mm) silk dome high-frequency driver
• 2nd generation TWG-I tweeter faceplate (Taga WaveGuide)
• Upgraded 5.25” (133 mm) bass-midrange driver

CABINETS
TLIE-I – The 2nd generation of Taga Low Interference Enclosures is made of high-quality, high-density MDF boards (18 mm for the front baffle and 9 mm for other walls) to increase stiffness and limit any unwanted resonances.
The shapes are perfectly crafted not only to look wonderful and modern but mainly to lower any unwanted vibrations, diffractions, or turbulences, which can affect the sound performance.
High-end enclosure damping material is used to better break up the standing waves, lower resonances, and limit distortions, which improve the smoothness and characteristics of sound in all ranges.
Wall mounts – factory wall mounts offer the ability for easy and fast installation on walls or other structures.
Carefully selected high-quality vinyl finishes are very durable, elegant, imitate the natural wood texture, and are very pleasant to touch. The vinyl finishes are neatly applied to cabinets using precise machinery to provide the best look.

HIGH-FREQUENCY DRIVER

1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
4. Sound-absorbing cotton
5. Copper voice coil
6. Black silk dome
7. TWG-I Front faceplate (2 pieces)

Upgraded 1” (25 mm) silk dome high-frequency driver with oversized Φ70 magnet, ferrofluid cooling, and heavy-duty copper voice coil can handle high power, and its performance is very accurate, clear, smooth, detailed, and airy sound.

2nd generation TWG-I tweeter faceplate  (Taga WaveGuide) – specialized horn-like design of the tweeter’s faceplate utilizes concave diffusers to assist with equal and flat dispersion of sound in and off the axis of the driver.
In the newest edition, the shape and depth have been redesigned to allow better flow of the sound stream and even wider dispersion, which helps to build a more three-dimensional and natural soundstage. Minimizing the number of components means better structural rigidity, lower distortions, and resonances.

BASS-MIDRANGE DRIVER

1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
4. Terminal
5. Ferrum injection-molded chassis with anti-oxidation surface process
6. Spider
7. Copper voice coil
8. Polypropylene cone and rubber surround
9. Polypropylene flat dust cap

Ultra-light polypropylene cone with elastic rubber suspension, an oversized Φ70 magnet structure, heavy-duty voice coil and coil former copped with more rigid driver chassis are built to withstand higher power handling and longer operation time without increasing driver temperature and as a result to generate smooth, rich, and very natural midrange frequency response and deep, musical and precise bass.
The flat dust cap supports airflow and smoothens the frequency response.

BASS-REFLEX
BOM Bassreflex Omnidirectional Module – low-turbulence and high-velocity ports utilizing concave diffusers for increased dispersion of low frequencies.

CROSSOVERS
High quality, close-tolerance, and precisely selected crossover components and internal wires for absolute sound neutrality, high long-term power, and reliability.

INTERNAL WIRING
TAGA Harmony utilizes high-quality internal wiring connecting crossovers with drivers, assuring that incoming audio signals from the receiver or amplifier will not lose any important details on the path to the drivers.

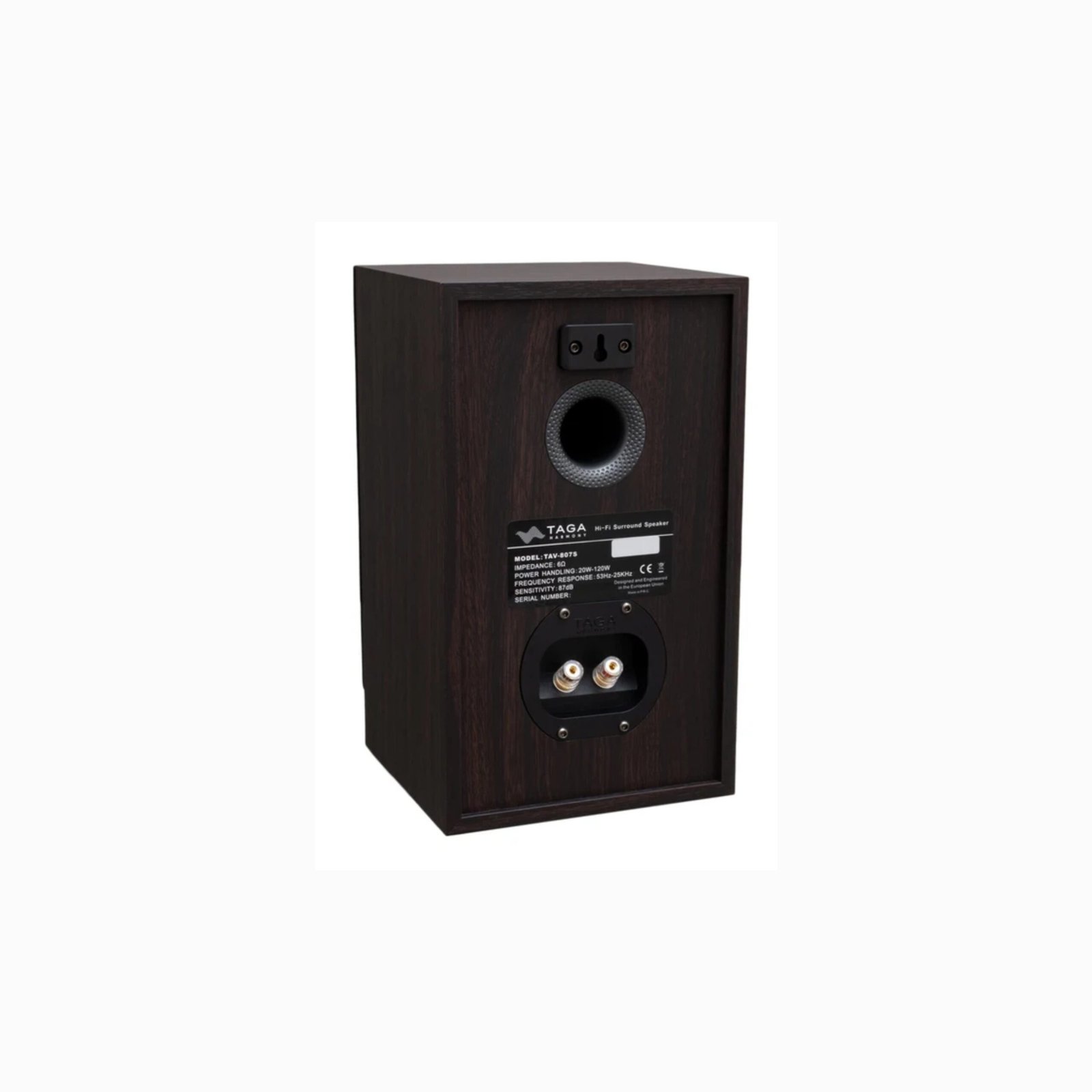

BINDING POSTS
High-quality, gold-plated banana binding posts accepting raw speaker cables up to 10AWG and the most popular types of connectors.

Taga Harmony TAV-807 S Technical Specifications:
