Key Features

Speaker Design

2-way dual concentric in-ceiling speaker
Coaxial driver design for precise imaging and uniform sound dispersion
Suitable for music and home theater applications

Drivers & Sound

6.5-inch woofer with centrally mounted tweeter
Rotatable tweeter for fine-tuning high-frequency direction
Optimized crossover for balanced low and high frequencies

Performance

Wide frequency response for clear mids and detailed highs
High sensitivity for efficient sound output
8 ohm nominal impedance for compatibility with most amplifiers
Handles moderate to high power levels for dynamic performance

Installation & Build

Angled driver design for improved off-axis sound coverage
Twist-lock mounting system for quick and secure ceiling installation
Magnetic grille for a clean and flush ceiling appearance
Discreet white finish to blend with interiors

Applications

Ideal for in-ceiling music systems and surround sound setups
Suitable for Dolby Atmos height channels
Perfect for living rooms, home theaters, and commercial spaces

Description

Sonodyne SIC 3460 – 2 Way Dual Concentric In-Ceiling Speaker (Each)

The SIC 3460 is a special-purpose ceiling-mounted loudspeaker. It has a dual concentric PP cone driver to deliver high SPL and frequency range. The 20-degree tilt allows it to be used not only for height channels in immersive multichannel audio formats like Dolby Atmos ® but also for room corner installation for music and speech. The rotatable tweeter allows for finer adjustments. For room-filling sound for music and movies, choose the SIC 3460.

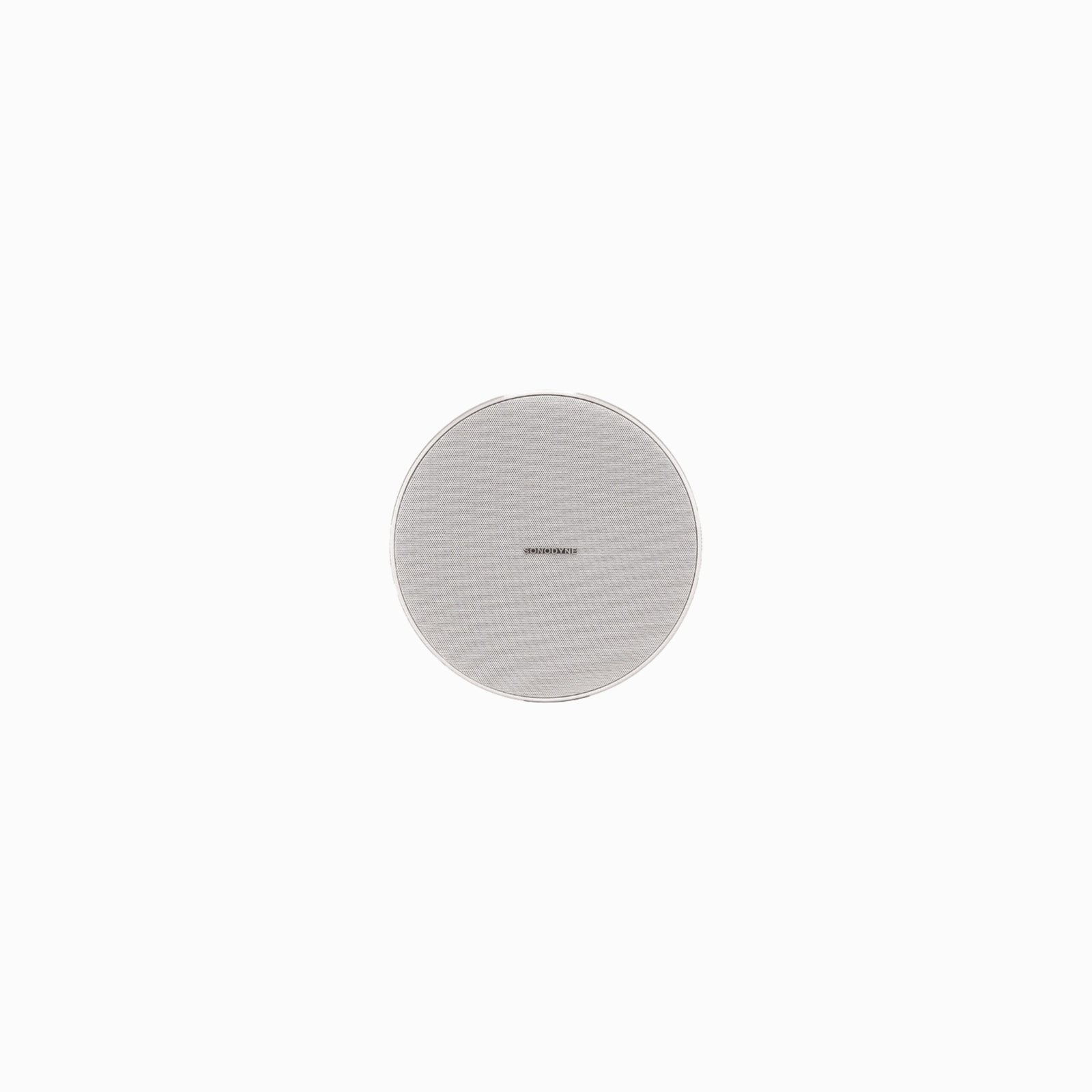

Easily blends into interiors

The magnetic grill and the easy to install locking mechanism allows for a great looking, and easy installation

Excellent sonics

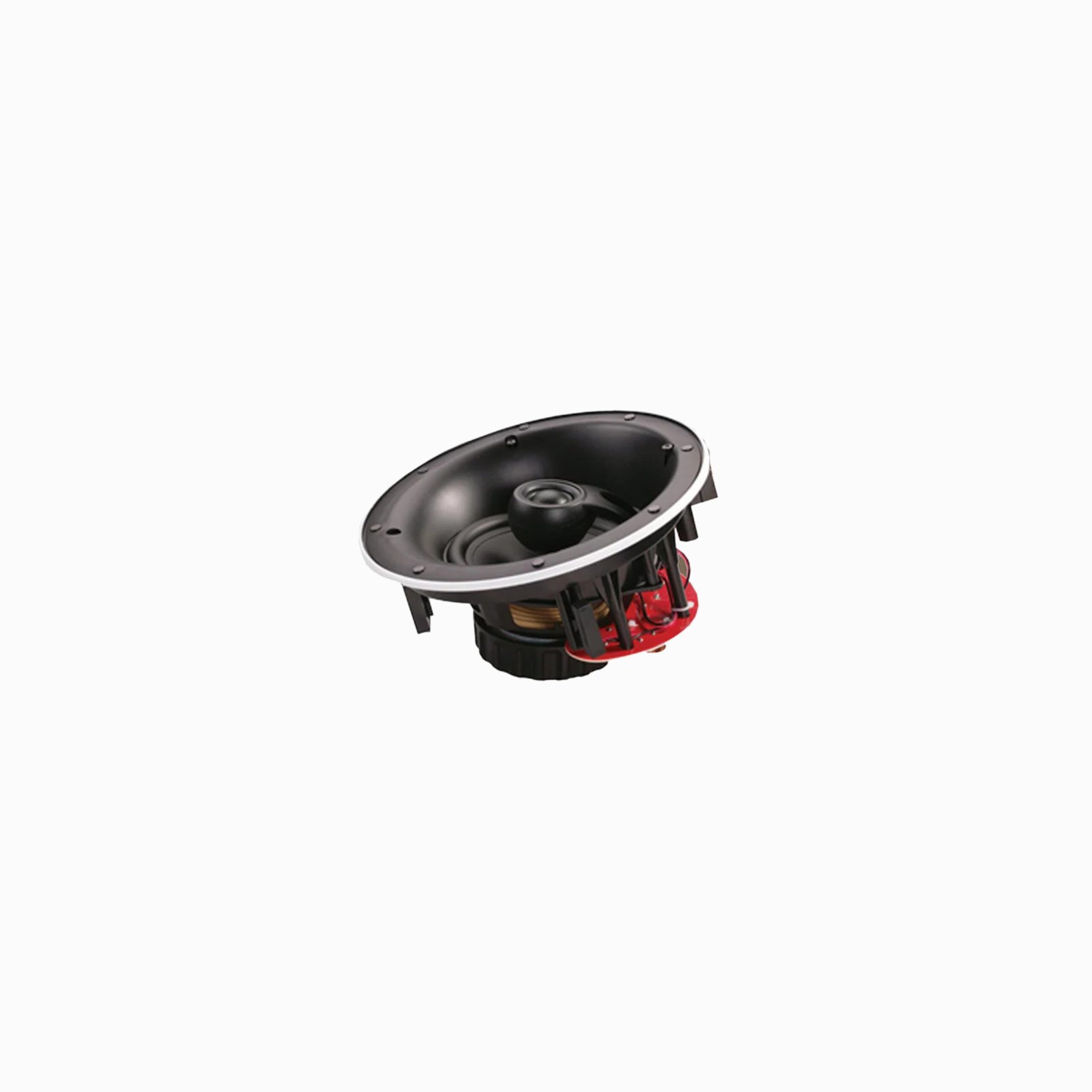

The dual concentric PP cone driver, in conjunction with the elaborate 2-way crossover, results in a balanced and dynamic sonic response

Suited for height channels

The driver is tilted at 20 degrees to the ceiling, allowing for a smooth off-axis response in tune with the requirement of height channels in immersive surround sound formats like Dolby Atmos®

HF fine-tuning

The directional tweeter encased in a moulded spherical enclosure can be rotated to achieve further directional precision

Specifications

DESCRIPTION	2-way in-ceiling speaker
TRANSDUCER COMPLEMENTS	1 x 6.5″ coaxial speaker
MAX LONG TERM SPL	100dB
NOMINAL IMPEDANCE	8Ω
SENSITIVITY (1 w 1m)	90dB (half space)
FREQUENCY RESPONSE	70Hz ~ 20kHz (-3dB)
FREQUENCY RANGE	60Hz ~ 21kHz (-10dB)
RECOMMENDED AMPLIFIER POWER	50 ~ 100W
COLOURS	White
OUTER DIMENSIONS	170mm x 248mm (Height x diameter)
WALL/CEILING CUT-OUT	212mm
NET WEIGHT	1.9kg
MOUNTING OPTIONS	Twist-lock type
