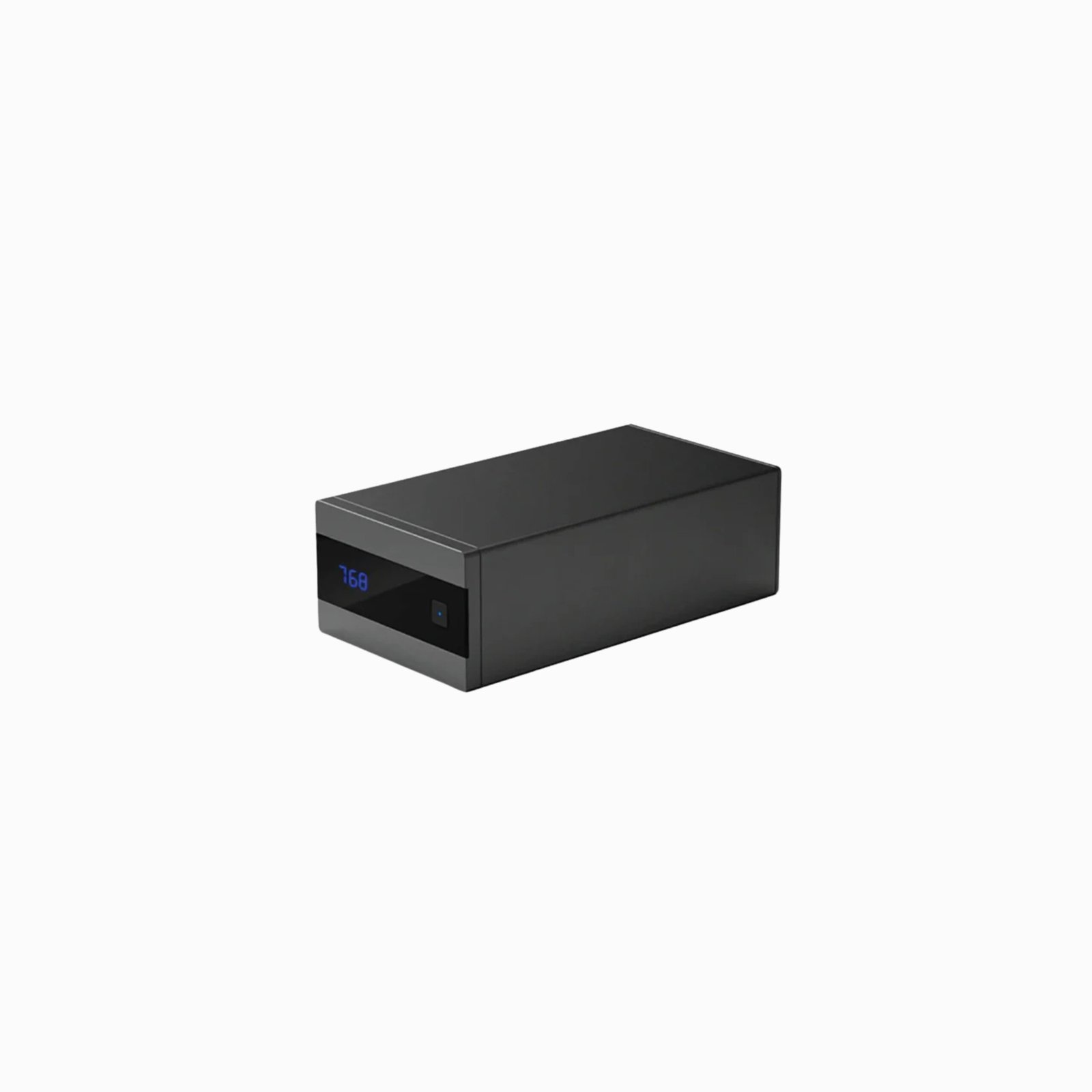

S.M.S.L Sanskrit 10th MKII DAC (AK4493 Chip)

Key Features

  • AKM AK4493 DAC Chip: Renowned for its natural, detailed sound and low noise floor.

  • High-Resolution Audio Support: Handles high-resolution PCM and DSD formats for richer playback from digital sources.

  • Multiple Digital Inputs:

    • USB-B for connection to computers and music servers

    • Optical (TOSLINK) for TVs, CD players, and digital transports

    • Coaxial (RCA) for additional digital sources

  • Robust Output Stage: Clean analog outputs to drive amplifiers, integrated systems, or powered speakers with fidelity.

  • Solid Build Quality: Rigid chassis and thoughtful internal layout to minimise interference and preserve audio integrity.

  • User-Friendly Operation: Simple front panel controls and a clear display for easy source selection and format monitoring.

  • Low Distortion & Noise: Designed to preserve musical detail while keeping noise and distortion to a minimum.

Performance Highlights

  • High-Resolution Support: Plays high sample-rate PCM (e.g., up to 32-bit/384 kHz) and DSD decoding (supported via USB, depending on driver and source).

  • Analog Output: Delivers a clear, robust line-level signal to your amplifier, preamp, or active speakers.

  • Digital Connectivity: USB, optical, and coaxial inputs make it compatible with a broad range of devices.

Description

S.M.S.L Sanskrit 10th MKII DAC (AK4493 Chip)

HIGH END DAC DECODER

The USB digital interface uses the XMOS asynchronous processing module. It was customized by Thesycon in Germany. When compared to the public version of the driver, the sound effect has improved, and supports both native DSD and DOP, supports up to 32Bit/768Khz and DSD256 decoding, to real DSD Stream to the D / A Chip Decoding, Mac OS System driver-free. The output can be streamed to the D/A Chip, which requires no Mac OS System drivers. It can be configured to output at 32Bit/768kHz. The XMOS Processing module, which supports the OTG Function through the conversion line, can receive digital signals from mobile phones and iPads and realize high-definition decoding of PCM and DSD. Apple uses the Lightning USB Camera Adapter Cable, while Android uses the OTG Cable. We use audio-specific capacitors, low-noise op amps, and high-precision low-noise resistors.

AK4493 DAC CHIP

AKM’s latest performance DAC chip, AK4493, has been carefully adjusted by talented engineers to achieve an unprecedented low distortion of 0.0002% (-113Db).2 Japanese NDK ultra-low phase noise clocks, greatly reducing the system Jitter. Low noise power purification system for optimal performance via USB Power only.

KEEP IMPROVING SOUND QUALITY

The professional shape design uses an anodized CNC aluminum alloy housing.

BUILT-IN GRAVITY ACCELERATION TRANSDUCER

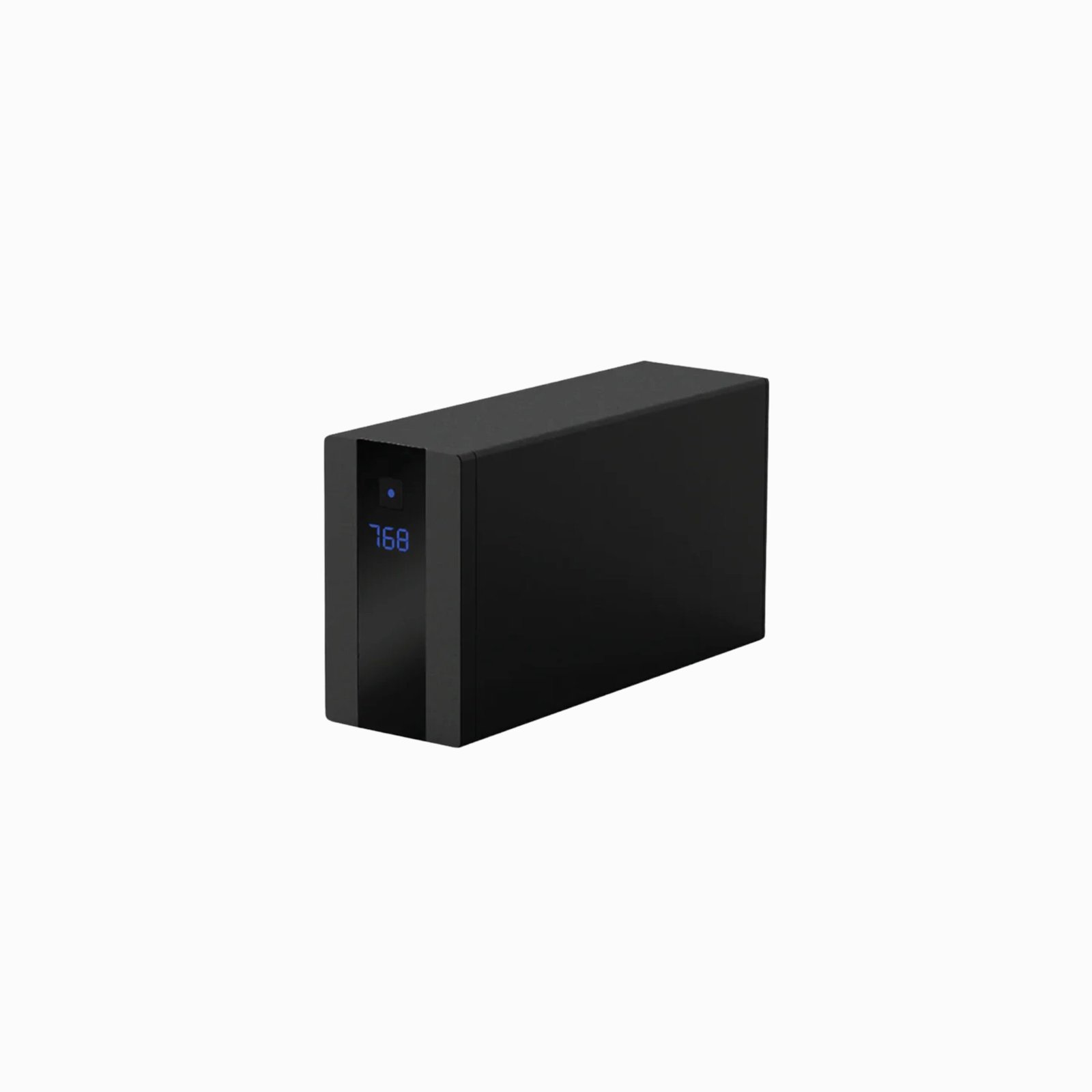

Sanskrit is designed to take up minimal desktop space. It has three display modes as shown below. In these three display modes, it has built in digital accelerometer, so it automatically switches the orientation of the display.

WIRELESS REMOTE CONTROL

Standard compact remote control for easy volume control and easy to use.

COMPATIBLE WITH ALL MAJOR AUDIO

Compatible with mobile phones, iPad, Computers and other devices, and compatible with Android and Apple systems.

PARTS NAMES

  • Infrared Remote control receiving window
  • Display (Automatic switching)
  • Power/input selection button
  • Audio Output (RCA)
  • Coaxial output
  • ptical Input
  • USB Input
  • Auxiliary power input



Specifications

Brand Name
S.M.S.L
Product Name
S.M.S.L – Sanskrit 10th MKII DAC
Input
USB/Optical/Coaxial
Output Level
2.2Vrms
THD+N
0.000002
Dynamic Range
118dB
SNR
120dB
USB Compatibility
Windows 7/8/8.1/10
Mac OS X10.6 or Later /Linux
Bit Depth
USB: 1 bit ~ 32 bit
16bit ~24bit
Sampling Rate
USB: PCM 44.1~768Khz
DSD 2.8224~22.5792MHz
Optical/Coaxial
32Khz~192Khz
Power Consumption
2W
Standby Power
<0.1W
Size
75x45x144 (WxHxD)
