Revel W990 -In-wall speaker (Each)

Key Features

Performance & Sound Quality

High-performance in-wall speaker with a two-way design for balanced, natural audio
Advanced tweeter for smooth, detailed high-frequency response
Large woofer for strong midrange and deeper low-frequency output
Precisely engineered crossover network for seamless integration and consistent tonal balance

Cabinet & Build

Low-profile in-wall enclosure for discreet, flush installation
Rigid construction with internal bracing to reduce resonance and coloration
Paintable grille to blend with wall finishes and interior décor

Installation & Compatibility

Designed for flush in-wall mounting with included hardware and installation template
Works with a wide range of amplifiers and AV receivers
Optimized impedance and sensitivity for typical home audio systems

Application

Ideal for premium home theatre systems, surround sound channels, and whole-home audio
Delivers clear, articulate sound with broad frequency coverage while remaining visually unobtrusive in wall installations

Description

Revel’s best in-wall speaker

Revel offers a wide range of high-quality in-wall speakers. The W990 is the pinnacle of their lineup, incorporating many of the company’s best speaker technologies. With a true three-way design and a host of room-correction controls, this speaker will delight music and movie lovers alike.

Easy-to-access controls

The front panel of the W990 provides easy access to its sound control features. The 1″ tweeter has a three-position output level switch which lets you cut or boost high frequencies — a valuable adjustment if you have reflective surfaces like hardwood floors or windows, or absorptive surfaces like thick carpets or upholstered furniture.

The W990 also has a boundary compensation switch, so you can adjust low-frequency output if the speaker is installed near a corner to prevent potential boominess.

This speaker even features high-frequency tilt and listener axis controls, which let you compensate for both vertical and horizontal placement limitations.

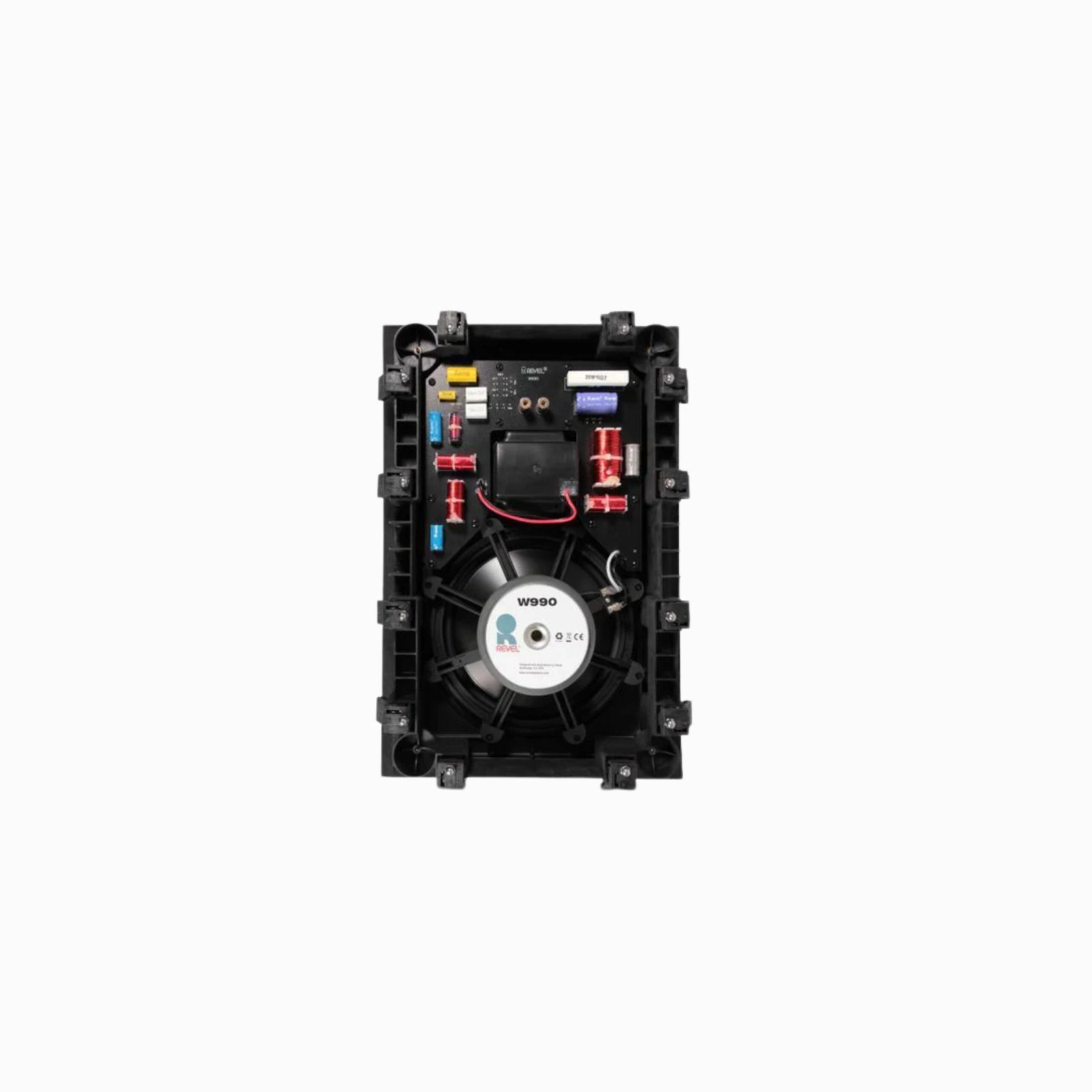

High-quality design for long-term performance

The W990 has a few other notable design highlights. Its tweeter waveguide helps provide great sound for listeners directly in front of the speaker, as well as those positioned off to the side. And high-quality push-post input terminals provide a solid connection with your speaker wire.

DIY installation

If this is a do-it-yourself install, check out my guide to installing in-wall speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.

three-way design

ideal for an in-wall music system or as the left or right channel of a home theater system

9″ micro-ceramic composite (MCC) woofer with cast-aluminum frame

boundary compensation switch adjusts low-frequency output when the speaker is placed near a corner

long-throw woofer design with rubber surround for high output and low distortion

3-1/2″ micro-ceramic composite midrange driver with cast-aluminum frame

1″ aluminum dome tweeter

three-position tweeter level control cuts or boosts high-frequency output to ideally suit your room’s acoustics

integrated waveguide provides excellent on- and off-axis performance

high-frequency tilt (horizontal) and listener axis (vertical) controls help compensate for less than ideal speaker placement

high-order crossover network features premium-quality components for extraordinarily accurate timbre reproduction

recommended amplifier power: 10-200 watts

cast-aluminum baffle with multi-point spring-loaded clamping mechanism

paintable zero-bezel magnetic grille

sensitivity: 89 dB

cutout dimensions: 12-1/2″W x 19-1/8″H

overall dimensions: 13-15/16″W x 20-5/8″H

mounting depth: 3-3/4″

weight: 17 lbs.
