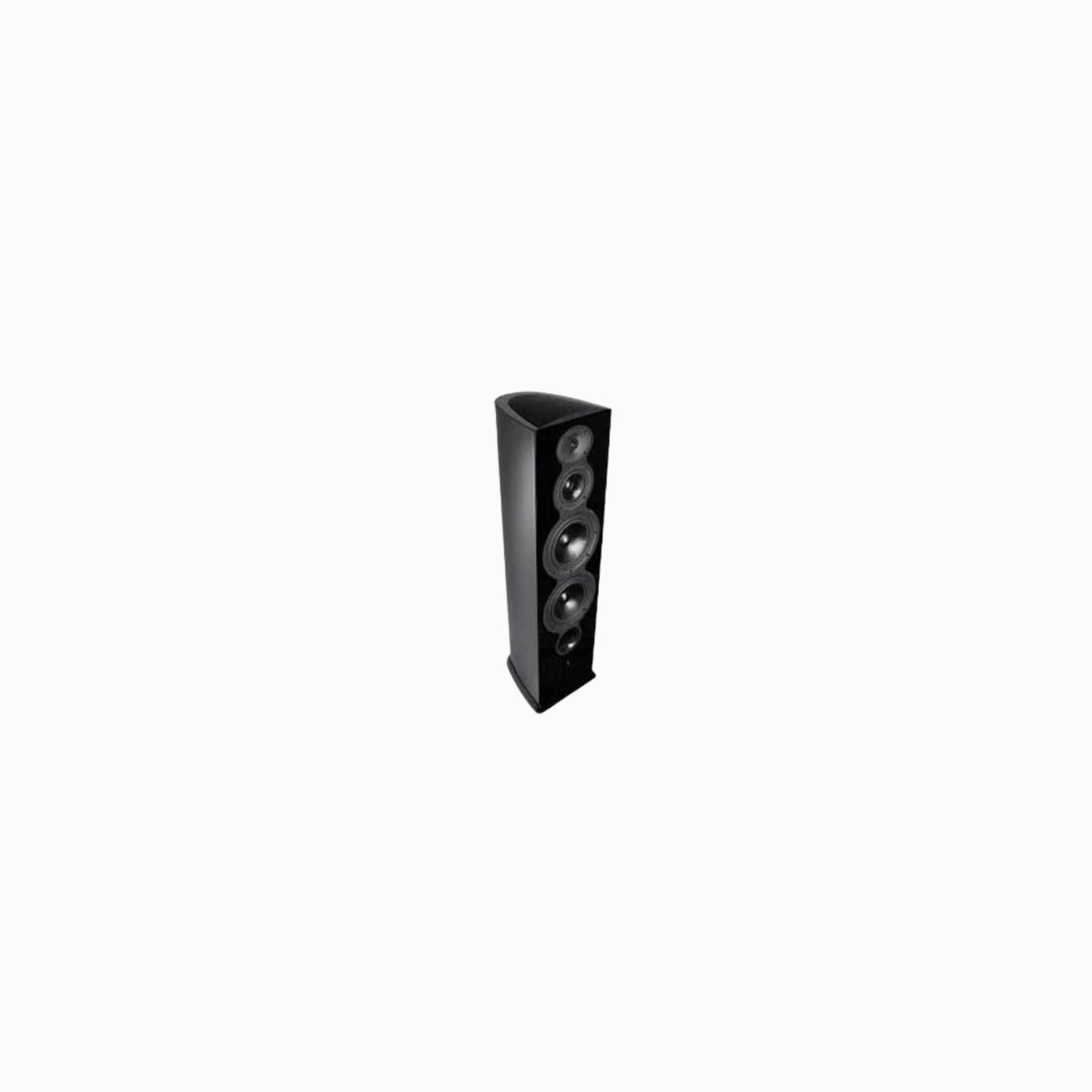

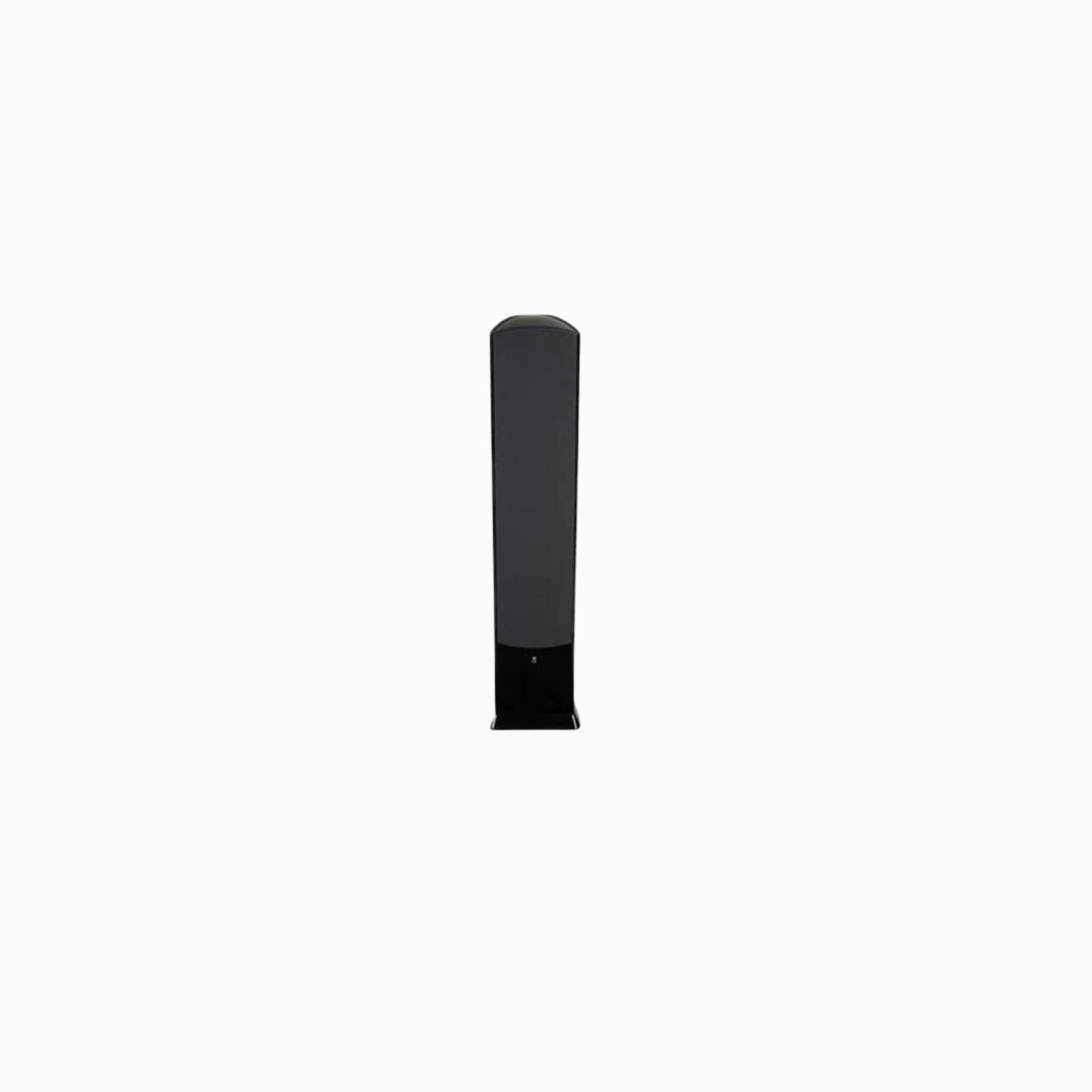

Revel Performa3 F206 -Floor-standing speaker -Piano Black

Custom-designed drivers reduce bad vibrations

Revel designs and builds every driver that goes into their speakers. The F206’s 5-1/4″ midrange driver and dual 6-1/2″ woofers use aluminum cones that are anodized on both sides with a micro-ceramic composite compound. This reduces resonances that can color the sound. Revel uses advanced testing like laser interferometry to root out those kinds of sonic imperfections. And the black-anodized cones look cool enough to leave the grille off — especially in the white and walnut cabinet finishes.

The F206’s 1″ aluminum dome tweeter sits in Revel’s concave Acoustic Lens waveguide, which increases the tweeter’s dispersion at higher frequencies, and also helps create a more seamless match between the tweeter and the midrange driver just below it. The result is a very smooth, consistent sound both on-axis and off-axis, creating a larger sweet spot.

Curved cabinet walls cut down on colorations

Looking closer at the F206’s cabinet reveals curved side and back walls built from a series of laminated layers. These curved walls are inherently stiffer than conventional box shapes, and are reinforced by extensive internal bracing that eliminates enclosure-induced colorations.
The front-firing port and narrow, tapered rear of the cabinet help reduce interaction between the speaker and the walls of your room, making placement easier and less critical. Anchoring the enclosure is a flared plinth stabilized by adjustable spiked feet.

Tested by instrument and by ear

Revel’s world-class speaker design and testing facility features an anechoic chamber and the latest high-tech measurement gear. But some of their most critical test instruments are the ears of their trained listening panel. When working on a new design, Revel’s engineers set up a series of controlled auditions comparing their design to several competing speakers.
Speakers under comparison sit on a rotating platform, and each model is moved into the identical position by a computer-controlled belt drive system. An acoustically transparent screen hides the speakers from the listeners to avoid visual bias. These double-blind listening tests provide an essential reality check and help the engineers correlate measurements with what listeners actually hear and prefer.

 Build a complete Revel system

A pair of F206s can fill your room with gorgeous stereo sound. If you’re interested in a voice-matched surround sound system, check out these other models from Revel’s Performa3 series:
Center channel: Performa3 C205
Surround speaker: Performa3 S206
Subwoofer: Performa3 B110

 Who is Revel?

Revel is one of the high-performance audio companies of global electronics giant Harman International. Since 1996, Revel has used cutting-edge design tools and one-of-a-kind testing facilities to develop speakers that measure well and sound amazing. The intensive design work happens at Harman’s state-of-the-art speaker R & D facility in Northridge, California.
