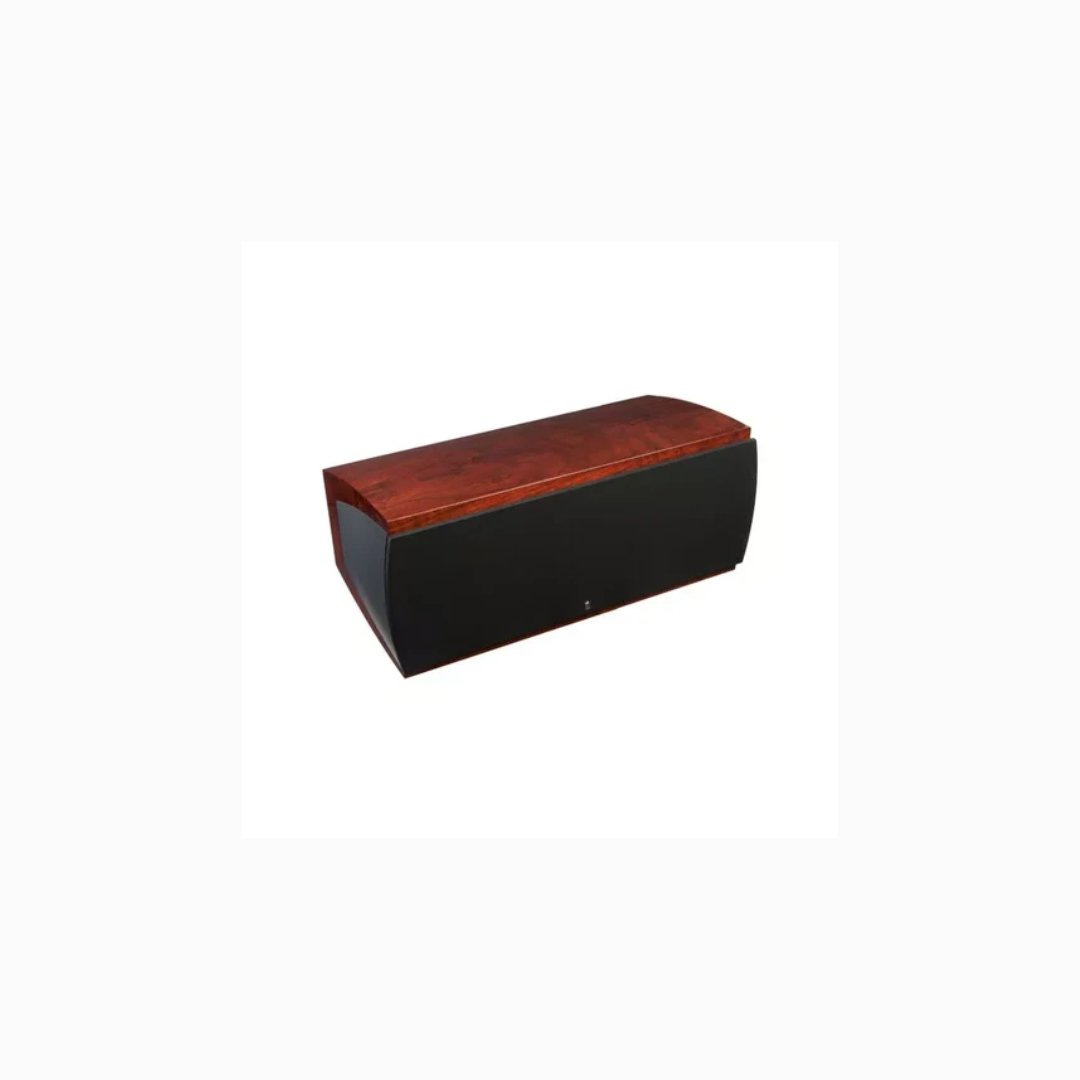

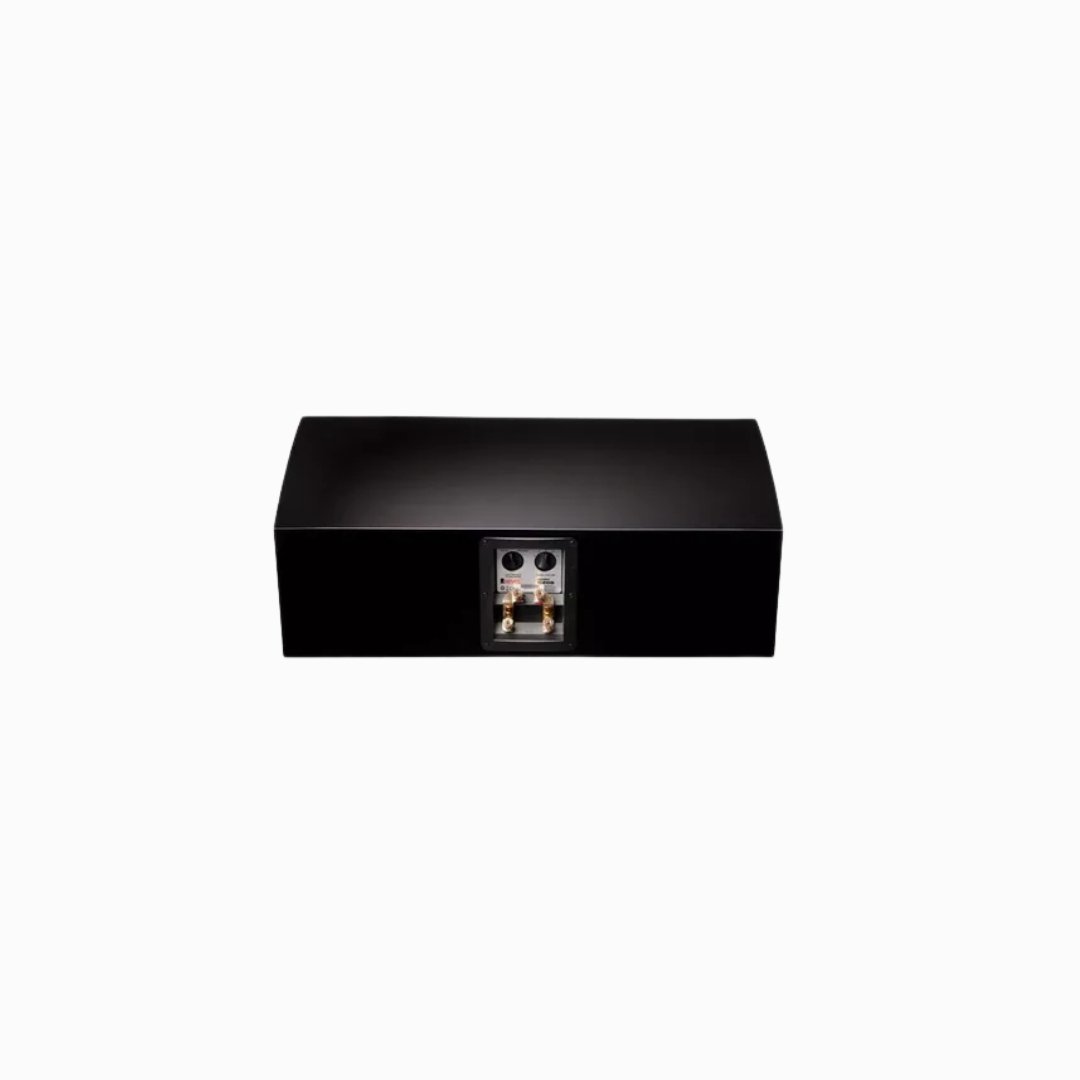

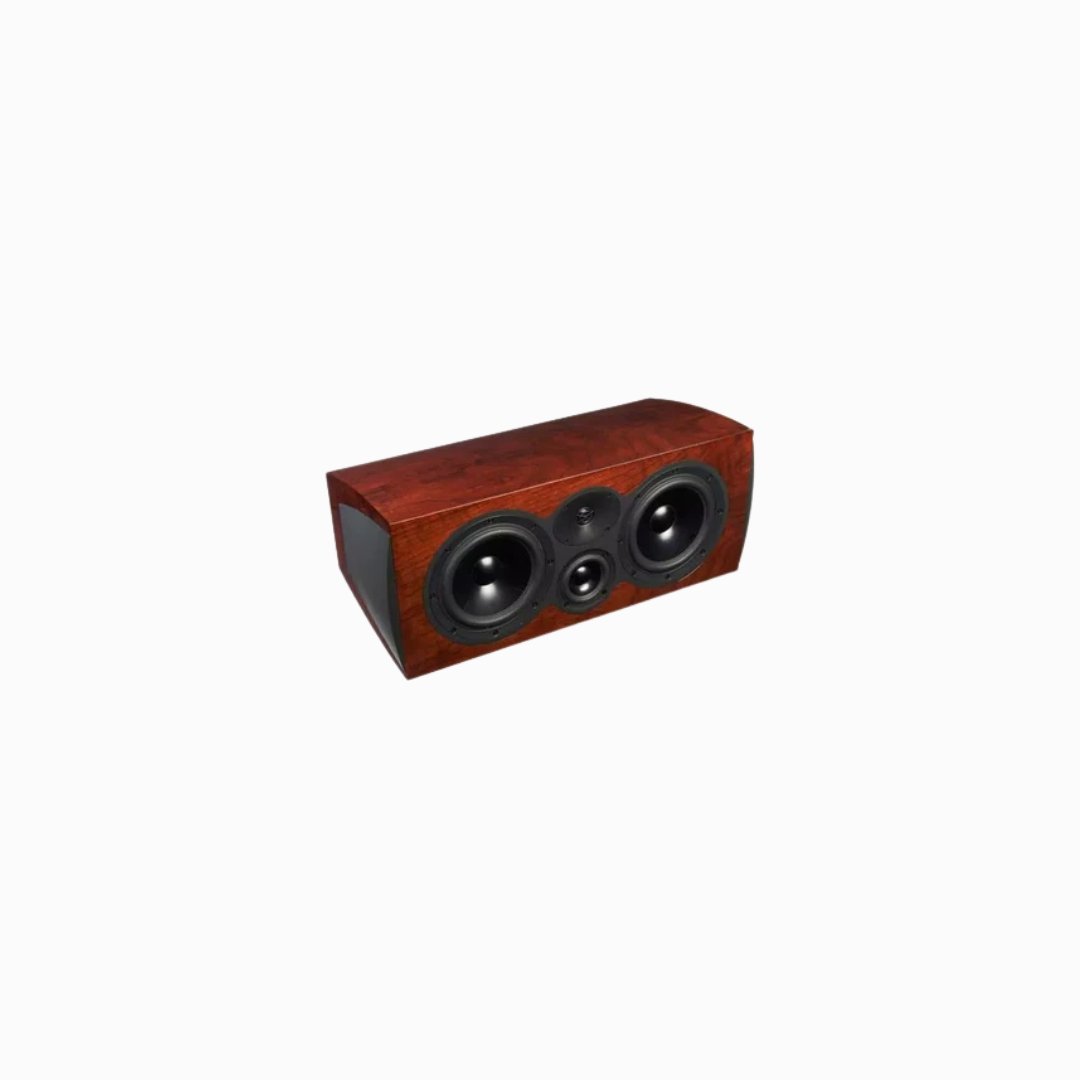

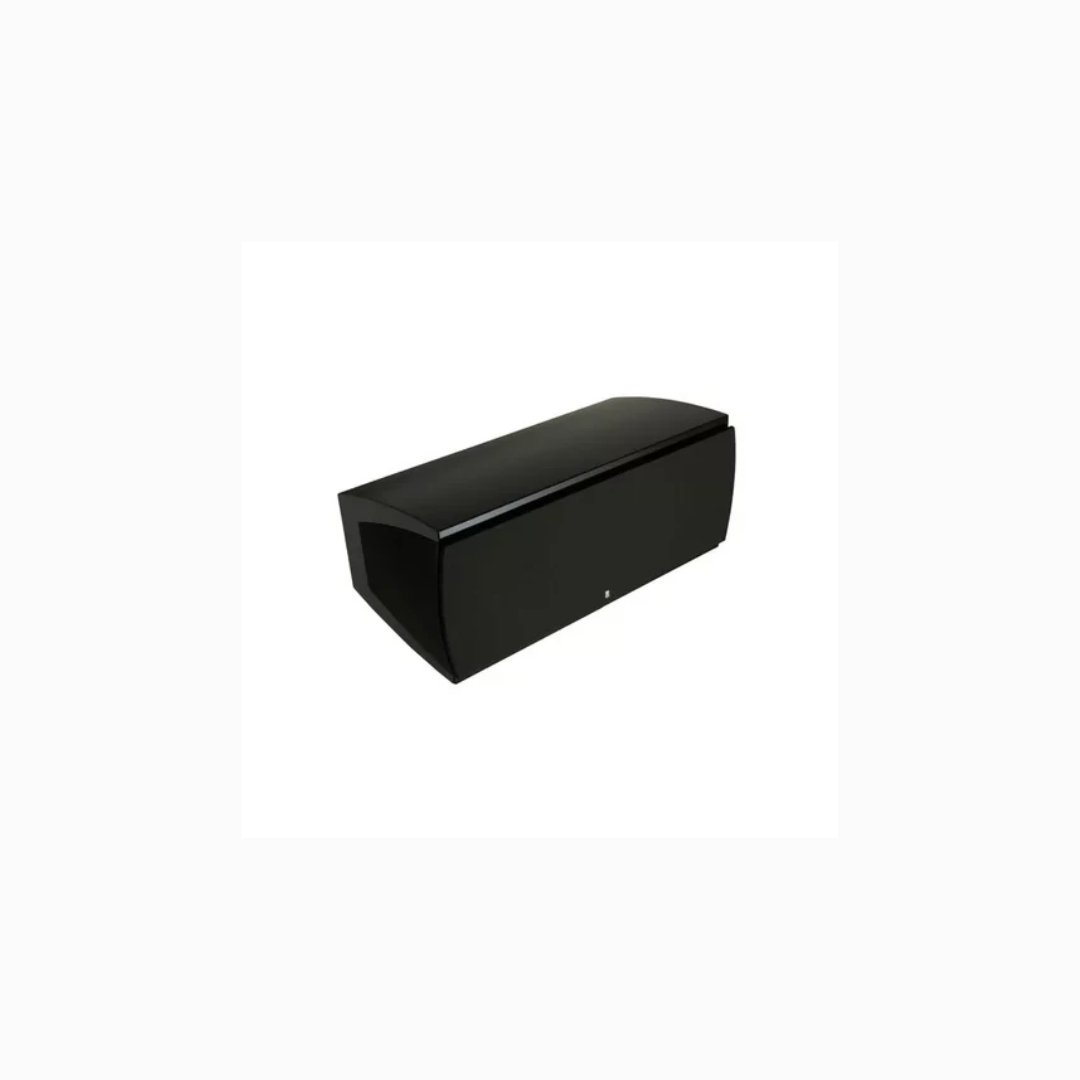

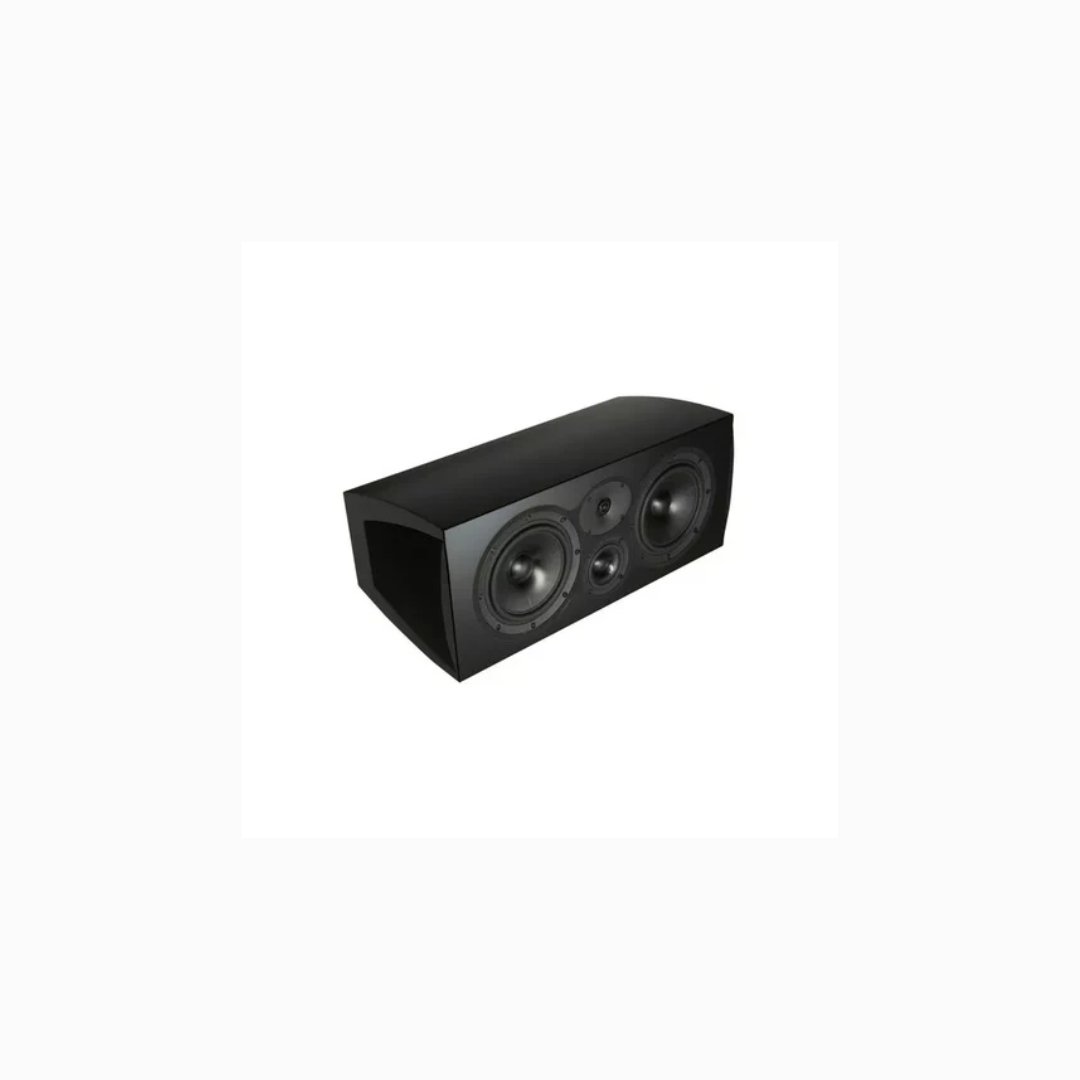

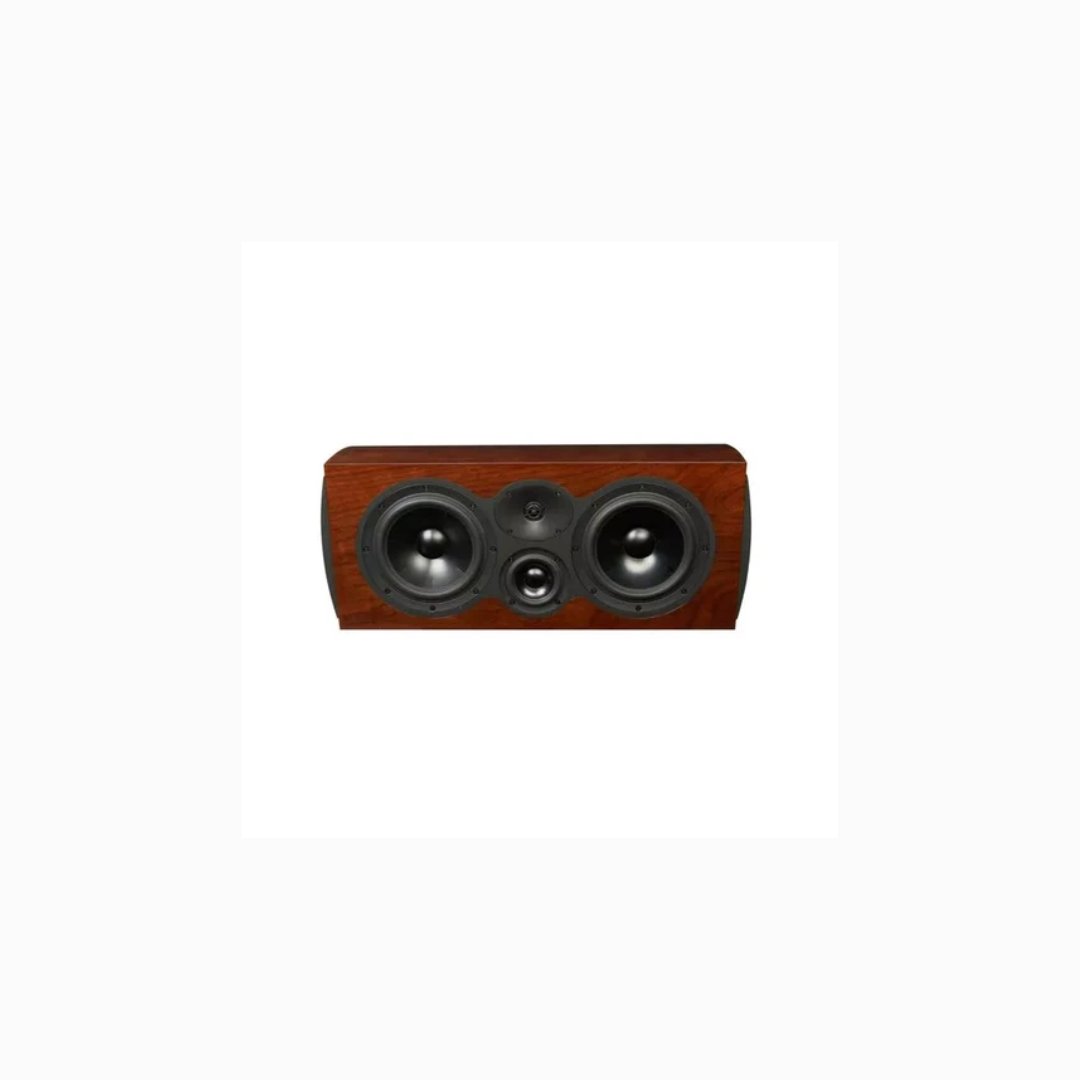

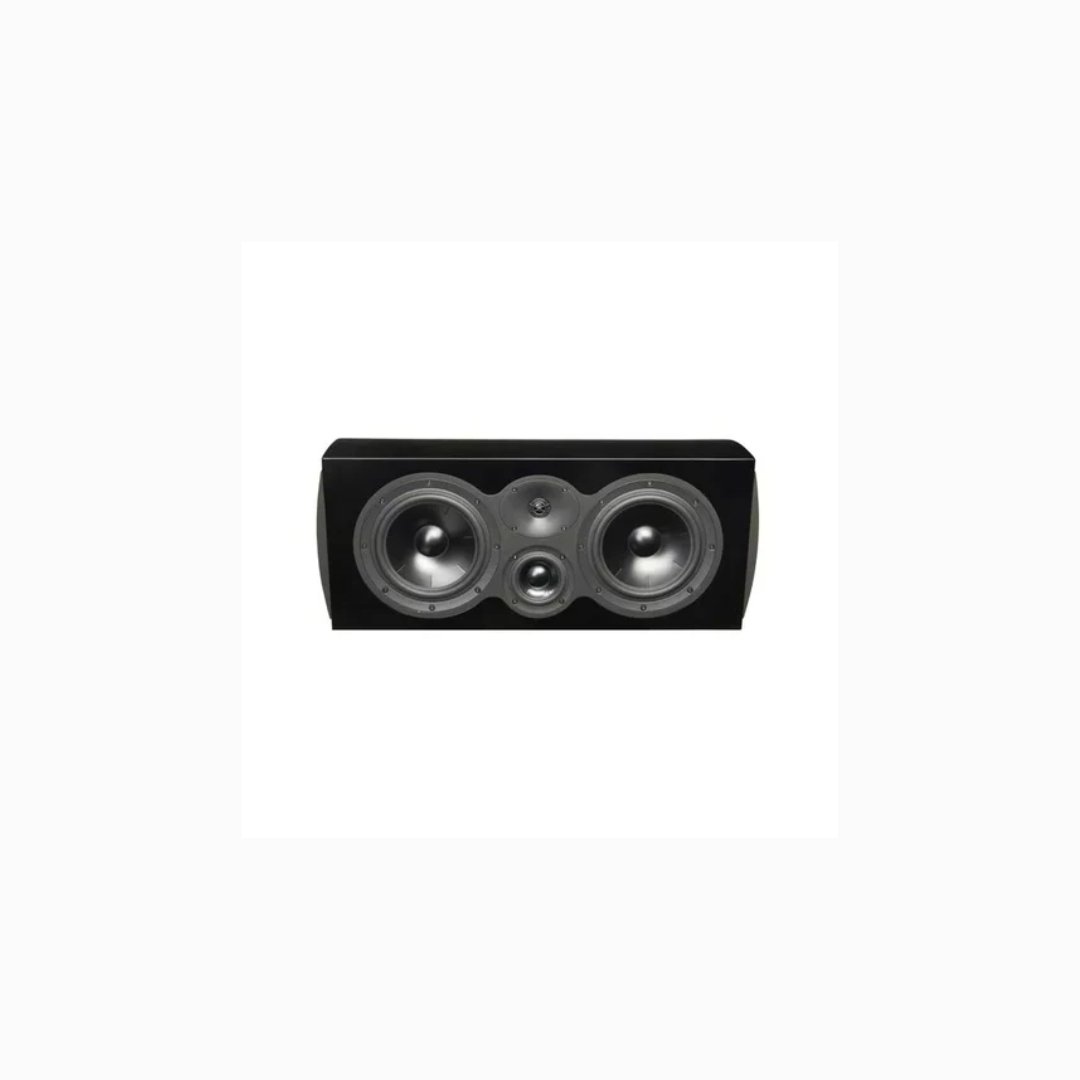

Revel Performa3 C208 3-way Center Channel Loudspeaker

Revel C208 low-frequency transducers and midrange transducers feature distortion reduction mechanisms that stabilize the flux field during operation, assuring low distortion even at high listening volumes. These precision transducers utilize ribbed aluminum cones for ideal piston-like behavior that eliminates a major source of resonances that are clearly audible in most other loudspeakers. Their cast aluminum frames eliminate another source of resonances that is common in many lesser-quality loudspeakers.

The C208 tweeter has been created around a newly-designed motor and dome assembly that sets a new standard of transparency for the Performa3 category. The tweeter’s integrated acoustic lens waveguide is based on a breakthrough mathematical approach that accurately matches the tweeter’s dispersion to that of the midrange transducer in the crossover region. This gives the loudspeaker a very smooth sound far off-axis – an important contributor to overall sound quality, providing consistent sound over an exceptionally wide listening area. In fact, this new waveguide actually increases the tweeter’s dispersion at higher frequencies.

The C208 is housed in enclosures that are similar to our flagship Ultima2 Series. These fully-curved enclosures feature sleek curved tops and bottoms, which are inherently stiffer than conventional box shapes and are formed with contiguous wood layers that prevent splitting. They feature strategically oriented bracing that eliminates the possibility of enclosure-induced coloration. These beautiful, modern enclosures are finished in high-gloss piano black or genuine American walnut in a process (developed and overseen by Italian luxury cabinet makers) that exceeds automotive finish quality.

The loudspeaker grilles are designed to minimize sonic diffraction or veiling and provide a clean, subtle appearance. The magnetic grille attachment method completely eliminates ugly hardware on the loudspeaker baffle, so if you decide to use the loudspeakers without grilles, they will look like they were designed to be used without grilles.

Warranty:

1-year manufacturer’s warranty

Features:

• Transducers feature motor-system distortion-reduction mechanisms that stabilize the flux field during operation
• Ribbed aluminum cones achieve piston-like behavior, eliminating major sources of resonance
• New waveguides provide consistent sound over a wide listening area
• Enclosures created by Italian luxury cabinetmakers
• Fluid-model port designs keep distortion low
• Advanced crossovers optimize timbre accuracy both on axis and throughout the room

Clever cabinet design reduces sonic colorations
The C208’s cabinet features curved top and bottom walls built from a series of laminated layers. These curved walls are inherently stiffer than conventional box shapes and are reinforced by extensive internal bracing that eliminates enclosure-induced colorations. The enclosure is sealed to ensure top-to-bottom tonal accuracy and keep male voices from sounding too “chesty.”

Tested by instrument and by ear
Revel’s world-class speaker design and testing facility features an anechoic chamber and the latest high-tech measurement gear. But some of their most critical test instruments are the ears of their trained listening panel. When working on a new design, Revel’s engineers set up a series of controlled auditions comparing their design to several competing speakers.
Speakers under comparison sit on a rotating platform, and each model is moved into the identical position by a computer-controlled belt drive system. An acoustically transparent screen hides the speakers from the listeners to avoid visual bias. These double-blind listening tests provide an essential reality check and help the engineers correlate measurements with what listeners actually hear and prefer.

Technical Specifications:
