L42XC

2-way Extreme Climate Bollard Speaker with Integrated LED Lighting

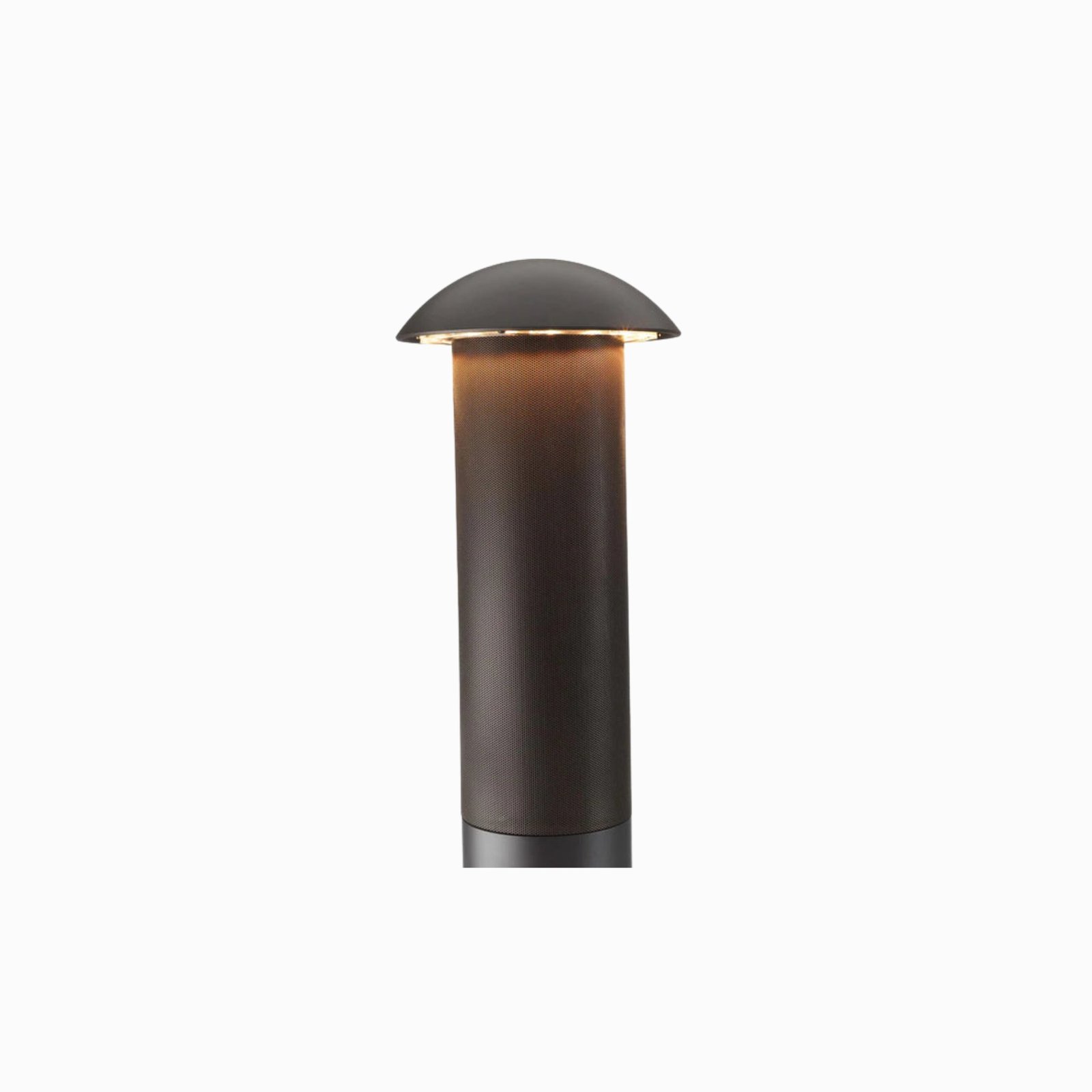

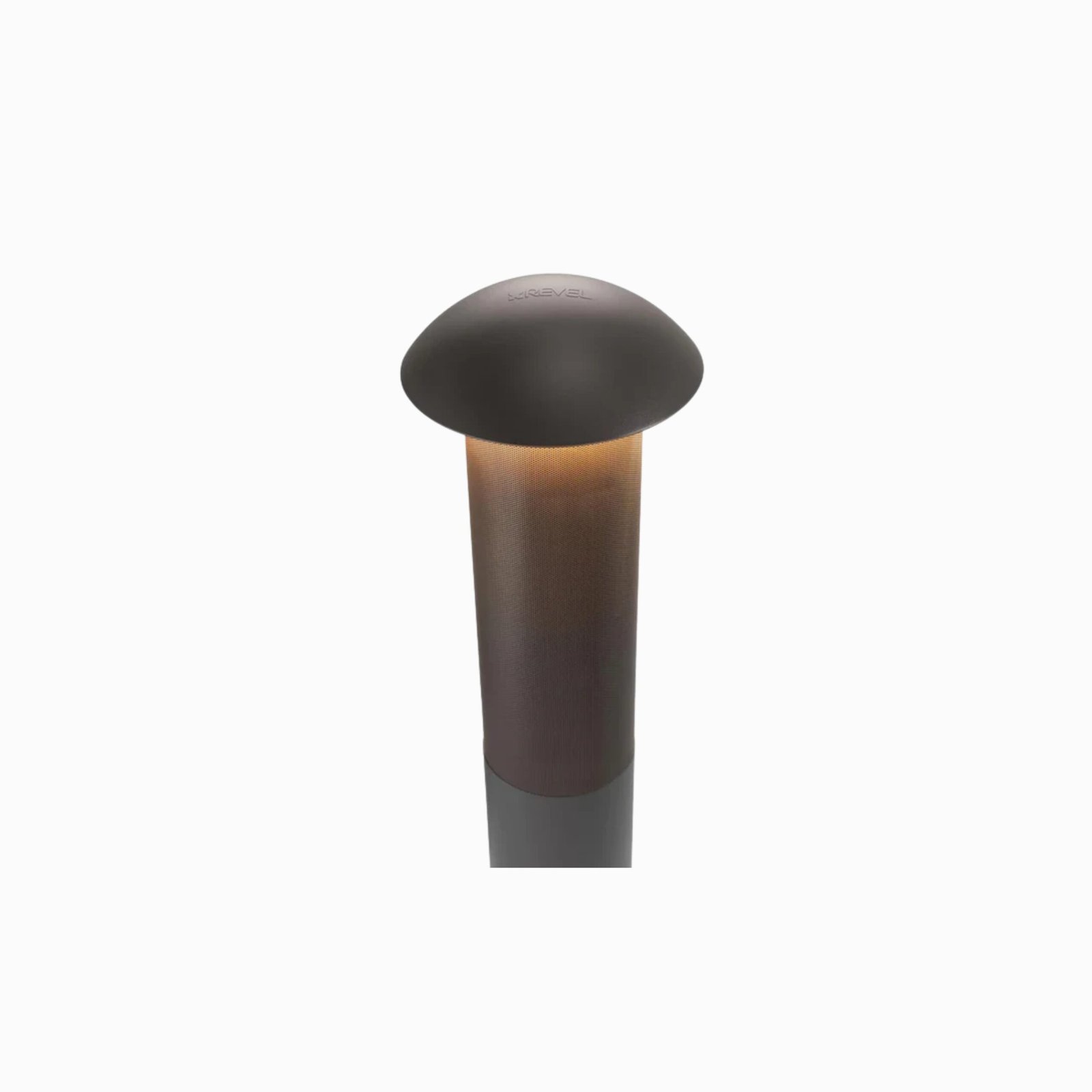

The L42XC is a 2-way bollard speaker featuring integrated low-voltage LED, 360° down lighting with independent control, making it one of the only landscape products in the world that combines the enjoyment value of pristine audio with the added safety and security of illumination for your entertainment space.

The sophisticated LED dimmable lighting can also be used in pathway or general landscape lighting applications, or to simply add relaxing ambience to your evening entertainment.

Premium components, including dual 4-inch aluminum cone woofers and a 1-inch aluminum dome tweeter provide the memorable sonic experience Revel is known for, while unparalleled build quality ensures lasting brilliant performance in even the most challenging climate conditions.

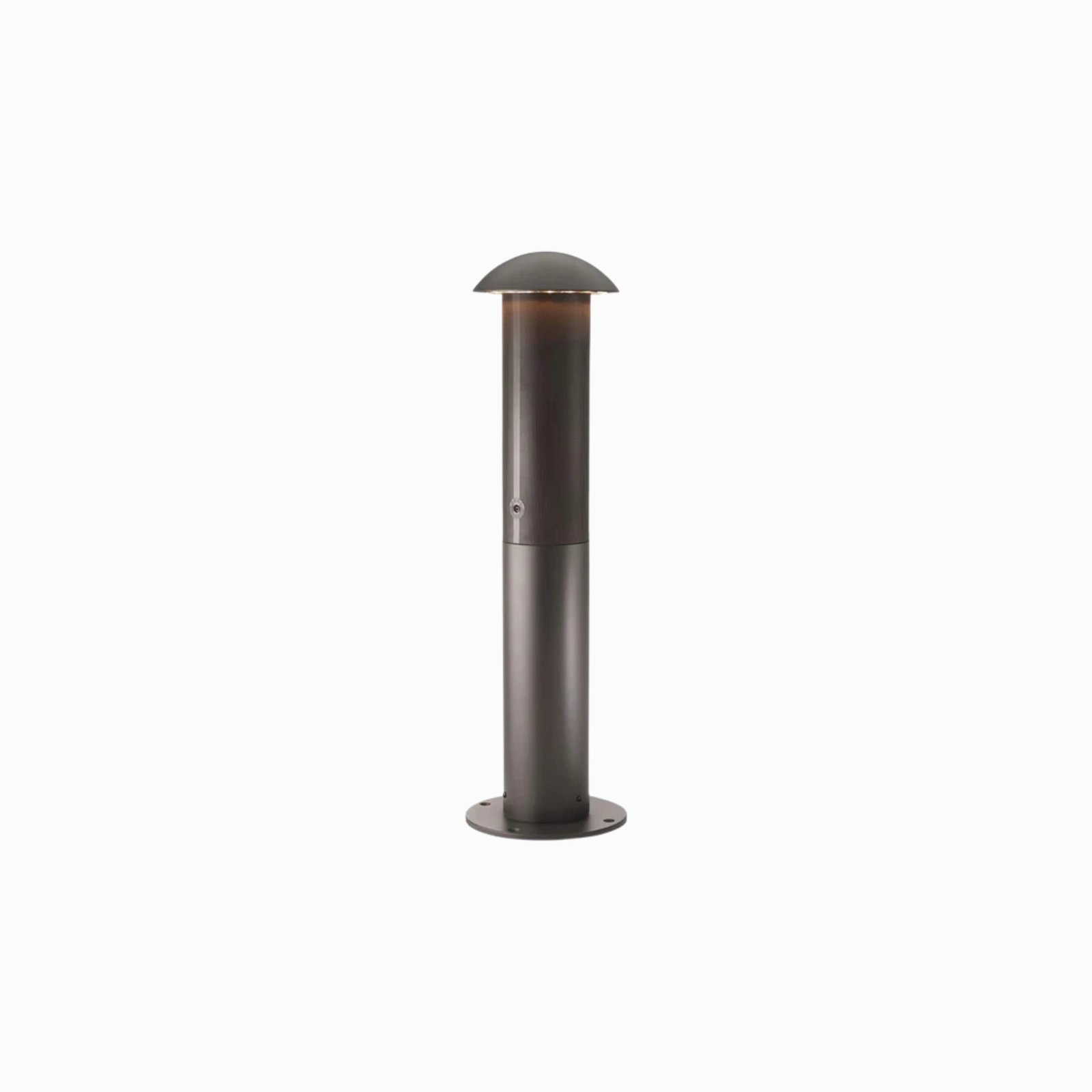

The L42XC can be buried up to half of its height for a reduced visual presence, or used with the optional deck mount as a freestanding tower on hard surfaces.

L42XC Highlights

Dual 4-inch/100mm Micro Ceramic Composite (MCC) aluminum diaphragm woofer

1-inch/25mm Micro Ceramic Composite (MCC) aluminum diaphragm tweeter

IP67 rating that certifies protection against dust, and strong water jets and waves

4-Ohm or 70V operation via integrated transformer with selectable power taps up to 60W

Integrated dimmable lighting for use as a path light, or general fill light with 3,000K color temperature

Compatible with 12V AC or DC lighting controllers

GENERAL SPECIFICATIONS

LED PCB Assembly Fixture TypeCustom weatherproof epoxy-sealed ringLED PCB Assembly Light SourceLEDLED PCB Assembly Number of LEDs16 (two rows of 8)LED PCB Assembly Watts-3.5 lumensLED PCB Assembly Light Output130 lumensLED PCB Assembly Light DirectionDown lightingLED PCB Assembly Color Temperature (CCT)3000KLED PCB Assembly Color Rendering Index80LED PCB Assembly Lifespan100,000 hoursLED PCB Assembly Total Forward Voltage On LED String24VDCLED Driver Assembly Input Voltage (AC)12-15 +/- 10%LED Driver Assembly Input Voltage (DC)8-24 +/- 10%LED Driver Assembly Input Current500mALED Driver Assembly Watts3.5WLED Driver Assembly Dimming CapabilityYes (MLV, ELV, and Universal Dimmer Compatible)LED Driver Assembly TypeConstant CurrentLED Driver Assembly Output Channels2LED Driver Assembly Switching Frequency2.2MHzLED Driver Assembly Switcher TypeSEPICLED Driver Assembly Operating Temperature-40 to 125CLED Driver Assembly Safety ProtectionInrush Current Protection, ESD Input Voltage OVP, UVLO, and OCP Open and Shorted LED Fault Detection Thermal Shutdown

AUDIO SPECIFICATIONS

Frequency Response80Hz – 20kHz @-3dBCrossover Frequencies2.9kHzHigh-frequency Driver Components1” Micro Ceramic Composite Aluminum Dome TweeterLow-frequency Driver ComponentsDual 4” Micro Ceramic Composite Aluminum Cone WoofersMountingOptional Deck MountRecommended Amplifier Power60W RMS; 125W RMS with High Pass Filter @80HzSensitivity86dB (2.83V @1M) in Bypass modeVoltage Gain70VWeight20.7 lbs / 9.4kgDimensions (H x W x D)33.7”/8.58”/8.58” (85.5cm/21.8cm/21.8cm)Transformer Taps7.5W, 15W, 30W, 60WImpedance4 Ohm in Bypass mode
