Revel Gem2 - Ultima2 Series 3-Way Bookshelf Bookshelf Speaker (Pair)

Key Features

Design & Build

  • Premium 3-way bookshelf speakers engineered for high-fidelity audio performance

  • Rigid, low-resonance cabinet with refined finish for minimal coloration

  • Compact yet substantial build quality suited for dedicated listening rooms

Driver Configuration

  • Dedicated tweeter for smooth, detailed high frequencies

  • Midrange driver optimized for natural vocals and instrument clarity

  • Woofer for powerful and controlled bass

  • Precisely tuned crossover network for seamless integration across all drivers

Sound Performance

  • Balanced and neutral sound signature ideal for critical listening

  • Wide frequency response with tight lows, articulate mids, and extended highs

  • Exceptional imaging and soundstage precision for immersive listening

  • Low distortion at high playback levels

Cabinet & Acoustics

  • Sturdy, acoustically optimized enclosure minimizes resonance and coloration

  • Compact bookshelf form factor suited for shelves, stands, or custom cabinetry

Connectivity

  • High-quality binding posts for secure connection with premium speaker cables

  • Compatible with a wide range of stereo amplifiers and high-fidelity systems

Ideal Use Cases

  • Excellent choice for high-resolution stereo systems and dedicated listening environments

  • Works well in medium to large rooms when paired with a quality amplifier

  • Suitable for jazz, classical, acoustic, and high-resolution digital audio

Description

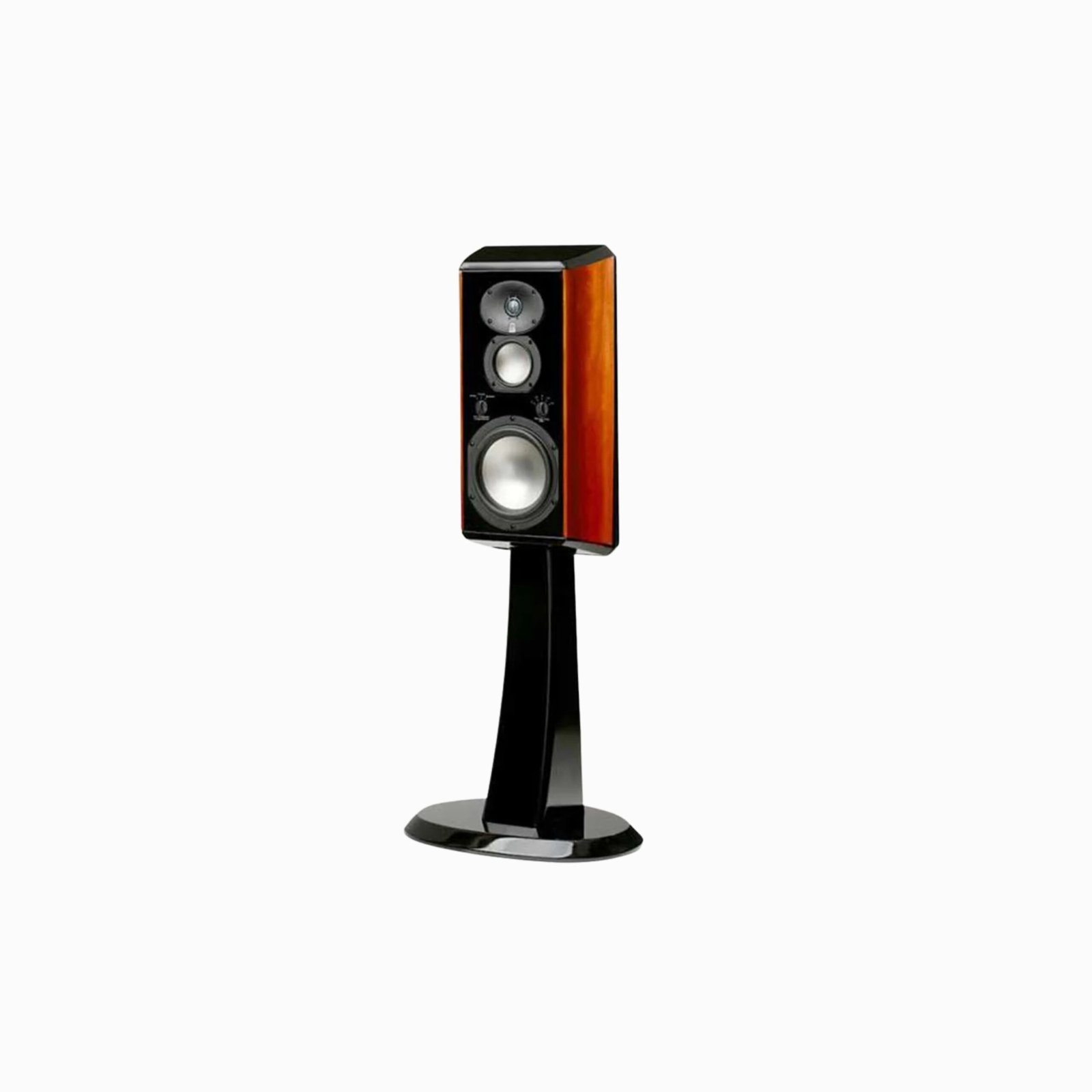

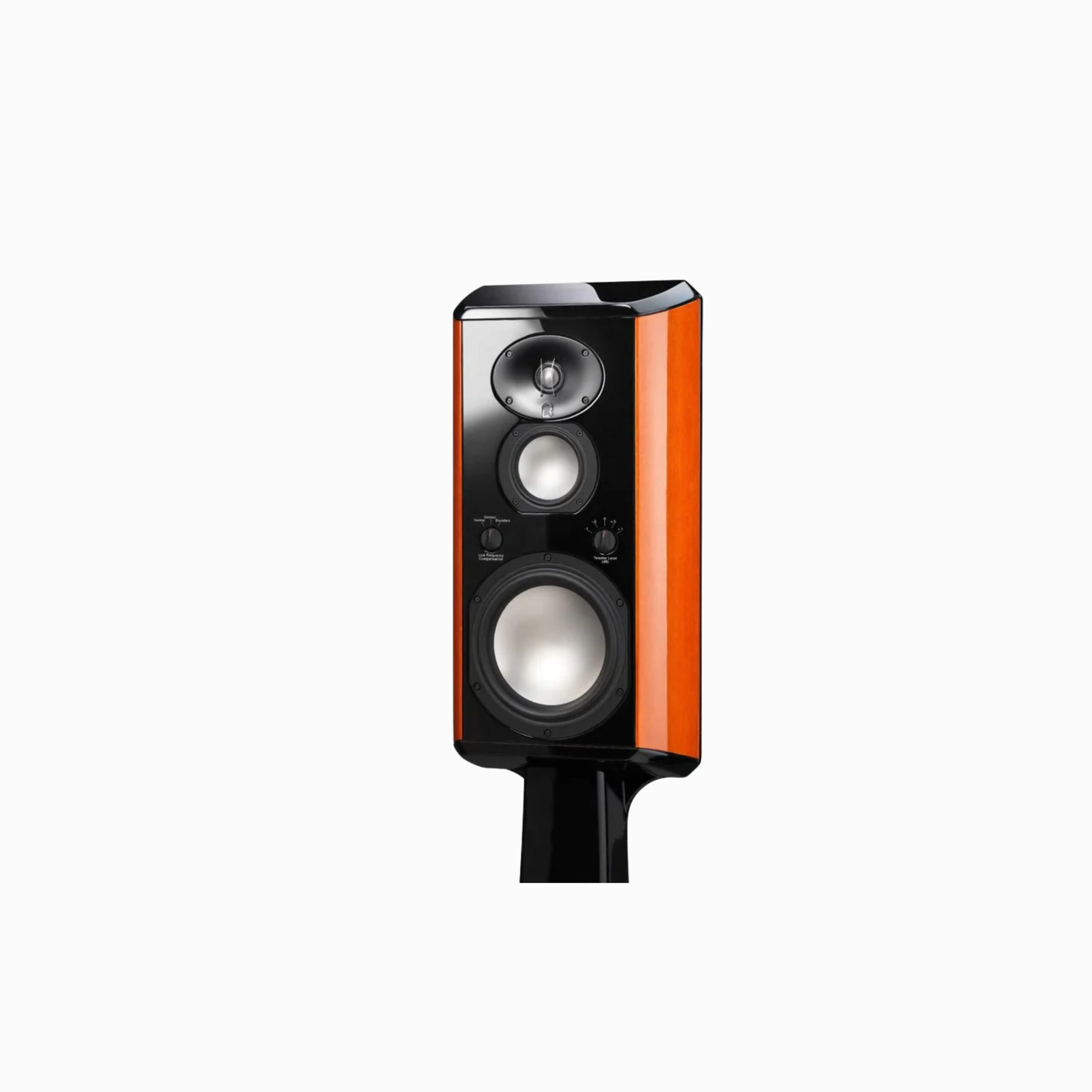

  • Revel Gem2 – Ultima2 Series 3-Way Bookshelf Speaker

    The Revel Ultima Gem2 is, as the name implies, a design with a multifaceted nature. Optimized for a range of applications and equipped to face any room placement, it’s versatile in the extreme yet sonically uncompromising. For example, the Gem2 can be used as a high-quality front loudspeaker, either on available pedestals or wall-mounted using the included bracket. In two-channel or multi-channel applications, the Gem2 is the loudspeaker for solutions. And thanks to their low profile wall-mounting, the Gem2 makes them especially attractive for use with the wide range of state-of-the-art flat-panel televisions.

    The Gem2 is equally optimized for use as a surround loudspeaker, offering ideal timbre matching with other Revel Ultima2 series loudspeakers for a seamless and immersive multichannel performance. Whether the respective owner is inclined towards intimate stereo listening or wants to employ Gem2 in a sophisticated side- and back-channel ultimate Ultima2 array, Gem2 will exceed all expectations. And since Gem2 is built to the same exacting standards of the entire Ultima2 family, you can be confident that any combination of mixing and matching will yield the same rich tonal balance and timbre-matched dispersion characteristics for which Revel Ultima2 loudspeakers are renowned.

    Although the Gem2 loudspeakers are physically compact, the robust 3-way design delivers a one-two punch of reference-caliber tonal accuracy and astonishing output. Utilizing the latest transducer technology developed exclusively for the Ultima2 family, Gem2 offers an 8-inch woofer with an oversize 2-inch voice coil and a 4-inch midrange with a similarly-oversize 1 1/2-inch voicecoil. These drivers incorporate sophisticated double neodymium magnet assemblies and are wound with ribbon wire to provide performance of breathtaking output, rich timbre and tonal accuracy with both extraordinarily low dynamic compression and freedom from distortion. Revel’s breathtaking new pure beryllium tweeter provides pristine clarity to deliver an unequalled listening experience.



    Specifications

    Frequency Response
    -3 dB from 70 Hz to 45 kHz ±0.5 dB from 75 Hz to 18 kHz ±1.0 dB from 72 Hz to 20 kHz
    Height
    24.2″ (61.5 cm)
    Width
    12″ (30.5 cm)
    Depth
    5.4″ (13.7 cm)
    Weight
    32 lb (14.5 kg) / Shipping weight 38 lb (17.2 kg)
    Crossover Frequencies
    Three-way, high-order acoustic response @ 400 Hz and 2.3 kHz
    Finishes
    Piano black or mahogany finish
    High Frequency Driver Components
    1″ (2.5 cm) beryllium tweeter
    Nominal Impedance
    6 ohms (nominal) 3.4 ohms (minimum)
    Low Frequency Extension
    -10 dB at 48 Hz -6 dB at 60 Hz -3 dB at 70 Hz
    Low Frequency Driver Components
    8″ (20 cm) titanium cone woofer
    Mid-frequency Driver Components
    4″ (10 cm) titanium cone midrange
    Sensitivity
    86.4 dB SPL with 2.83 V @ 1m (4 pi anechoic)
    Optional Accessories
    Optional Tabletop Stand for Gem2 Adds 1.6″ (4.1 cm) to Gem2 height • Optional Floor Pedestal for Gem2 Adds 46″ (117 cm) to Gem2 height • Piano black finish only
