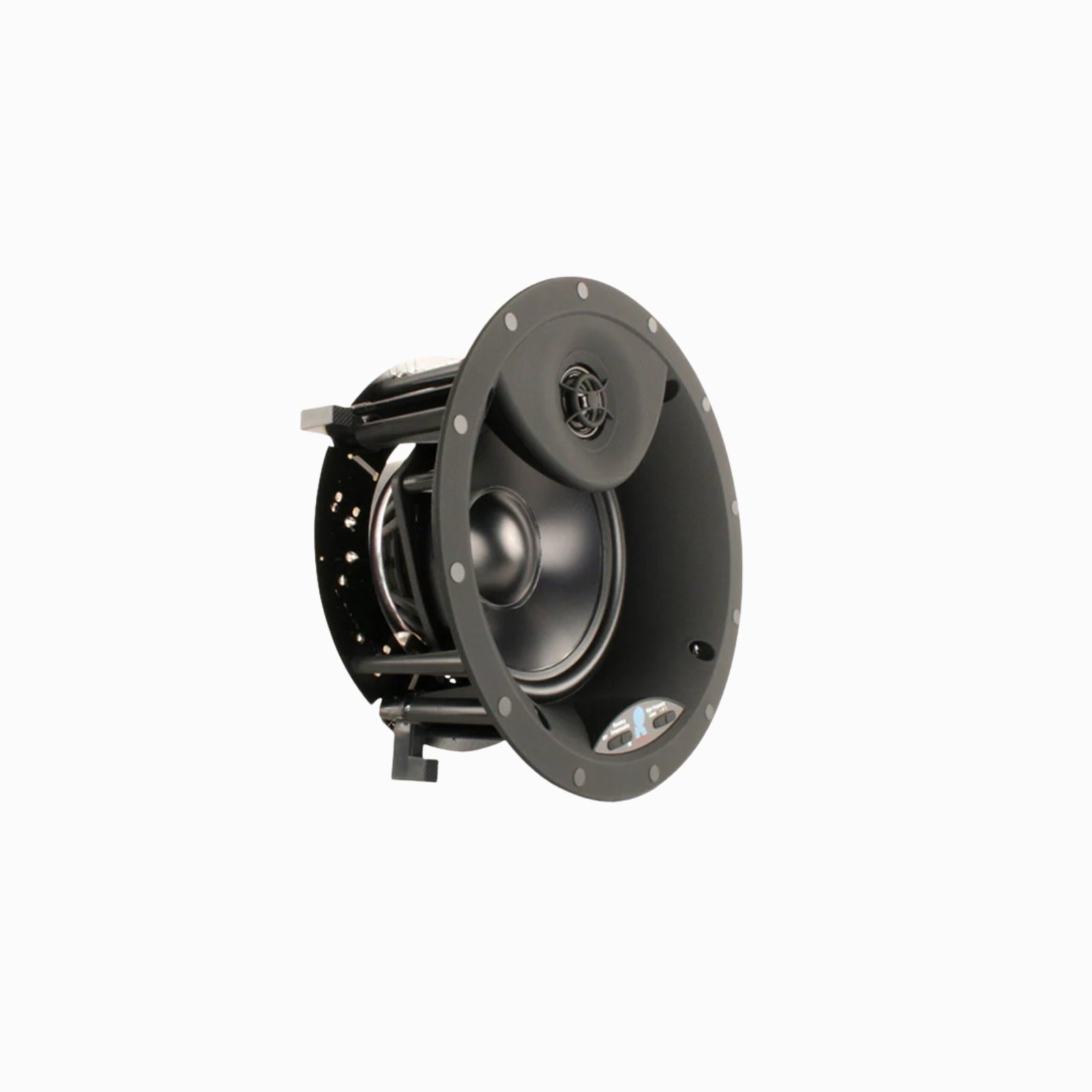

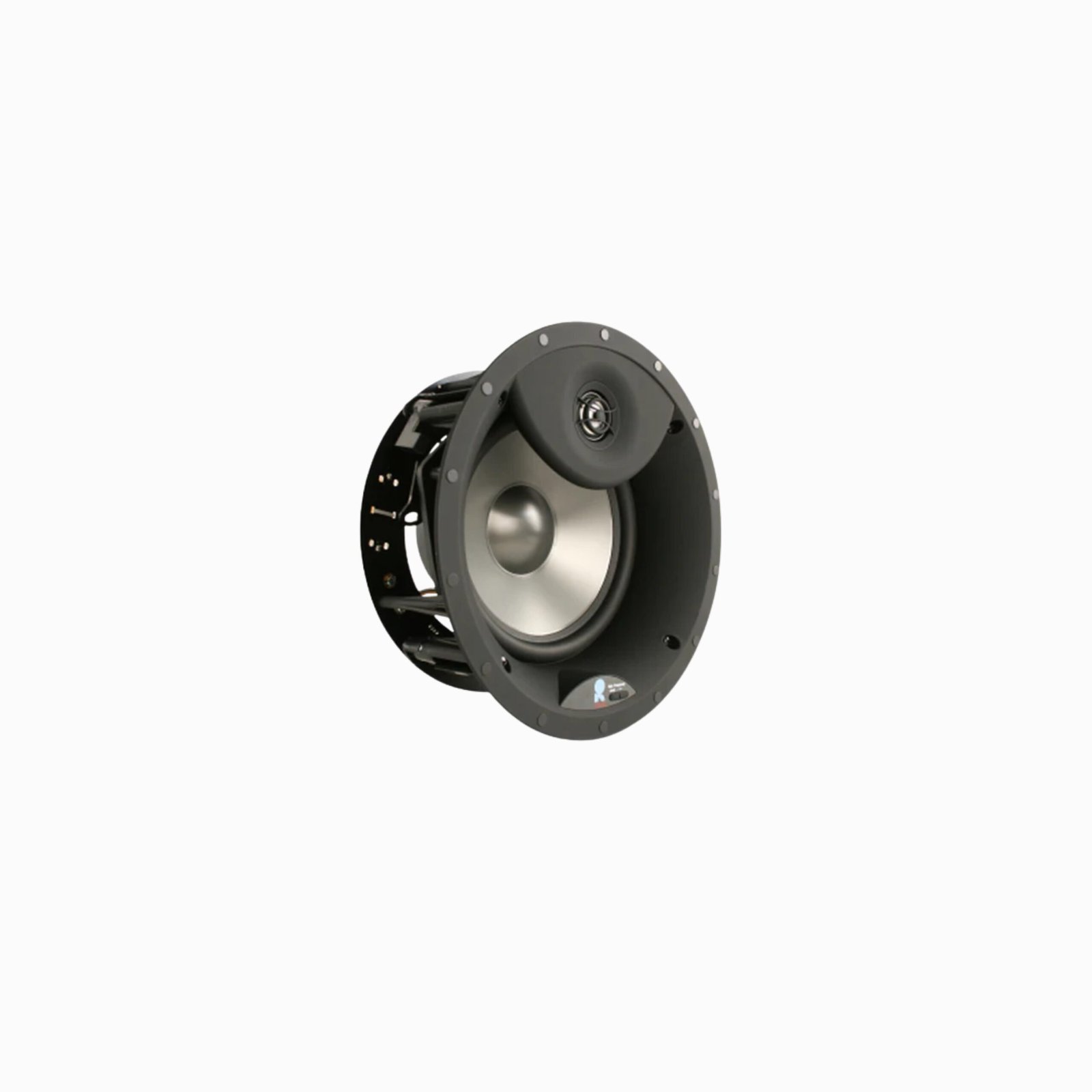

Revel C763 -In-ceiling speaker (Each)

Elite overhead sound from Revel

Revel’s C763 is the best 6-1/2″ speaker in the company’s in-ceiling lineup. You get outstanding Revel performance that can be tailored to your room. Its 1″ aluminum dome tweeter has a three-position output level switch, which lets you cut or boost the high frequencies. And a boundary compensation switch lets you adjust low-frequency output when the speaker is placed near a wall, to prevent potential boominess.

The Revel C763 in-ceiling speaker offers both tweeter and woofer adjustments to tailor its sound to your room.

High-quality design for long-term performance

The C763 has a few other notable design highlights. Its tweeter waveguide helps provide great sound for listeners directly under the speaker, as well as those positioned off to the side. Its high-order crossover network allows the woofer and tweeter to blend together seamlessly. And high-quality push-post input terminals provide a solid connection with your speaker wire.

The C763 even comes with square and round grilles to match your décor. A lifetime warranty ensures excellent long-term performance.

Ideal for music and movies

The C763 is a great choice for a high-end in-ceiling stereo system. Or use this speaker as an overhead effects channel as part of a Revel home theater system. You’ll enjoy rich, full-bodied sound with all of your favorite content.

Who is Revel?

Revel is one of the high-performance audio companies of global electronics giant Harman International. Since 1996, Revel has used cutting-edge design tools and one-of-a-kind testing facilities to develop speakers that measure well and sound amazing. The intensive design work happens at Harman’s state-of-the-art speaker R & D facility in Northridge, California.

DIY installation

If this is a do-it-yourself install, check out my guide to installing in-ceiling speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.

• ideal for an in-ceiling music system or overhead surround effects in a home theater system
• 6-1/2″ micro-ceramic composite (MCC) woofer with cast-aluminum frame
  • long-throw woofer design with rubber surround for high output and low distortion
  • boundary compensation switch adjusts low-frequency output when the speaker is placed near a wall
• 1″ aluminum dome tweeter
  • three-position tweeter level control cuts or boosts high-frequency output to ideally suit your room’s acoustics
  • integrated waveguide provides excellent on- and off-axis performance
  • tweeter is aimable to direct high-frequency details towards you
• high-order crossover network delivers accurate timbre reproduction
• recommended amplifier power: 10-140 watts
• includes both round and square zero-bezel magnetic grilles
  • grilles are paintable to match your décor
• nominal impedance: 6 ohms
• sensitivity: 88 dB
• speaker cutout diameter: 8″
• overall diameter: 9-1/8″
• mounting depth: 4-15/16″
• square grille dimensions: 9-1/8″W x 9-1/8″H
• weight: 2.4 lbs.
