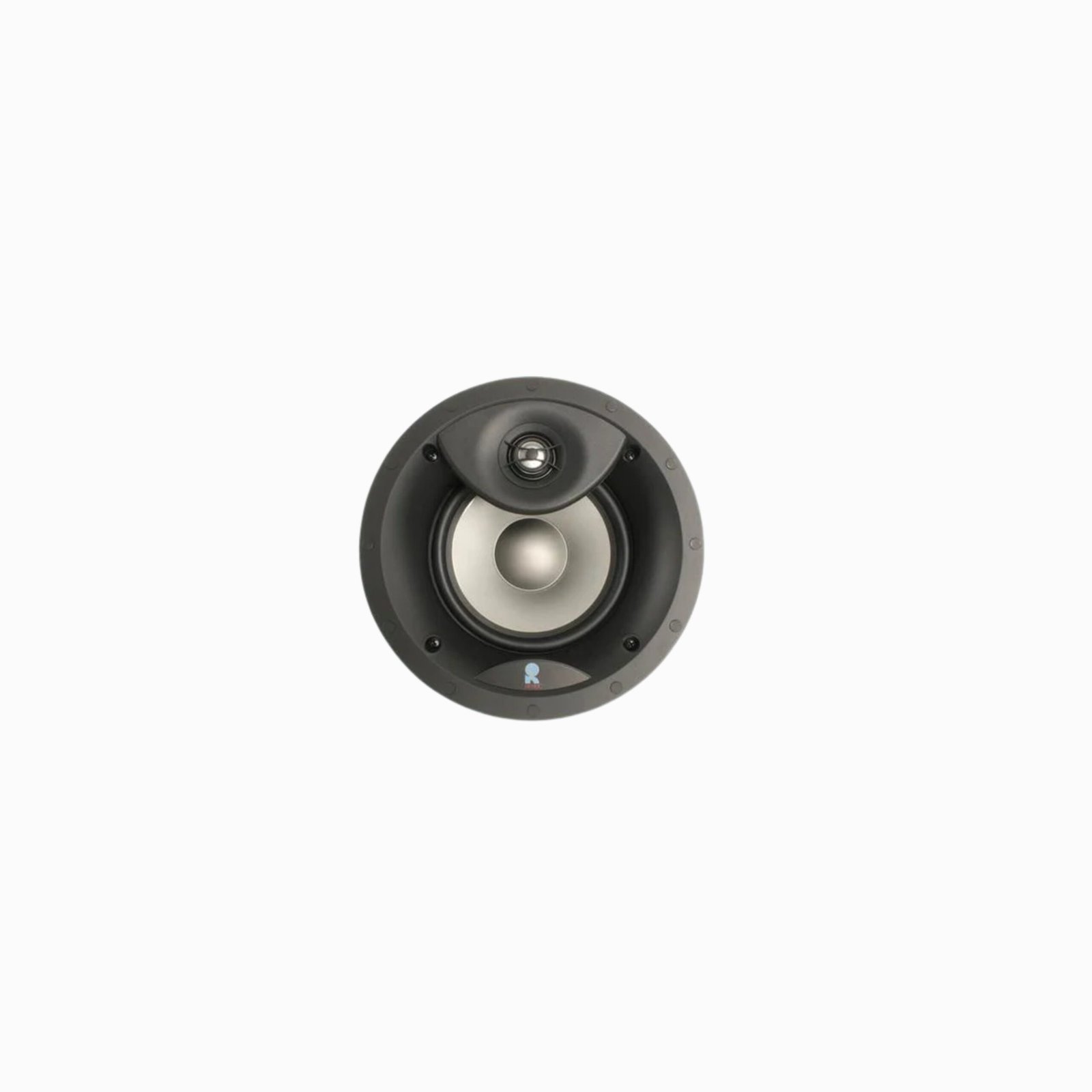

Revel C363 -In-ceiling speaker (Each)

Key Features

Performance & Sound Quality

Two-way in-ceiling speaker design with a dedicated tweeter and woofer for balanced, natural sound
Aluminum dome tweeter for smooth, detailed high-frequency response
Woofer designed for accurate midrange and controlled low frequencies
Precisely tuned crossover network for seamless integration between drivers

Cabinet & Build

Low-profile design for flush ceiling installation and a clean, unobtrusive appearance
Rigid construction with internal bracing to reduce resonance and coloration
Back-can enclosure to improve acoustic performance and minimize interference from ceiling materials

Installation & Compatibility

Designed for easy flush mounting with included mounting hardware and cut-out template
Compatible with a wide range of amplifiers and AV receivers
Impedance and sensitivity optimized for typical home audio systems

Application

Ideal for distributed audio systems, background music, or home theatre surround channels
Delivers clear, articulate sound while remaining visually subtle in ceiling installations

Description

A value-packed in-ceiling speaker from Revel

Revel’s C363 in-ceiling speaker offers accurate musical performance at a solid value. This model is a step-up from their entry-level C263, and features an improved 6-1/2″ micro-ceramic composite (MCC) woofer for better bass and midrange performance. It also includes paintable round and square grilles for versatile installation options. This speaker is an excellent choice for an in-ceiling stereo system, or as an overhead effects channel of a Revel home theater system.

The Revel C363 in-ceiling speaker features an integrated tweeter waveguide, which provides excellent performance across a wide listening area.

Trickle-down technology

The C363 benefits from the research and design work that went into Revel’s higher-end in-ceiling speakers. For instance, the speaker’s integrated tweeter waveguide helps provide great sound across a wide listening area. And its high-order crossover network allows the woofer and tweeter to blend together seamlessly.

The C363 also features high-quality push-post input terminals for a solid connection with your speaker wire. A lifetime warranty ensures excellent long-term performance.

Who is Revel?

Revel is one of the high-performance audio companies of global electronics giant Harman International. Since 1996, Revel has used cutting-edge design tools and one-of-a-kind testing facilities to develop speakers that measure well and sound amazing. The intensive design work happens at Harman’s state-of-the-art speaker R & D facility in Northridge, California.

DIY installation

If this is a do-it-yourself install, check out my guide to installing in-ceiling speakers, along with our selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.

ideal for an in-ceiling music system or overhead surround effects in a home theater system

6-1/2″ micro-ceramic composite (MCC) woofer with cast-polymer frame

long-throw woofer design with rubber surround for high output and low distortion

1″ aluminum dome tweeter

integrated waveguide provides excellent on- and off-axis performance

tweeter is aimable to direct high-frequency details towards you

high-order crossover network delivers accurate timbre reproduction

recommended amplifier power: 10-120 watts

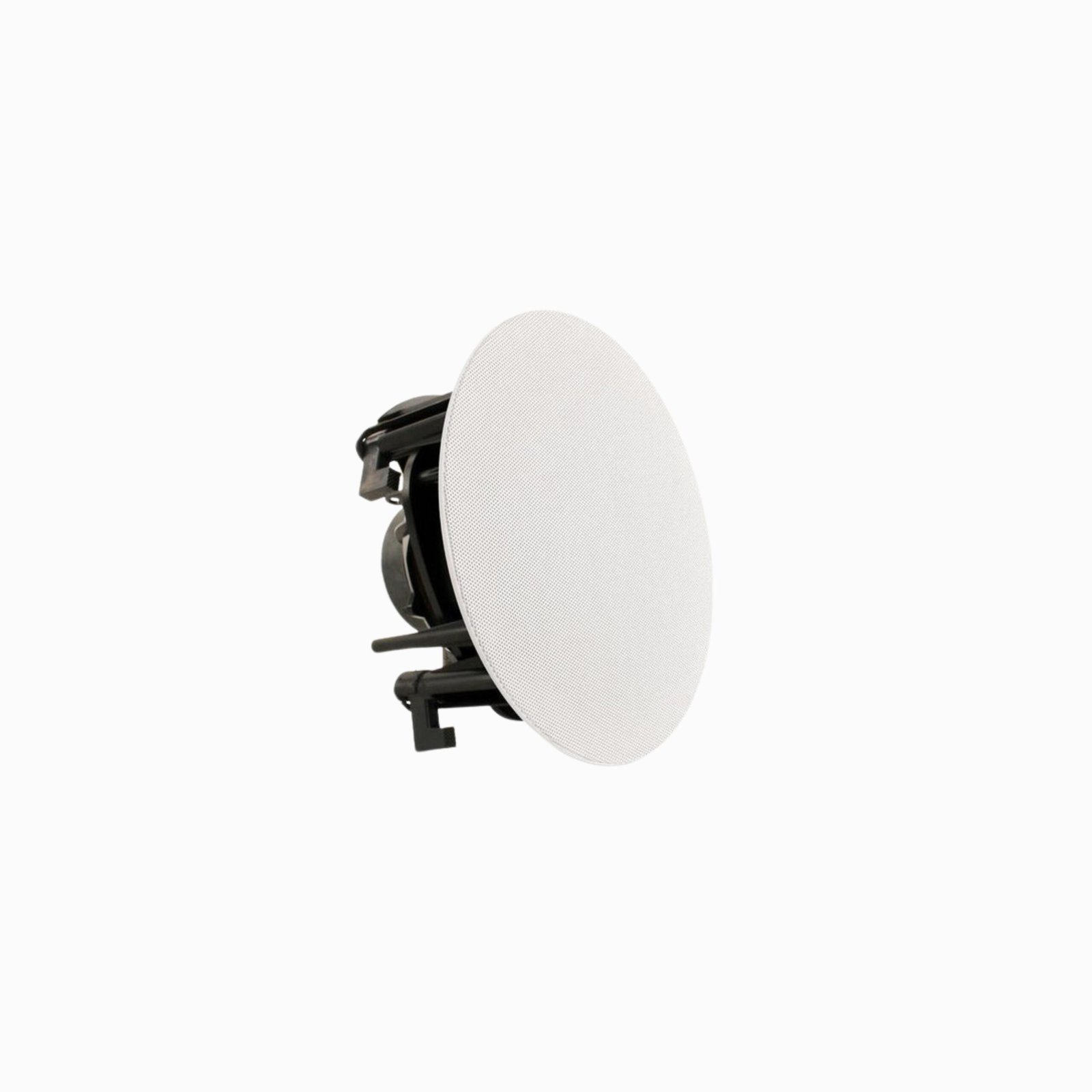

includes both round and square zero-bezel magnetic grilles

grilles are paintable to match your décor

sensitivity: 87 dB

speaker cutout diameter: 8″

overall diameter: 9-1/8″

mounting depth: 4-13/16″

square grille dimensions: 9-1/8″W x 9-1/8″H

weight: 1.6 lbs.
