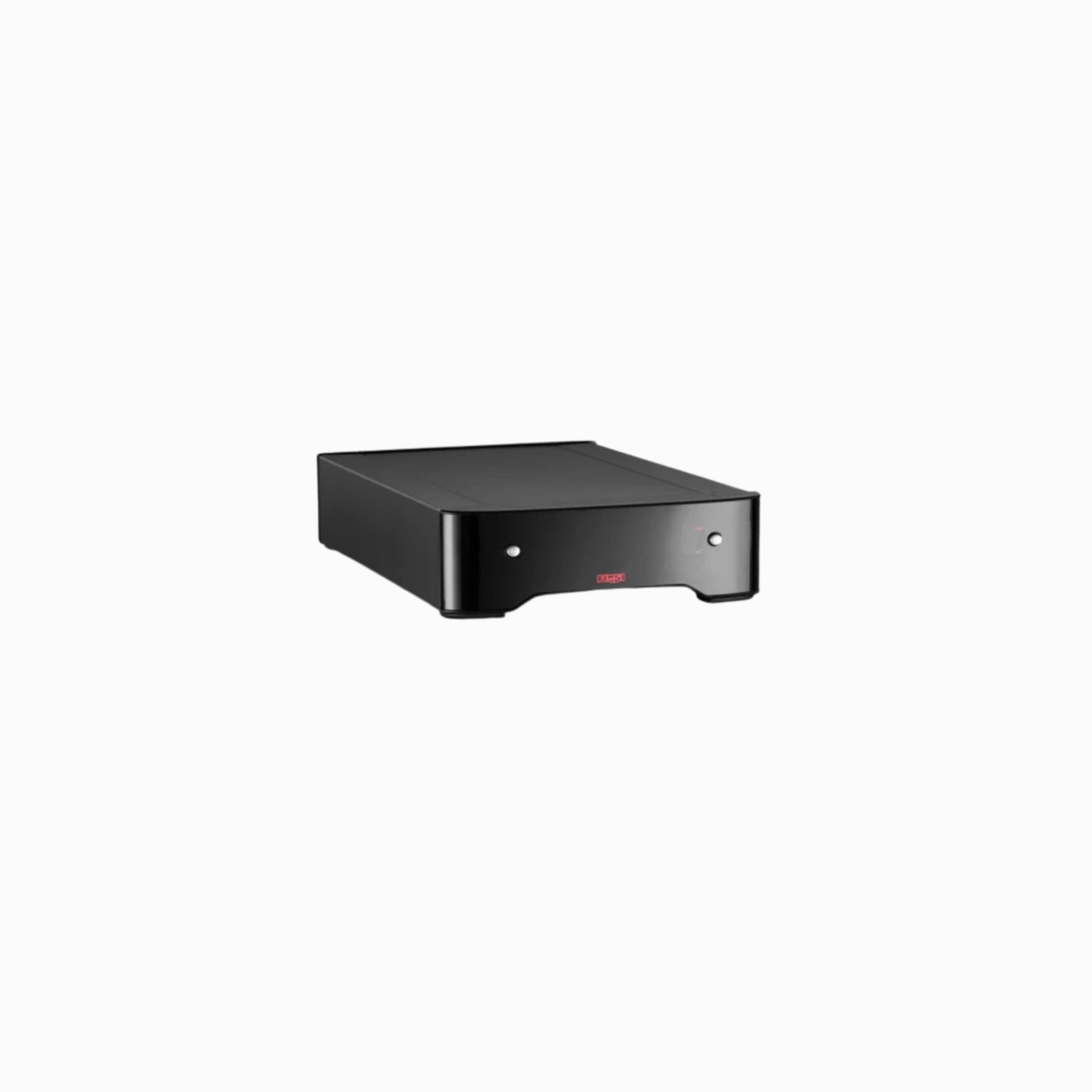

Rega Aria MM and MC Phono Stage - Pre Amplfier

Key Features

  • High-quality phono pre-amplifier designed for both MM (Moving Magnet) and MC (Moving Coil) cartridges

  • Provides low-noise, high-gain amplification tailored to vinyl playback

  • Precision analog circuitry optimized for musicality and dynamic response

  • Independent input sensitivity and impedance settings for MM and MC cartridges

  • RIAA equalization for accurate playback of vinyl records

  • High-current power supply for stable performance and low distortion

  • Compact, minimalist design suitable for high-fidelity stereo systems

  • Adjustable loading options to match a wide range of cartridges

  • Smooth, detailed sound with improved clarity and musical expression

  • Ideal for audiophiles seeking an affordable but high-performance phono stage

Description

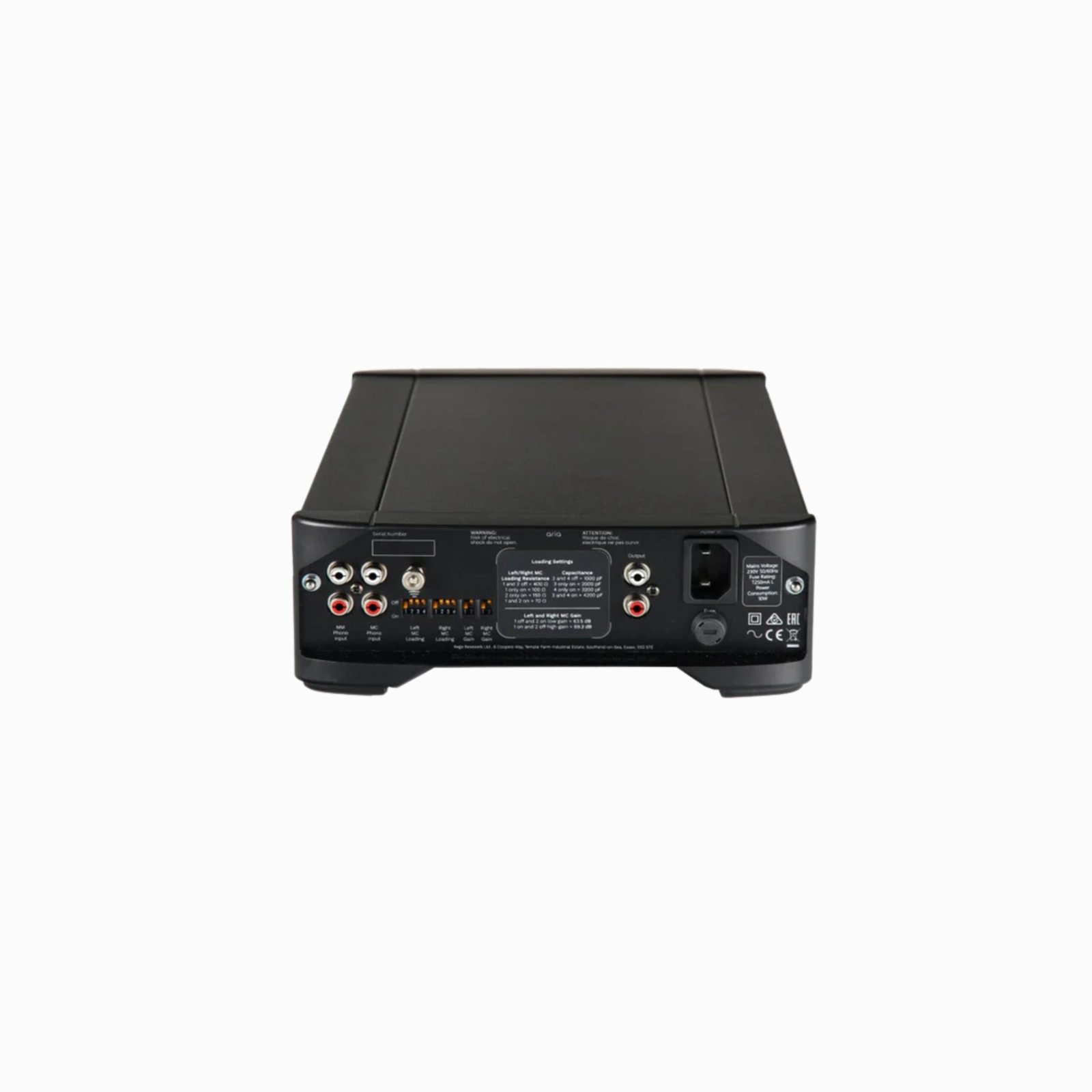

  • The Fono MC is an exceptionally high quality MC phono stage designed to maximise the potential of any MC cartridge. Although specifically to compliment the latest Rega range of  moving coils you will find full adjustability for loading is available via dip switches conveniently placed on the rear panel with two different gain settings located on the back panel making the Fono MC compatible with most low output MC cartridges.



    The Fono disk stage is designed to amplify the signal from a moving coil cartridge to a level which can feed into a 200mV line level input on a standard hi-fi amplifier.



    Specifications

    Output impedance = 200Ω
    Recommended minimum output load resistance = 5K
    Frequency response (50KΩ output load) = 13Hz (-3dB) to 100KHz (-0.3dB)
    RIAA accuracy (50KΩ output load) = Better than +/-0.2dB 100Hz to 100KHz
    Power requirements = 24V AC at 150mA maximum. Only to be used with Rega PS1.



    Input sensitivity (for 200mV output)
    4 off = 133uV
    4 on = 67uV



    Input loading resistance
    1 and 2 off = 400Ω
    1 on = 100Ω
    2 on = 150Ω
    1 and 2 on = 70Ω



    Input loading capacitance
    3 off = 1000pF
    3 on = 4300pF
    Gain (at 1KHz)
    4 off = 63.5dB
    4 on = 69.5dB



    Maximum input level (at 1KHz)
    4 off = 6.7mV
    4 on = 3.4mV



    Load settings for adjustable MC stages

    Impedance -100ohm
    Capacitance – 1000pF
    Gain setting – High (‘On’ position for Rega phono stages)
