Description

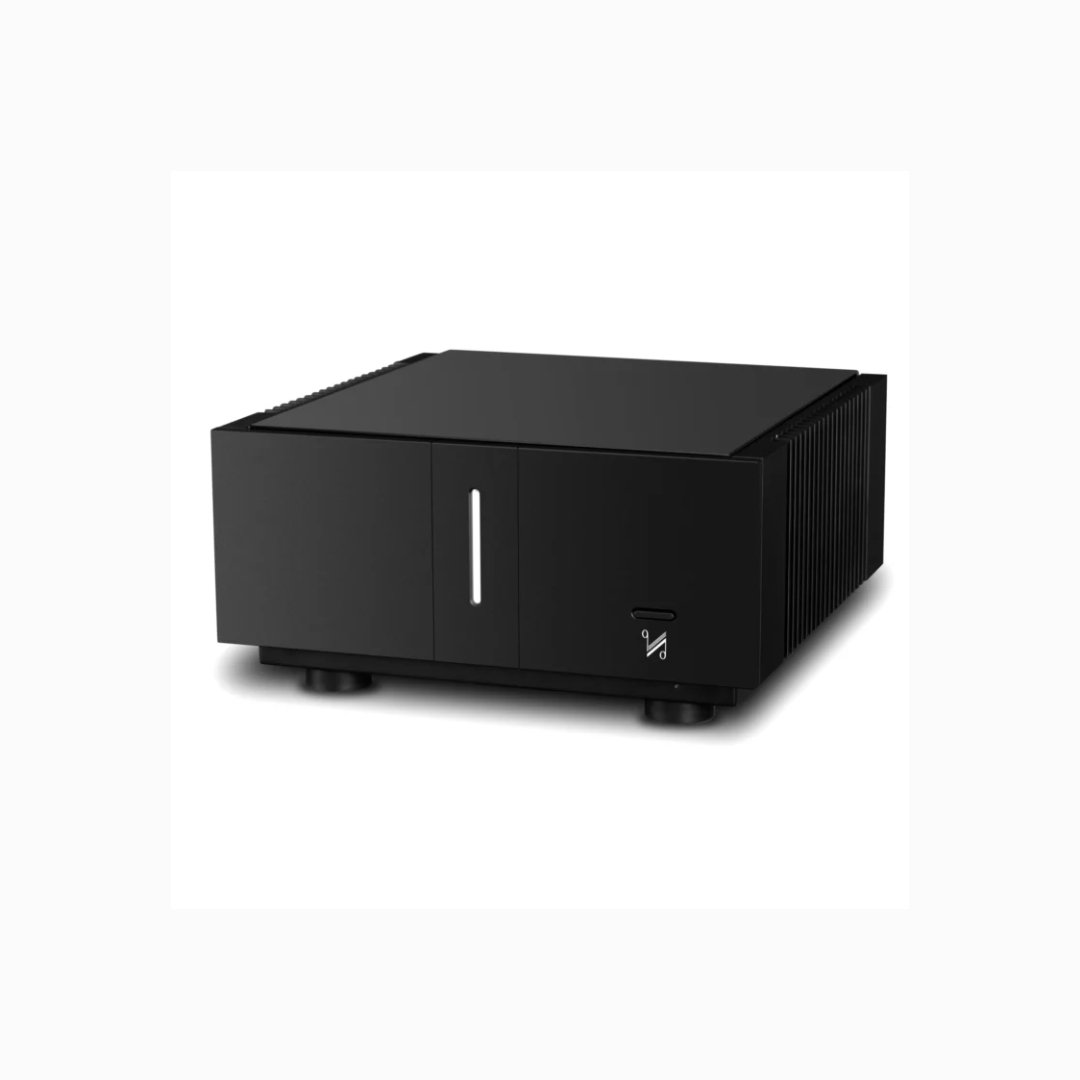

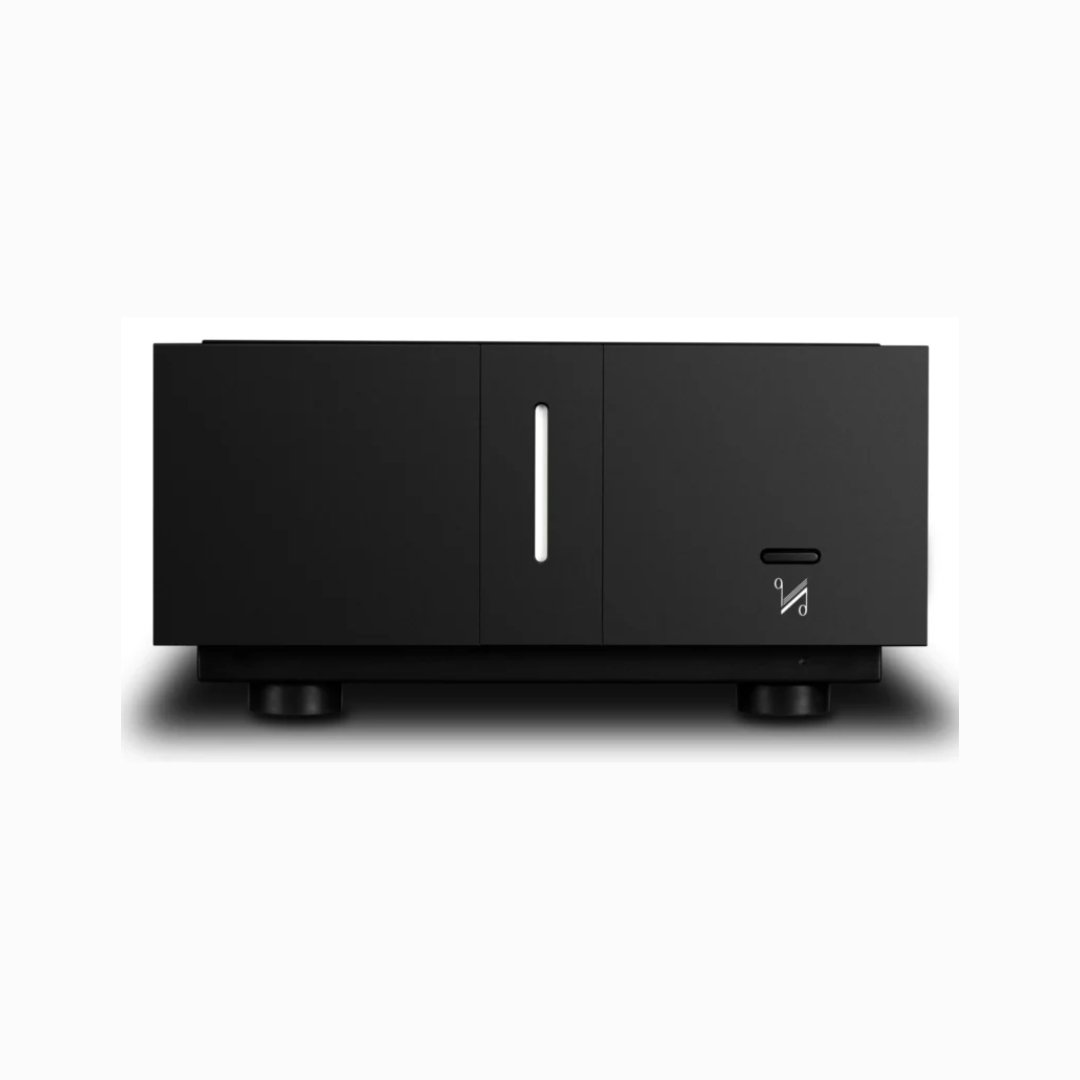

QUAD Artera Stereo Power Amplifier
From the transformer to the input terminals, each section of the QUAD Artera Stereo Power Amplifier has been engineered from the ground up to ensure power, musicality and stability. The QUAD Artera Stereo Power Amplifier produces 140 Watts RMS per channel – ample power for driving first-class loudspeakers, unfaltering even under high dynamic and transient conditions thanks to the patented Current Dumping technology. Special attention has also been paid to the newly developed balanced XLR inputs. The robust connections are yet another string to the Artera Stereo’s bow, with an incomparable signal-to-noise ratio.
Specifications of the QUAD Artera Stereo Power Amplifier
| General Description | Power Amplifier |
| Rated Output Power | 140W 8 ohm (<1% THD,1kHz) |
| Total Harmonic Distortion | <0.003% (100W, 1kHz) |
| <0.03% (100W, 20Hz-20kHz) | |
| Frequency Response | -0.5dB (20Hz-20kHz, ref. 1kHz) |
| -3dB (20Hz-70kHz, ref. 1kHz) | |
| Input Sensitivity | 980mV(RCA line in) |
| Input Impedance | 10kohm (Balanced) |
| 15kohm (Unbalanced) | |
| Signal to Noise Ration(S/N) | 115dB (A weighted, ref. 140W) |
| Maximum Power Consumption | 750W |

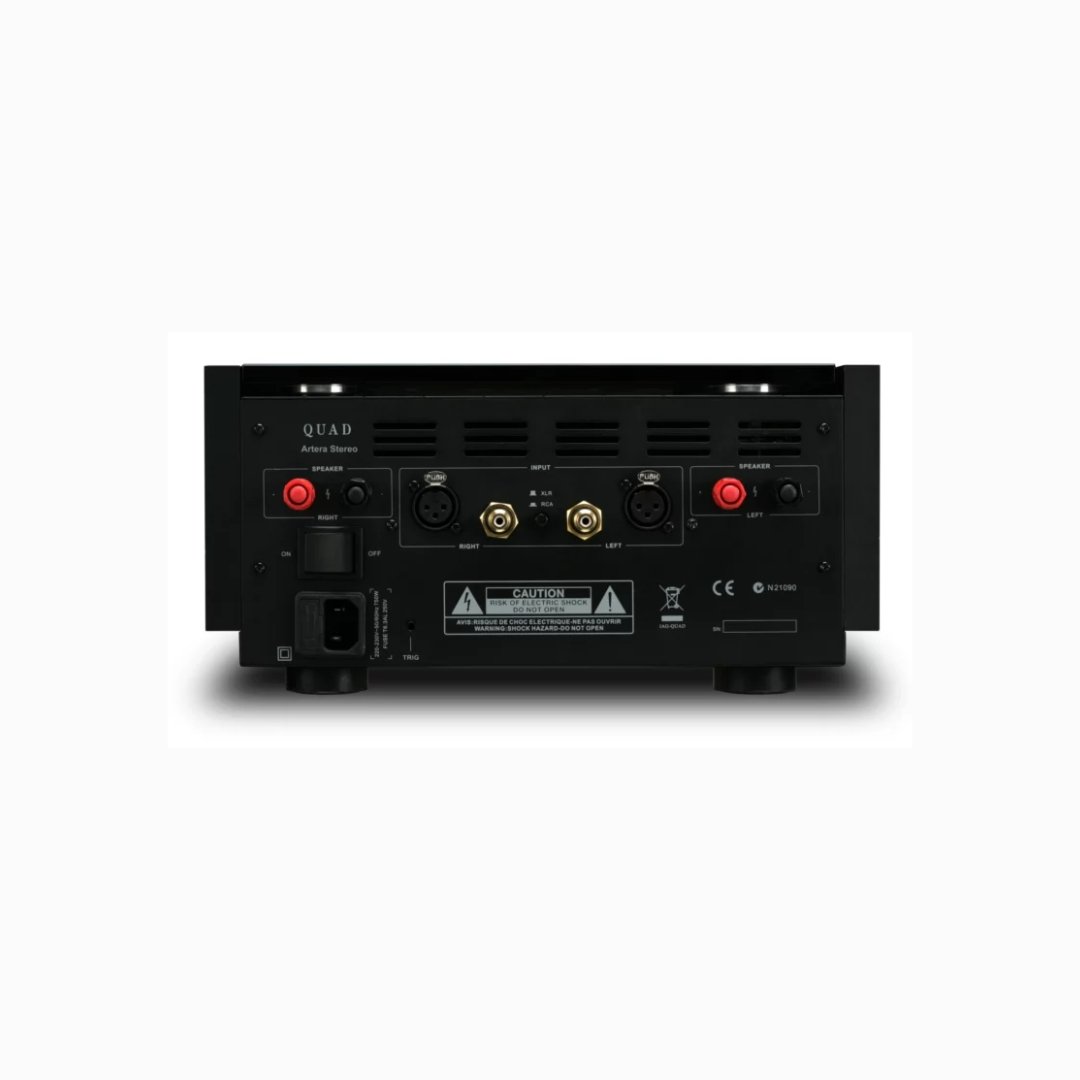

| Inputs | 2 x XLR, RCA |
| Outputs | Speaker A+B |
| Standby Power Consumption | <0.5W |
| Dimensions (W x H x D) | 320 x 158 x 338mm |
| Weight | 15kg |
