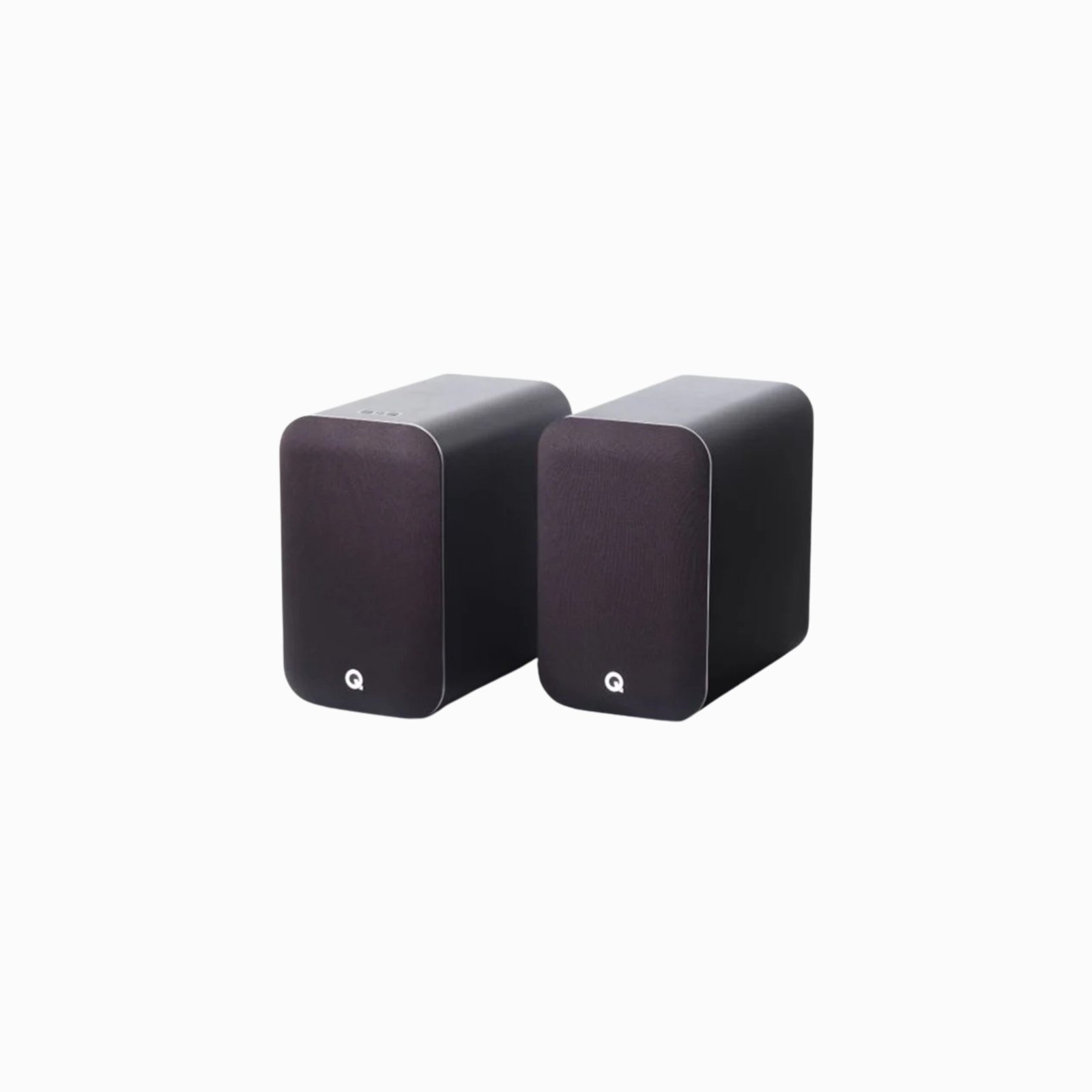

Immersive sound for music, movies and gaming

Whether listening to music, watching TV or movies or gaming, the M20’s advanced driver technology is designed to produce low-distortion, precise but highly immersive stereo sound. Powered by a builtin amplifier providing 130 watts of digital power, the 22mm tweeter is decoupled to minimise any internal vibrations that can adversely affect the audio, while the 125mm mid/bass driver and rear-firing reflex port in each speaker combine to deliver a sound of outstanding balance and drive. From deep but nuanced low-frequencies to its crisp, attacking highs, and with a midrange that’s simply packed with information, the M20 is always a dynamic but poised and engaging listen.

High-resolution wireless stereo experience

Hear your favourite music as close to the artist always intended: in full stereo, high-resolution fidelity. Equipped with Bluetooth® 5.0 for an ultra-stable connection and aptX™ HD technology, users can wirelessly stream high-resolution audio (up to 24-bit/48kHz) from any compatible device. Connect the M20 to a computer via USB, and you can hear hi-res audio in 24-bit/192kHz and savour all the detail studio-quality sounds bring.

The flexible M20 is not just about the latest wireless technology. It features enough inputs to let your TV, games console, set-top box, turntable or anything else you fancy join in the high-resolution stereo experience. There’s also a subwoofer output in case you need to really shake the room. No matter what you want to listen to, M20 can handle it.

Shaped to sound better

Drawing on audio innovations from the company’s award-winning passive speakers, the M20 features cabinet technology of which every element is specified to deliver an optimal audio performance. The beautifully sculpted cabinets use Q Acoustics’ proprietary P2P™ (Point to Point) internal bracing to support the parts of the enclosure that need to be stiffened, improving the focus of the stereo image and giving the soundstage more accuracy than ever before. The grille’s curved contours are also designed to disperse any tweeter activity, keeping unwanted reflections to a minimum.

Always in the right place

It’s easy to set up the M20 so the system is always performing to its maximum, no matter where it is in the room. As well as being able to designate the powered speaker as either the left or right channel (to make accessing mains power as simple as possible), there’s also an EQ switch to let the system know if each speaker is positioned in a corner, against a wall or in free space so its digital sound processing can work its magic and optimise the audio performance. And with stands and wallbrackets also available, M20 will always bring your music, movies and games to life wherever it is placed.



AMPLIFIER PERFORMANCE
POWER OUTPUT 2 x 65W
CONTINUOUS POWER OUTPUT (<1% THD) 2 x 32W//4Ω
THD (AT 20W//4Ω) <0.2%
FREQUENCY RESPONSE (DSP SET FLAT) 20Hz to 20kHz ±0.5dB
SIGNAL-TO-NOISE RATIO (AUX, A-WTD, MAX VOL, REF 1W) 81dB
ANALOGUE INPUT SENSITIVITY (FOR 32W) 395mV
MINIJACK INPUT SENSITIVITY (FOR 32W) 220mV
SUB OUT (100HZ, AT 32W MAIN CHANNELS) 380mV
OPTICAL IN Toslink
OPTICAL IN SAMPLE RATE RANGE 24bit/192kHz
USB IN SAMPLE RATE RANGE 24bit/192kHz
SPEAKERS
ENCLOSURE TYPE 2-way reflex (ported)
MID-RANGE DRIVER 125mm (5.0in)
TWEETER 22mm (0.9in)
CROSSOVER FREQUENCY 2.4kHz
FREQUENCY RESPONSE (FREE, -6DB) 55Hz – 22kHz
POWER
SUPPLY VOLTAGE 100V – 240V, 50-60Hz
MAXIMUM CONSUMPTION 125W
STANDBY CONSUMPTION <0.5 Watts
BLUETOOTH®
BLUETOOTH® SPECIFICATION V5.0
WIRELESS CODECS aptXâ„¢, aptXâ„¢ HD, aptXâ„¢ Low Latency, SBC, AAC
DIMENSIONS
DIMENSIONS 279mm (H) x 170mm (W) x 296mm (D)
WEIGHT 5.1kg (passive speakers), 5.5kg (powered speaker)
