Key Features

Uses the advanced C³ Continuous Curved Cone™ mid/bass driver technology for smoother, more controlled sound and better integration between drivers.

Features dual 110 mm (4.5") mid/bass drivers for strong dialogue clarity and impactful midrange.

Equipped with a 25 mm soft-dome tweeter that is hermetically sealed and isolated from the cabinet to reduce vibrations and improve high-frequency detail.

Point-2-Point™ internal bracing provides a quieter, more stable cabinet, reducing distortion and improving clarity at all volumes.

Rear-ported bass-reflex design enhances low-frequency depth and fullness, excellent for TV, movies, and cinematic sound.

Elegant Santos Rosewood finish, giving it a premium and classic appearance ideal for stylish home theatre setups.

Designed to serve as the centre speaker in a 3.1 / 5.1 / 7.1 home theatre system, ensuring crystal-clear dialogue and balanced front-stage audio.

Description

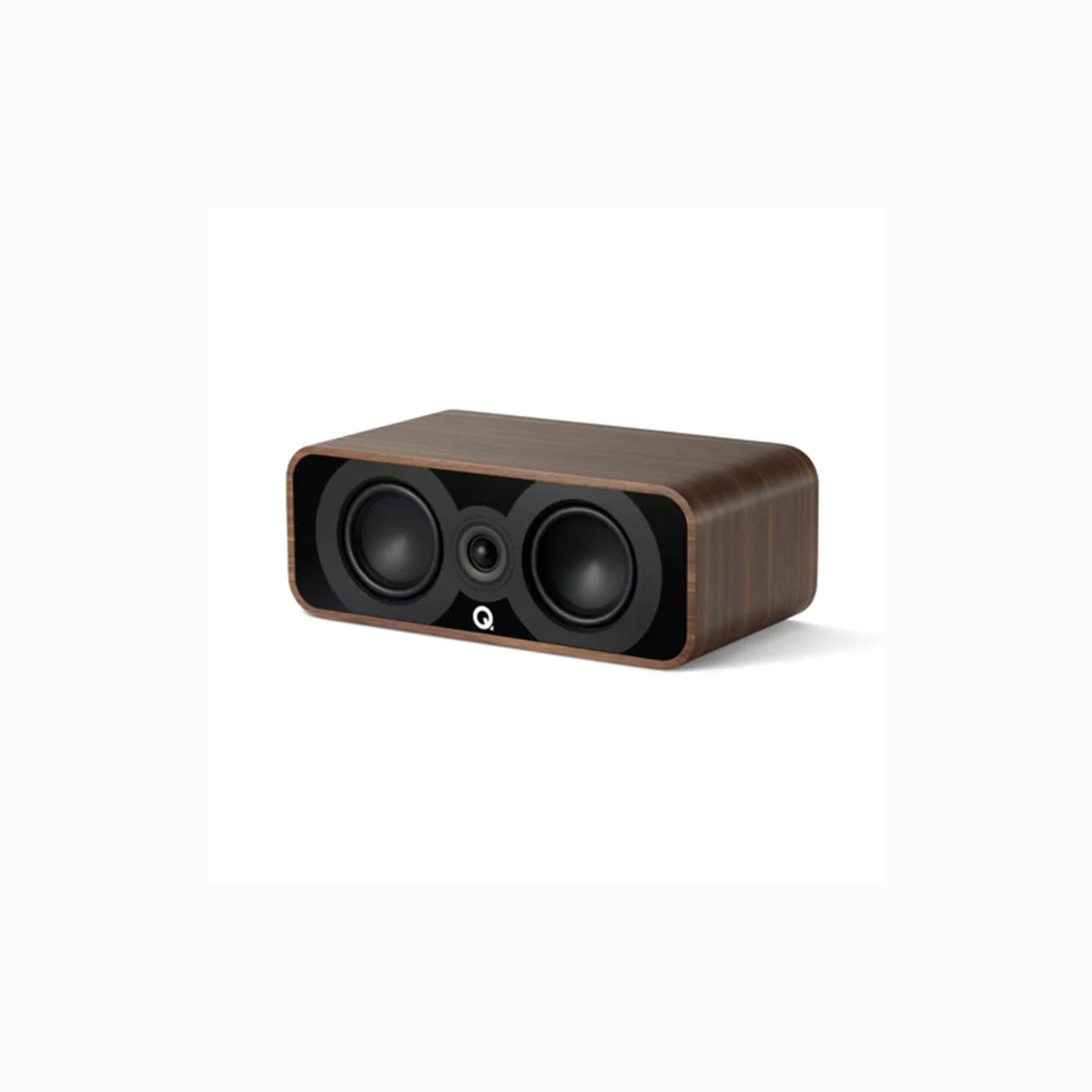

Q Acoustics 5090 – 2-Way Centre Channel Speaker

5090: Centre Speaker

Designed to project dialogue ahead of even the most full-on Hollywood action movie soundtrack, and to deliver all the subtlety and nuance of arthouse favourites with equal ease and conviction. Put the 5090 at the centre of your home cinema system and get the complete picture.

Key Features

C3 Continuous Curved ConeTM design in the mid/bass driver ensures smoother high-frequency integration with the tweeter and superior bass dynamics.
Sophisticated, clean and contemporary design with dark acrylic baffle motif mirrors the minimalist C3 Continuous Curved ConeTM profile.
Available in four stylish finishes: Satin Black, Satin White, Santos Rosewood and Holme Oak.
With a design taken from the Concept series but in a new housing, the high-frequency driver is fully hermetically sealed and mechanically isolated from the front baffle to protect from internal cabinet pressure and resonances from the mid/bass driver.
Ground-up mid/bass driver design delivers increased power handling.
Point-2-PointTM (P2P) internal bracing stiffens the cabinet to minimise lower frequency vibrations, while focusing stereo imaging and improving soundstage.

Ahead of the curve

The new 5000 series from Q Acoustics is a range of stereo and home cinema loudspeakers that will recalibrate your perceptions of how a speaker can look and sound. By embodying genuine and significant advancement in driver design, the game-changing C3 Continuous Curved Cone™ mid/bass driver elevates the 5000 series beyond any nominal rival. By incorporating the innovative cabinet technology first deployed in the company’s flagship Concept range, the 5000 series is as uncompromised on the inside as it is sophisticated and contemporary on the outside

Sophisticated and contemporary design

The reductive nature of the C3 Continuous Curved Cone’s™ appearance is also reflected in the 5000 series minimalist design, with its sophisticated but contemporary lines leaning towards the elegant form of the latest Concept speaker series. The baffle fronts are laminated with a layer of butyl rubber and black acrylic trim, not only to provide a damping layer to suppress vibration occurring in the baffle, but to offer an eye-catching counterpoint to the cosmetically clean front presentation, uninterrupted by any fixings.

Mid/bass driver design

At the heart of the ground-up mid/bass driver design is the C3 Continuous Curved Cone™. The cone’s geometry requires good motor strength for optimal performance. Substantial magnets are coupled to large voice coils to increase motor strength – the result is a 50% increase in power handling and control over a comparable driver with a 25.4 mm voice coil. The result is an improvement in the dynamic range of the speaker, especially in the bass region.

High-frequency driver design

Based on the tweeter design principle found in the newest Concept series, the high-frequency driver unit is hermetically sealed and mechanically isolated (floating) from the baffle to prevent internal pressure modulations from within the cabinet and adjacent mid/bass driver. The inner chamber is also carefully vented for lower distortion, with a lower crossover point for seamless integration through the crossover region.

C3 Continuous Curved Cone™

A genuine advancement in elements of mid/bass driver design, the C3 Continuous Curved Cone™ profile is the result of extensive research and expert engineering to combine the bass performance benefits of a traditional straight conic cone with the high/mid-range frequency control of a flared cone.

By creating a single, smooth, continuous curve profile, the advantages are clear. Its excellent dispersion, alongside its well-controlled frequency response and reduced harmonic distortion, enables smoother integration with the tweeter. Deep bass dynamics are also superior, with this and a tighter, damped low-end sound allowing more flexibility in in placement of speakers near the wall boundaries of the listening room.

Specifications

Bass unit	2 x 110 mm (4.5 in)
Treble unit	1 x 25 mm (1.0 in)
Frequency response(-6dB)	57 Hz – 30 kHz
Nominal impedance	6 Ω
Minimum impedance	3.2 Ω
Sensitivity (2.83V @ 1kHz)	90.5 dB/w/m
Recommended amplifier power	25-150 W
Crossover frequency	2.1 kHz
Effective volume	7.8 L
Dimensions (per loudspeaker / HxWxD)	164 x 430 x 243 mm (6.5 x 16.9 x 9.6 in)
Weight (per loudspeaker)	8.5 kg (18.7 lbs)
In The Box	1x 5090 loudspeaker, 1x Owner’s manual, 2x Foam bung
