Polk Audio Legend L900 Premium Height Module Speaker

    • The Polk Legend L900 is a dedicated height-channel speaker module, intended to bring true overhead effects for formats such as Dolby Atmos, DTS:X and IMAX Enhanced — when used in conjunction with compatible floorstanding speakers (specifically the Legend L600 or L800 models). Abt.com+3Audiolab+3Polk Audio+3
      Rather than being a standard speaker topper, the L900 offers horizontal orientation of its driver array (tweeter and woofer mounted side-by-side) to optimise phase and time alignment, thereby expanding the “sweet spot” for height reflections.

Description

Designed to deliver the 3D audio found in Dolby Atmos, Dolby Atmos height Virtualization, DTS, DTS:X, DTS Virtual:X, and IMAX enhanced soundtracks. Seamlessly integrates into the L600 and L800 floor-standing loudspeakers.

Warranty:

3-year manufacturer’s warranty

Features:

  • Drawing from more than 45 years’ experience in developing loudspeakers, the Legend Series defines the next generation of Polk

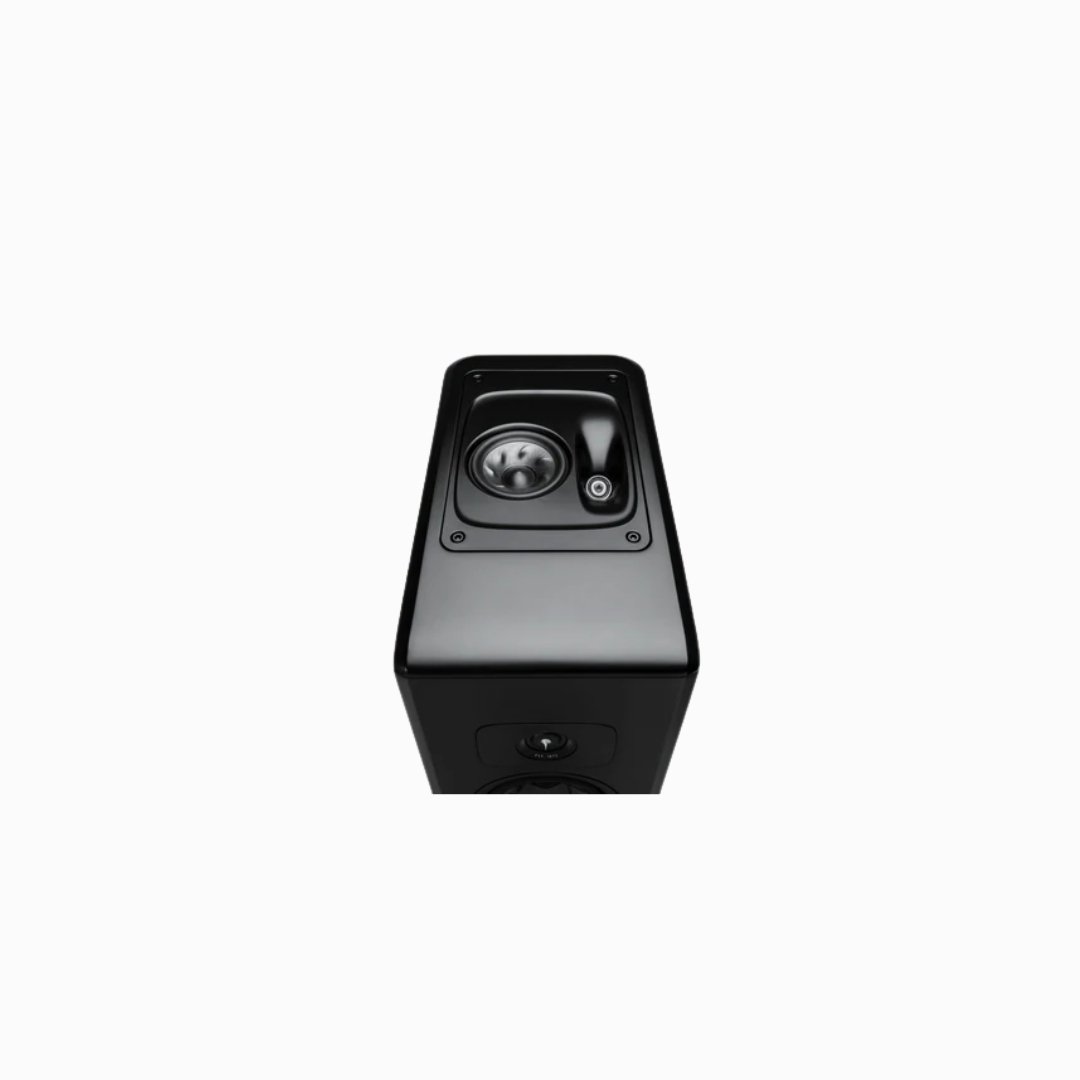

  • L900 height module integrates directly into L600 and L800 floorstanding speakers—take your home theater to another level.
  • The height module’s tweeter and woofer are horizontally oriented to ensure phase and time alignment and a wide “sweet spot” for immersive listening
  • Designed to deliver the 3D audio found in Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X, DTS Virtual:X, and IMAX enhanced soundtracks

LEGENDARY 3D AUDIO
Polk Legend L900: Premium Height Speaker Module is designed to deliver the 3D audio found in Dolby Atmos, Dolby Atmos height Virtualization, DTS, DTS:X, DTS Virtual:X, and IMAX enhanced soundtracks. Seamlessly integrates into the L600 and L800 floor-standing loudspeakers.

Polk’s goal since its founding has been to build great loudspeakers that virtually transform the listener’s room into the scene of the recorded performance. To meet this challenge, Polk engineers and designers must constantly innovate and agonize over every detail. Nothing is left to chance, and nothing unnecessary is ever added. The results are best-in-class loudspeakers that outperform their competition for half the price, earning numerous awards, patents, and, most importantly, Polk speaker owners who swear by the brand. Don’t take our word for it – go listen and you’ll believe.

HORIZONTAL ORIENTATION FOR BETTER PERFORMANCE
The Legend L900 Height Module is Dolby Atmos certified and designed to meet the DTS X specification. Traditional height speakers and toppers orient their tweeter and woofer vertically, resulting in a small “sweet spot” and can leave you underwhelmed. The L900 Height Module’s horizontal orientation ensures both the phase and time alignment for the tweeter and the woofer deliver a large “sweet spot” for a truly immersive experience.

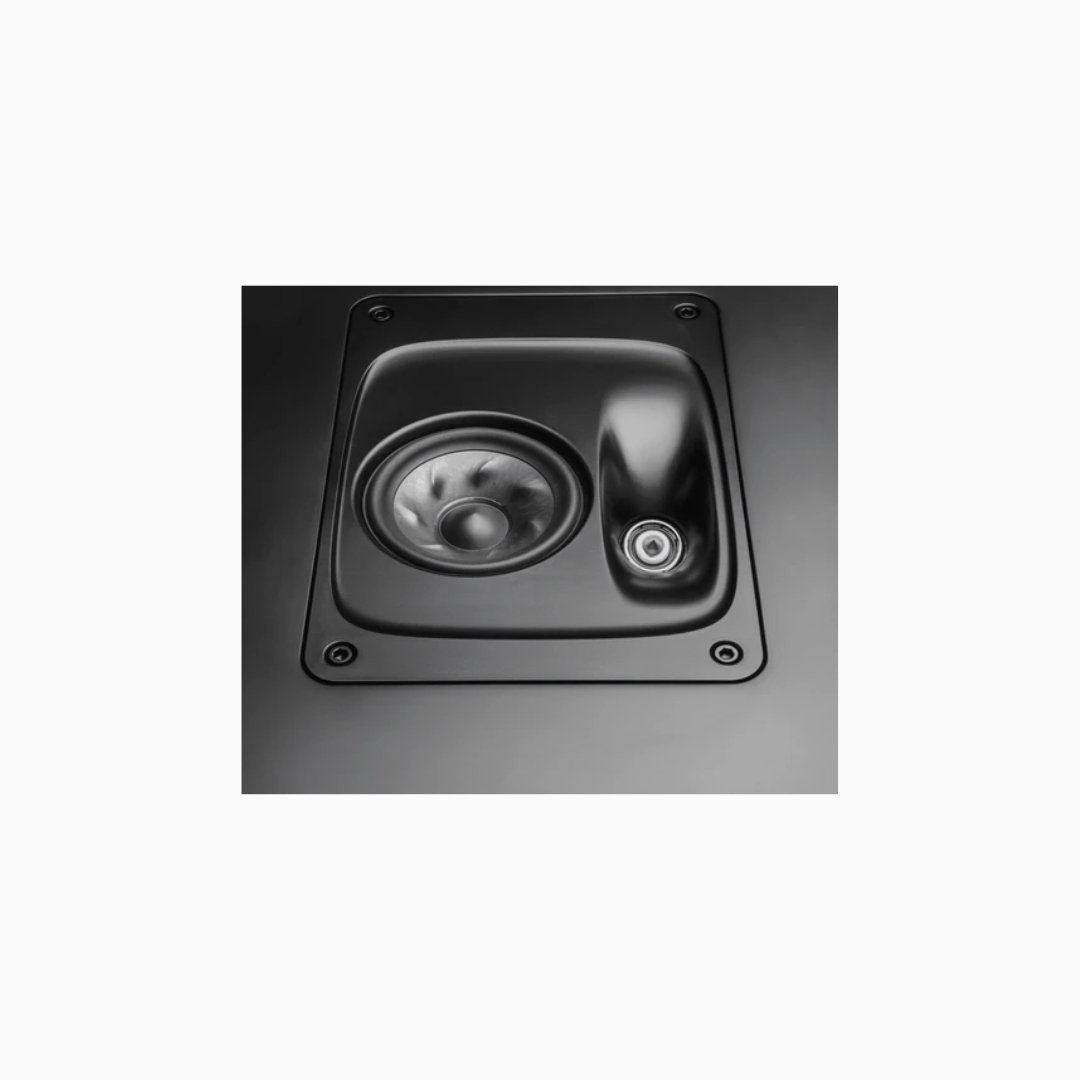

FLUSH MOUNTING SYSTEM
Polk Legend Height Module is a flush-mounted system instead of a topper. Not only does it offer a cleaner look, it reduces diffraction effects from the baffle for a smoother frequency and time response to the listener.

INTEGRATED SEALED ENCLOSURE
Once installed with the L600 or L800, the Height Module creates a top-quality sealed box. A Phoenix connecter helps to reduce loss of bass and to suppress cabinet wall resonances

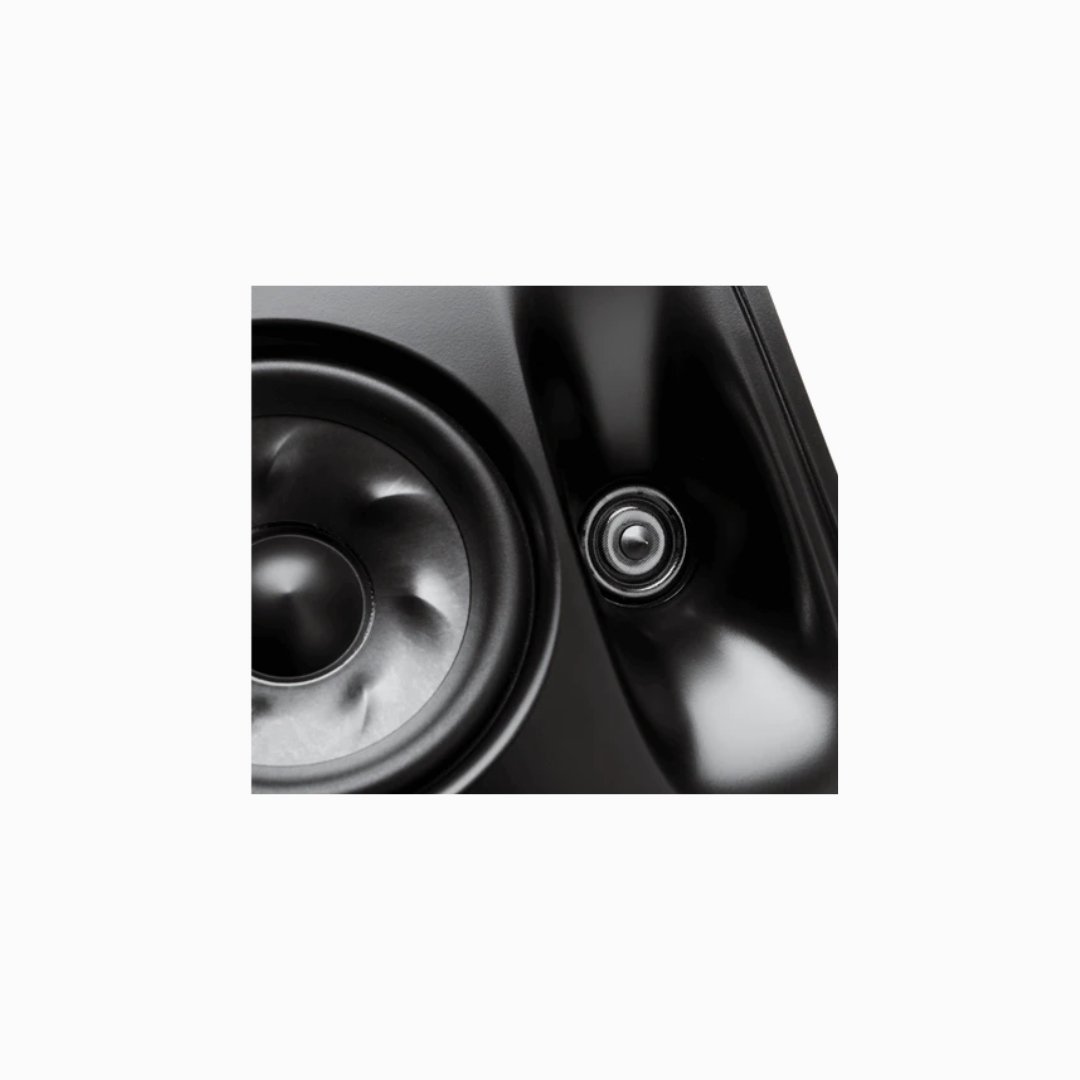

NEW .75 INCH PINNACLE RING RADIATOR TWEETER
Timbre-matched to the Legend floor-standing speakers, the Pinnacle ring radiator tweeter is horn-loaded to maximize high-frequency response and to create that immersive experience.

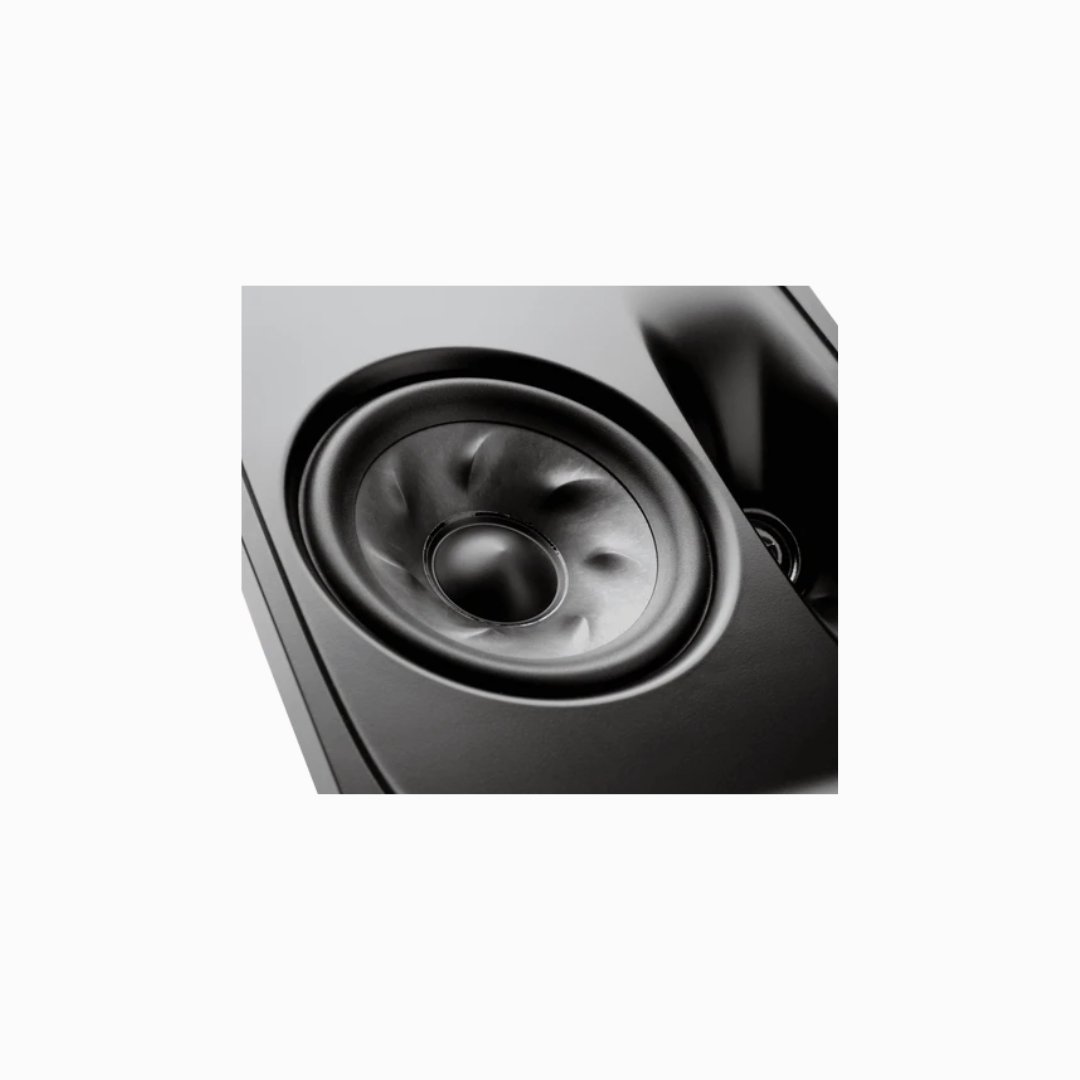

NEW 4 INCH TURBINE CONE
Utilizing the same Turbine Cone as Legend floor-standing speakers, the height module is timbre-matched and positioned within the array to deliver the most immersive Dolby Atmos, DTS:X and IMAX Enhanced experience

TIMBRE MATCHED FOR UNMATCHED PERFORMANCE
Designed with the same driver components as the Legend bookshelf, center, and floor-standing speakers, so you can mix and match to create the ultimate home theater.

EXPECT GREAT SOUND ENGINEERED BY POLK USA
For over 45 years, Polk Audio has been designing, engineering, and voicing amazing-sounding loudspeakers, sound bars, and smart speakers. Polk engineers prototype, tests, and listens to every aspect of its loudspeakers in its Baltimore, Maryland, USA engineering facility. From innovation in tweeter design to the legendary Stereo Dimensional Array (SDA) speakers, Polk Audio delivers great sound that’s accessible to all.

Technical Specifications:

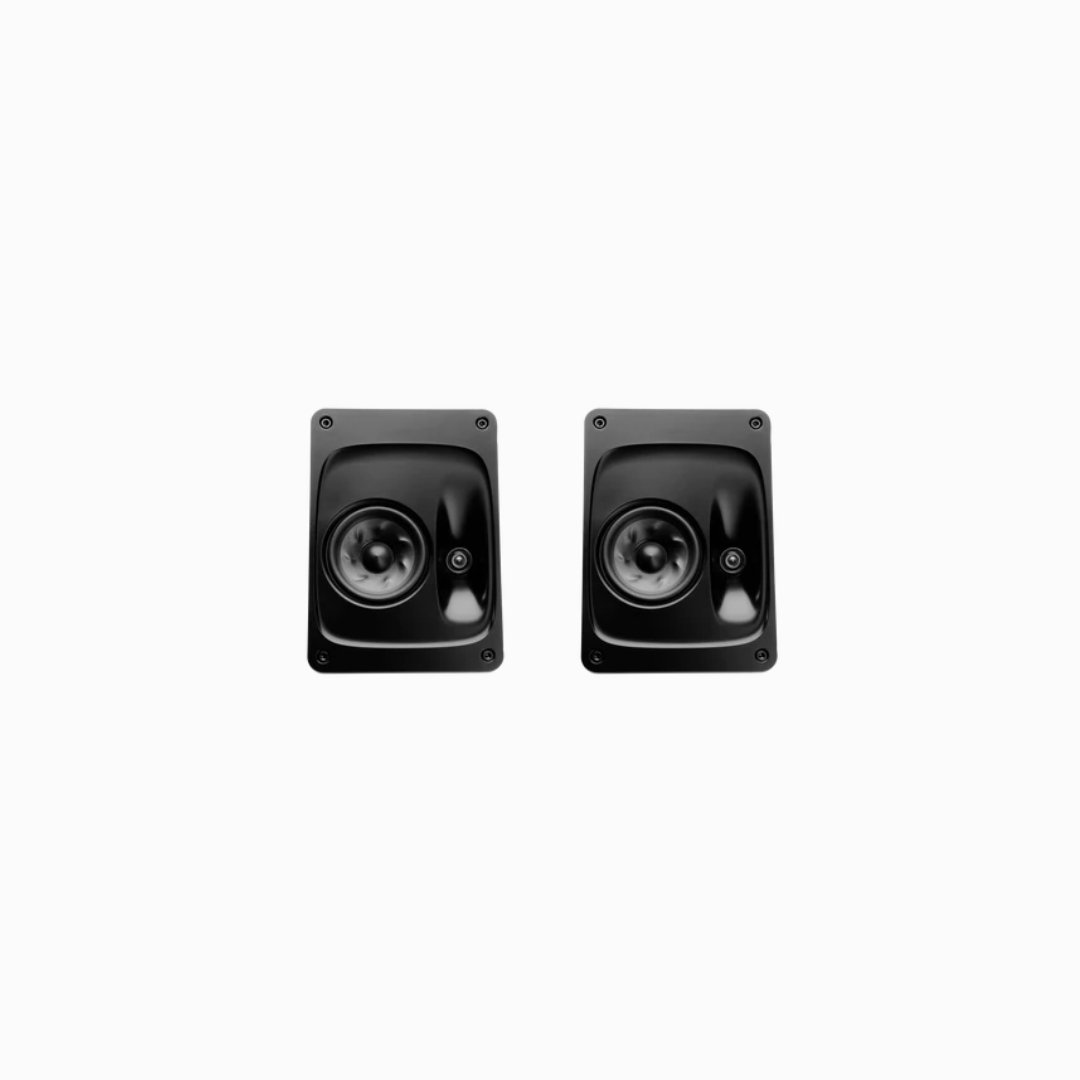

Total Pieces Pair
Height 9.84″ (24.99 cm)
Width 7.01″ (17.81 cm)
Depth 3.3″ (8.38 cm)
Weight (each) 3.3 lbs (1.5 kg)
Driver Complement • (1)  0.75″ (1.91 cm) d (Round) Pinnacle Ring Radiator – Tweeter
• (1)  4″ (10.16 cm) d (Round) Turbine Cone – Mid/Woofer
Total Frequency Response 90 Hz → 40,000 Hz
Nominal Impedance Range 2.8 ohms → 4 ohms
Sensitivity (1 watt @ 1 meter) 86 dB
Lower and Upper -3dB Limits 150 Hz → 30,000 Hz
Type 2-way Orth Crossover
Peak Power Handling 100 watts
Tweeter/Midrange Crossover Frequency 2000 Hz
Power Handling (per channel) 30 watts → 100 watts
