Description
Warranty:
1.5-year manufacturer’s warranty
Product highlights:
- 300W @ 6ohms, 150W FTC x 11 ch,
- 11.4 receiver with Dirac Live, Dolby Atmos,
- Bluetooth aptX, WiFi,
- 1 x 4K and 1 x 8K HDMI out 6 x 8K HDMI in,
- 1 x 4K HDMI in
- IMAX Enhanced
- Works with Google Assistant, Alexa, Sonos,
- Chromecast built-in
- Advanced CI Features
- Roon Ready, Auro3D,
- 2-zone video, 3-zone audio
- XLR in/out, passive sub drive
Features:
- Dolby Atmos and DTS X Support: Offers a three-dimensional audio experience with object-based surround formats.
- 4K Ultra HD and HDR Passthrough: Transmits high-resolution video and HDR content seamlessly to compatible displays.
- Multi-Zone Audio: Allows for audio playback in different rooms, creating a versatile and synchronized home audio setup.
- Network Connectivity and Streaming: Enables access to online music services and allows for multi-room audio distribution through integrated Wi-Fi and Ethernet connectivity.
Get ready to immerse yourself in an all-encompassing entertainment experience. Whether you have up-firing speakers or not, the HDMI Enhanced Audio Return Channel (eARC) simplifies connectivity and supports the latest high-bitrate audio formats, including Dolby Atmos, DTS-HD Master Audio, DTS: X, and Dolby TrueHD. Enjoy lifelike, object-oriented sound that moves smoothly and realistically around you.
No matter the shape of your room, the VSA-LX805 includes a Dirac Live premium license to adjust sound settings based on the unique acoustic properties of your listening environment, as well as an optional Bass Control upgrade for precision low-frequency reproduction. With its precise audio reproduction through hardline cable connections or streaming platforms, this AV receiver is compatible with RCA, Phono, HDMI, digital optical, balanced XLR, and more; the VSA-LX805 is the operations centre for your entire home theatre.
With built-in access to various streaming and smart home assistant platforms, such as Apple AirPlay 2, Google Home, and Alexa, the VSA-LX805 is a smart home solution, music system, and home cinema hub all-in-one. It also features advanced technologies like Auto Phase Control Plus and Advanced Sound Retriever to optimise your audio experience. The VSA-LX805 is designed to provide a premium entertainment experience and untethered levels of quality and performance.
Technical Specifications:
| Sales Package |
Pioneer VSX-LX805 11.4 Channel AV Receiver, User documentation
|
| Brand | Pioneer |
| Model | VSX-LX805 |
| Color | black |
| Channels | 11.2 7.2.4 |
| Amplifier Class | Class-AB |
| Power Output per Channel | 2-Channel Driven: 150 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD |
| Frequency Response | 10 Hz to 100 kHz +1/-3 dB (Direct, Pure Direct Mode) |
| THD+N | 0.08% (20 Hz to 20 kHz) |
| Speaker Impedance | 4 to 16 Ohms |

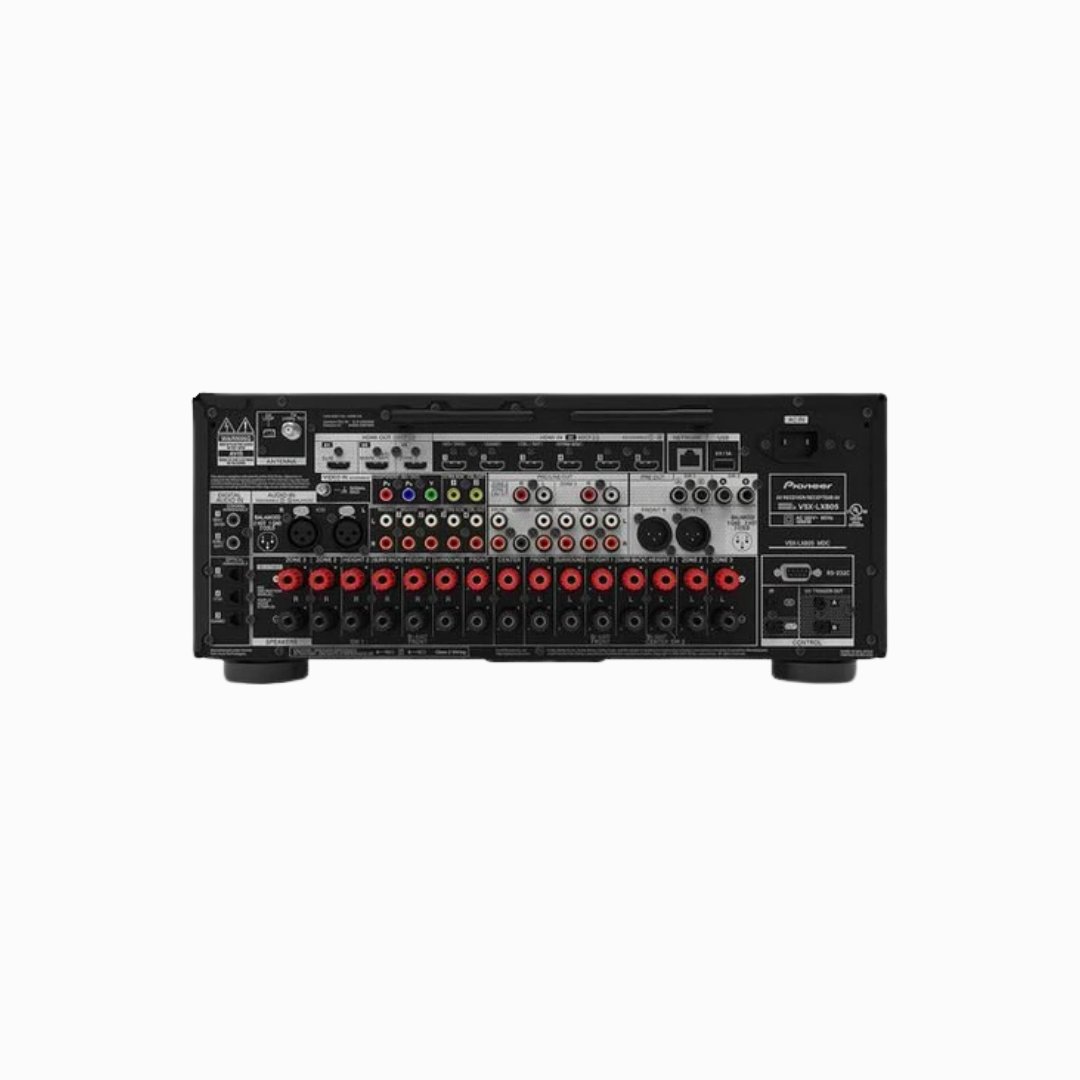

| Rear A/V Inputs | 6 x HDMI 2.1 2 x RCA Composite 1 x 3RCA Component 1 x Stereo XLR Balanced 4 x Stereo RCA 1 x Stereo RCA (Phono) with Ground Screw 2 x Digital Coaxial 3 x Optical TOSLINK |
| Rear A/V Outputs | 3 x HDMI 2.1 Zone 2 Pre-Out 4 x RCA Subwoofer Pre-Out 1 x Stereo RCA Zone 2 / Zone B Pre-/Line-Out 1 x Stereo RCA Zone 3 Pre-/Line-Out 1 x Stereo XLR Pre-Out 5 x Stereo RCA Pre-Out 1 x RCA Pre-Out |
| Front I/O | 1 x 1/4″ / 6.35 mm Headphone Output 1 x 1/8″ / 3.5 mm Setup Mic Input 1 x USB-A Input/Output 1 x HDMI Input |
| Other Rear I/O | 1 x AM Block Input 1 x FM Coaxial F-Type Input 1 x RJ45 (Ethernet) Input/Output 1 x USB-A Input/Output 1 x DE-9 (RS-232C) Input 1 x 1/8″ / 3.5 mm (IR) Input 1 x 1/8″ / 3.5 mm (IR) Output 2 x 1/8″ / 3.5 mm (12 V Trigger) Output |
| Speaker I/O |
15 x Binding Post Pairs (Front, Center, Height, Height 2, Rear, Rear Surround)
|
| HDCP Support | Yes, Version 2.3 |
| Audio Return Channel (ARC) | ARC, eARC |
| HDMI CEC | Yes |
| Bi-Amp Capability | Yes |
| Dimension | 435.0 x 185.0 x 468.0 mm |
| Weight | 21.5 kg |
