Description

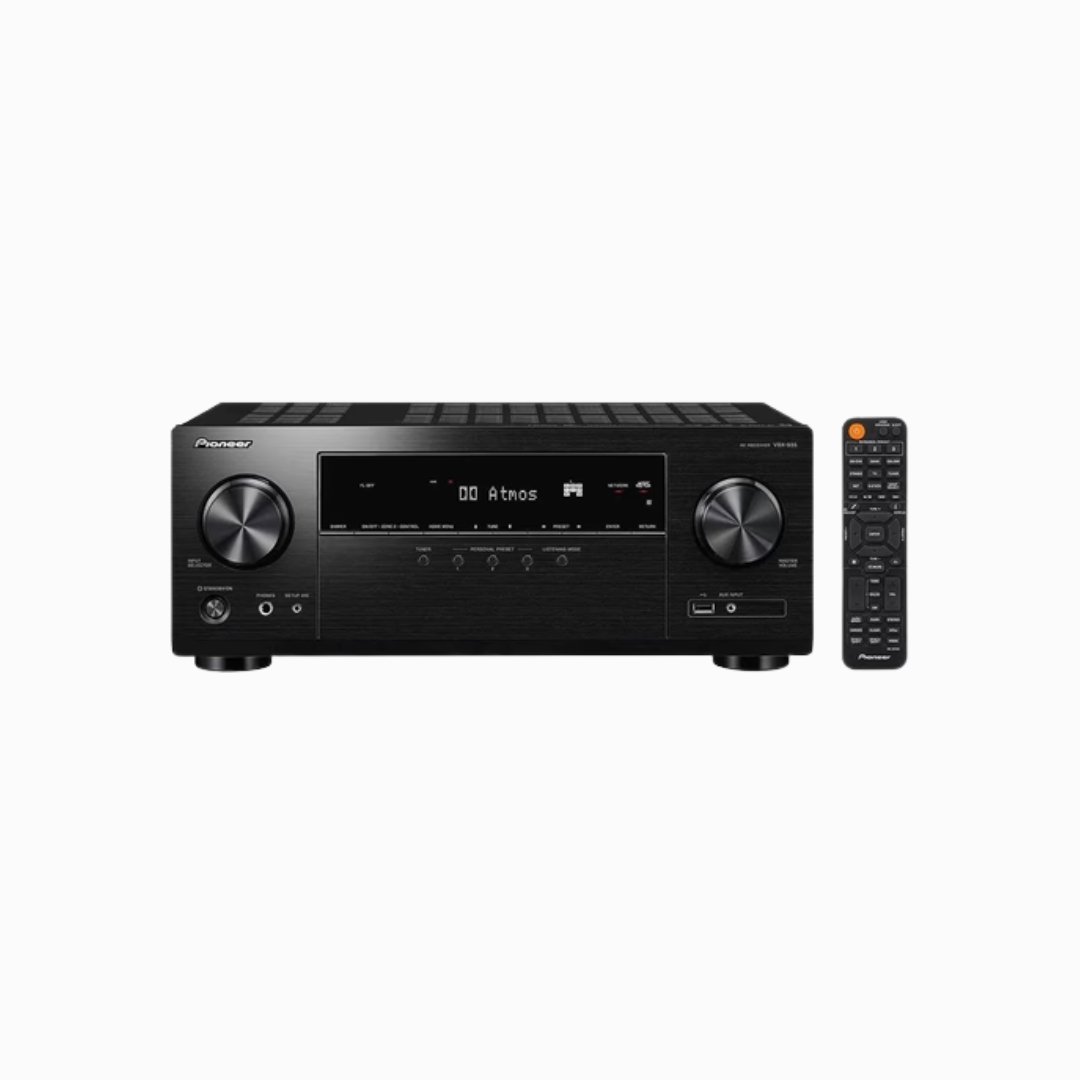

Enjoy 4K Ultra HD pass-through with HDR10, HLG, and Dolby Vision support via HDMI with the Pioneer VSX-534 5.2-Channel A/V Receiver. It produces up to 80W of power per channel at 8 Ohms for room-filling sound and supports the Dolby Atmos and DTS X 3-dimensional audio formats. MCACC sound optimization allows you to tailor the sound to your room’s specific acoustics.
Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-capable devices. The VSX-534 is equipped with four HDMI inputs and one HDMI output, which supports ARC for the reproduction of TV-based audio, such as your TV’s built-in Netflix or YouTube apps.
Warranty:
1.5-year manufacturer’s warranty
Product Highlights:
- 155W @6 ohms, 80W FTC x 5 ch
- 5.2 receiver with Dolby Atmos
- Dolby Atmos Height Virtualizer
- Bluetooth DTS X
- 4K HDMI
MCACC Auto Room Tuning
VSX-534 also features Pioneer’s MCACC (Multi-Channel Acoustic Calibration System), which automatically adjusts the sound to match the acoustics of your room. VSX-534 AV Receiver enhances your audio experience and provides superb sound quality
Bluetooth connectivityThe
VSX-534 5.2 channel AV receiver has an awesome feature, which is “Bluetooth Connectivity”. It means that for the use of this AV receiver, you do not need any messy wires. The Bluetooth connection is easy to set up, and once connected, you can enjoy your favourite music or podcasts wirelessly
Dolby Atmos Technology
VSX-534 by Pioneer has a feature of Dolby Atmos. It is an advanced technology. It makes your sound quality much better. When you watch a movie, you listen to the sound coming from all directions. You feel like you are not sitting in your room. You feel like you are sitting in a cinema hall
User-friendly interface
534-VSX AV Receiver has a user-friendly interface. The on-screen display is easy to navigate and provides a range of options for configuring your audio and video settings. The remote control is also well-designed, making it easy to control all of the receiver’s functions
5.2 channels
The The
VSX-534 receiver supports 5.2 channels. It means you can set five regular speakers and two subwoofers around your room. It means when you watch a movie, it takes your sound quality to the next level and enhances your sound experience. You feel like you are in the middle of the action
Easy setup THE
VSX-534 AV receiver by Pioneer setup is very easy. Firstly, plug the receiver into a power outlet. Then connect it to your device. Now press the power button on the receiver and follow the On-Screen Instructions. Then connect the wires from your speakers to the receiver. If you want to use Bluetooth, then connect your phone or another device to the receiver through Bluetooth. Now it’s ready to use
Technical Specifications:
| Sales Package | AV Receiver, User documentation |
| Brand | Pioneer |
| Model | VSX-534 |
| Color | black |
| Channels | 5.2 |
| Power Output per Channel |
1-Channel Driven: 150 W at 6 Ohms / 1 kHz / 10% THD
2-Channel Driven: 80 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD |
| Frequency Response | 10 Hz to 100 kHz +1/-3 dB (Direct Mode) |
| THD+N | 0.08% (20 Hz to 20 kHz, Half Power) |
| Speaker Impedance | 4 to 16 Ohms |
| Tone Control | Bass (20 Hz): ±10 dB Treble (20 kHz): ±10 dB |
| DTS Compatibility | DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Atmos, Dolby Digital Plus, Dolby TrueHD |
| Auro 3D Support | No |
| Upmixing Technology | DTS Neural:X |
| DAC | 384 kHz / 32-Bit (AK4438) |
| Pass-Through Support | 4K |
| Upscaling | 4K UHD |

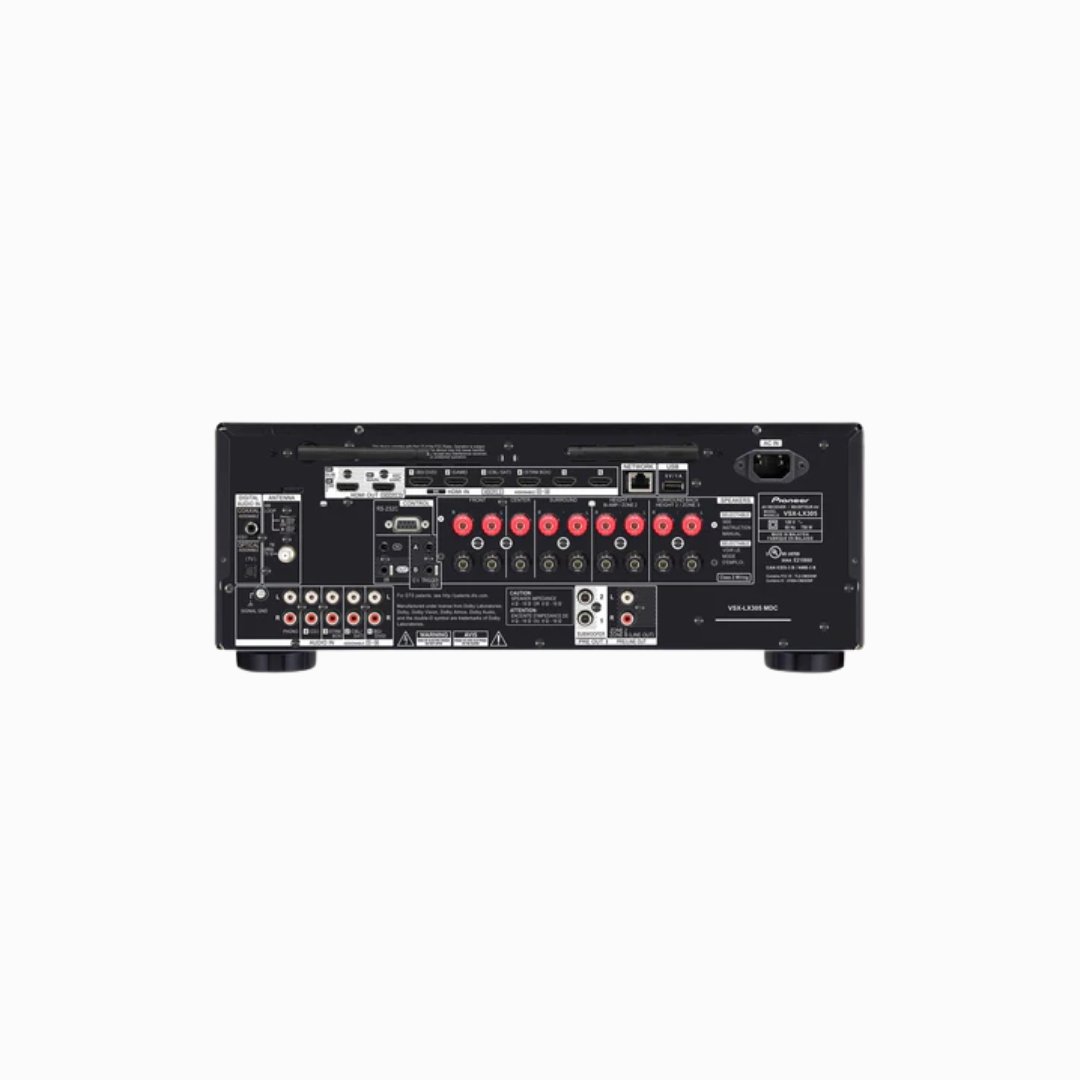

| Rear A/V Inputs | 4 x HDMI 1 x Digital Coaxial 1 x Optical TOSLINK 3 x Stereo RCA |
| Rear A/V Outputs | 1 x HDMI 1 x Stereo RCA Zone B 2 x RCA Subwoofer Pre-Out |
| Front I/O | 1 x 1/4″ / 6.35 mm Headphone Output 1 x 1/8″ / 3.5 mm Setup Mic Input |
| Other Rear I/O | 1 x USB Type-A (Power) Output 1 x AM Antenna Terminal 1 x FM Antenna Terminal |
| Speaker Connectors | 2 x Binding Post Pairs 3 x Spring Clip Pairs HDCP Support |
| Dimension | 43.43 x 32 x 17.27 cm |
| Weight | 5.44 Kilograms |
| Warranty Type | Manufacturers |
| Warranty Period | 1.5 Year |
