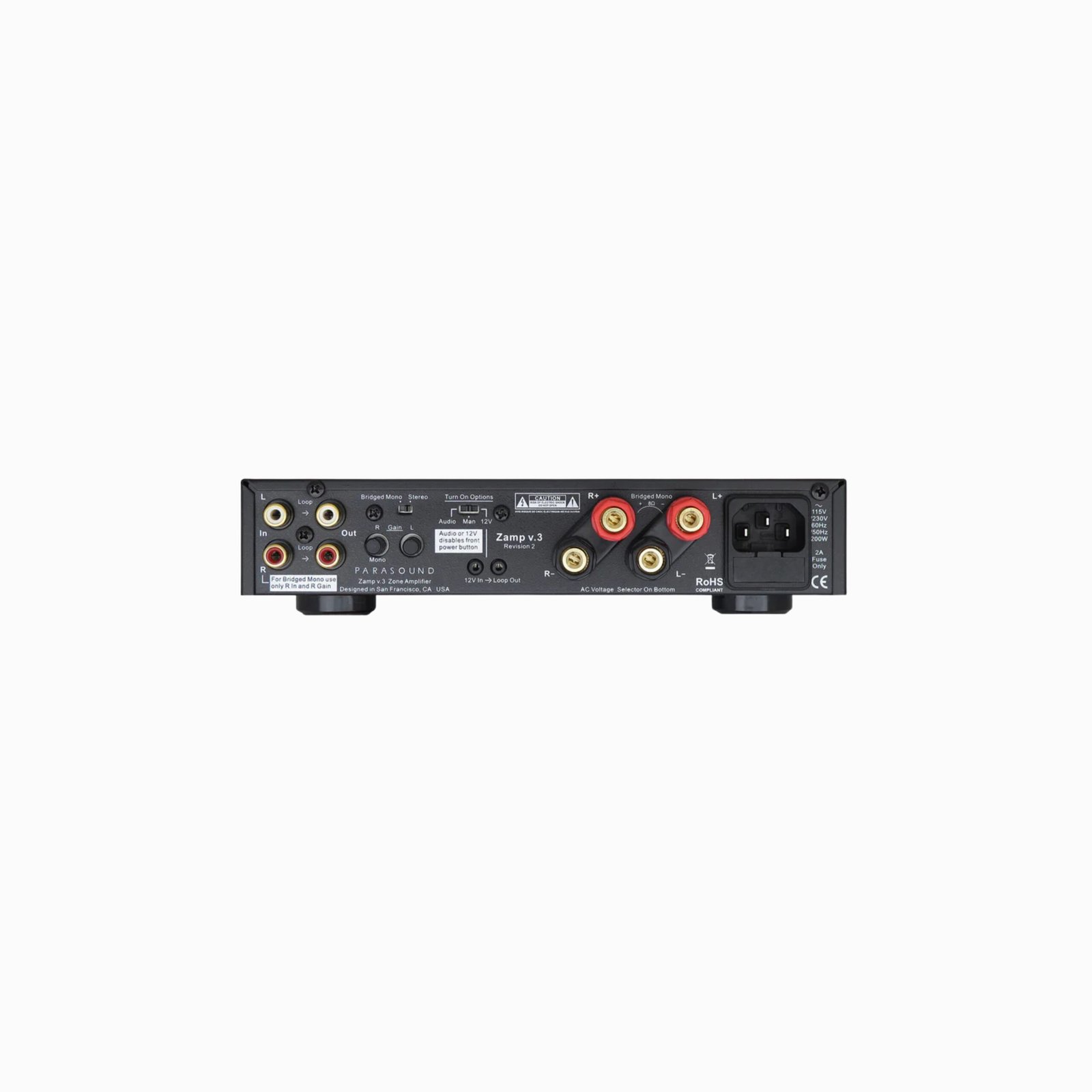

Parasound Zamp v.3 - 2 Channel Stereo Power Amplifier (Black)

Compact 2-channel stereo power amplifier designed for high-quality audio performance
High-current Class AB amplification delivers clean, detailed, and dynamic sound
Rated power output suitable for driving a wide range of bookshelf and floor-standing speakers
Stable operation with low noise and low distortion characteristics
RCA line-level inputs for easy integration with pre-amplifiers, DACs, or streamers
Loop output allows daisy-chaining to additional amplifiers or zones
Bridgeable mono mode for increased power output in single-channel applications
Automatic turn-on via signal sensing or 12V trigger input
Efficient, well-regulated power supply for reliable long-term operation
Compact Z-series chassis ideal for rack mounting, desktop, or multi-room installations
Solid metal construction with black finish for durability and professional appearance

Description

Continuous power output	45 watts RMS x 2, 20 Hz – 20 kHz, 8 Ω, both channels driven 60 watts RMS x 2, 20 Hz – 20 kHz, 4 Ω, both channels driven 90 watts RMS x 1, 20 Hz – 20 kHz, 8 Ω, minimum impedance
Total harmonic distortion	< 0.07 % full power < 0.02 % typical levels
Input Impedance	33 k Ω
IM distortion	< 0.05 %
Input Sensitivity	600 mV; 1.5 V for full output
Current capacity	12 amperes peak per channel
Dynamic headroom	1.5 dB
S/N Ratio	116 dB, input shorted, IHF A weighted
Frequency response	5 Hz – 100 kHz, +0/-3 dB
Inter-channel crosstalk	80 dB at 1 kHz; 60 dB at 20 kHz
Dimensions	8-1/2 w x 1-3/4 h x 10 d, 2 h with feet
Net weight	7 lbs.
