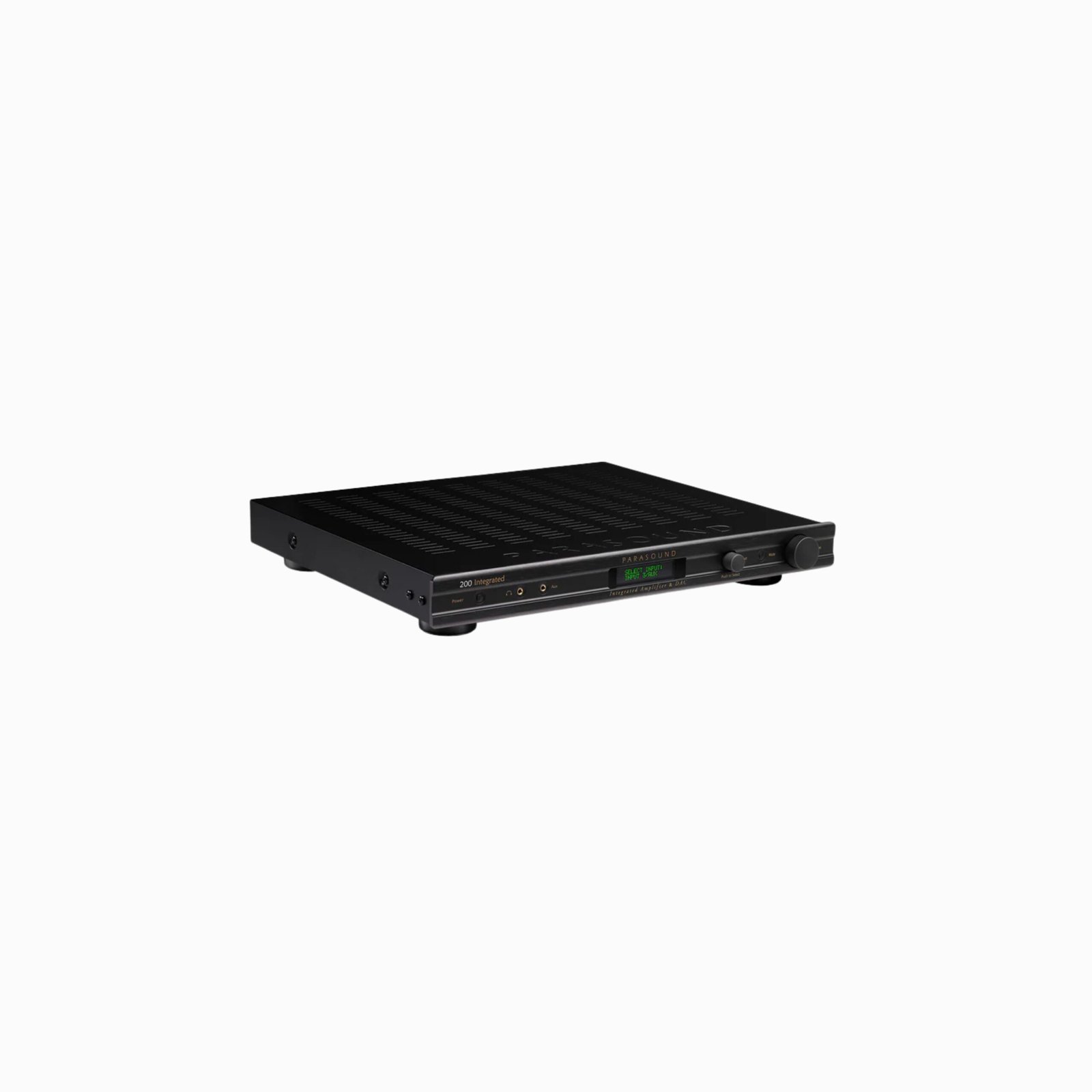

Parasound New Classic 200 - 2 Channel Integrated Stereo Amplifier with DAC (Black)

2-channel integrated amplifier with robust power output to drive a wide range of speakers with authority and clarity
Built-in high-performance DAC (digital-to-analog converter) for direct connection to digital sources with improved sound quality

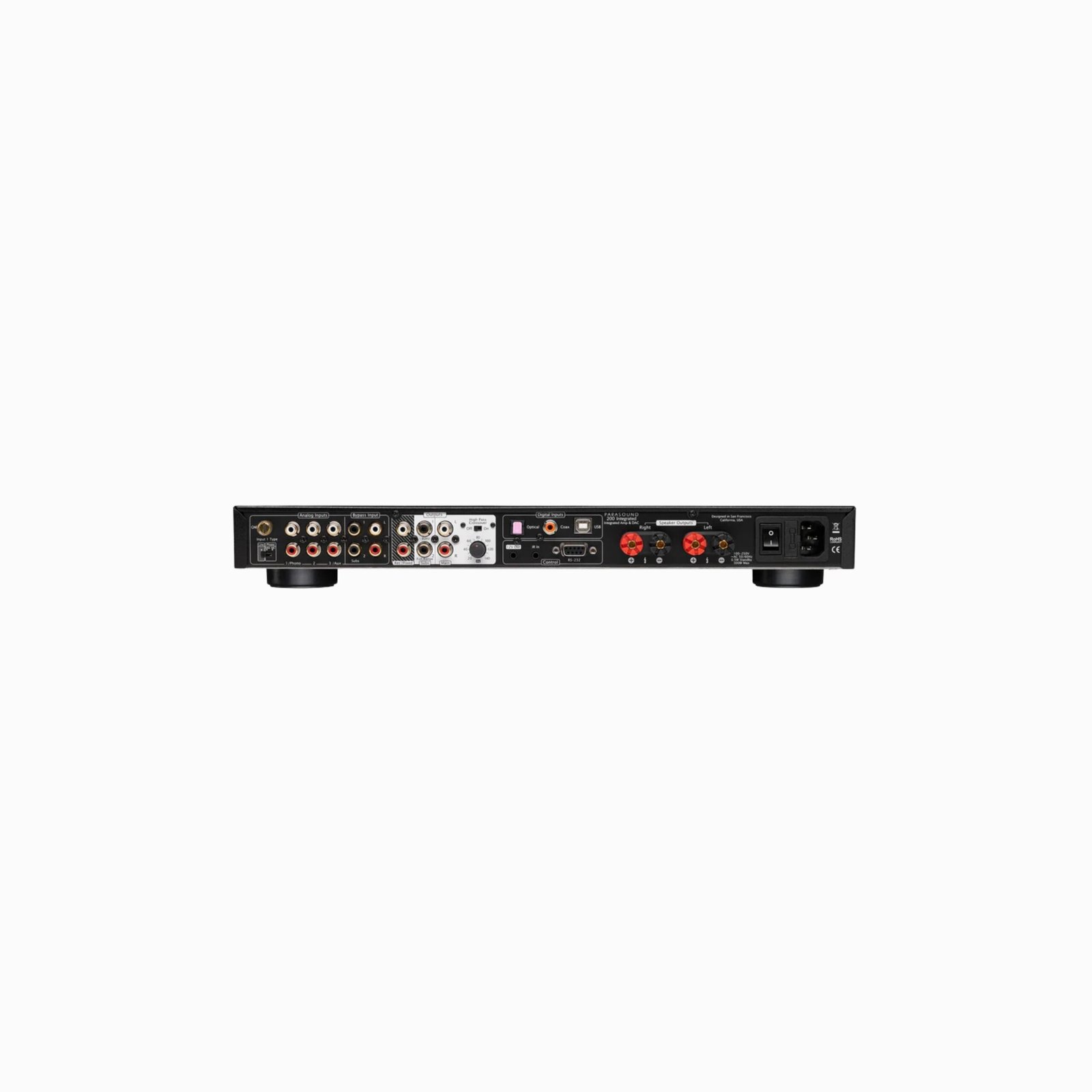

Multiple digital inputs including USB, optical, and coaxial for versatile connection with TVs, streamers, computers, and media players
Analog inputs for traditional sources such as CD players, tuners, and turntables (with optional phono stage)
Balanced (XLR) and unbalanced (RCA) inputs for flexible system integration
High-current analogue amplification designed for controlled bass, open midrange, and smooth treble
Precision volume control for accurate and noise-free level adjustment
Robust power supply and high-quality internal components for stable performance and long-term reliability

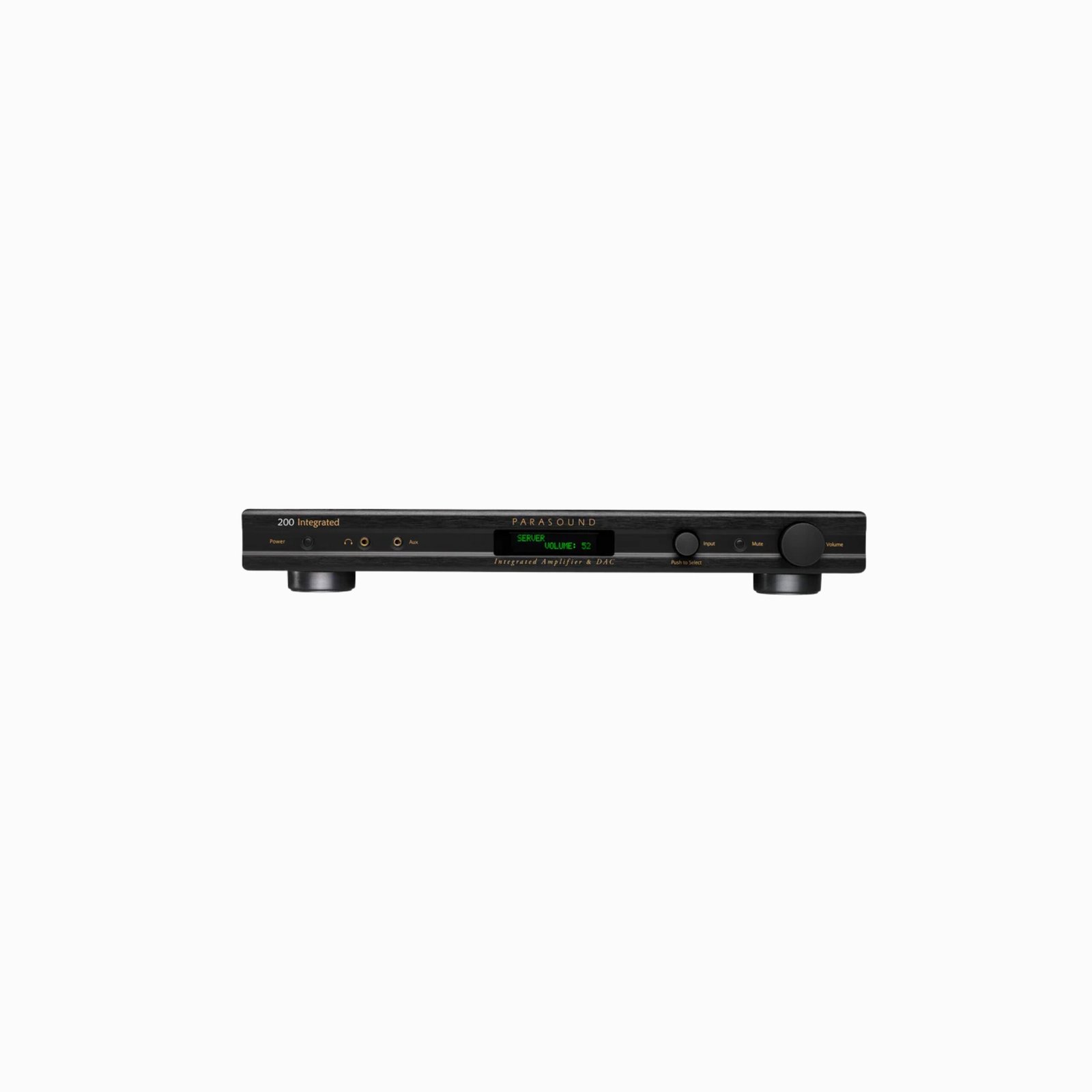

Front-panel display and easy controls for intuitive operation
Direct mode / pure analog path option for reduced processing and maximum sound purity
Compact, high-grade chassis designed to integrate seamlessly into two-channel hi-fi systems
Remote control included for convenient operation from a distance

Description

Power Output	Both channels driven (0.05% THD, 20 Hz – 20 kHz) 110 watts x 2 @ 4 Ω or 8 Ω (RMS)
Phono Stage Gain / Input Impedance	MM: 40 dB / 47 k Ω MC: 50 dB / 100 Ω
DC Trigger Output	12 Vdc, 50mA
Power Output	Both channels driven (1% THD, 20 Hz – 20 kHz) 125 watts x 2 @ 4 Ω or 8 Ω (RMS)
Line Level Input Impedance	24k Ohms
AC Power Requirement	Standby: 0.5 watts Idling: 15 watts (no music playing) Typical: 50 watts (music playing) Maximum: 300 watts 100-250 VAC 50/60 Hz (automatic)
Preamp Output Impedance	470 Ohms
Frequency Response	20 Hz – 20 kHz, +0 / -0.05 dB 10 Hz – 80 kHz, +0 / -3 dB
S/N Ratio – Line Inputs	> 100 dB, input shorted, IHF A-weighted
Dimensions	Width: 17.25″ (438 mm) Depth: 14.75″ (375 mm) Depth: 16.75″ (425 mm) with cables connected Height, with feet: 2.5″ (63.5 mm) Height, without feet: 1.75″ (44.5 mm), 1U Rack mounting requires RMK-11(sold separately)
Total Harmonic Distortion (20 Hz – 20 kHz)	< 0.05 %, (110 watts, 8 Ω)
S/N Ratio – Digital Inputs	> 110 dB, input shorted, IHF A-weighted
Interchannel Crosstalk	-75 dB at 20 kHz -85dB at 1 kHz
DAC IC	Burr-Brown PCM1798
Preamp Output	250mv = 1V output Total gain = 12 dB (volume set to 100) Unity gain = Volume set to 76 Maximum output = 3.5V
DAC Maximum Sampling Rates (PCM only)	USB: 96kHz – 24 bit Optical: 192kHz – 24 bit Coax: 192kHz – 24 bit
Weight	Net: 11.5 lbs (5.2 kg) Shipping: 17.5 lbs (7.9 kg)
