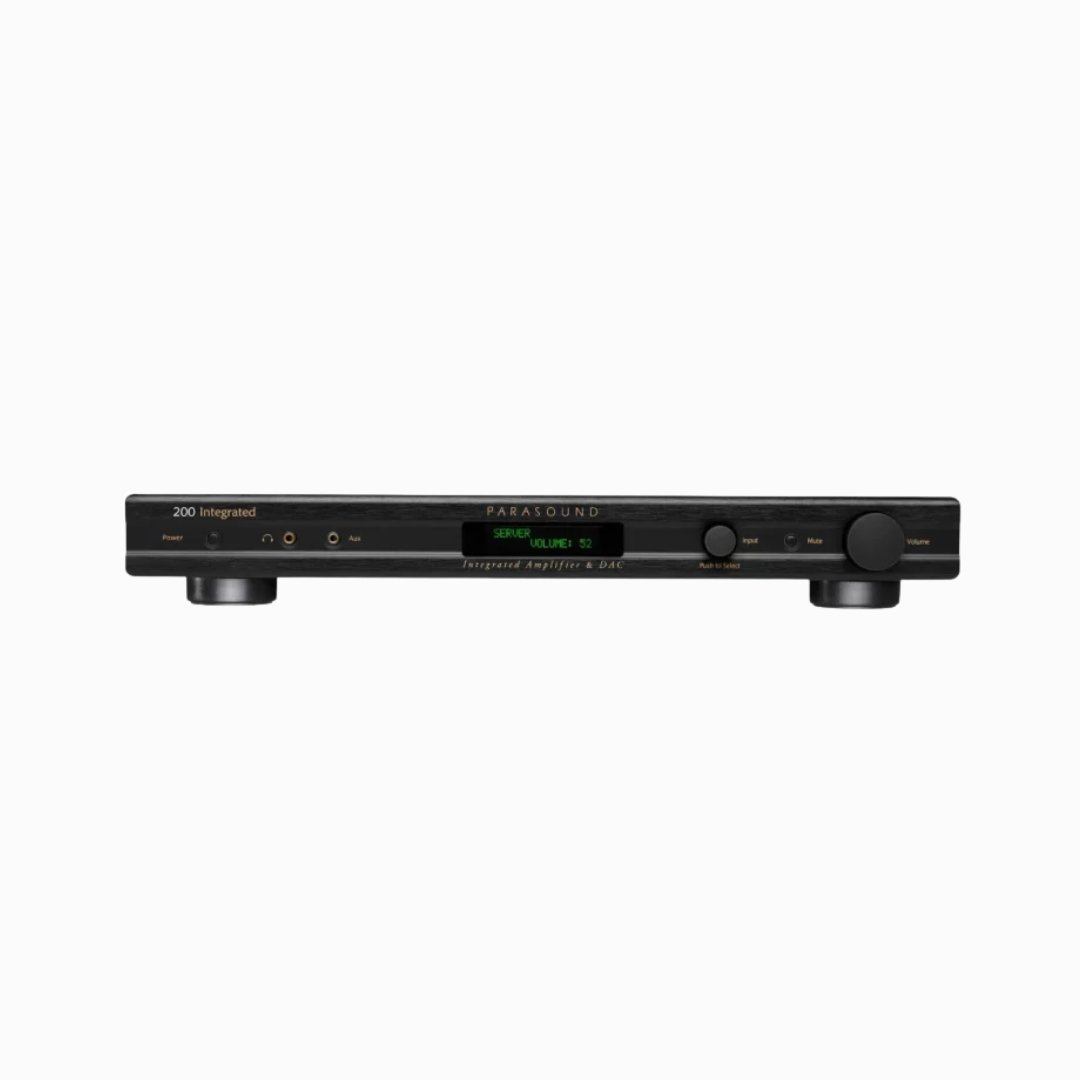

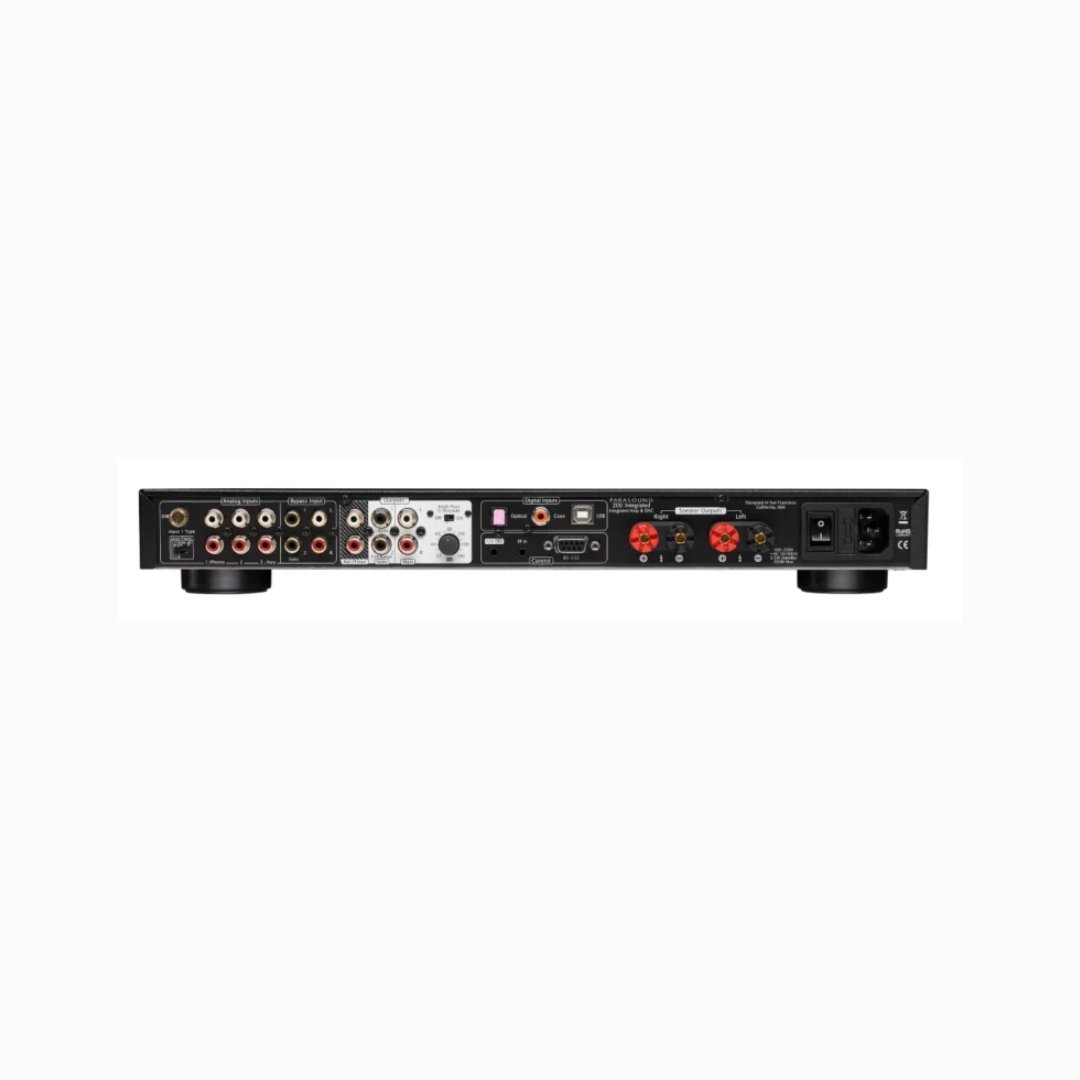

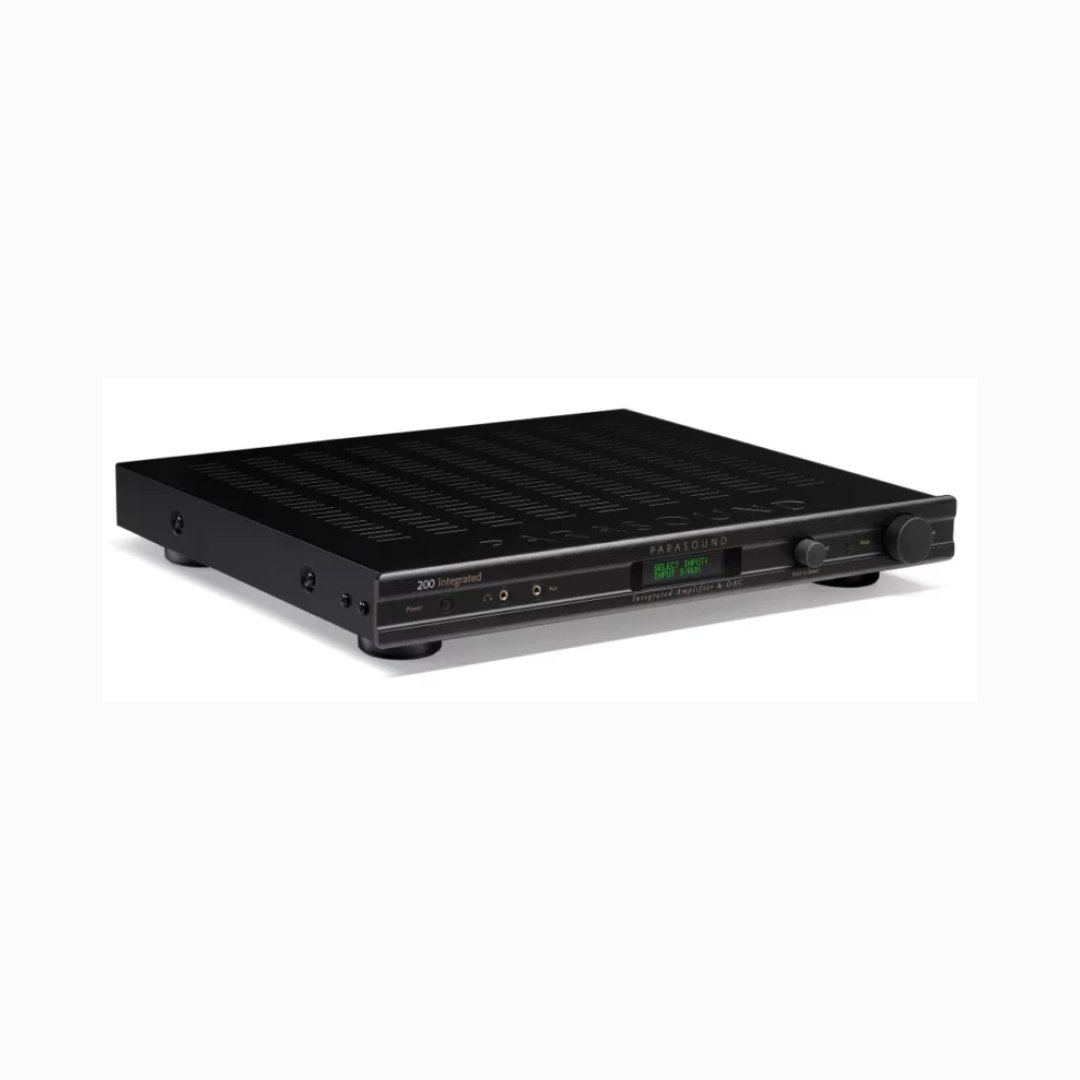

Parasound NC 200INT Integrated Amplifier
Description
The Parasound NC 200INT Integrated Amplifier combines precision engineering and high-quality audio performance into a sleek and compact design. Ideal for audiophiles and custom installations, this integrated amplifier delivers exceptional sound quality, robust features, and unparalleled versatility to elevate your listening experience.
Elevate Your Listening Experience
The Parasound 200 Integrated Amplifier is the ultimate choice for those seeking a versatile and powerful solution for both music and home theater applications. Its elegant design, advanced features, and high-quality construction make it a standout addition to any audio setup.
Features
- 110 Watts @ 8 or 4 Ohms
- Class D amplification by Pascal
- Burr-Brown 192kHz-24 bit DAC from the Halo P 5
- USB, Optical, and Coax digital audio inputs
- 4 Analog audio inputs
- Phono input for MM or MC cartridges
- Pure analog signal path from input to output
- Analog bass management with/ variable 20-140Hz high pass crossover
- Subwoofer On/Off & level by remote control
- 80Hz low-pass subwoofer output
- Full-range mono output can be used for a subwoofer or a mono listening area
- Variable and fixed stereo preamp outputs
- Bypass input for surround sound or music streamer integration
- The default turns on volume memory
- Favorite volume memory with the remote control button
- Input level matching (source volume offset)
- Bass, treble, and balance adjustments by remote control
- Front panel LCD with dimming
- 2-way RS232 w/ exact volume control & feedback
- Control4 Driver available
- Rename inputs to match the connected source
- Front panel Aux input with 12 dB of additional gain
- Dedicated headphone amplifier
- Back-lit remote control with discrete buttons
- 12V trigger output
- Rear panel IR input
- 0.5W standby power consumption meets Energy Star & EU specs
- 1U rack mount kit available separately (Model RMK11)
Specifications
Power Output – Both channels driven
(0.05% THD, 20 Hz – 20 kHz)
110 watts x 2 @ 4 Ω or 8 Ω (RMS)
Power Output – Both channels driven
(1% THD, 20 Hz – 20 kHz)
125 watts x 2 @ 4 Ω or 8 Ω (RMS)
Frequency Response:
20 Hz – 20 kHz, +0 / -0.05 dB
10 Hz – 80 kHz, +0 / -3 dB
Total Harmonic Distortion (20 Hz – 20 kHz):
< 0.05 %, (110 watts, 8 Ω)
Interchannel Crosstalk:
-75 dB at 20 kHz
-85dB at 1 kHz
Preamp Output:
250mv = 1V output
Total gain = 12 dB (volume set to 100)
Unity gain = Volume set to 76
Maximum output = 3.5V
Phono Stage Gain / Input Impedance:
MM: 40 dB / 47 kΩ
MC: 50 dB / 100 Ω
Line Level Input Impedance:Â 24k Ohms
Preamp Output Impedance:Â 470 Ohms
S/N Ratio – Line Inputs:
> 100 dB, input shorted, IHF A-weighted
S/N Ratio – Digital Inputs:
> 110 dB, input shorted, IHF A-weighted
DAC IC:Â Burr-Brown PCM1798
DAC Maximum Sampling Rates (PCM only):
USB: 96kHz – 24 bit
Optical: 192kHz – 24 bit
Coax: 192kHz – 24 bit
DC Trigger Output:Â 12 Vdc, 50mA
AC Power Requirement:
Standby: 0.5 watts
Idling: 15 watts (no music playing)
Typical: 50 watts (music playing)
Maximum: 300 watts
100-250 VAC 50/60 Hz (automatic)
Dimensions:
Width: 17.25″ (438 mm)
Depth: 14.75″ (375 mm)
Depth: 16.75″ (425 mm) with cables connected
Height, with feet: 2.5″ (63.5 mm)
Height, without feet: 1.75″ (44.5 mm), 1U
Rack mounting requires RMK-11(sold separately)
Weight:
Net: 11.5 lbs (5.2 kg)
Shipping: 17.5 lbs (7.9 kg)
