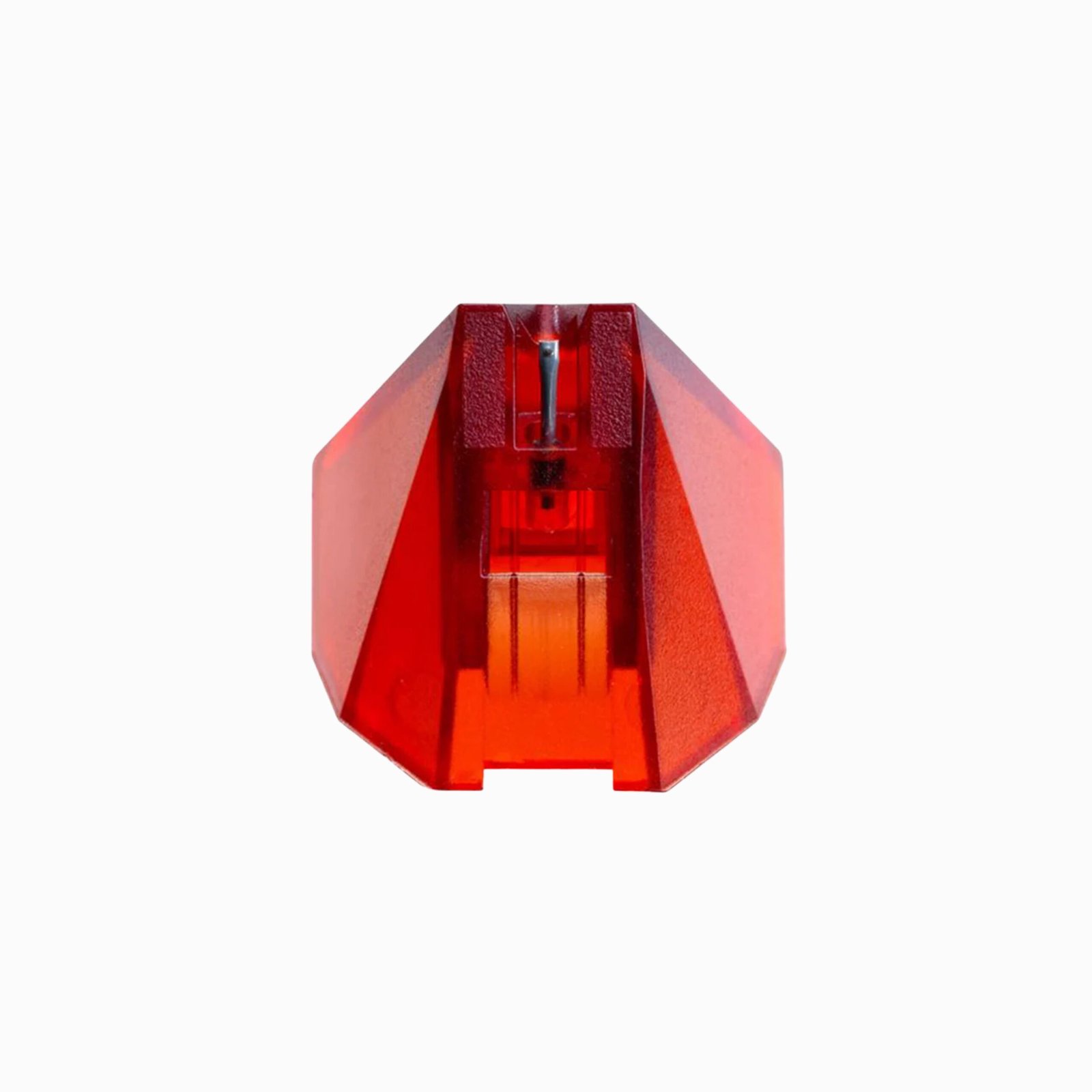

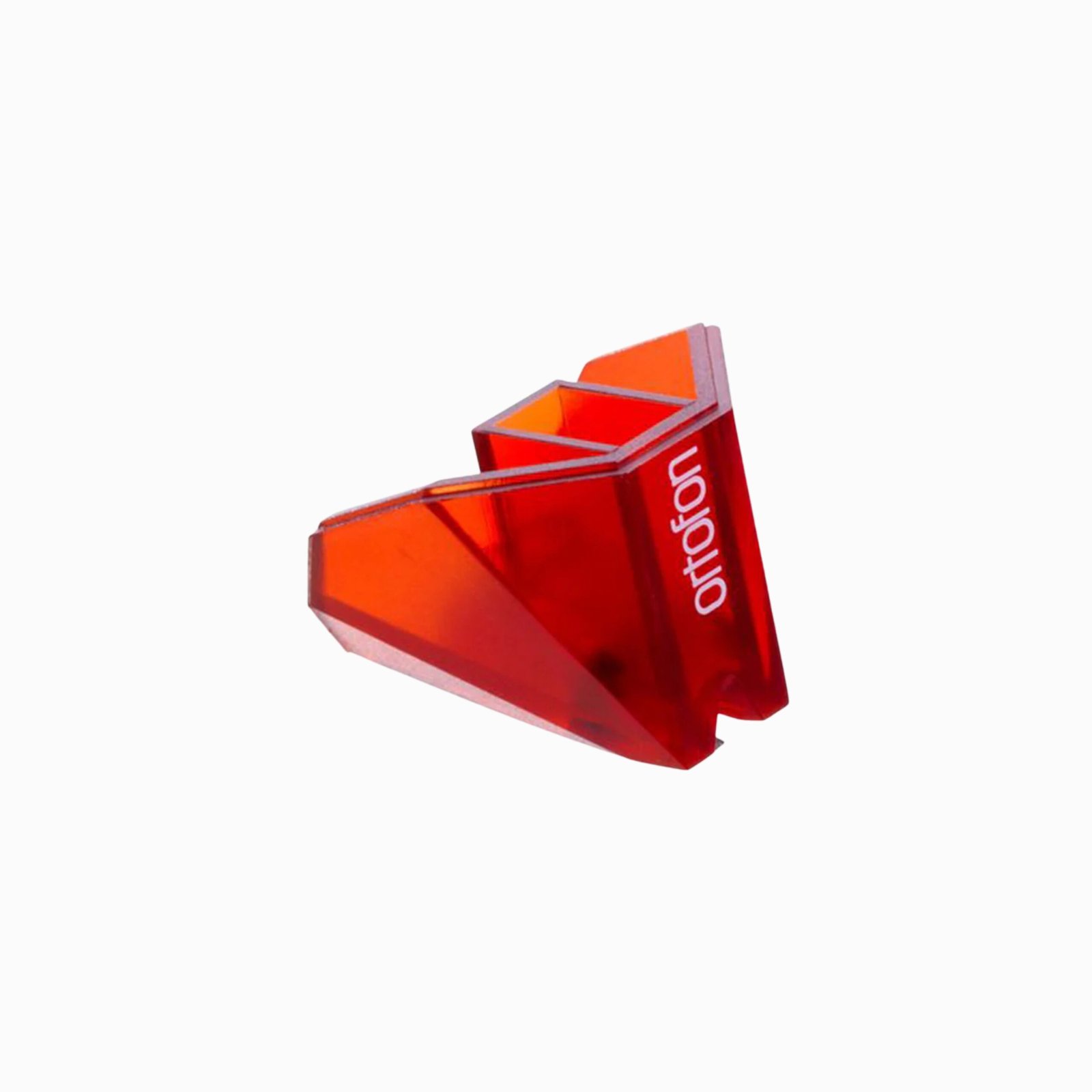

Ortofon 2M Red Stylus / Replacement Stylus
2M styli interchangeability
2M series styli are interchangeable within the following combinations:
- – 2M Red, 2M Blue and 2M Silver
- – 2M Bronze, 2M Black and 2M Black LVB 250
- – 2M Mono and 2M 78
Special for 2M Red, 2M Blue and 2M Silver phono cartridges:
- – 2M Silver will be an upgrade compared to 2M Red due to a special suspension and silver-plated copper wire material.
- – 2M Blue is an upgrade compared to both 2M Red and 2M Silver, thanks to the Nude Elliptical diamond, which retrieves information from the groove with higher accuracy.
Specifications
|
Frequency response
|
20-20.000 Hz + 3 / – 1 dB |
|---|---|
|
Tracking ability at 315Hz at recommended tracking force *)
|
70 µm |
|
Compliance, dynamic, lateral
|
20 µm/mN |
|
Stylus type
|
Elliptical |
|
Stylus tip radius
|
r/R 8/18 µm |
|
Equivalent stylus tip mass
|
0.5 mg |
|
Tracking force range
|
1.6-2.0 g (16-20 mN) |
|
Tracking force, recommended
|
1.8 g (18 mN) |
|
Tracking angle
|
20° |
|
Stylus colour
|
Red |
