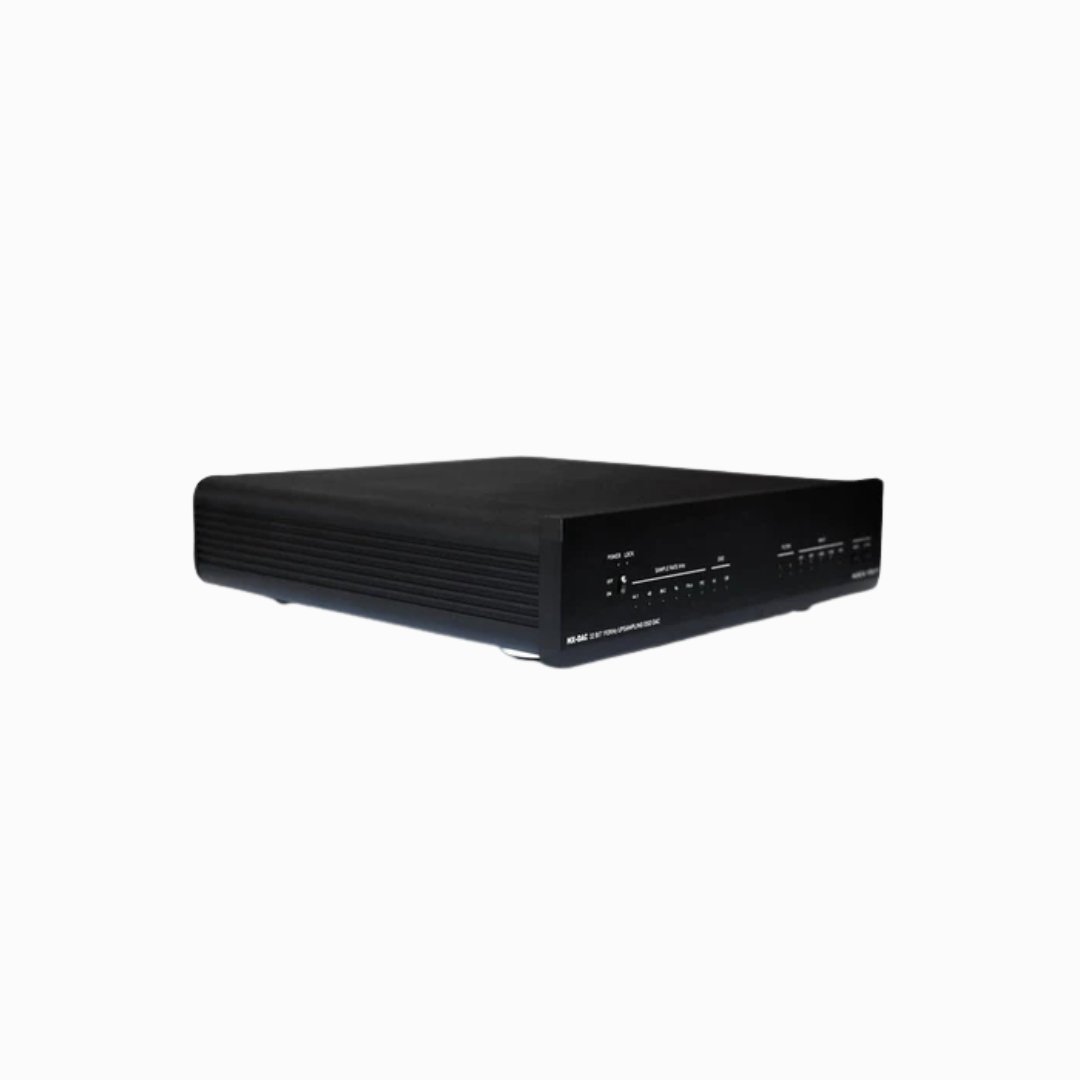

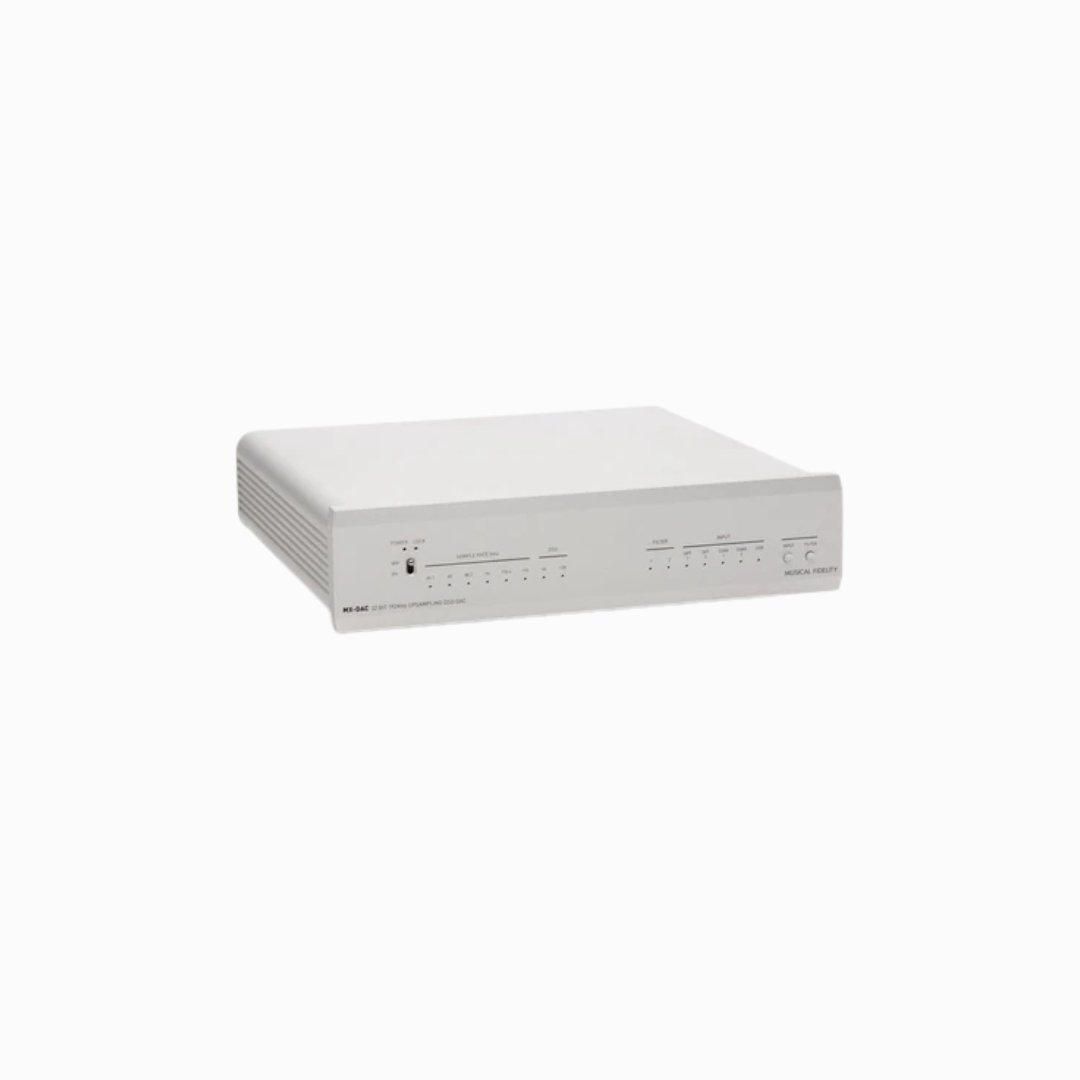

Musical Fidelity MX DAC - Digital to Analogue Convertor

The Musical Fidelity MX-DAC is a high-fidelity digital-to-analogue converter designed to elevate your digital audio sources by offering clean, neutral and ultra-low distortion performance. It features multiple digital inputs—two coaxial (RCA), two optical (TOSLINK), and asynchronous USB-B—each handling PCM up to 24-bit / 192 kHz, as well as DSD64 and DSD128 via USB. The MX-DAC uses an SRC4392 sample rate converter to up-sample incoming data to 192 kHz and employs a Burr-Brown PCM1795 multi-bit sigma-delta DAC for the conversion. It provides both single-ended (RCA, 2 V RMS) and balanced (XLR, 4 V RMS) outputs and delivers very low distortion (THD < 0.002% for PCM, < 0.003% for DSD) and wide bandwidth (-3 dB points up to ~90 kHz for PCM, ~40 kHz for DSD). The unit is built in a solid, mil-spec aluminium chassis, offering excellent channel separation (≈110 dB), a quiet background, and a refined sound signature that complements high-end analog and digital sources alike.

Description

After years of patient research and development, we are proud to launch our MX-DAC with DSD. With its technical innovation, superb technical performance, and excellent build quality, the new MX DAC offers truly outstanding value for money.

The MX-DAC is a tremendous performer. It has ultra-low distortion, a very wide bandwidth, and low noise. The technical performance of the MX-DAC is on a par with any other DAC at any price. Jitter is about 12pps, s/n ratio is -116dB (‘A’ weighted), linearity is +0.2dB at -116dB, stereo separation is -104dB at 1kHz, frequency response is ruler flat, and distortion is 0.00025% at 1kHz and 0.0003% at 20kHz. These technical figures are state-of-the-art and show that our implementation is almost perfect, ensuring completely neutral and accurate digital-to-analogue conversion of any digital input.

Warranty:

5-year manufacturer’s warranty

Features:

Superlative state-of-the-art performance with ultra-flat frequency response
Able to process DSD64 and DSD128 formats as well as PCM up to 192kHz / 24bit
Multiple digital inputs – 2 x coax, 2 x optical, and asynchronous USB
All inputs processed and converted to the DSD domain
Very low noise
Extremely low distortion
Outstanding linearity
Outstanding channel separation
Beautiful aesthetics and build quality

The MX DAC has inputs for: 2 x coax (up to 24bit 192 kHz PCM), 2 x optical (up to 24bit 192kHz PCM), and asynchronous USB up to 24bit 192 kHz PCM, as well as DSD 64 and DSD 128.

Also, all inputs, whether from coax, optical, or USB, are processed in the DSD domain. This desirable feature gives a warmth and humanity to the sound that simple digital conversion doesn’t achieve.

The MX DAC has both single-ended and balanced outputs.

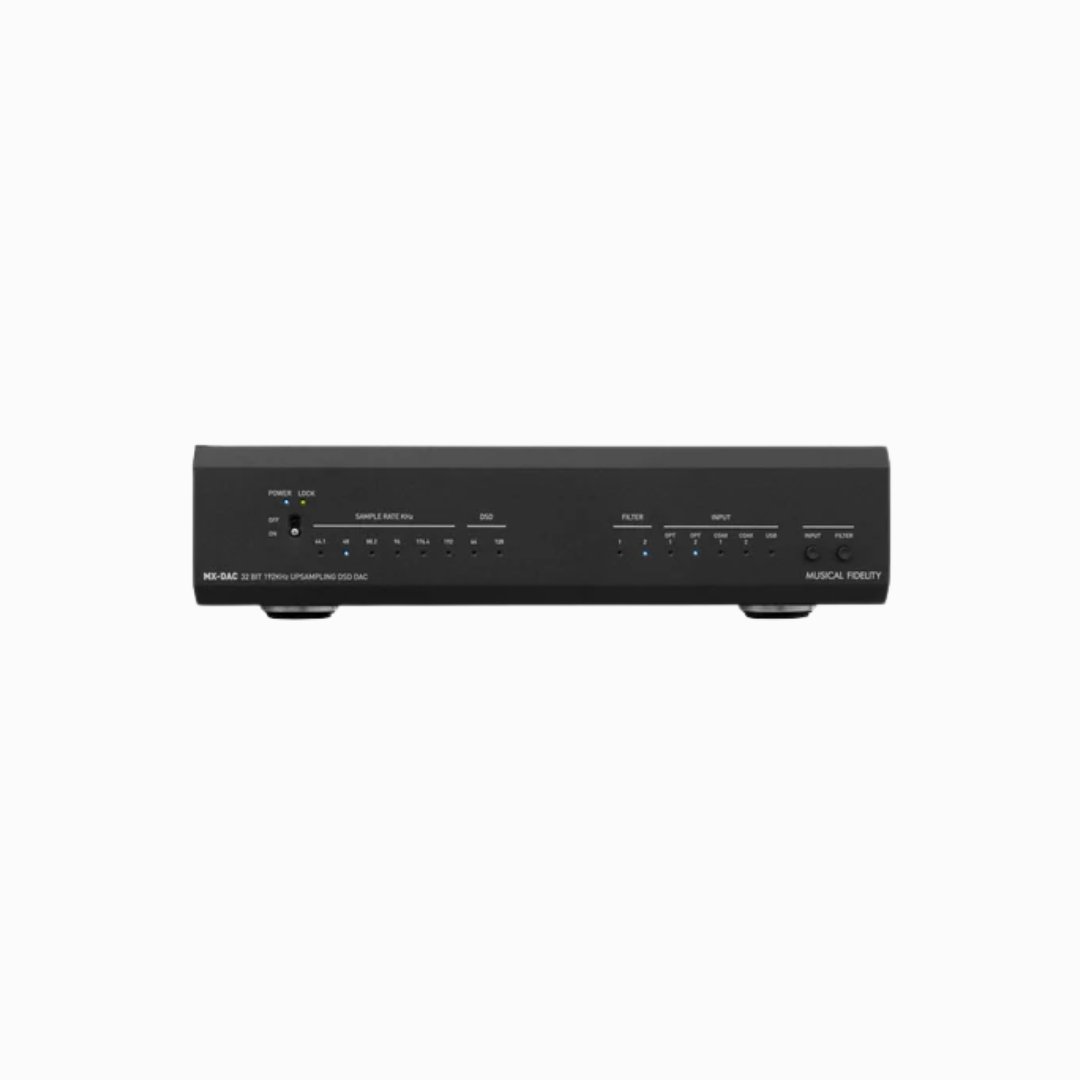

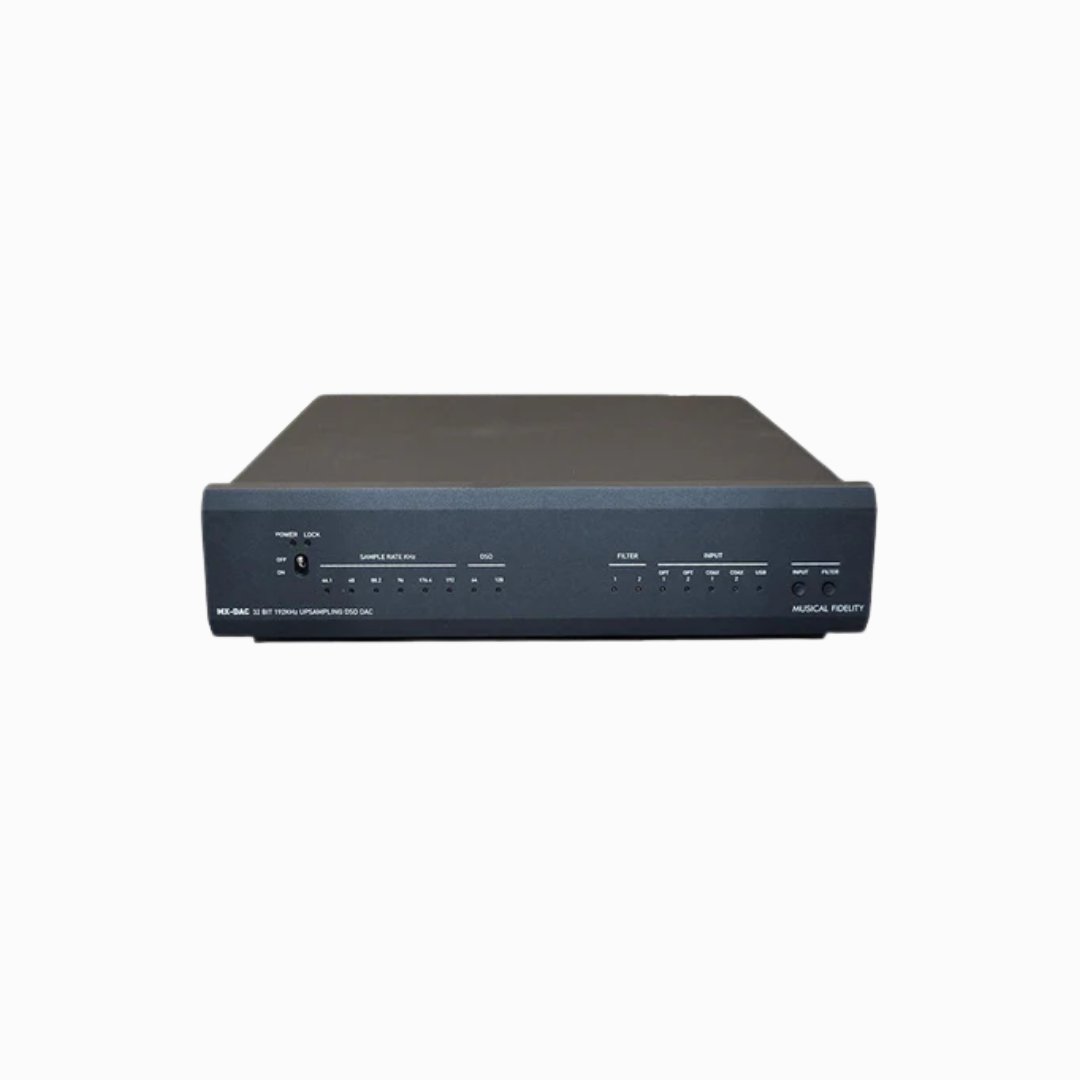

The new MX range has beautiful aesthetics and wonderful build quality. The front panel and housing are both from exclusive custom-made extrusions using mil-spec aluminium.

Technical Specifications:

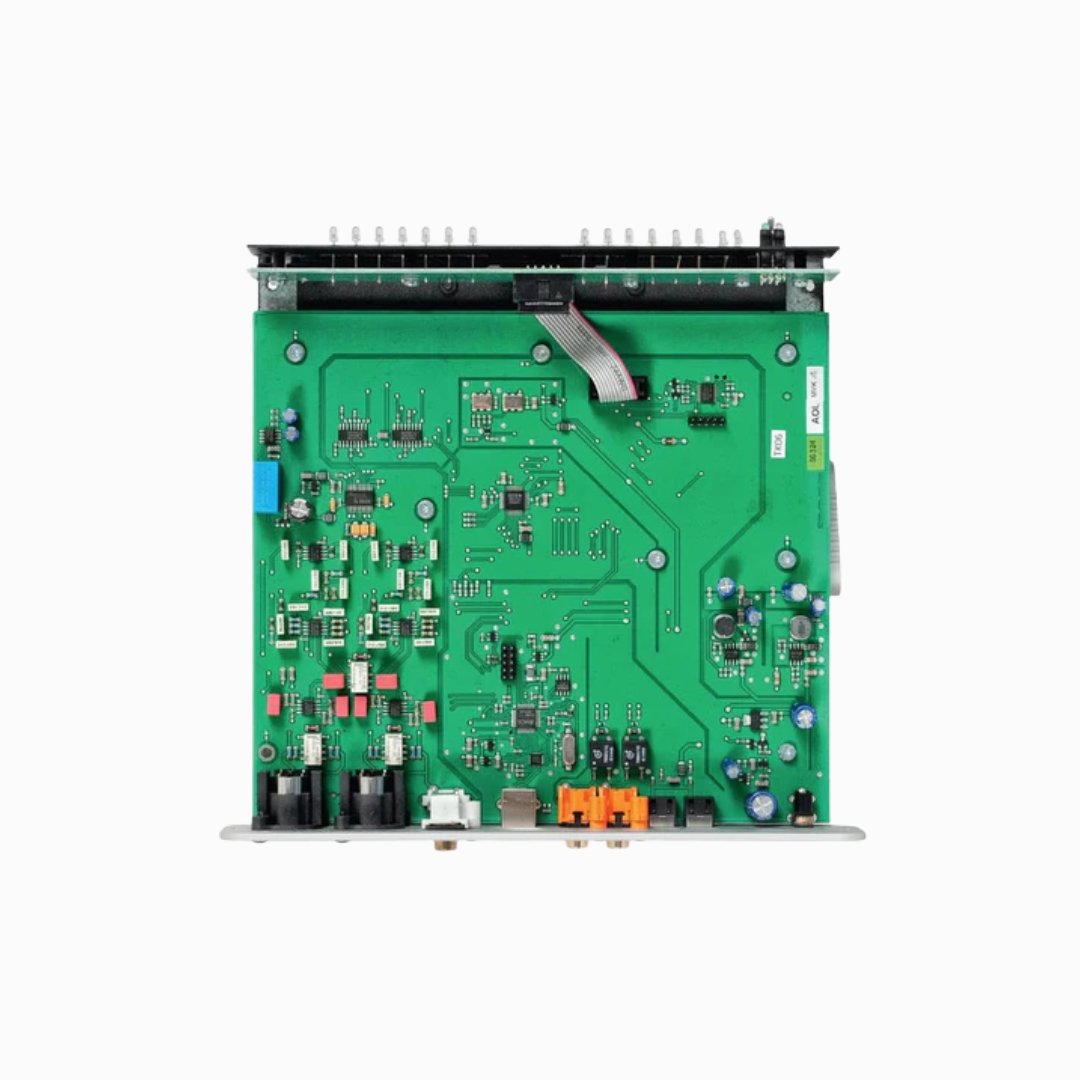

DAC Structure	Sample rate converter: SRC4392 up-sampling data to 192kHz Digital to Analogue converter: PCM1795 32 bit / 192kHz Multi-bit Sigma-Delta type
Performance	Output Voltage: 2 Volts RMS single-ended (RCA) Output Voltage: 4 Volts RMS balanced (XLR) PCM THD: <0.002% PCM THD (+ noise): <0.003% DSD THD: <0.003% DSD THD (+ noise): <0.006% PCM Frequency Response: –3dB, 2Hz to 90kHz PCM Frequency Response: –3dB, 2Hz to 40kHz Channel Separation: -110dB
Capabilities	Coaxial Inputs: S/PDIF up to 24 bit / 192kHz Optical Inputs: S/PDIF up to 24 bit / 192kHz

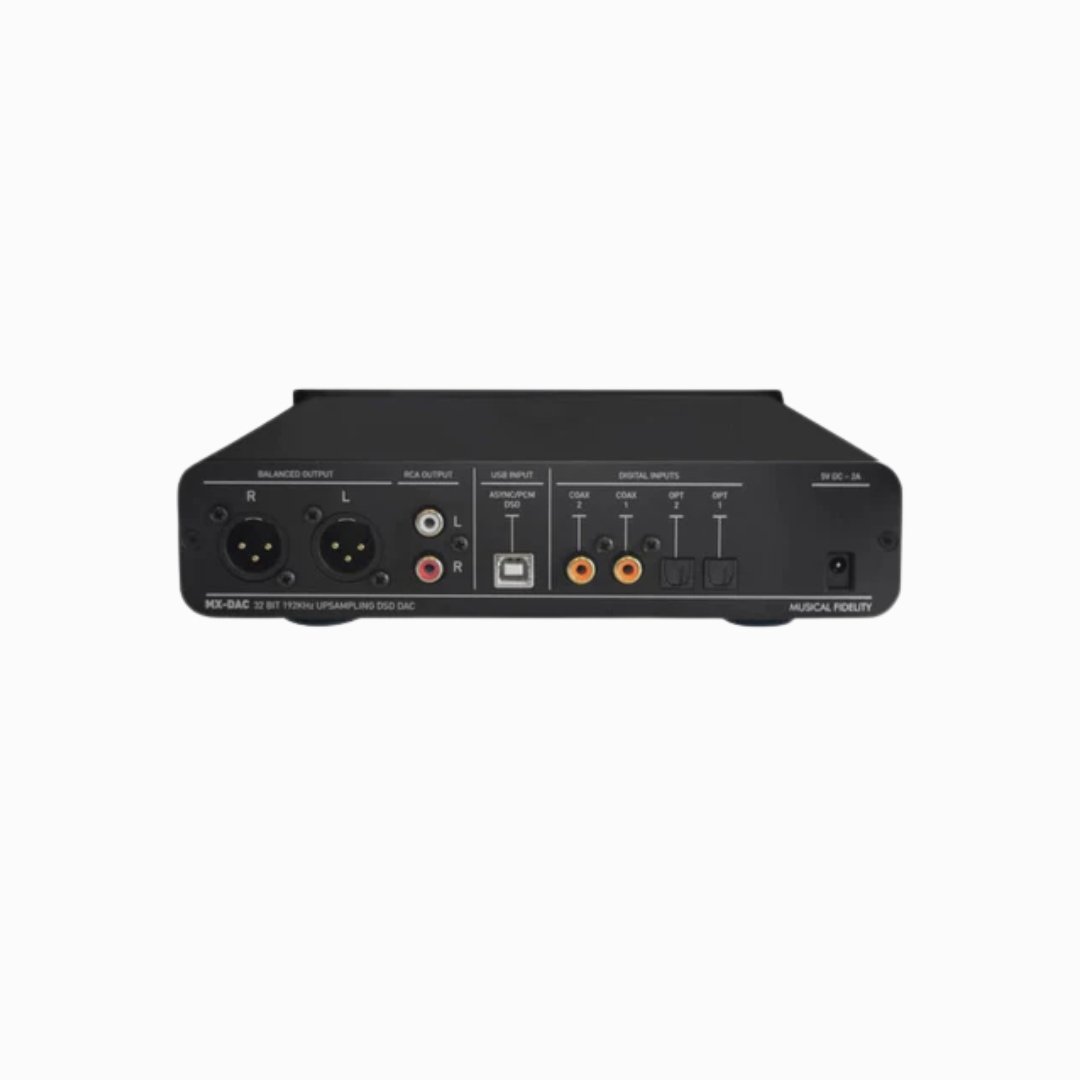

Inputs	2x RCA coaxial connector SPDIF 32-192kHz (16-24 bit stereo PCM) 2x TOSLINK optical connector 32-192kHz (16-24 bit stereo PCM) 1x USB type ‘B’ connector Asynchronous data stream at up to 24-bit/192kHz PCM as well as DSD64 and DSD128 (Determined by source file/computer settings)
Outputs	1x line level RCA (single-ended) 1x XLR Male sockets (balanced) to EIA RS-297-A General Dimensions – WxHxD (mm): 220 x 53 x 215 Weight (unpacked/packed): 1.9Kg / 2.4Kg Power Consumption: <0.25 Watts standby, <1 Watt max.
Supplied Accessories	1x 5v / 2A DC power supply (90-250VAC universal worldwide supply) Windows driver CD User manual
