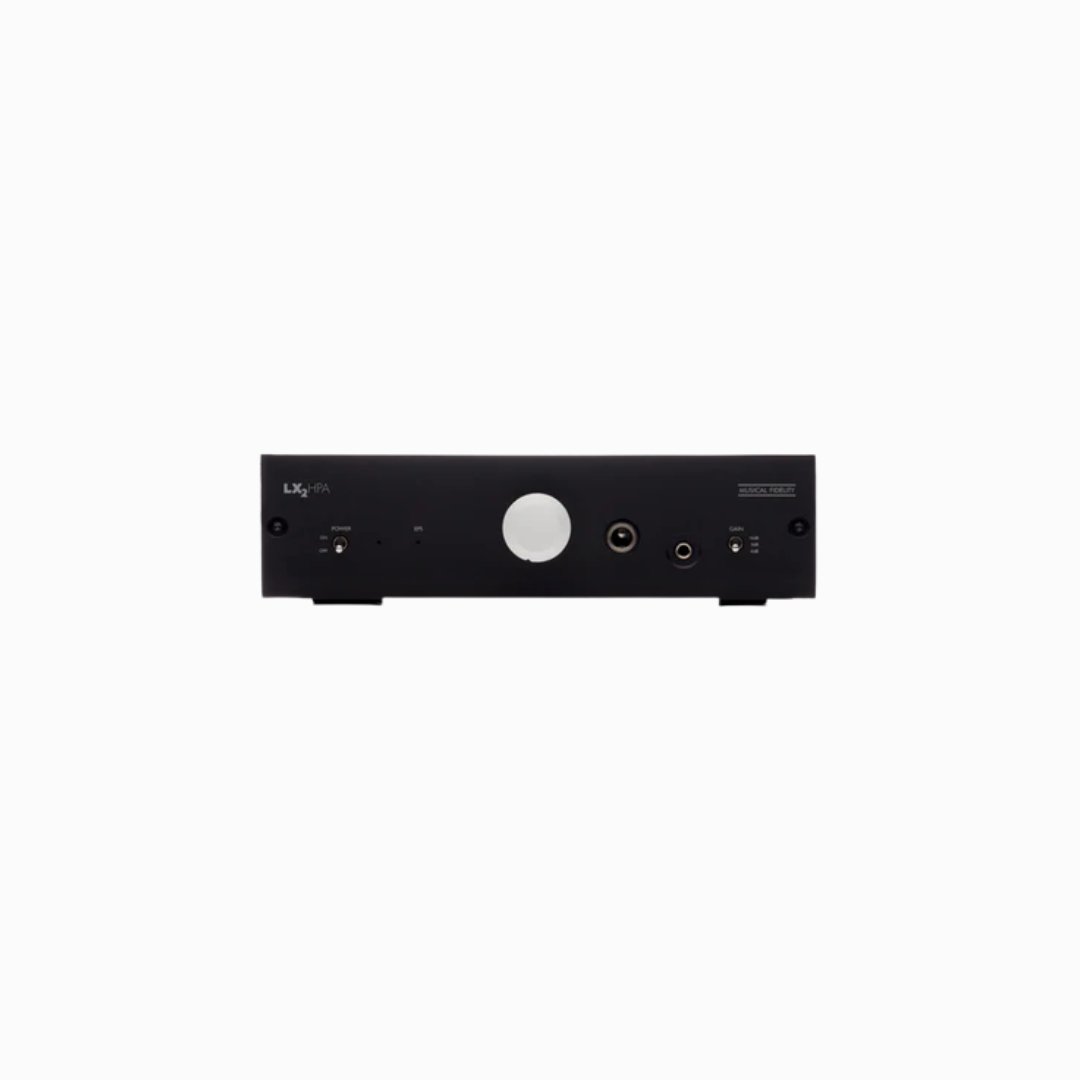

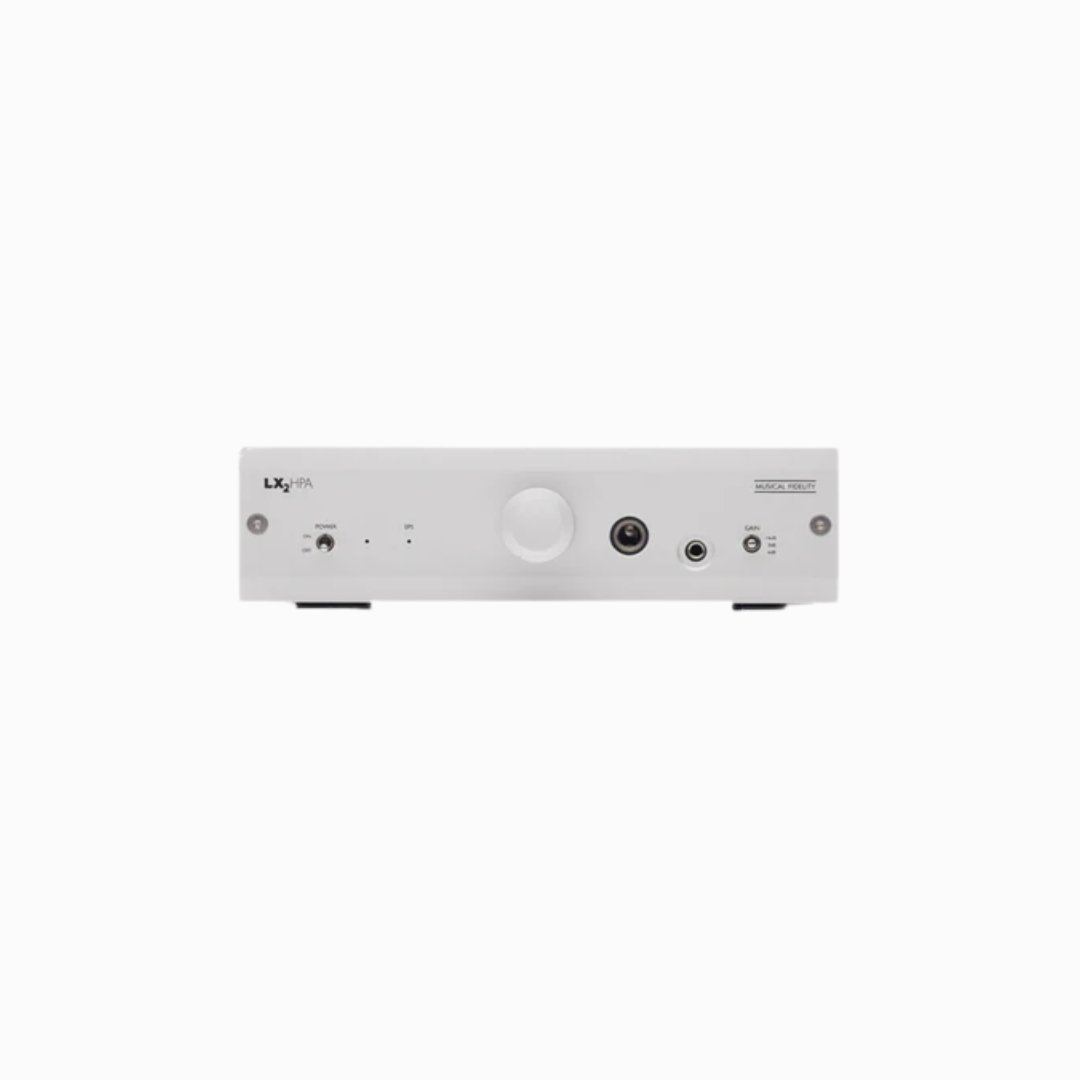

Musical Fidelity LX2 HPA - Headphone Amplifier

    • The Musical Fidelity LX2-HPA is a high-quality headphone amplifier built for audiophiles who want clean, neutral, and detailed sound. Designed with Musical Fidelity’s decades of experience, it delivers strong current drive and excellent stability, making it able to power virtually any commercially produced headphones without coloration. With distortion below 0.0035% across a wide frequency range, very high signal-to-noise, and bandwidth extending up to ~80 kHz, it aims to provide “black velvet” background quietness and solid channel separation for precise imaging. The build includes dual headphone outputs (6.3 mm and 3.5 mm), RCA input, and bypass output for connecting to other systems, along with a sturdy chassis in silver or black finishes. While the LX2-HPA has been discontinued, it remains well regarded for its transparent performance, elegant aesthetic, and ability to elevate headphone listening with minimal compromise.

Description

Musical Fidelity has extensive experience making super headphone amps, the LX2-HPA builds on our decades of experience to deliver a great performer with beautiful, restrained, and tasteful aesthetics.

Warranty:

1-year manufacturer’s warranty

Features:

  • The LX2-HPA will easily drive any commercially produced headphone. Its high current delivery and excellent stability margins result in completely uncoloured neutral performance.
  • Distortion at less than 0.0035%, the wide band is vanishingly low and certainly inaudible.
  • Bandwidth extends to about 80kHz, and even at 40kHz the distortion remains well below 0.05%. A remarkable achievement.
  • The outstanding noise ratio of better than 112dB means that the music comes from a true ‘black velvet’ background field.
  • Stereo separation is excellent and assures a rock-solid imaging experience. Talk about ‘adventures in inner space!

A headphone amplifier is like a small power amp; relative to the load (the headphones), the technical requirements are similar: Excellent load tolerance, high stability margins, low distortion, wide bandwidth, low noise, and excellent channel separation.

The LX2-HPA gives a sensual monitor-level listening experience. Completely uncoloured sound delivered with virtually limitless dynamic range from a black velvet background, and perfectly placed spatial imagery.

Technical Specifications:

Specifications
Total Harmonic Distortion 0.01%
Signal / Noise Ratio >80dB
General
Power Requirement 12 – 24V 100mA Regulated

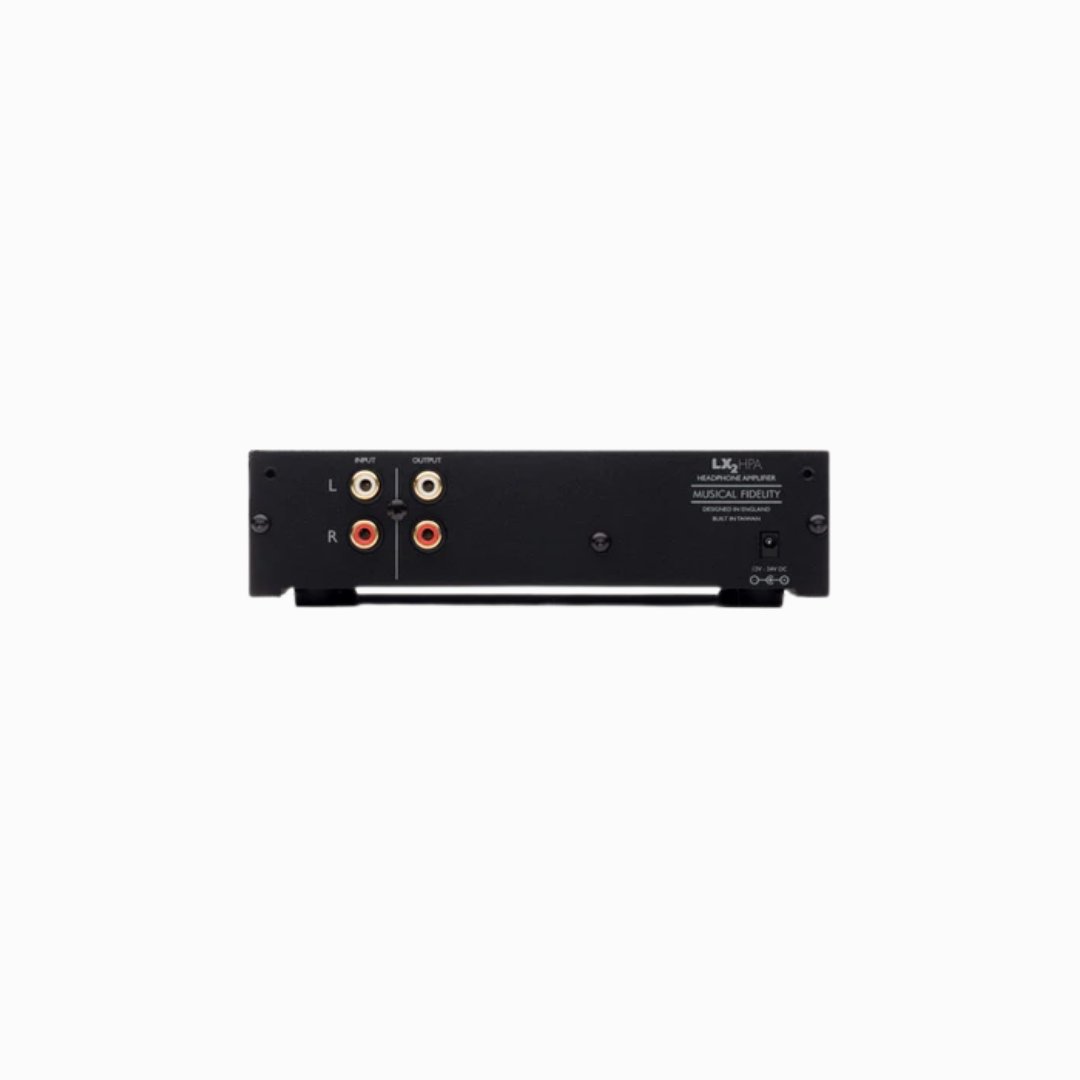

Connections
RCA Input 1pr RCA sockets
RCA Output 1pr RCA sockets
Headphone Output (6.3mm) 1 stereo jack socket (6.3mm)
Headphone Output (3.5mm) 1 stereo jack socket (3.5mm)
Power Input DC Jack (1.3mm inner pin, outer diam. 3.5mm
Dimensions
Length (including terminals) 197mm
Width 172mm
Height (including feet) 46.5 mm
Weight
Unit alone 1.05Kg
Unit with packing 1.50Kg
Included accessories
Power Supply 12V 500mA
